B1181

DTC B1181/18 Open in Driver Side Squib 2nd Step Circuit

DESCRIPTION

DTC Detection Condition:

The driver side squib (2nd step) circuit consists of the center airbag sensor, the spiral cable and the steering pad.

The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1181/18 is recorded when an open is detected in the driver side squib (2nd step) circuit.

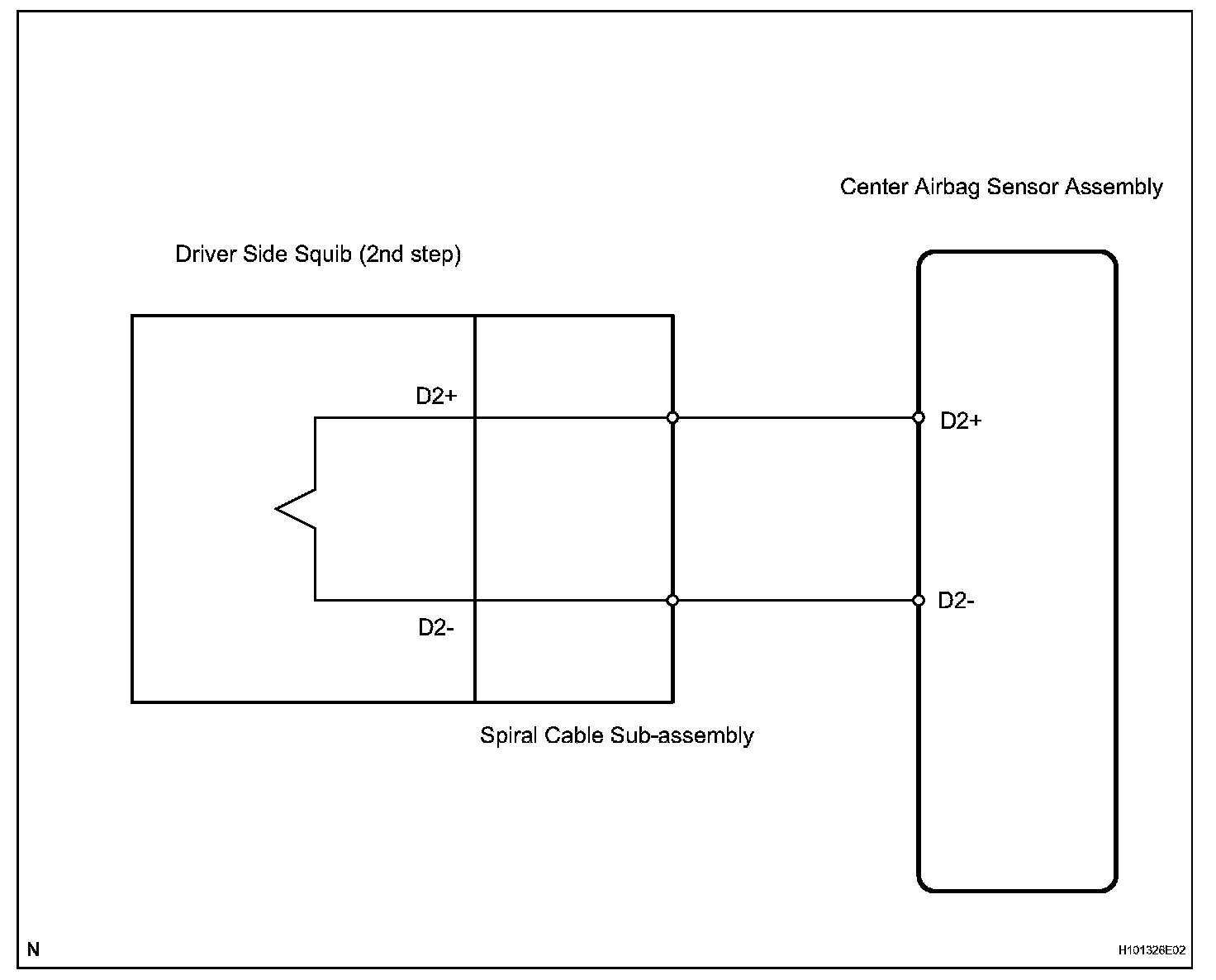

Wiring Diagram:

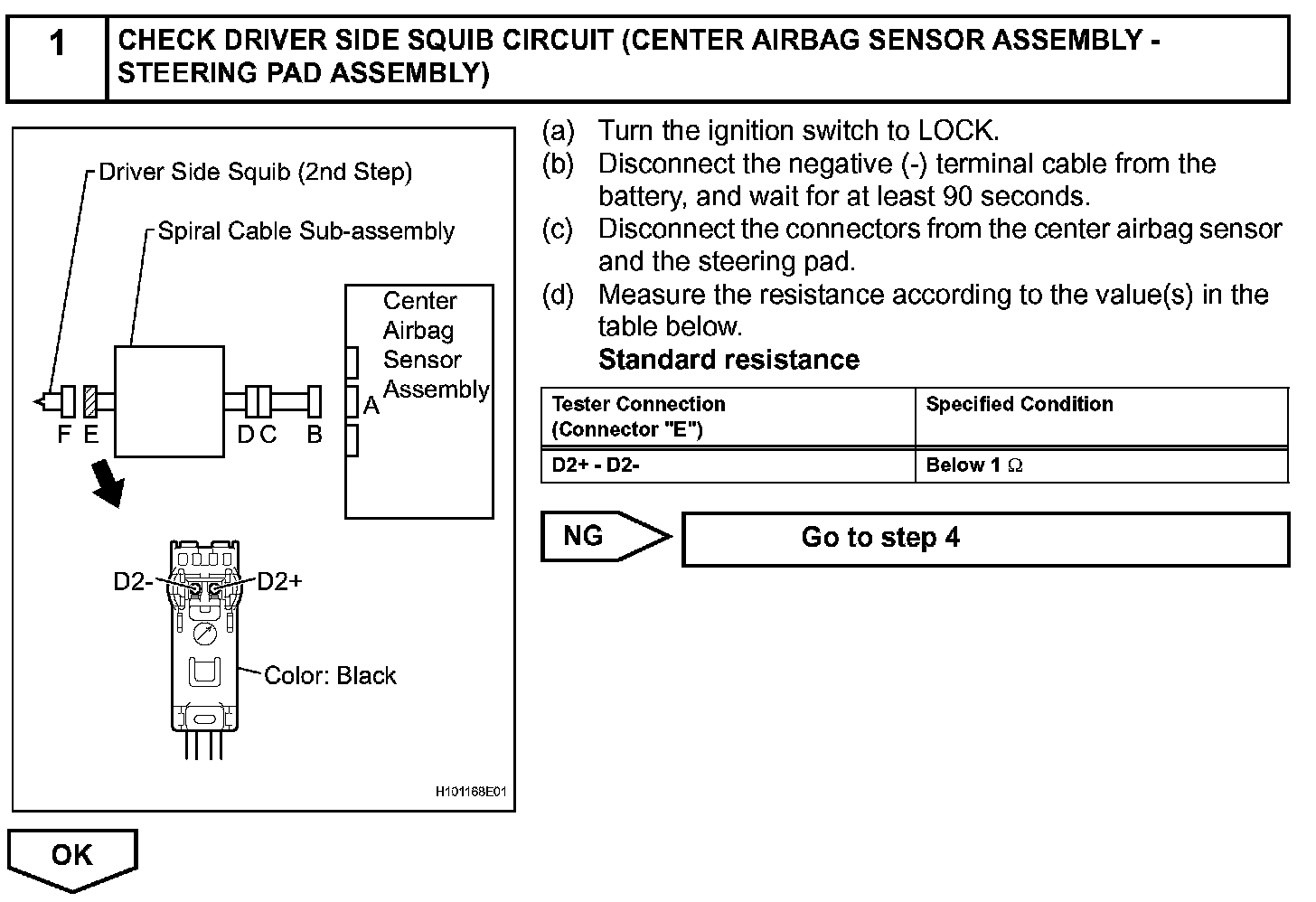

Step 1:

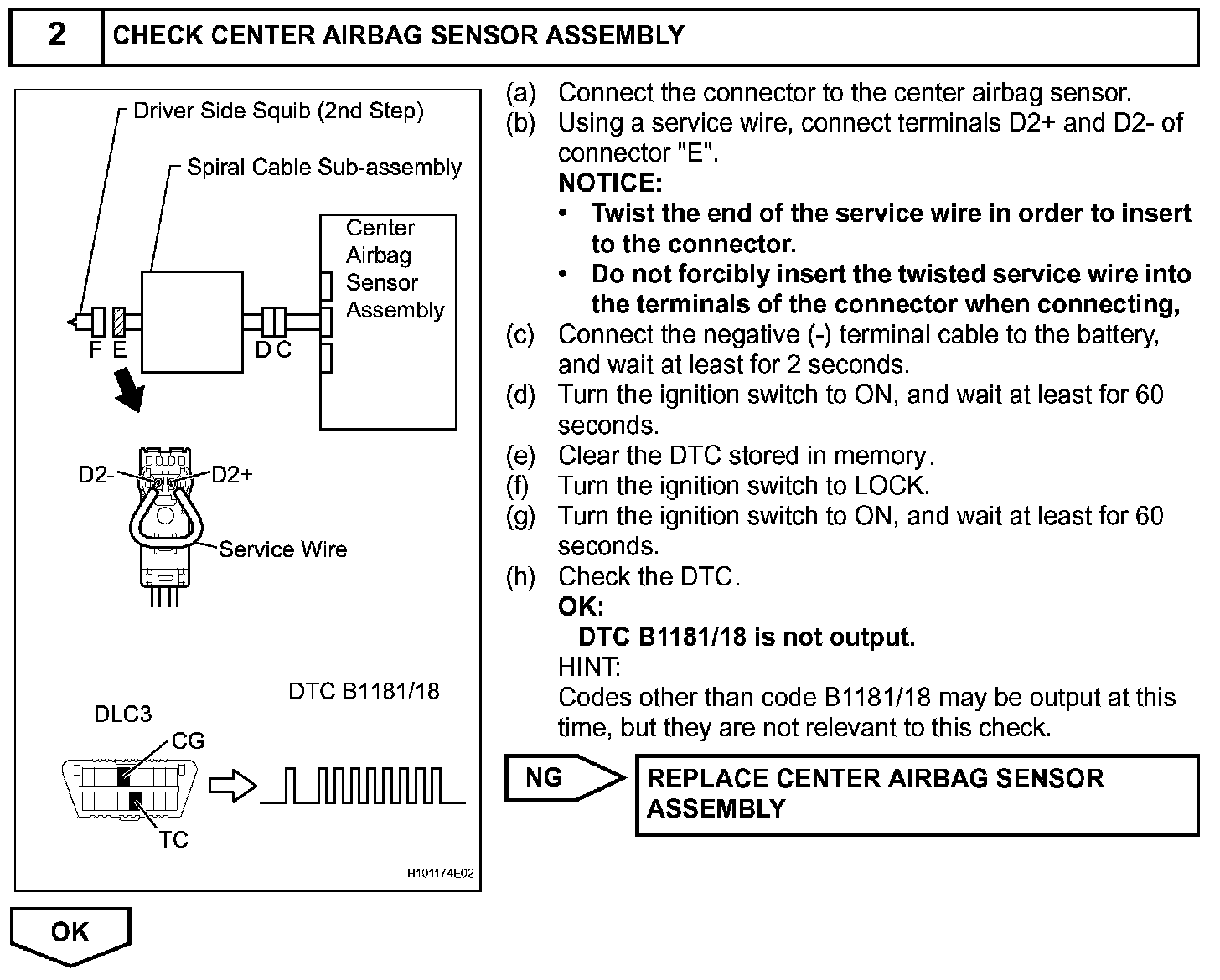

Step 2:

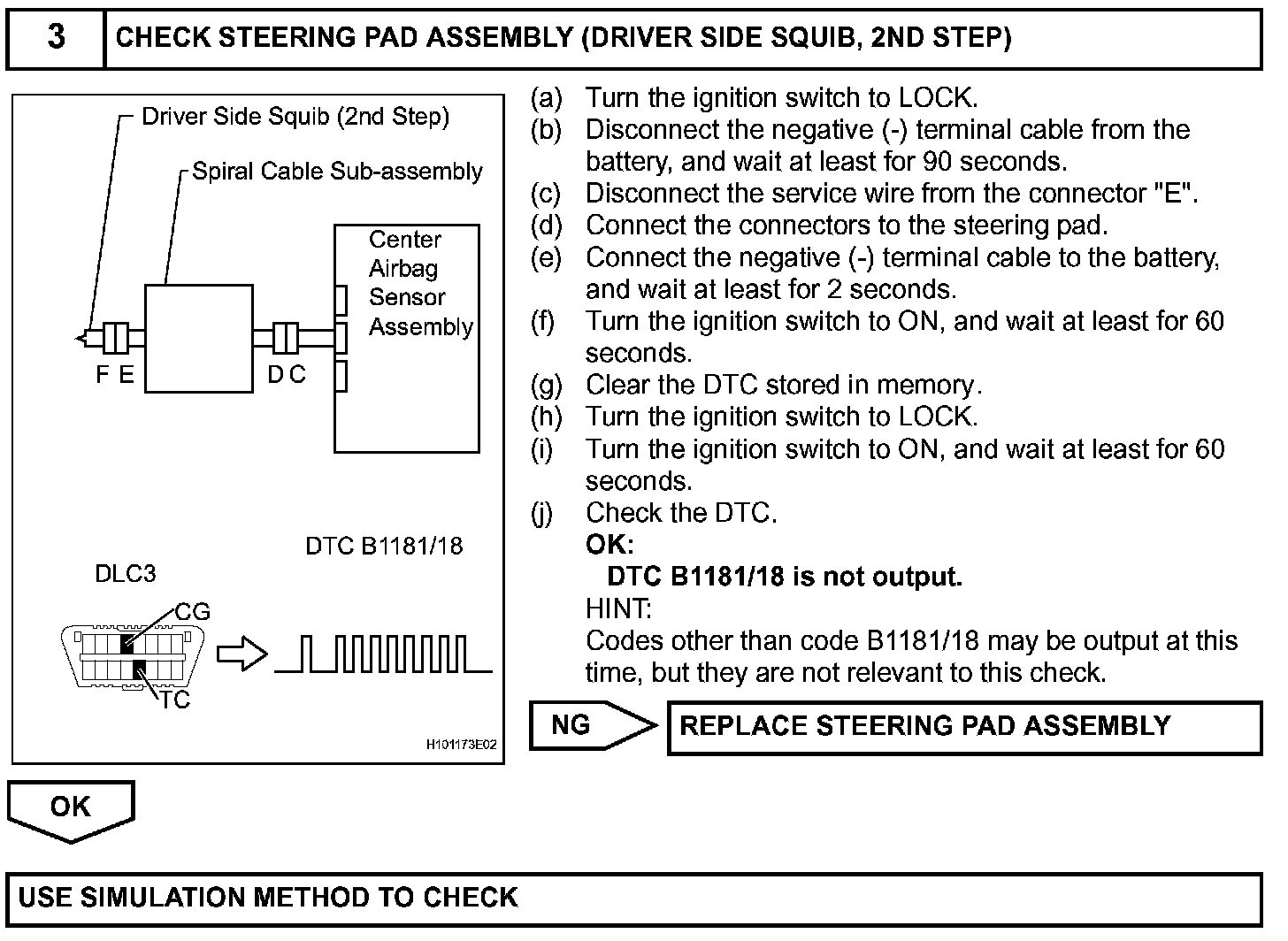

Step 3:

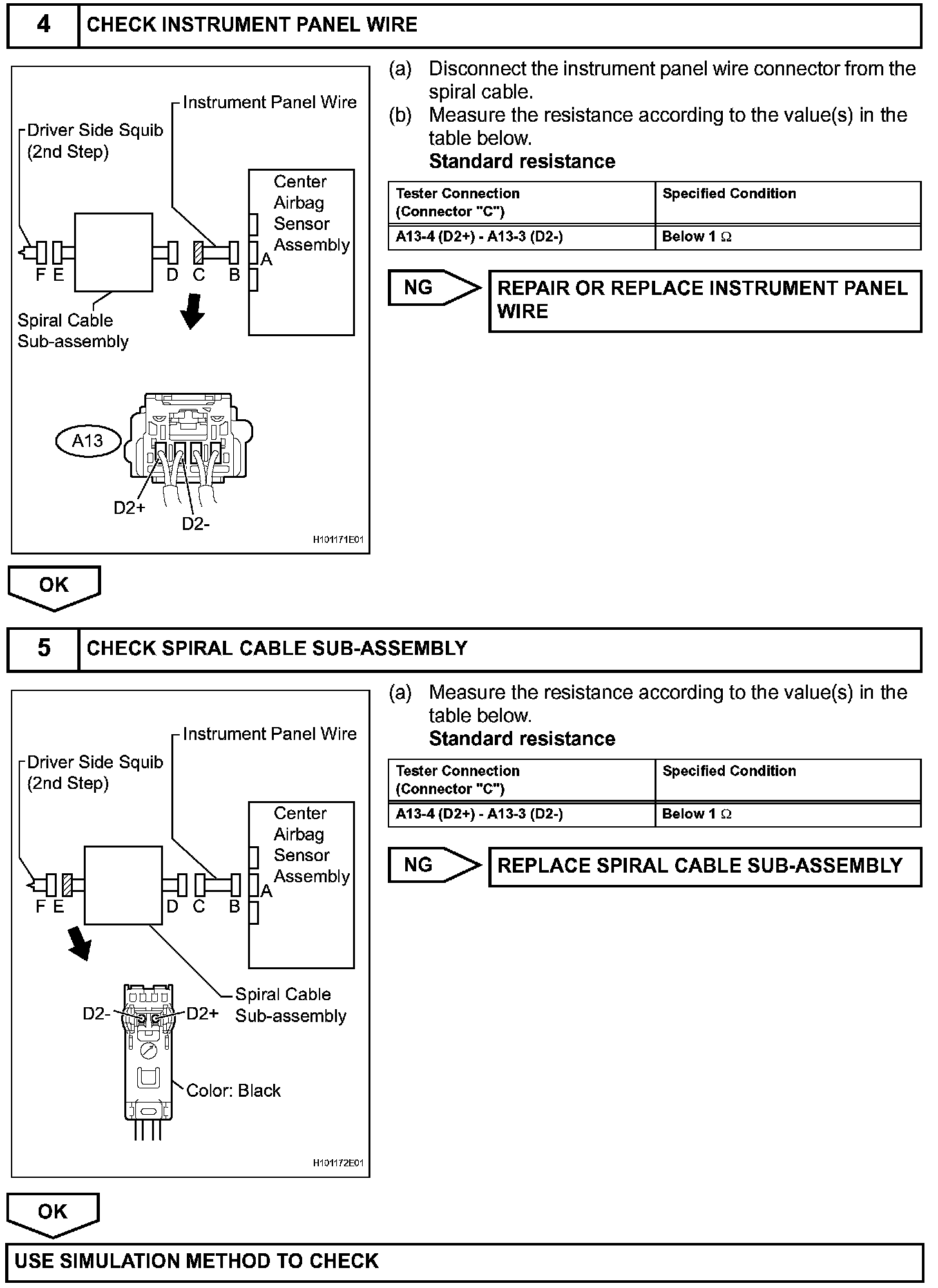

Step 4-5:

INSPECTION PROCEDURE
