B1167

DTC B1167/85 Short to GND in Curtain Shield Squib LH Circuit

DESCRIPTION

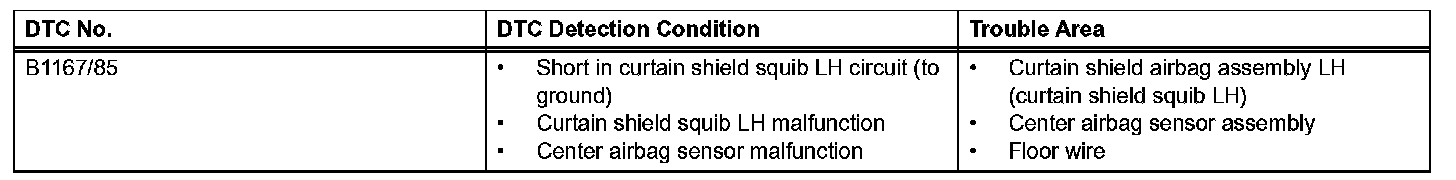

DTC Detection Condition:

The curtain shield squib LH circuit consists of the center airbag sensor and the curtain shield airbag LH. The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1167/85 is recorded when a ground short is detected in the curtain shield squib LH circuit.

HINT: DTC B1167/85 is indicated only for the vehicle equipped with the side airbag.

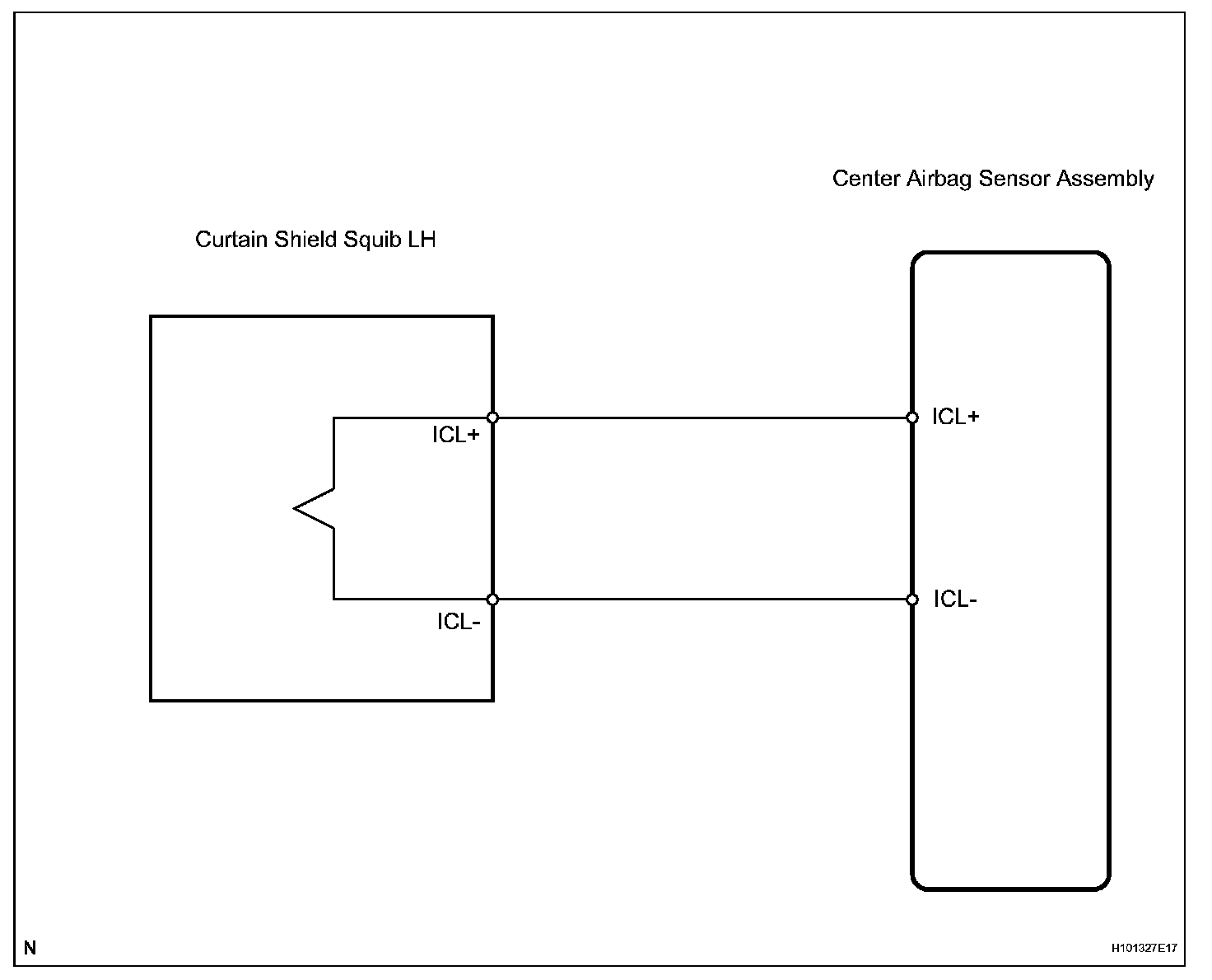

Wiring Diagram:

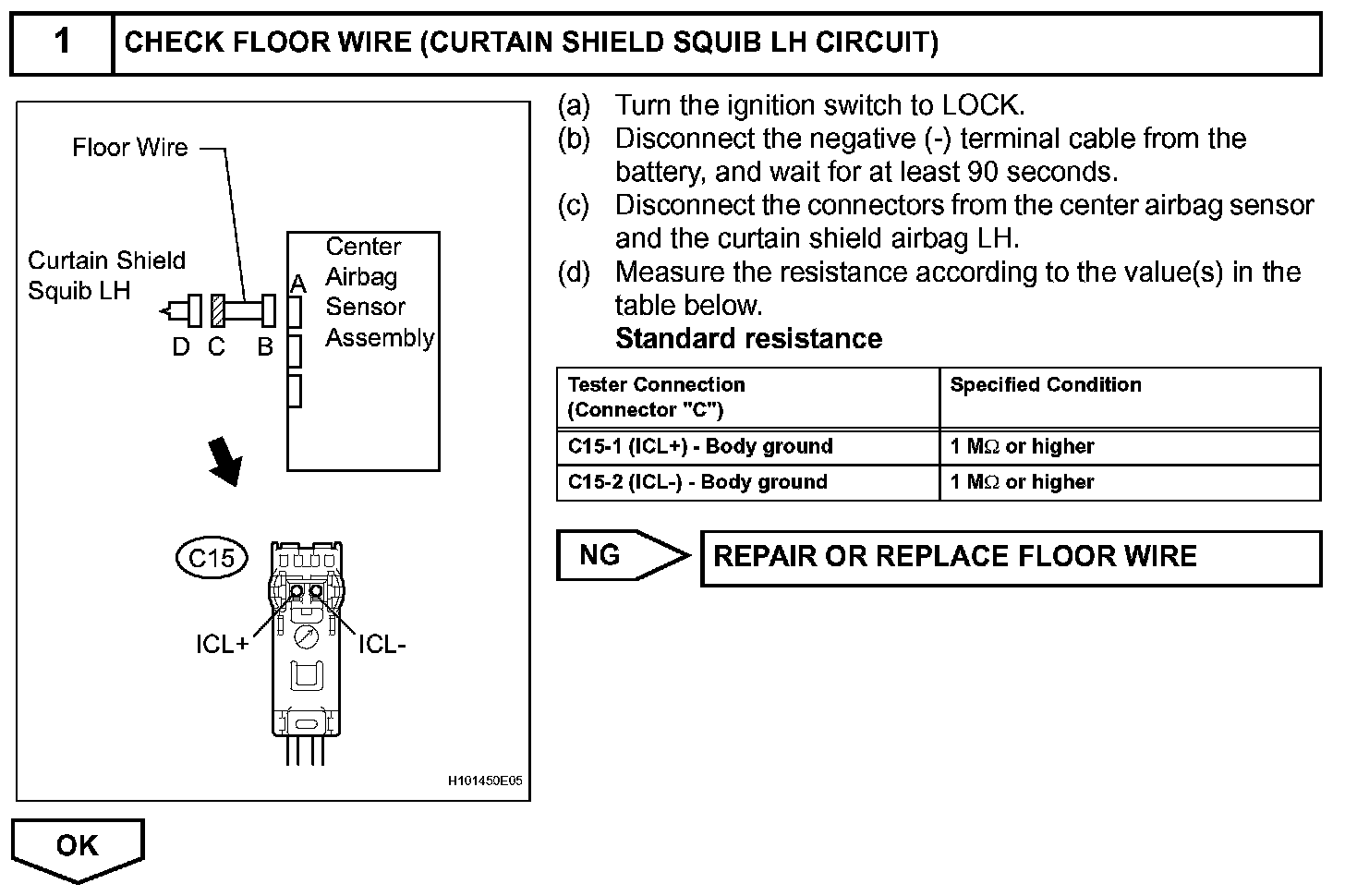

Step 1:

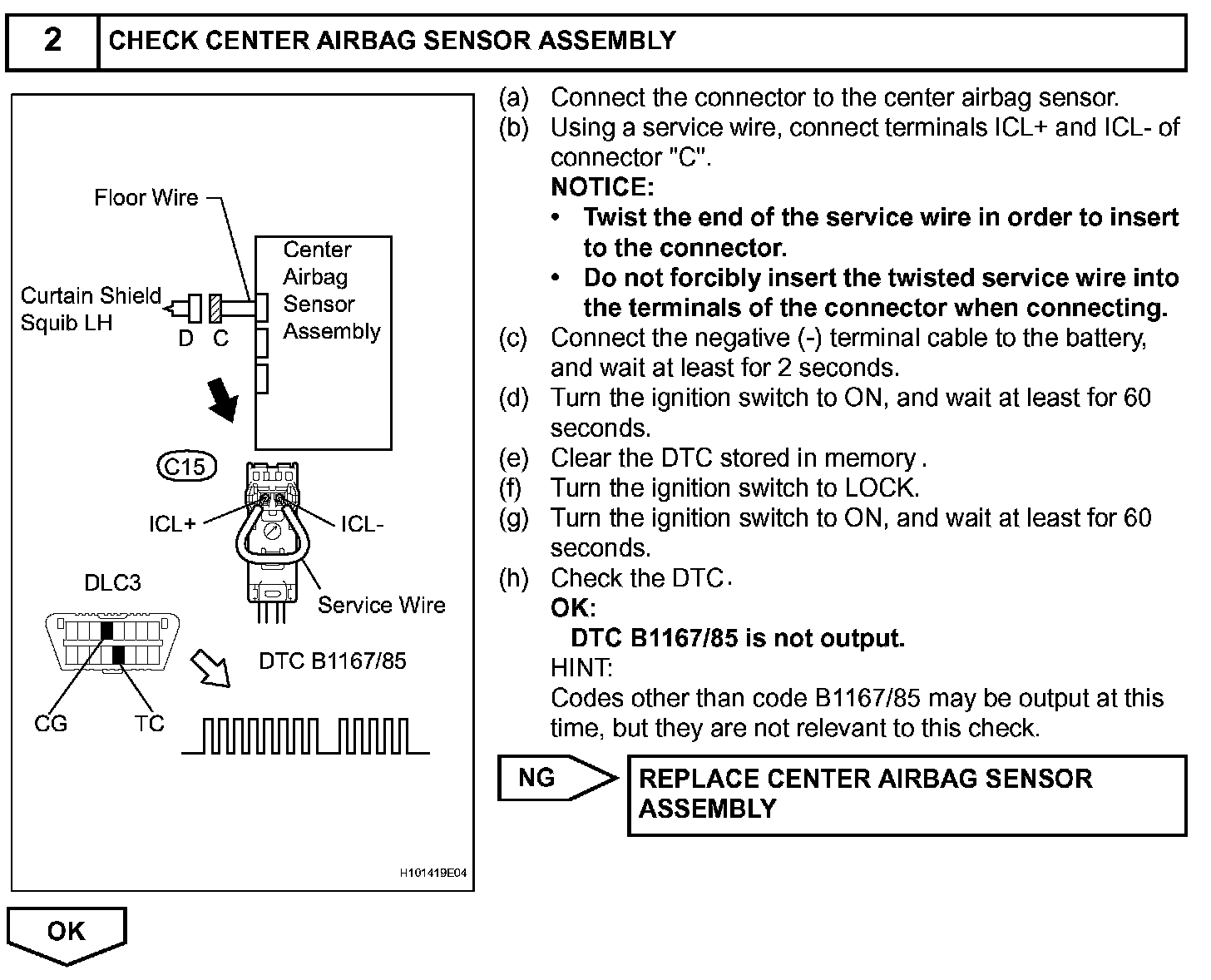

Step 2:

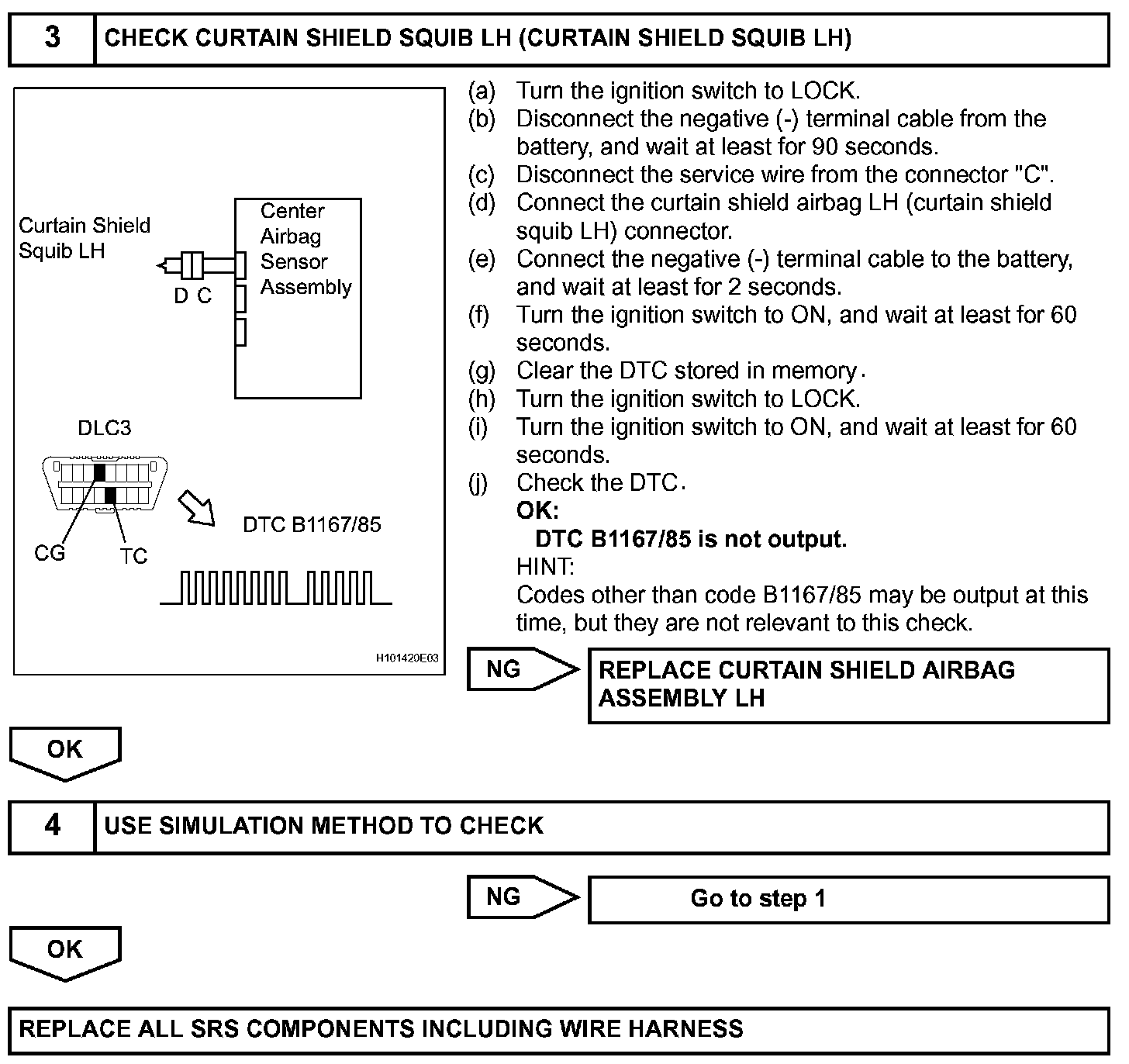

Step 3-4:

INSPECTION PROCEDURE
