B1162

DTC B1162/81 Short to GND in Curtain Shield Squib RH Circuit

DESCRIPTION

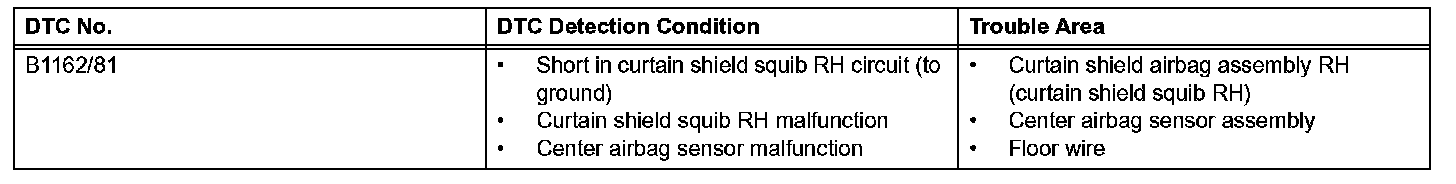

DTC Detection Condition:

The curtain shield squib RH circuit consists of the center airbag sensor and the curtain shield airbag RH. The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1162/81 is recorded when a ground short is detected in the curtain shield squib RH circuit.

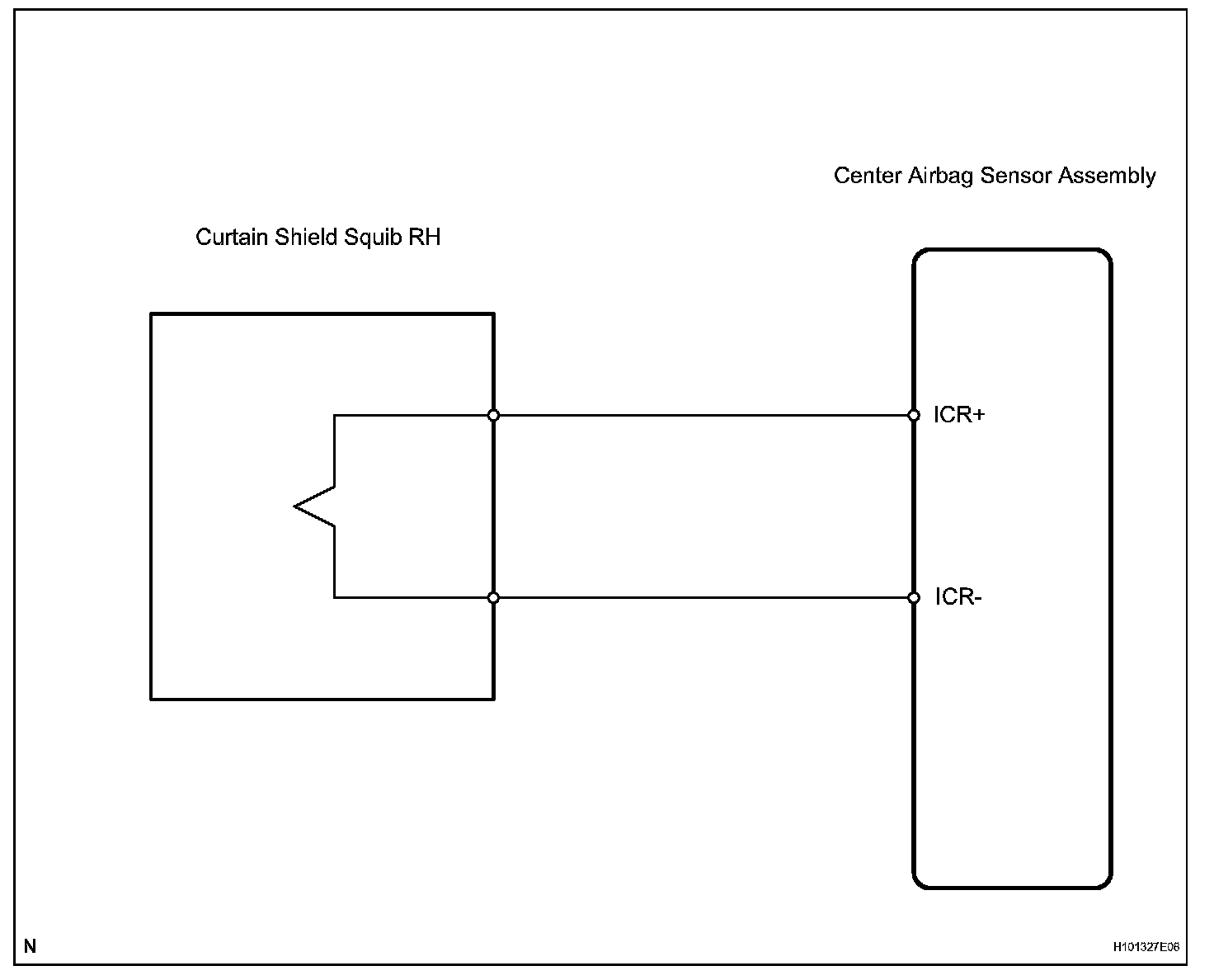

Wiring Diagram:

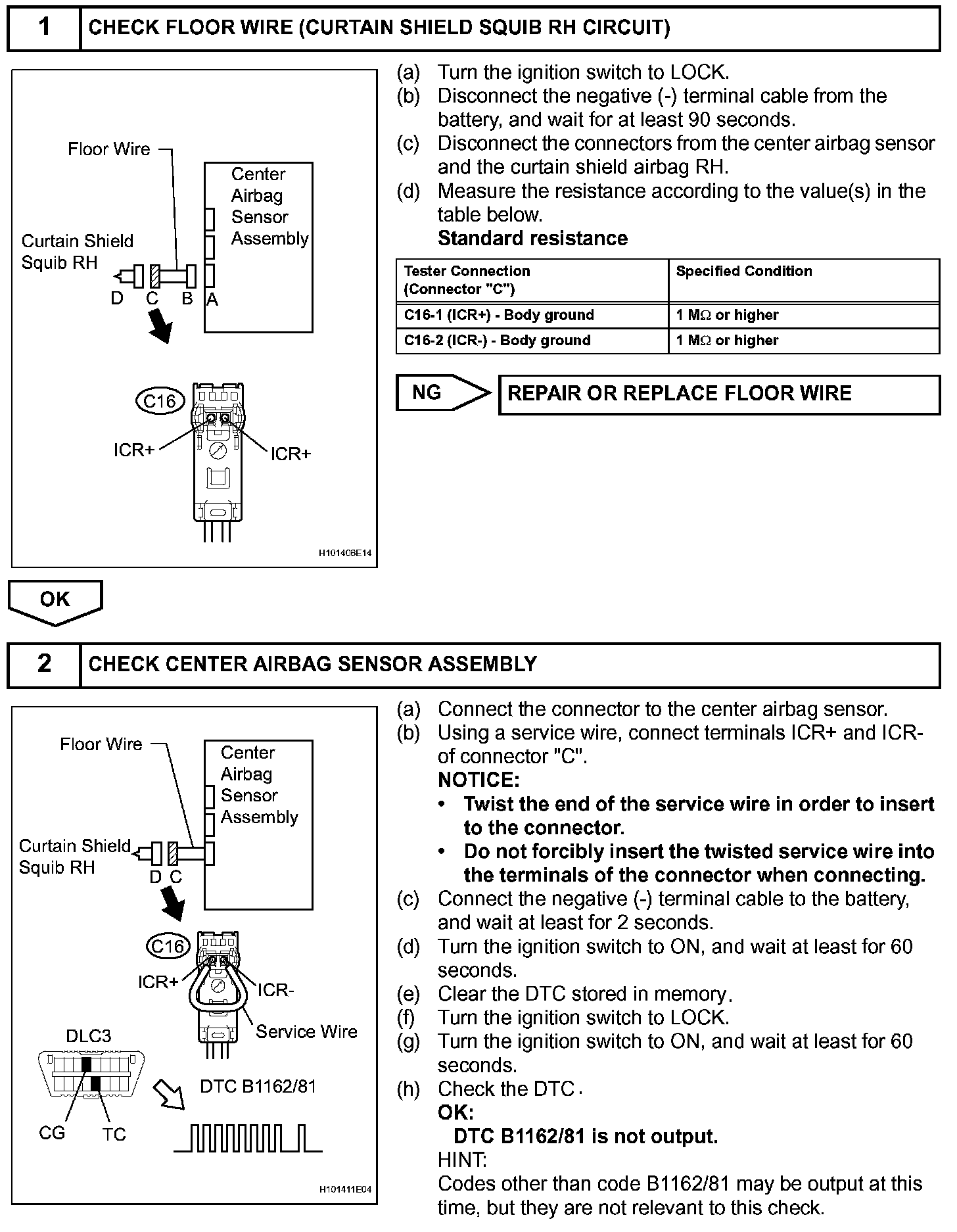

Step 1-2:

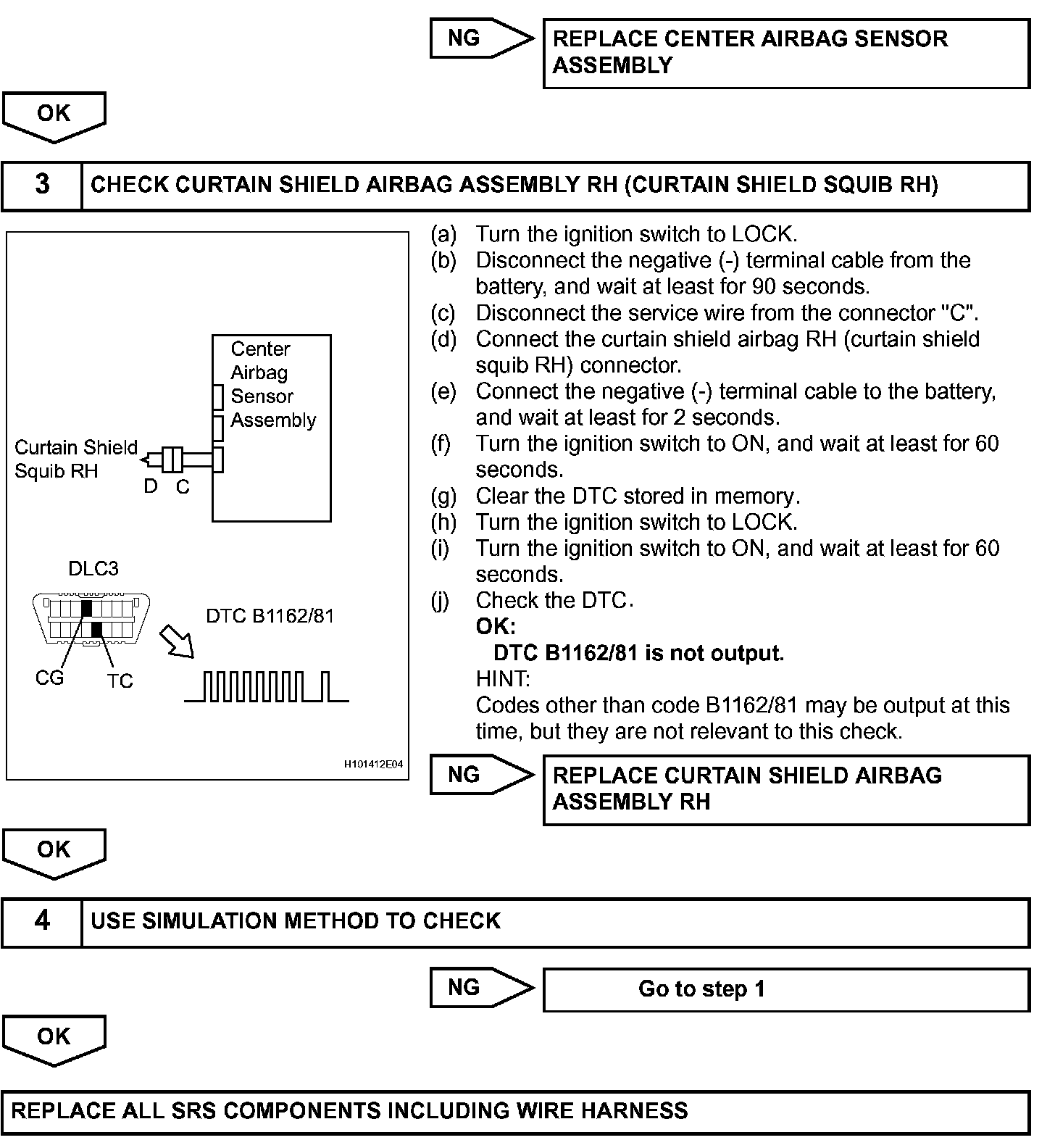

Step 2(continued)-4:

INSPECTION PROCEDURE
