B1161

DTC B1161/84 Open in Curtain Shield Squib RH Circuit

DESCRIPTION

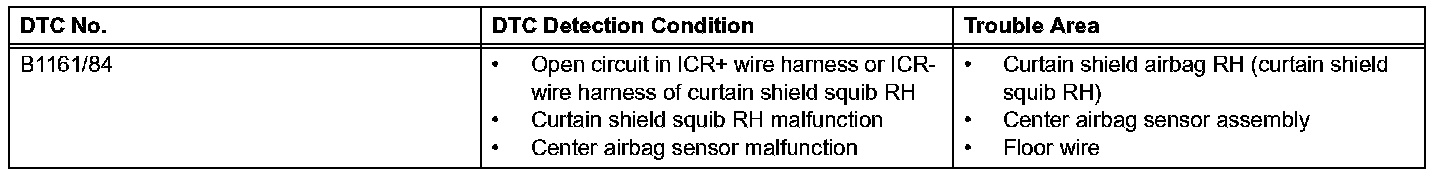

DTC Detection Condition:

The curtain shield squib RH circuit consists of the center airbag sensor and the curtain shield airbag RH. The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1161/84 is recorded when an open is detected in the curtain shield squib RH circuit.

HINT: DTC B1161/84 is indicated only for the vehicle equipped with the side airbag.

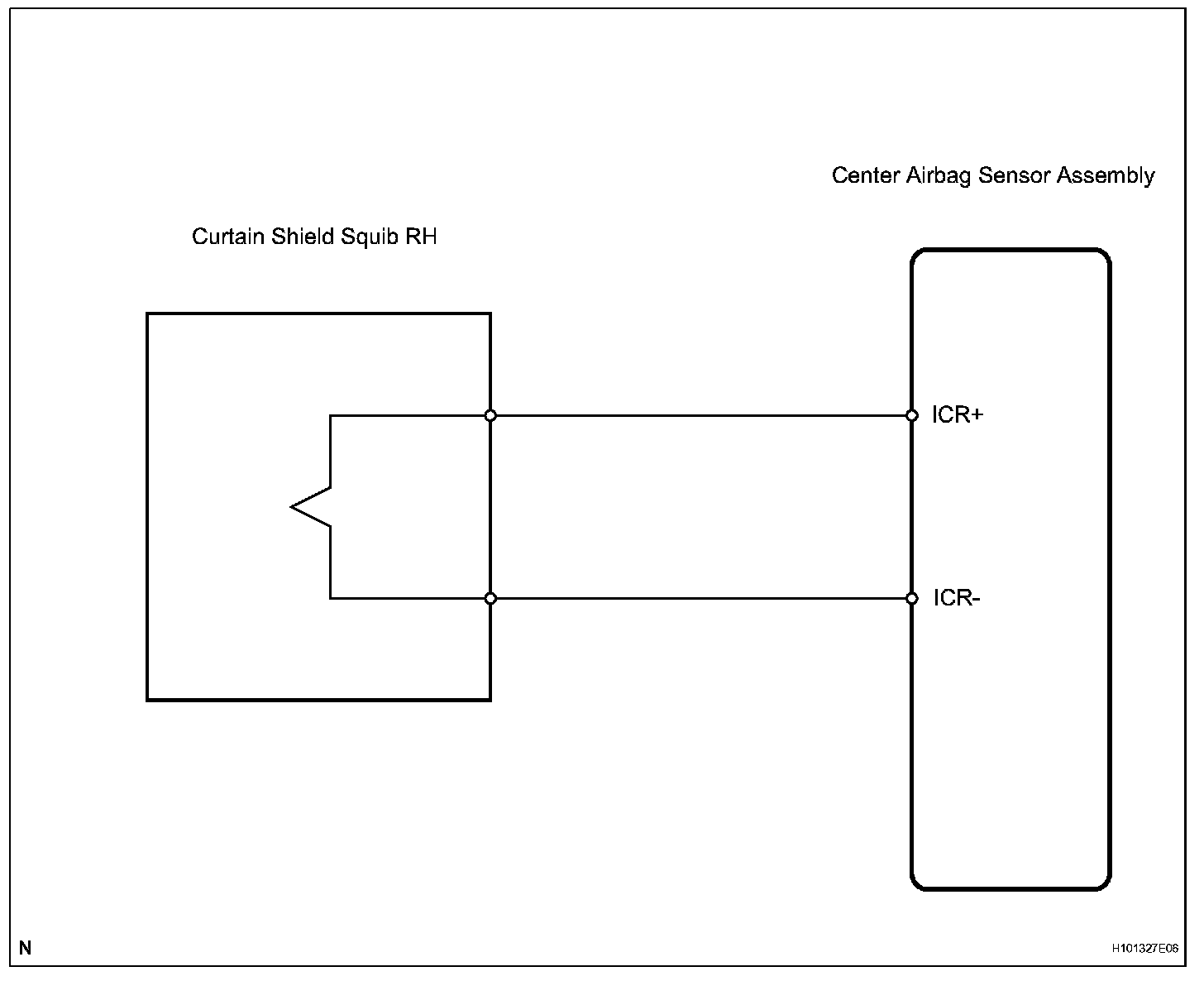

Wiring Diagram:

Step 1:

Step 2:

Step 3:

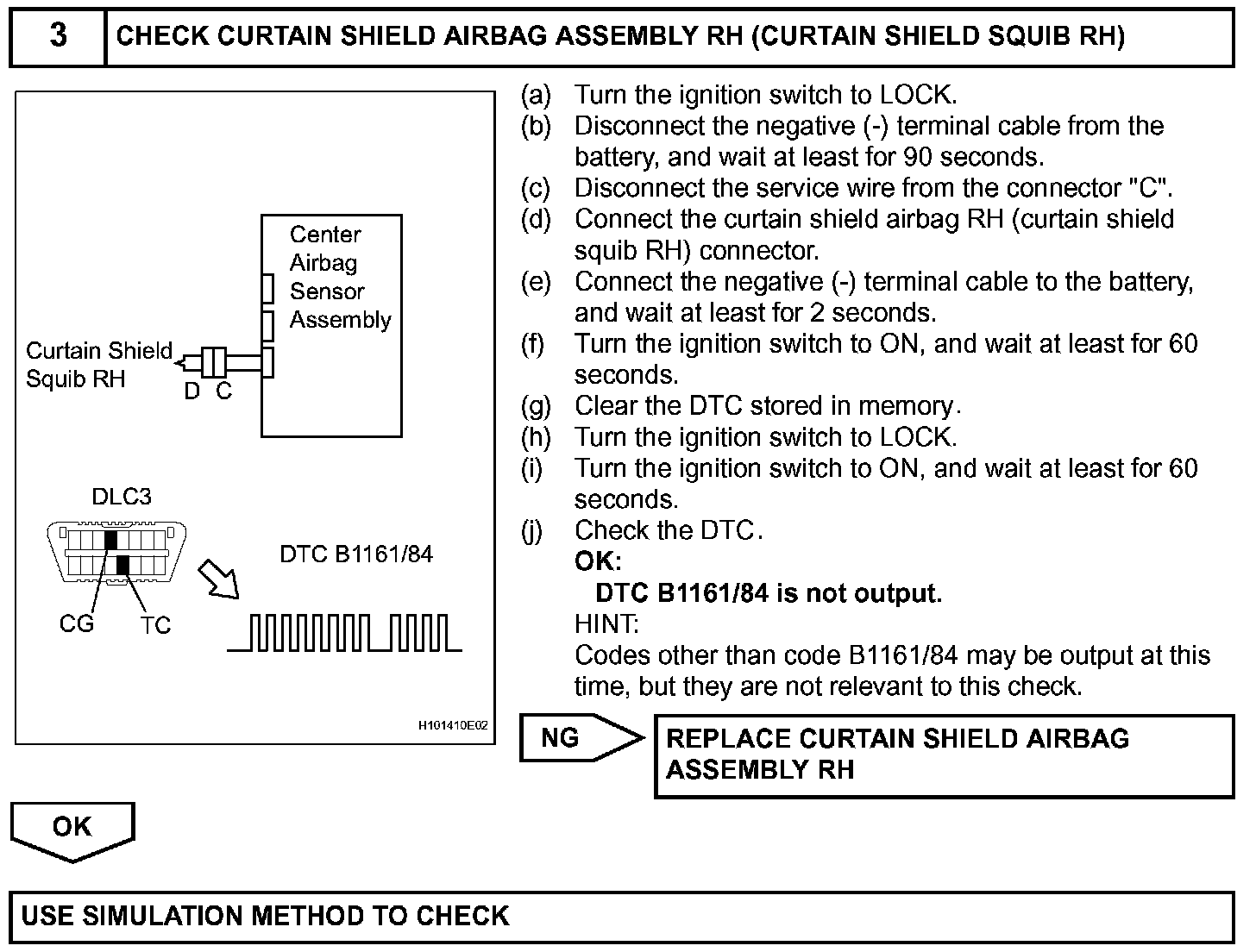

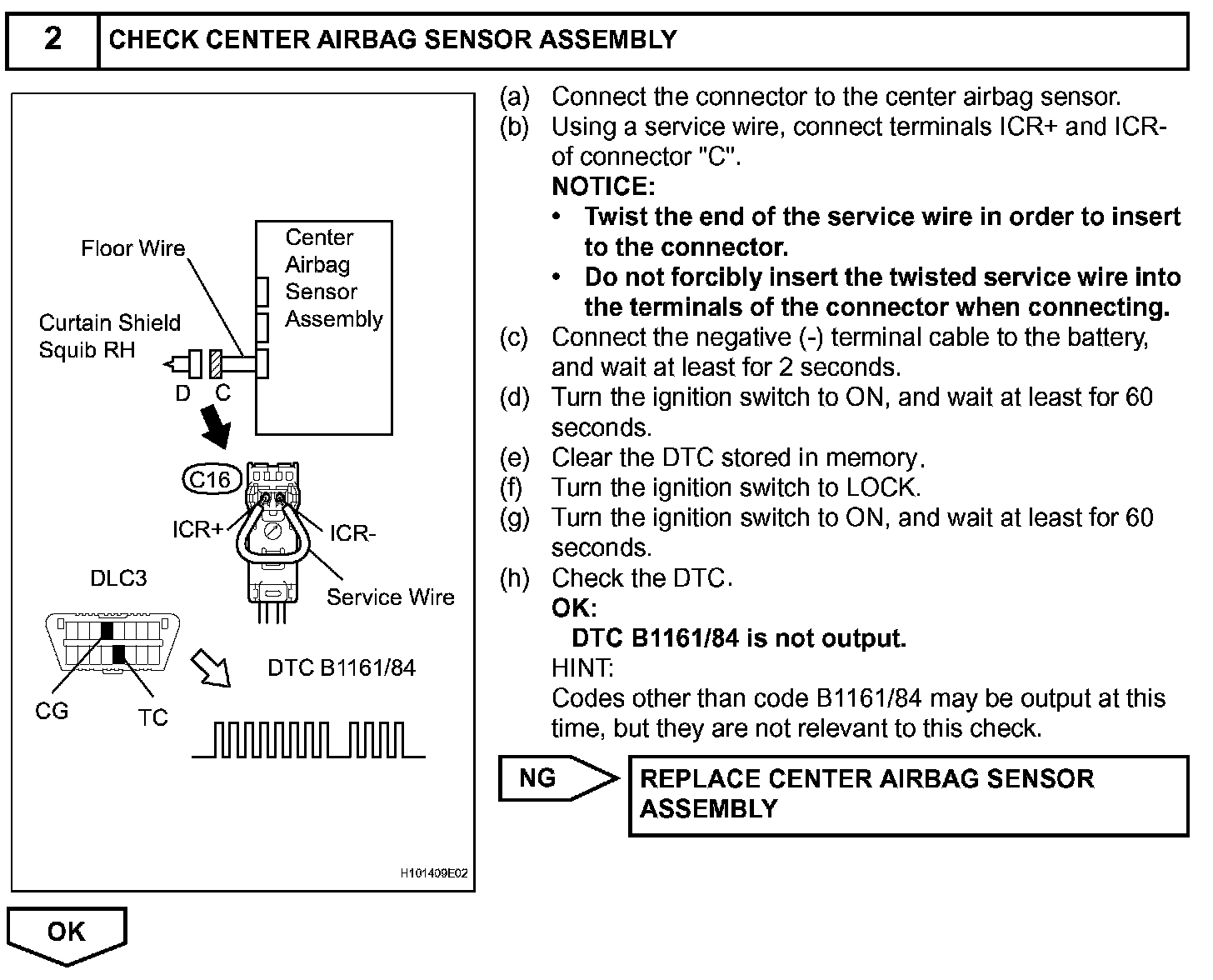

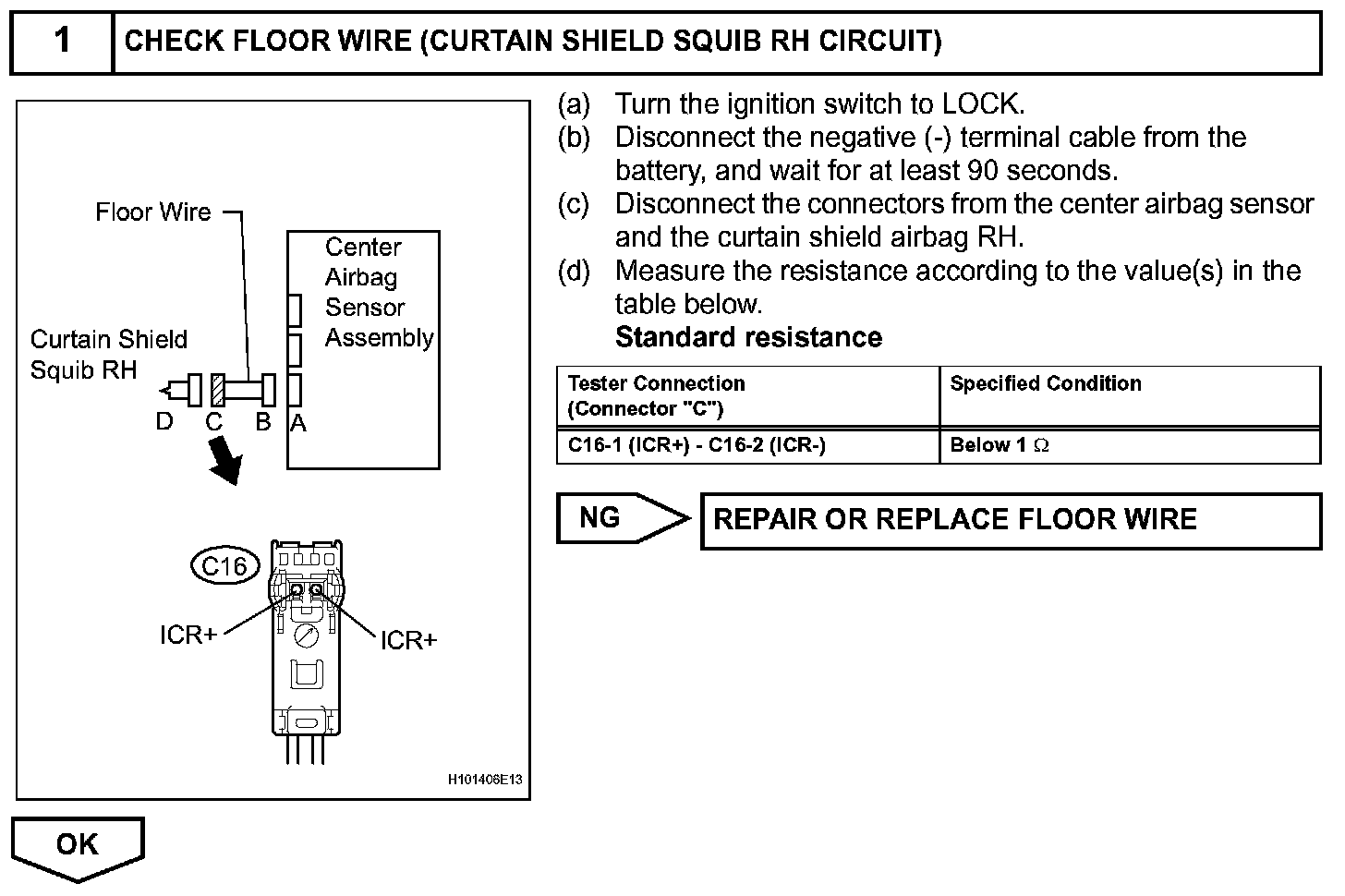

INSPECTION PROCEDURE
