B1160

DTC B1160/83 Short in Curtain Shield Squib RH Circuit

DESCRIPTION

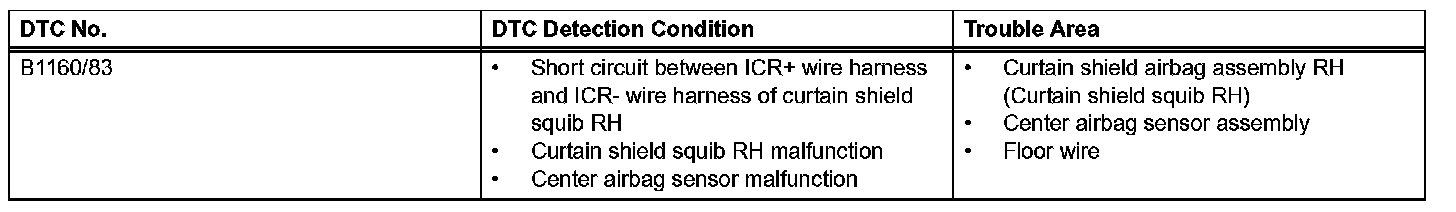

DTC Detection Condition:

The curtain shield squib RH circuit consists of the center airbag sensor and the curtain shield airbag RH. The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B1160/83 is recorded when a short is detected in the curtain shield squib RH circuit.

HINT: DTC B1160/83 is indicated only for the vehicle equipped with the side airbag.

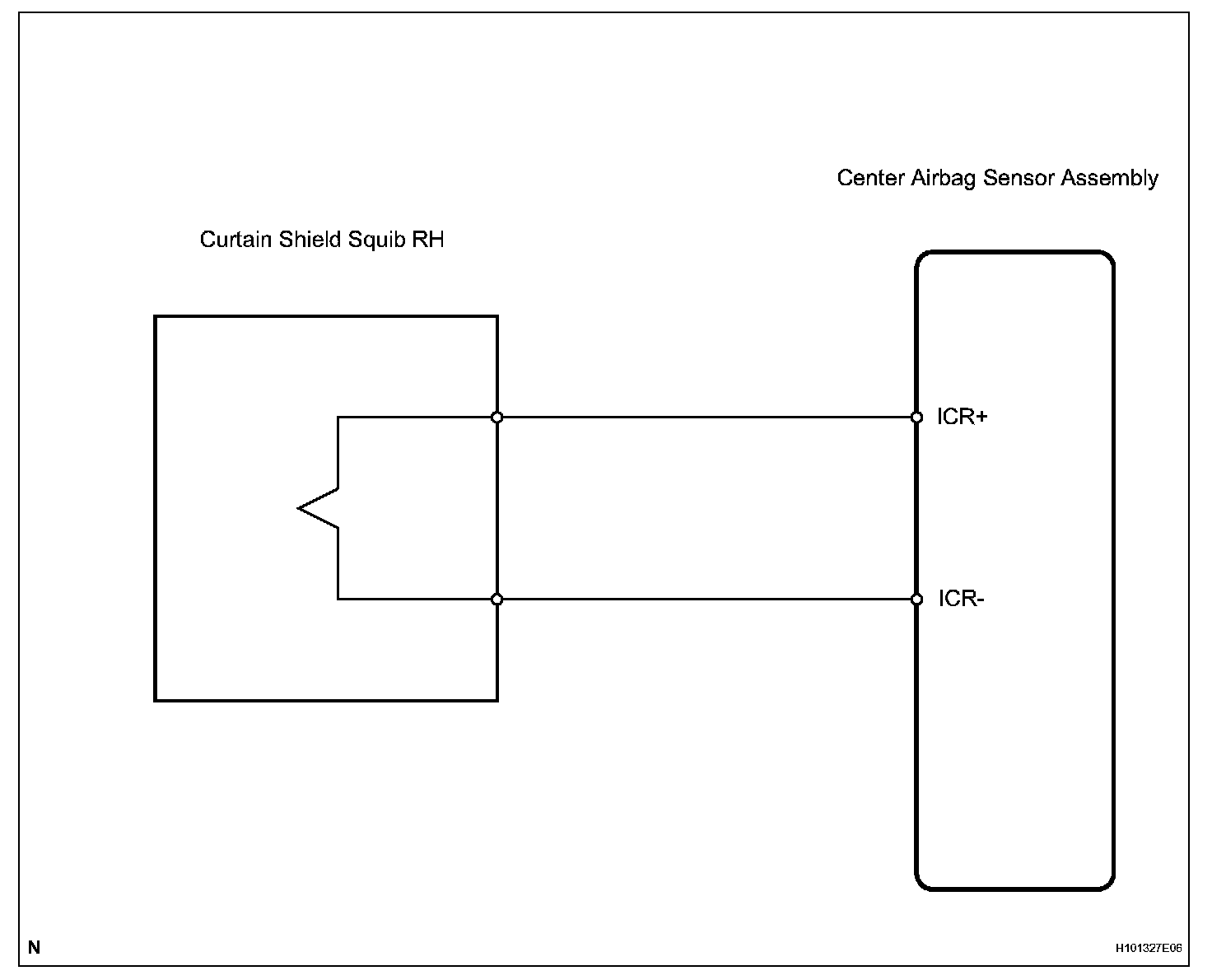

Wiring Diagram:

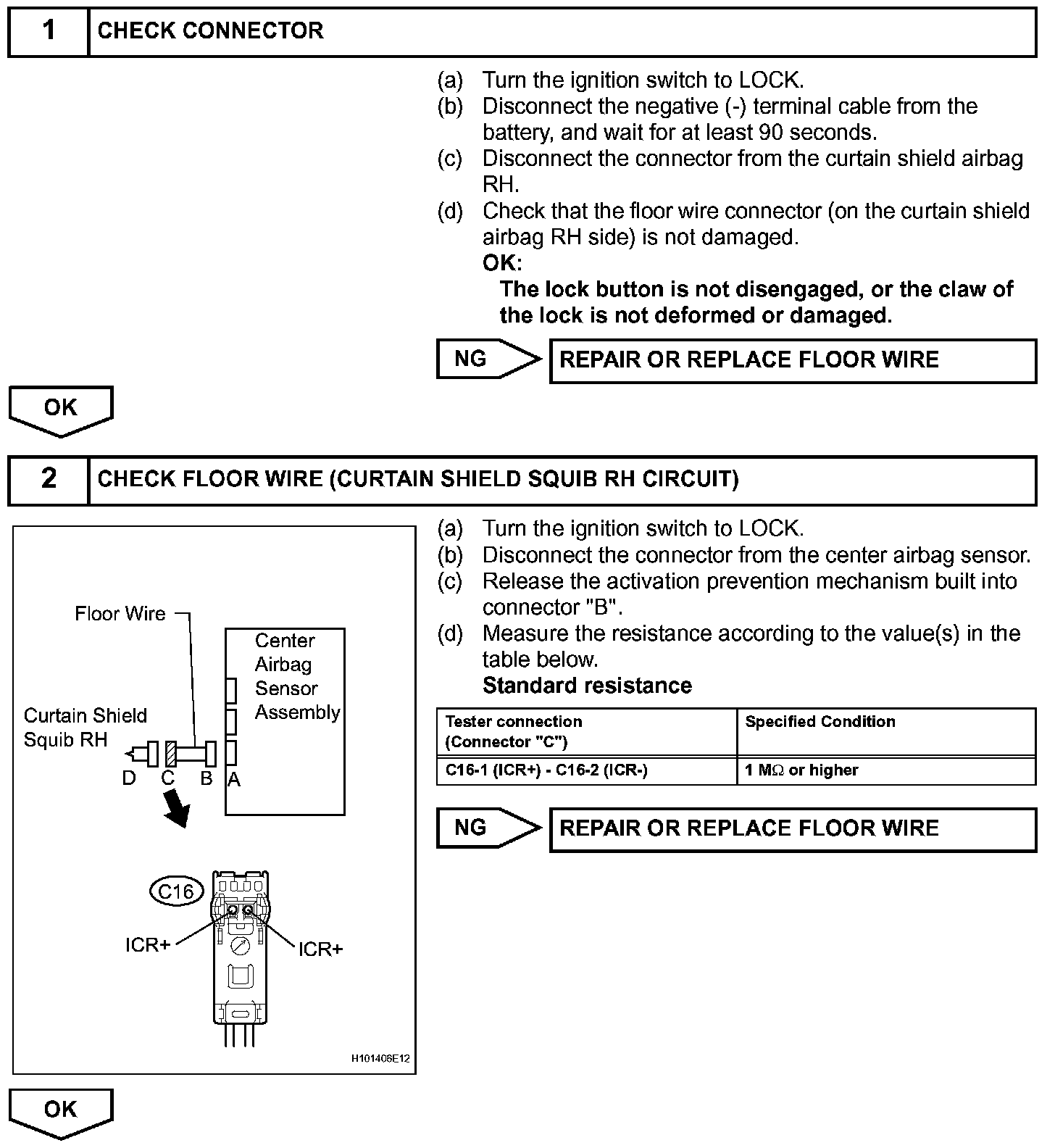

Step 1-2:

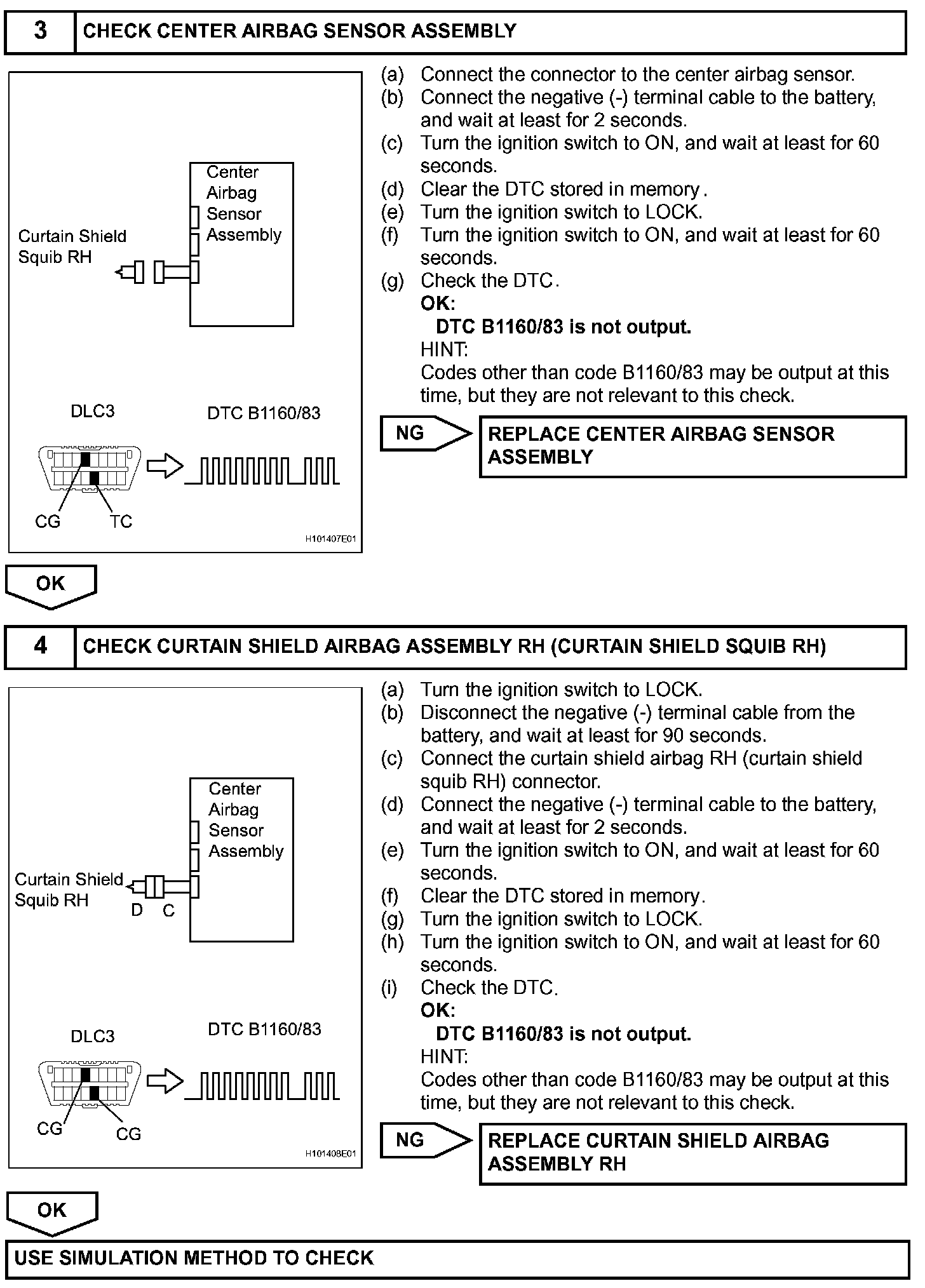

Step 3-4:

INSPECTION PROCEDURE
