B1159

DTC B1158/16 Front Airbag Sensor LH Malfunction
DTC B1159/16 Front Airbag Sensor LH Malfunction

DESCRIPTION

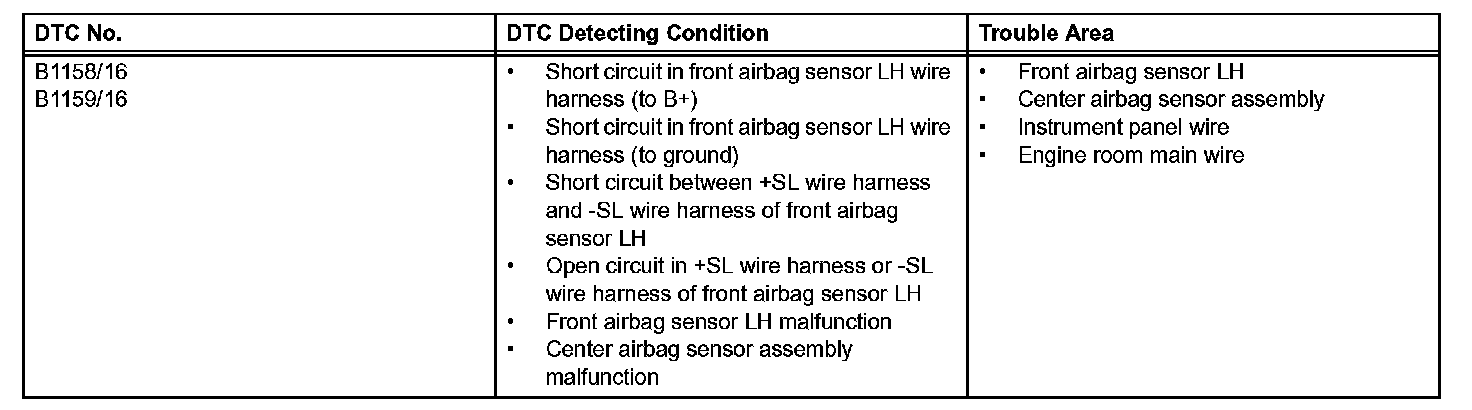

DTC Detection Condition:

The front airbag sensor LH circuit consists of the center airbag sensor assembly and front airbag sensor LH. DTC B1158/16 or B1159/16 is recorded when malfunction is detected in the front airbag sensor LH circuit.

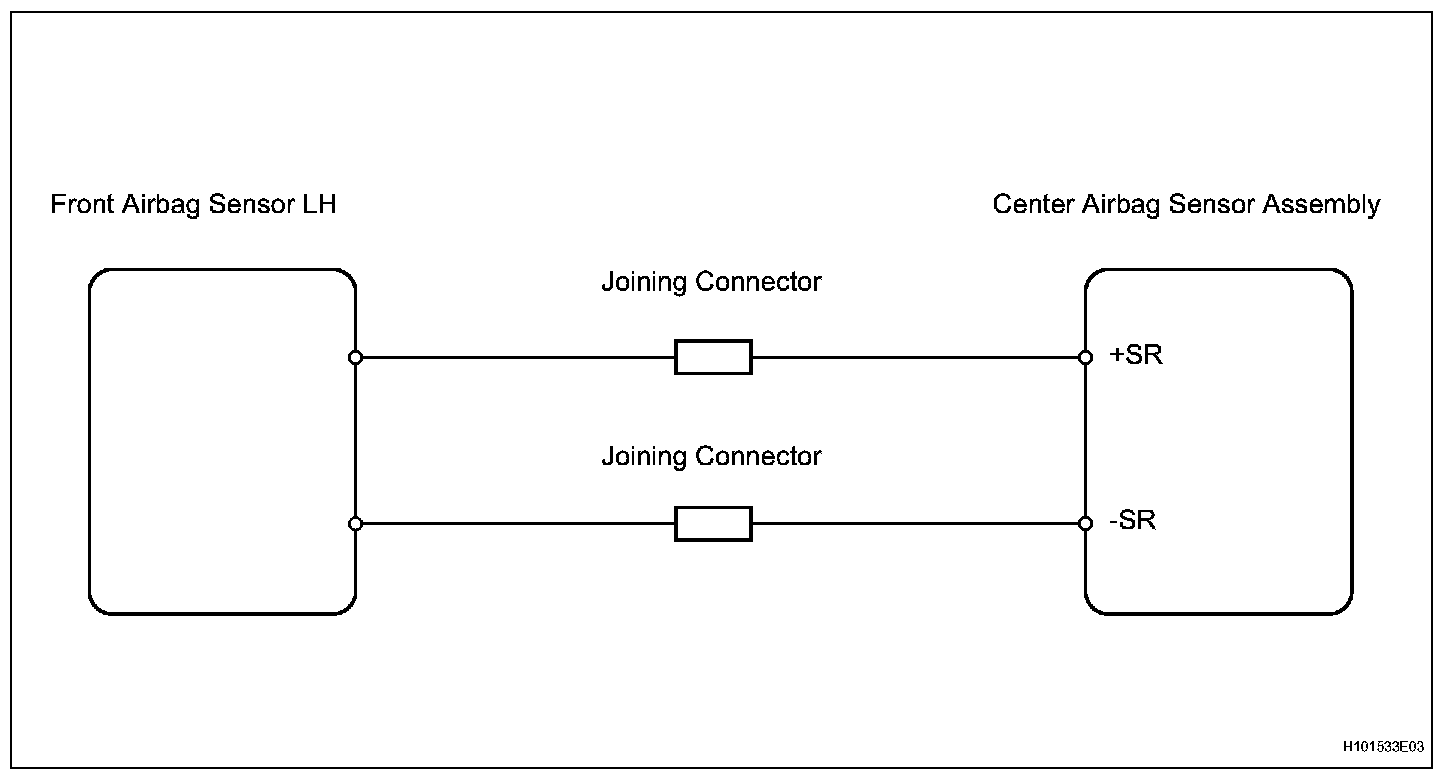

Wiring Diagram:

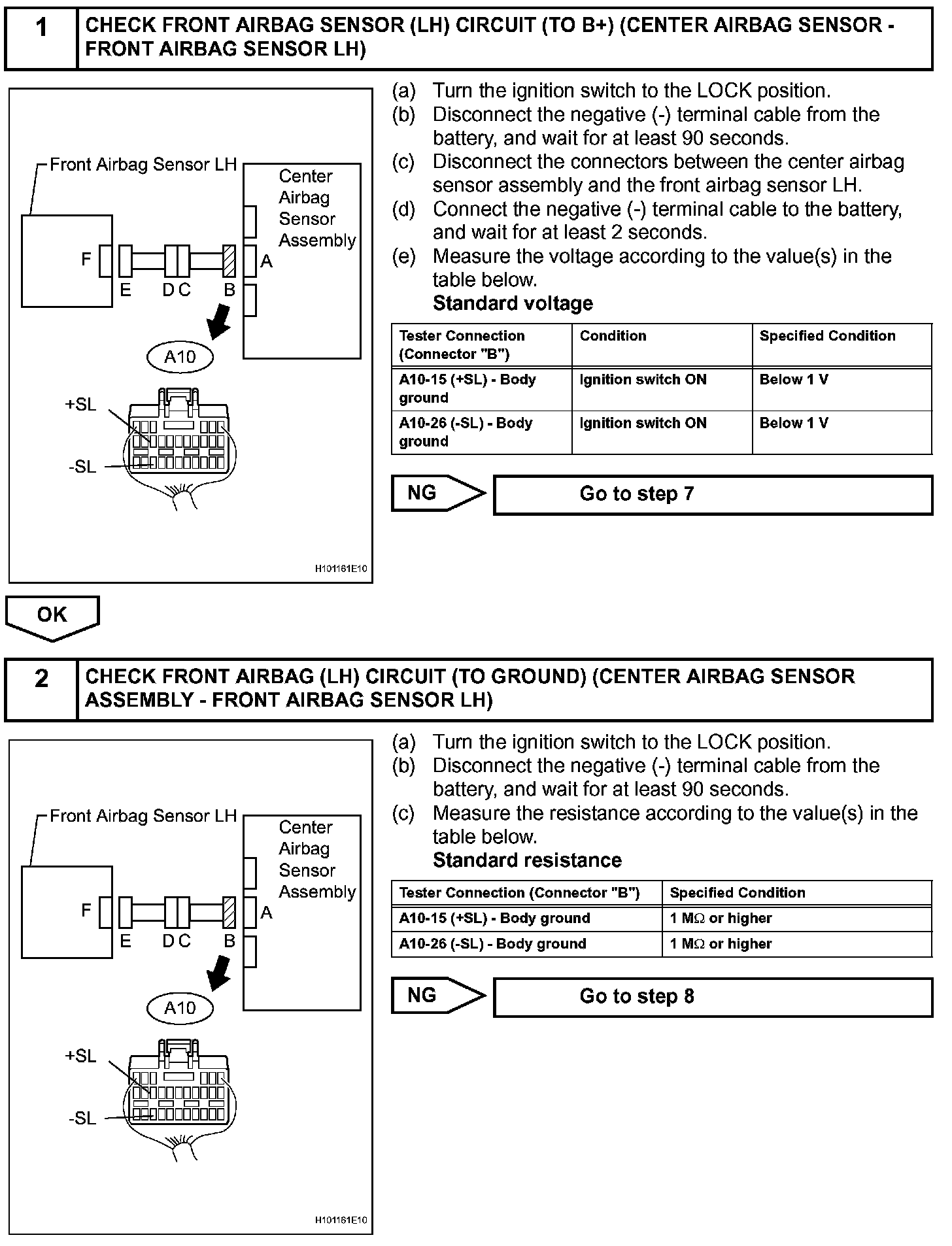

Step 1-2:

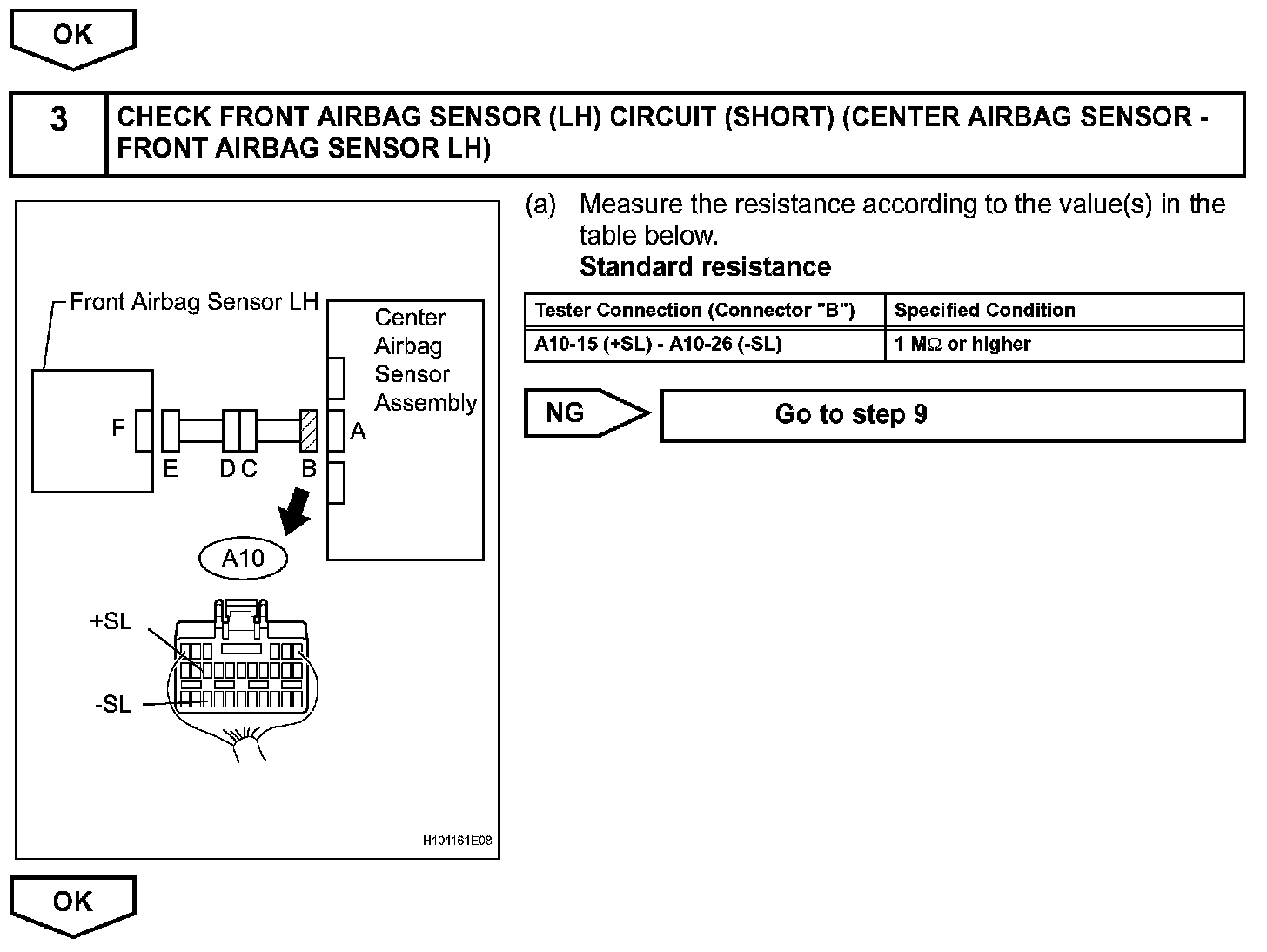

Step 2(continued)-3:

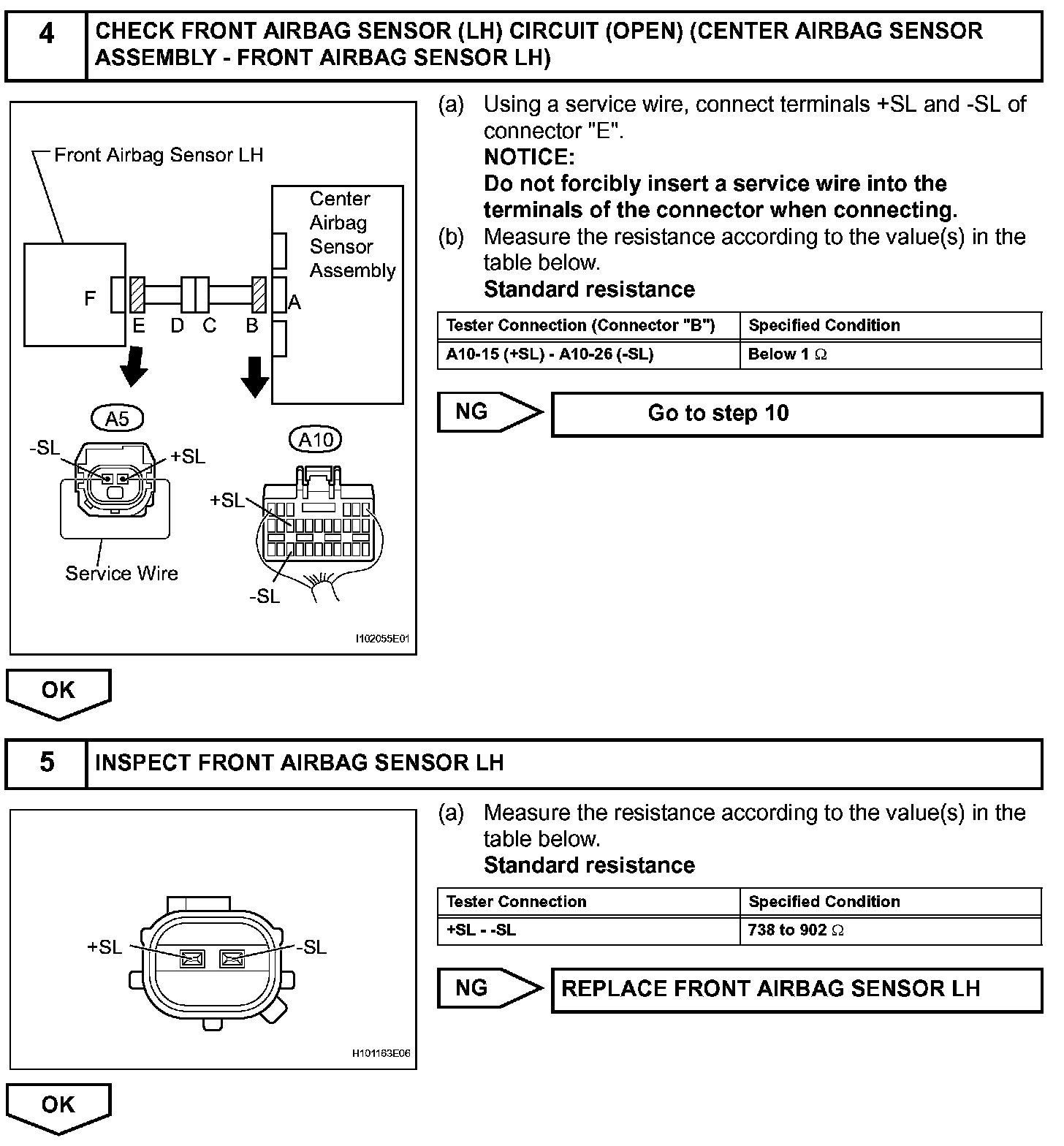

Step 4-5:

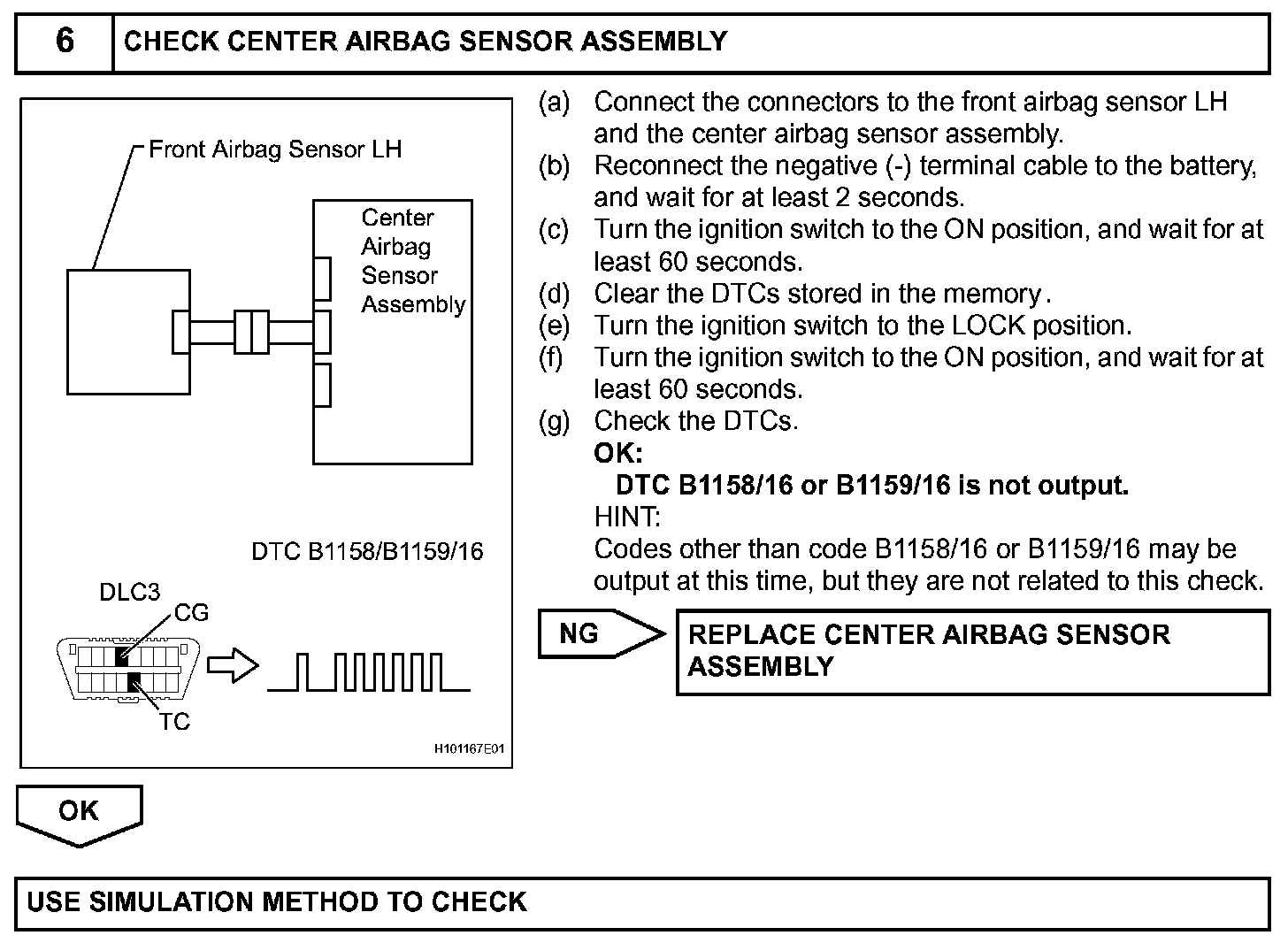

Step 6:

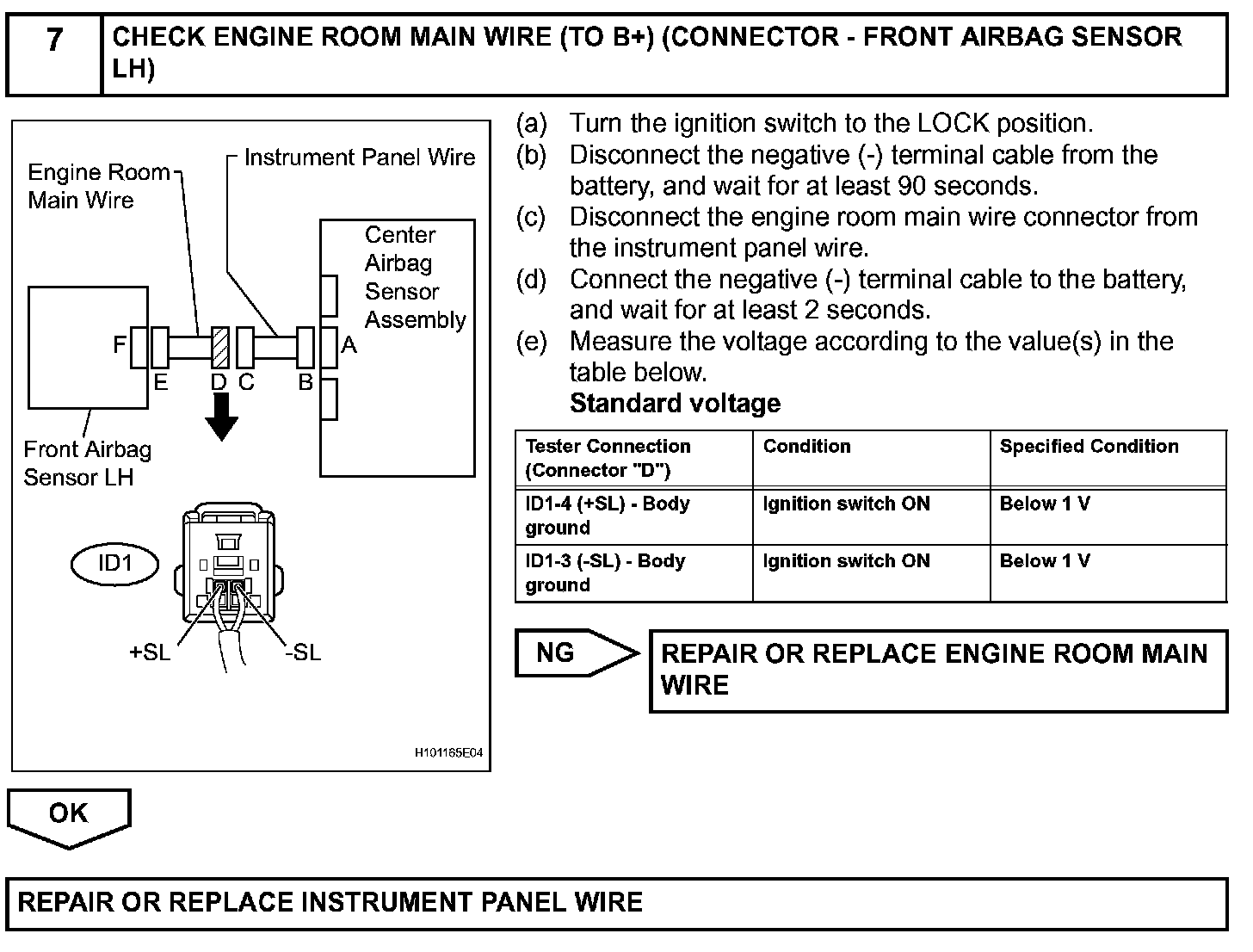

Step 7:

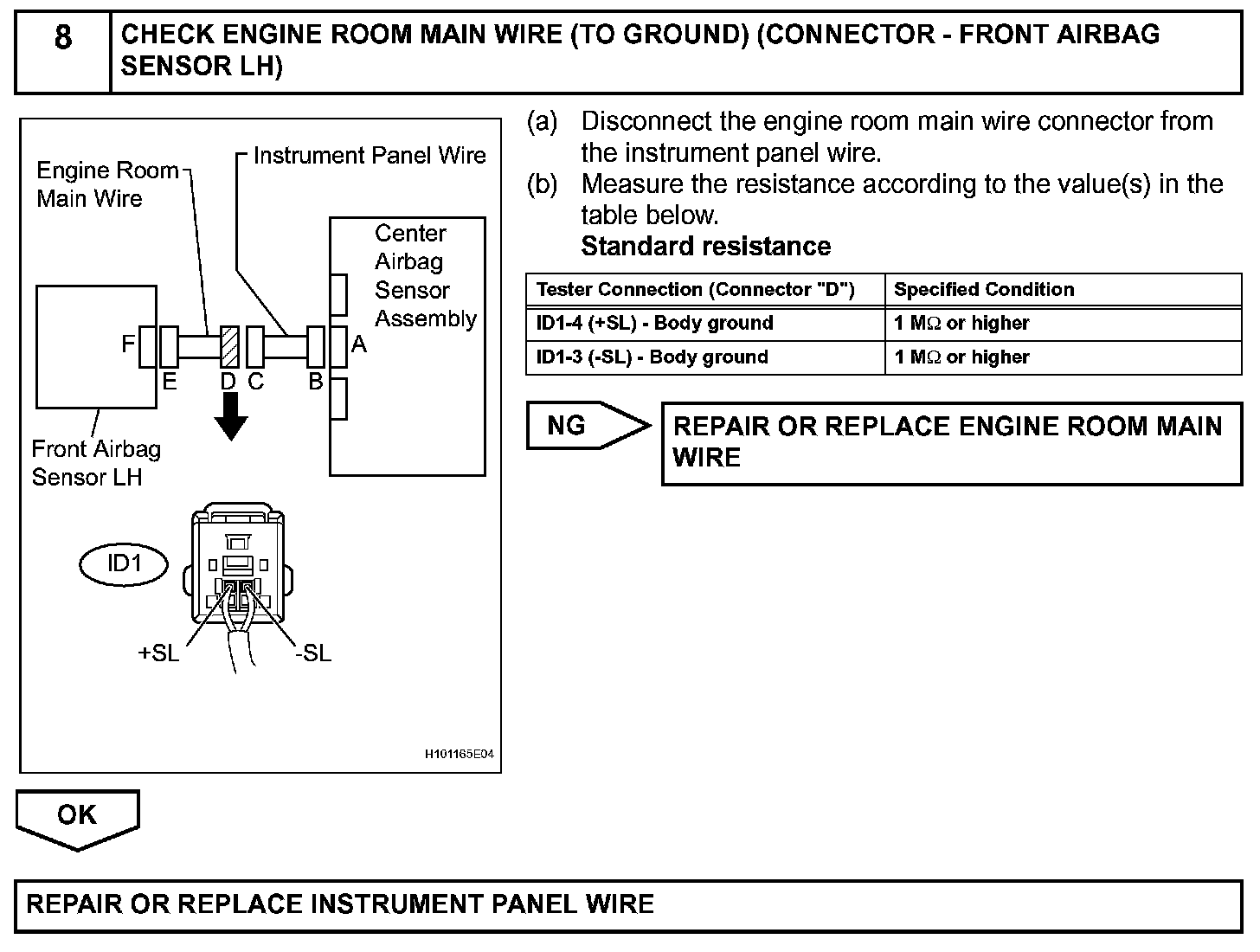

Step 8:

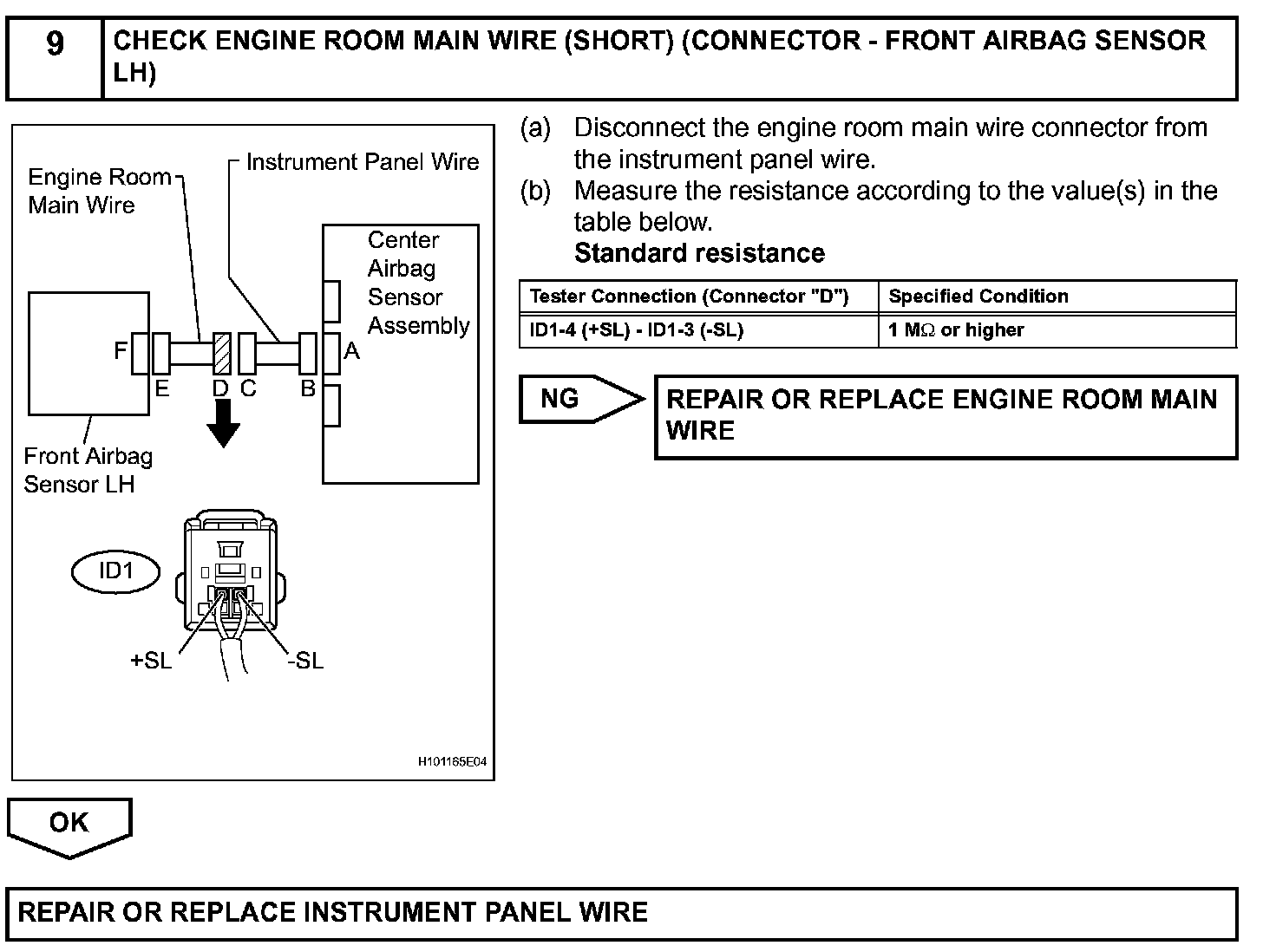

Step 9:

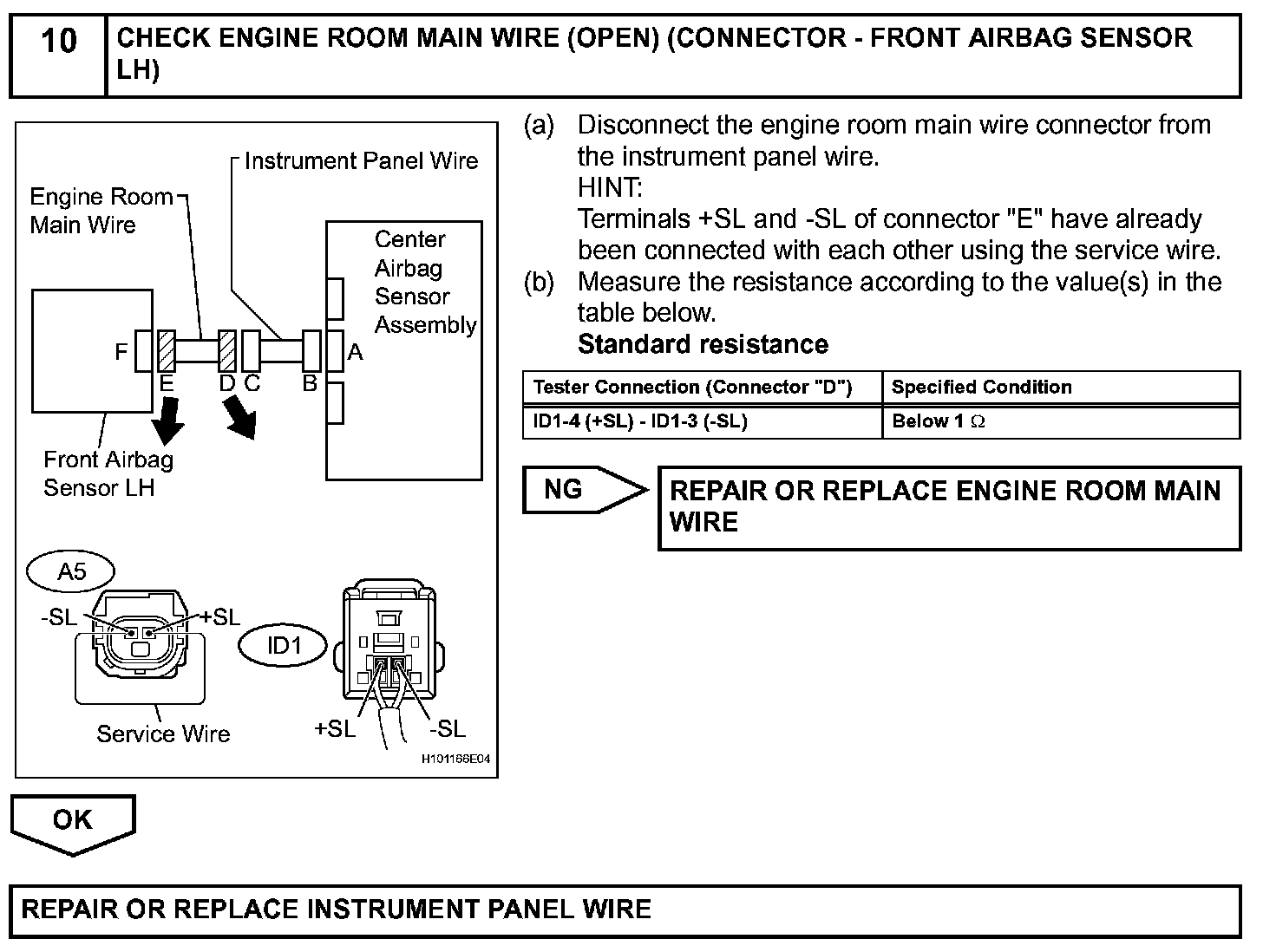

Step 10:

INSPECTION PROCEDURE
