B1155

DTC B1155/39 Rear Airbag Sensor LH Circuit Malfunction

DESCRIPTION

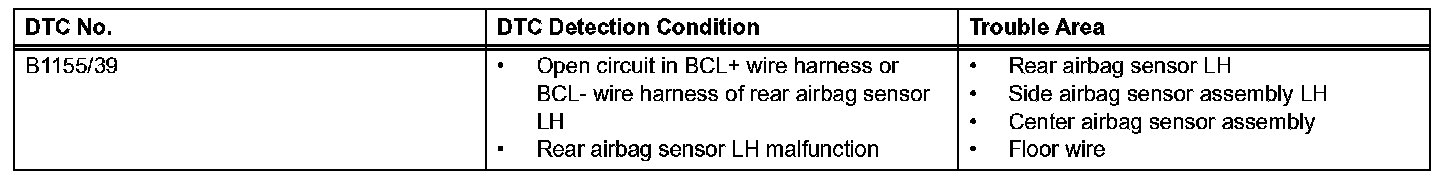

DTC Detection Condition:

The rear airbag sensor LH consists of the safing sensor, diagnosis circuit, and lateral deceleration sensor. If the center airbag sensor assembly receives the signals from the lateral deceleration sensor signal in the rear airbag sensor LH, it judges whether or not the SRS should be activated.

DTC B1155/39 is recorded when occurrence of a malfunction in the rear airbag sensor LH is detected.

HINT: DTC B1155/39 is indicated only for the vehicle equipped with the side airbag.

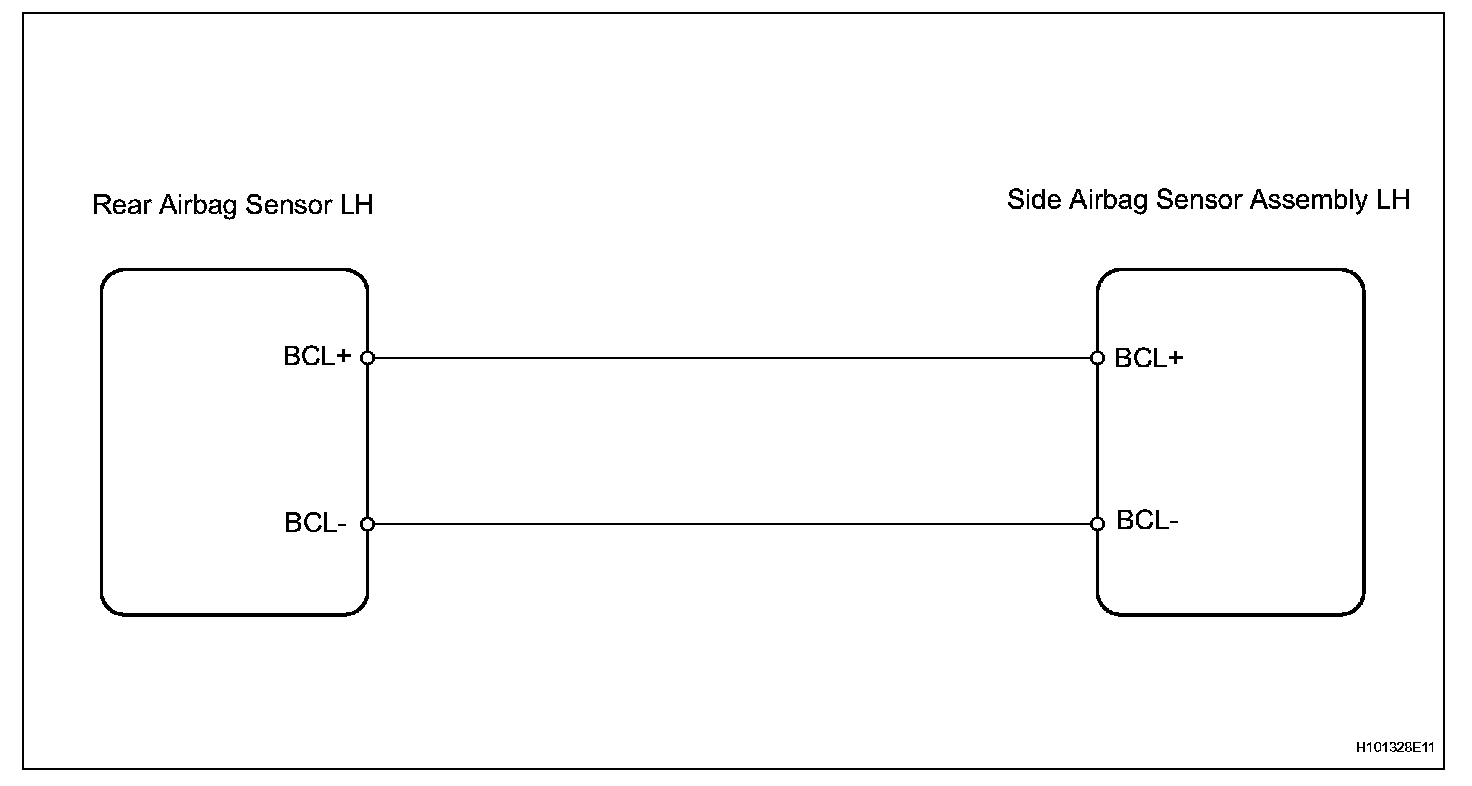

Wiring Diagram:

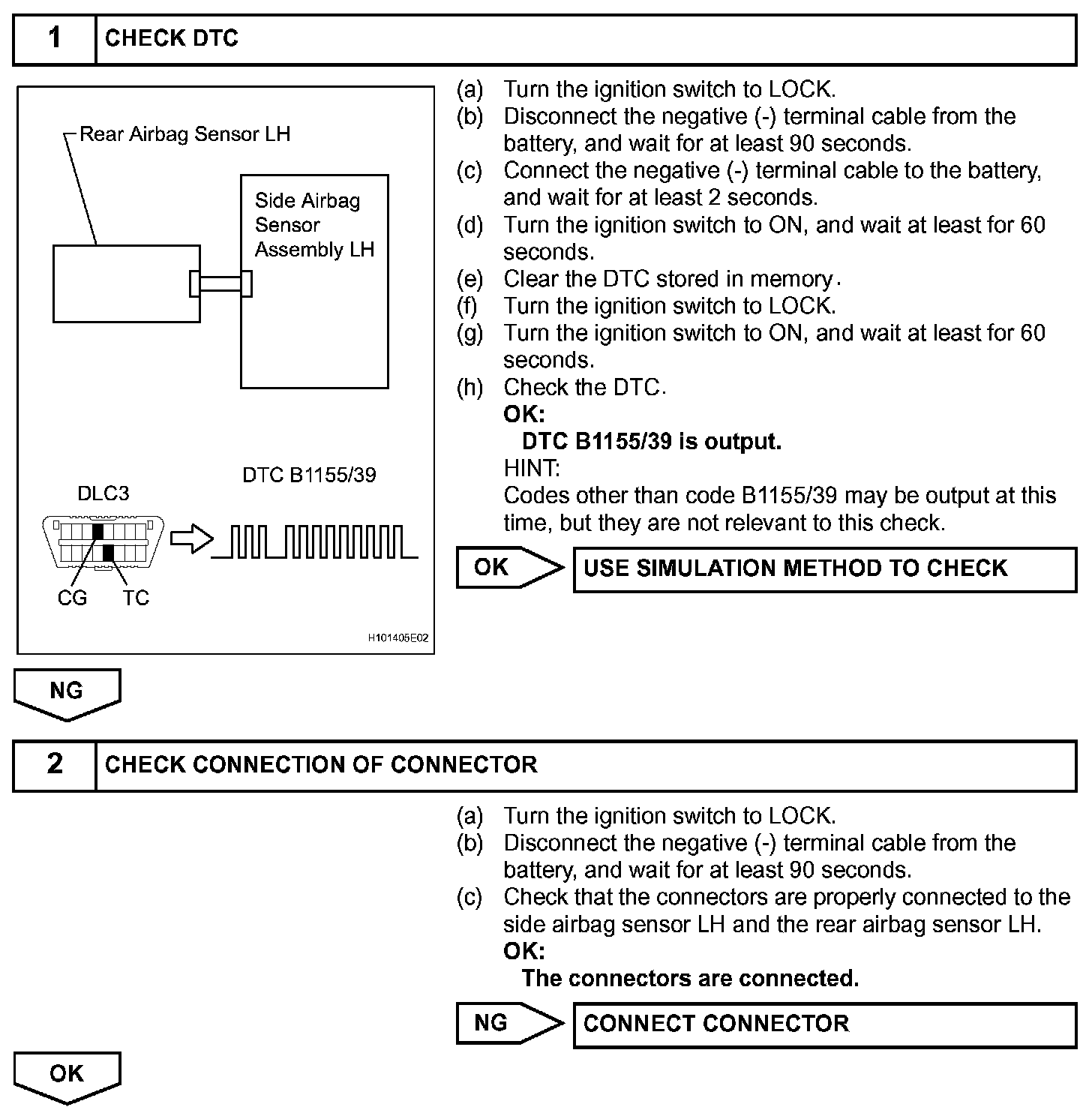

Step 1-2:

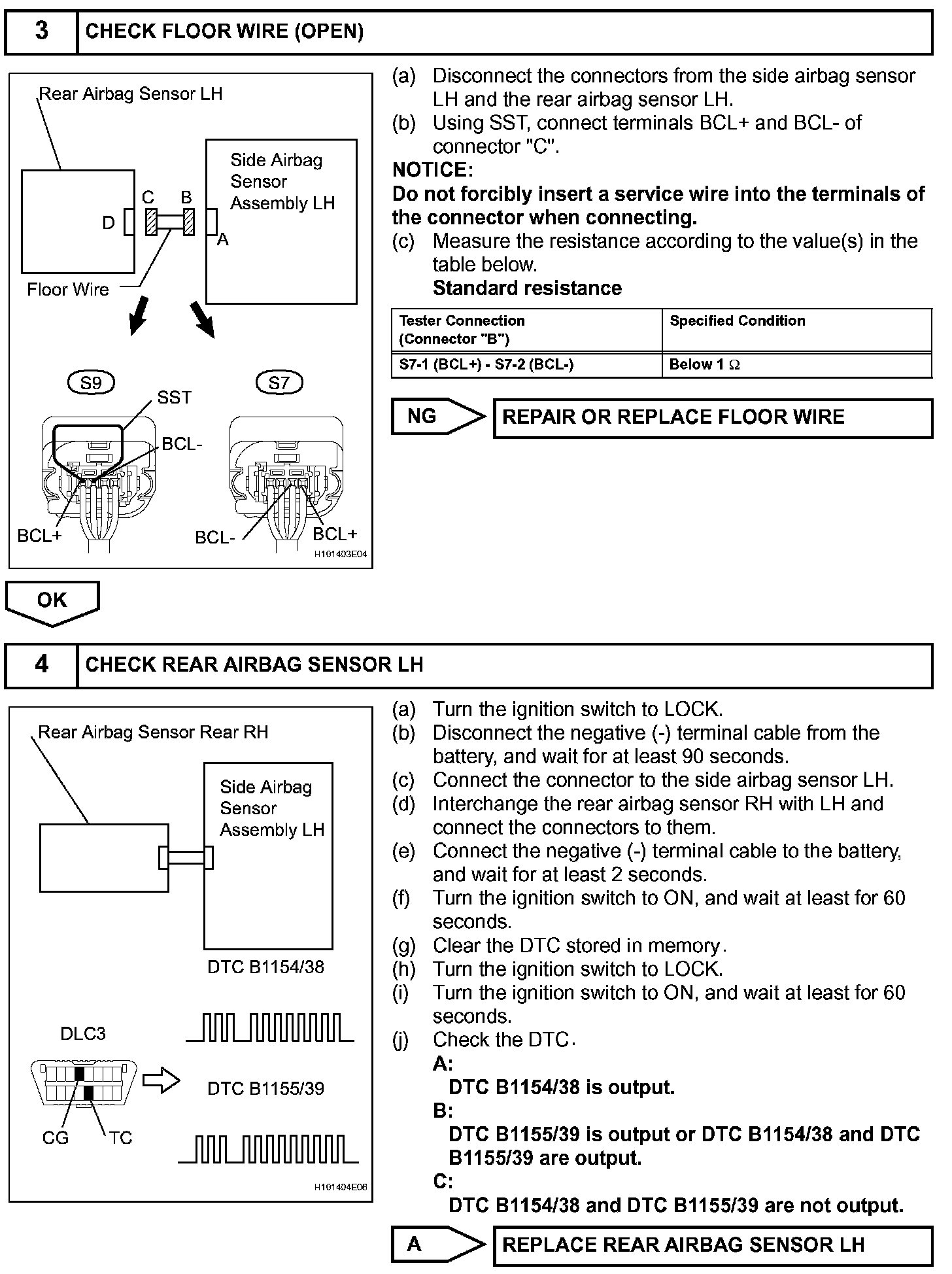

Step 3-4:

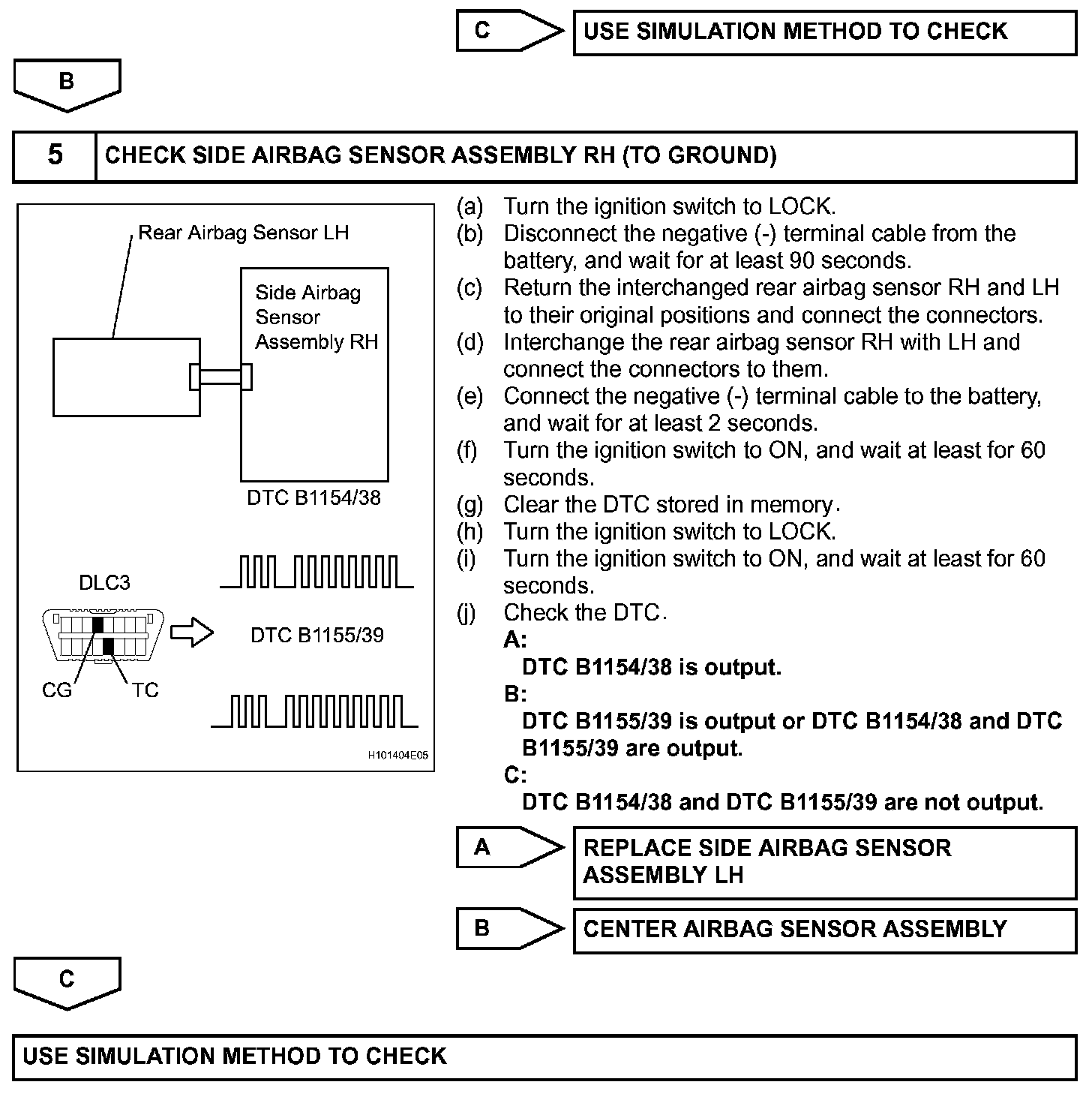

Step 4(continued)-5:

INSPECTION PROCEDURE
