B1141

DTC B1141/33 Side Airbag Sensor Assembly LH Malfunction

DESCRIPTION

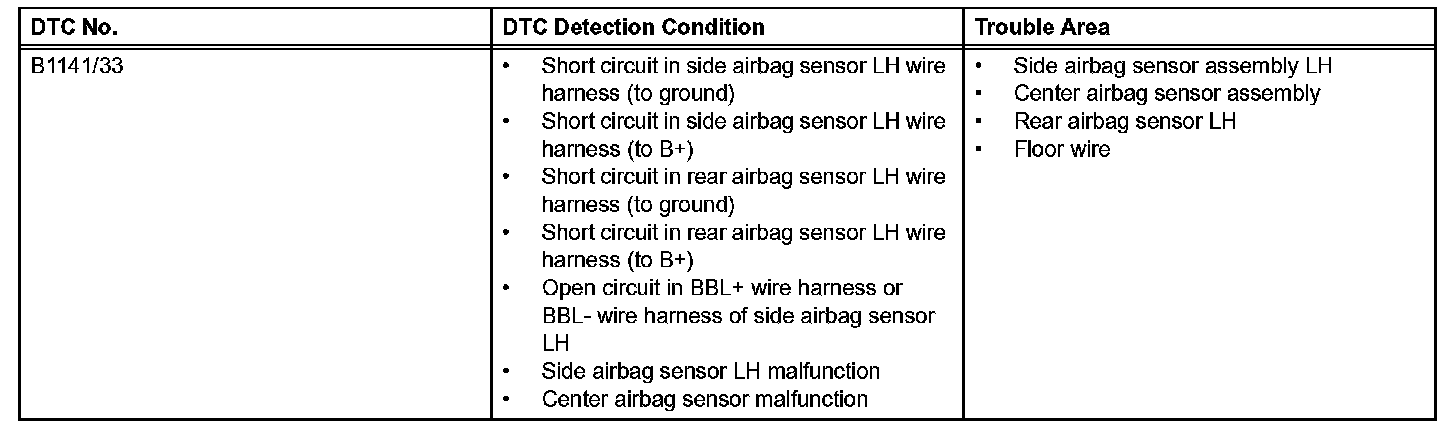

DTC Detection Condition:

The side and curtain shield airbag sensor LH consists of the safing sensor, diagnosis circuit and lateral deceleration sensor.

It receives signals from the lateral deceleration sensor, judges whether or not the SRS must be activated, and detects diagnosis system malfunctions.

DTC B1141/33 is recorded when occurrence of a malfunction in the side and curtain shield airbag sensor LH is detected.

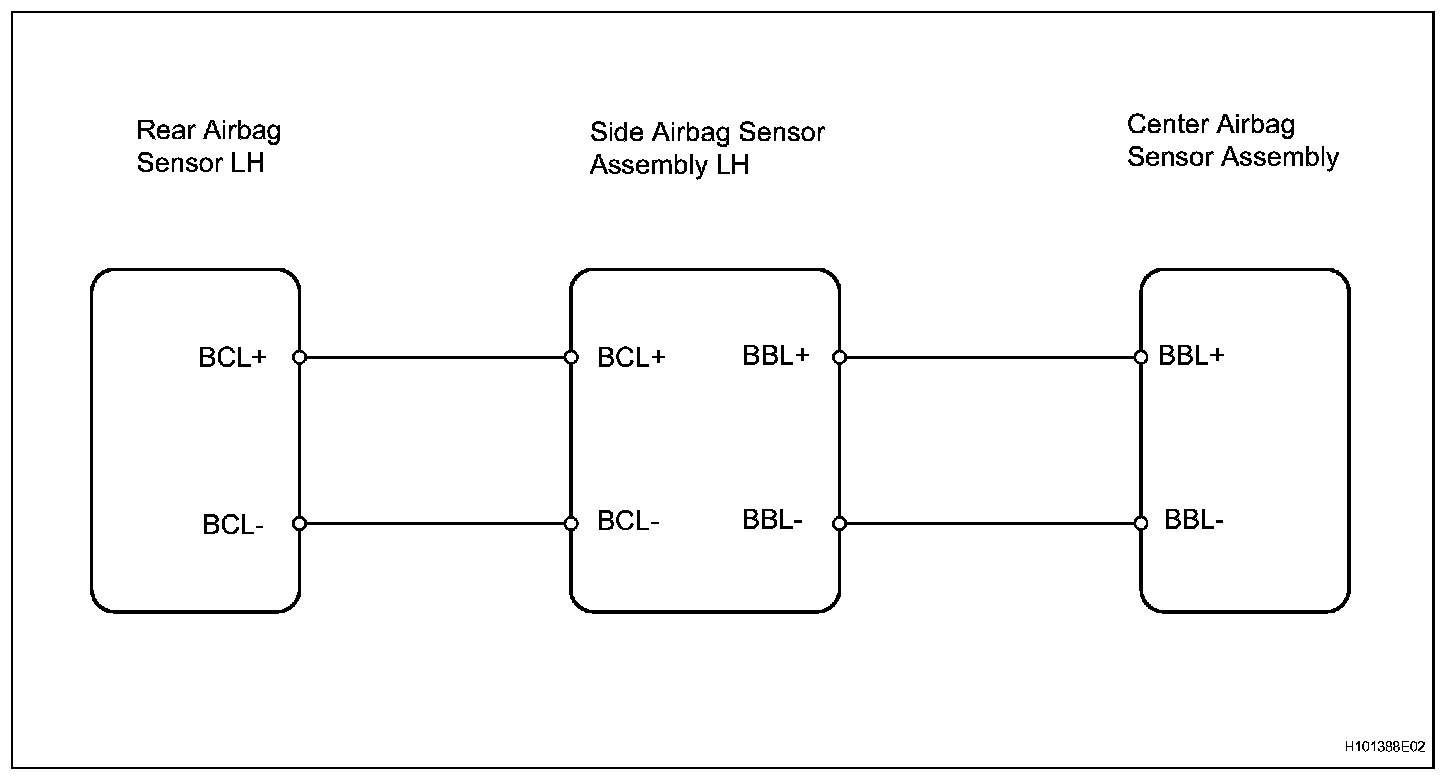

Wiring Diagram:

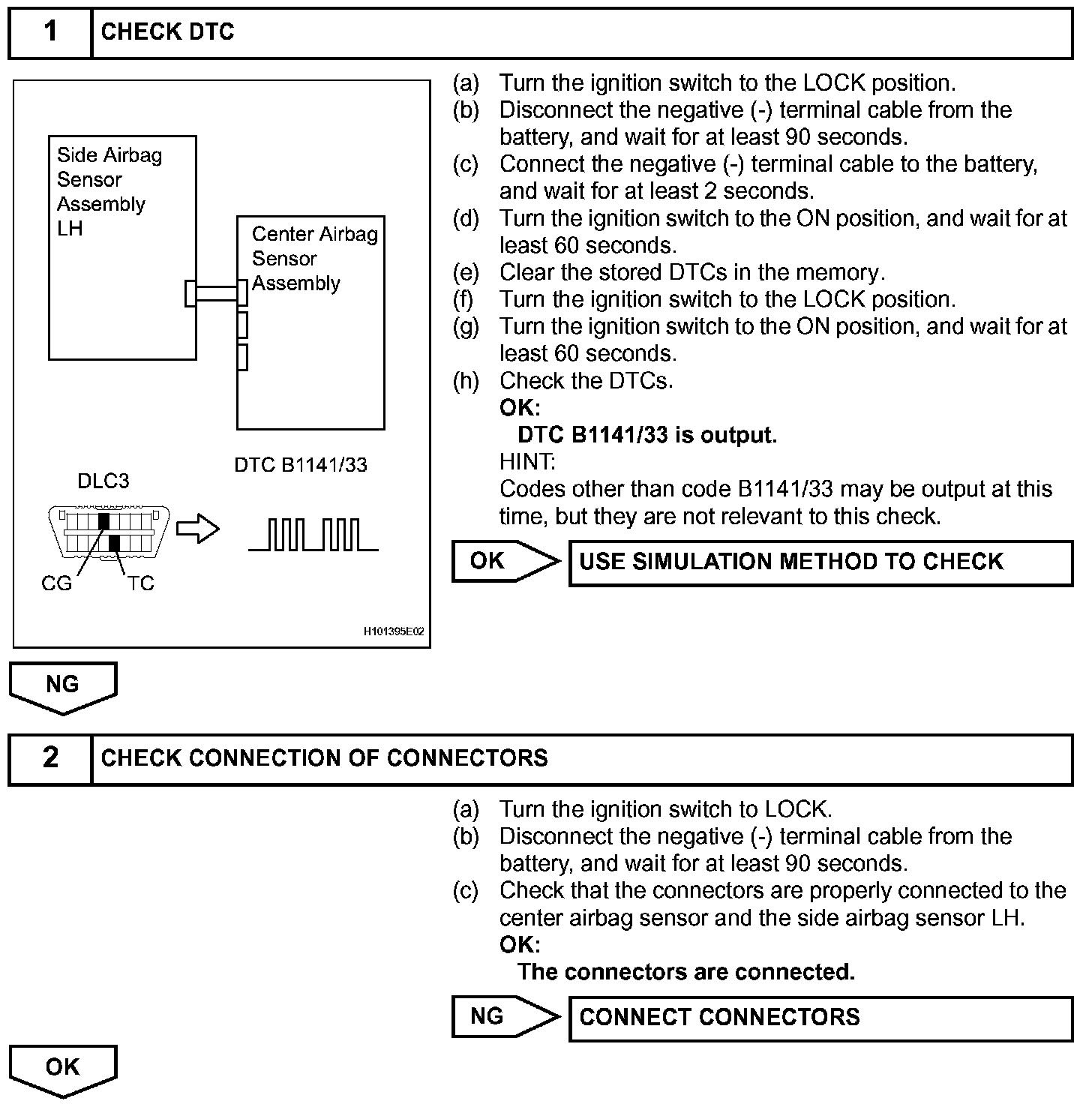

Step 1-2:

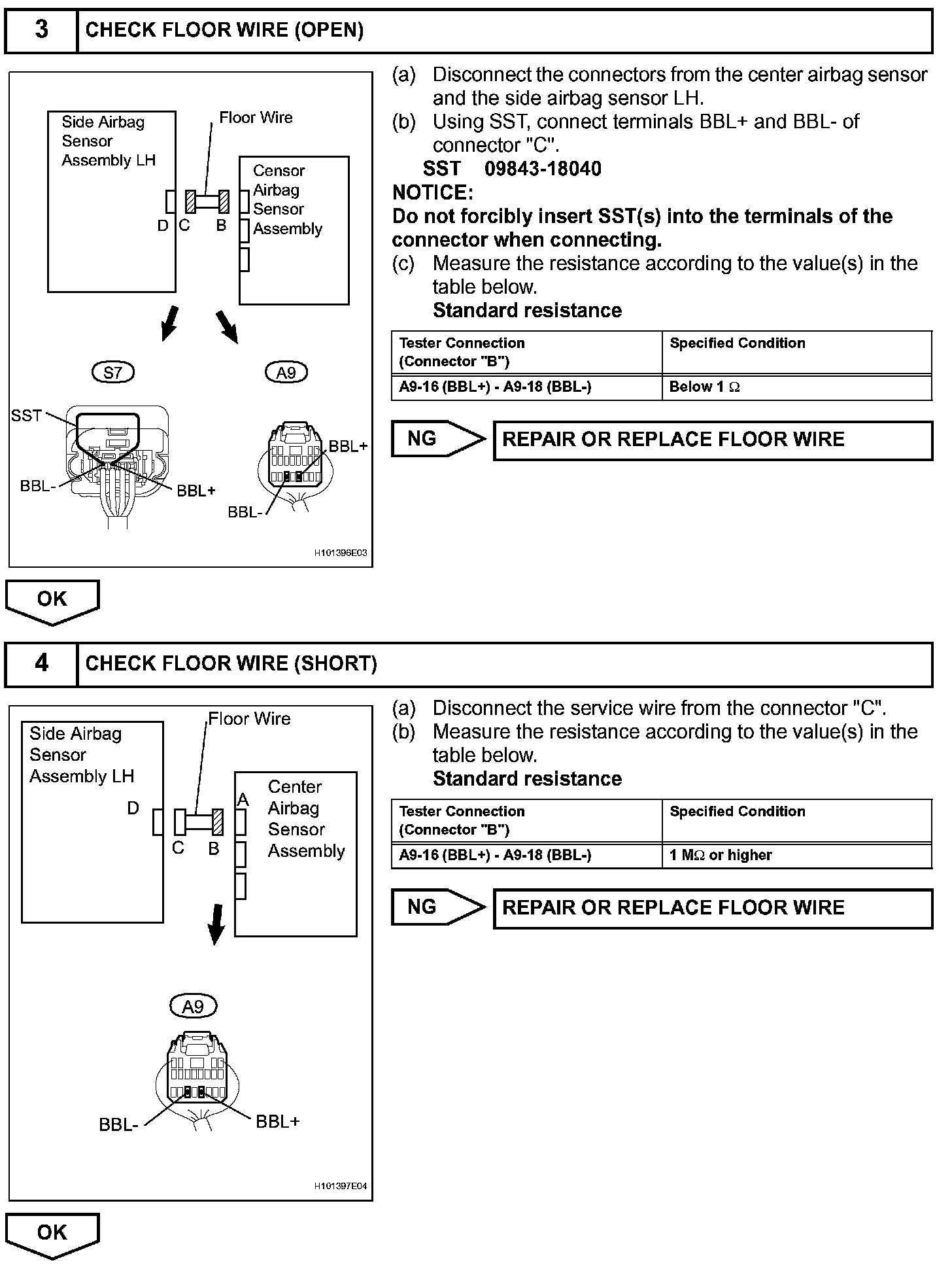

Step 3-4:

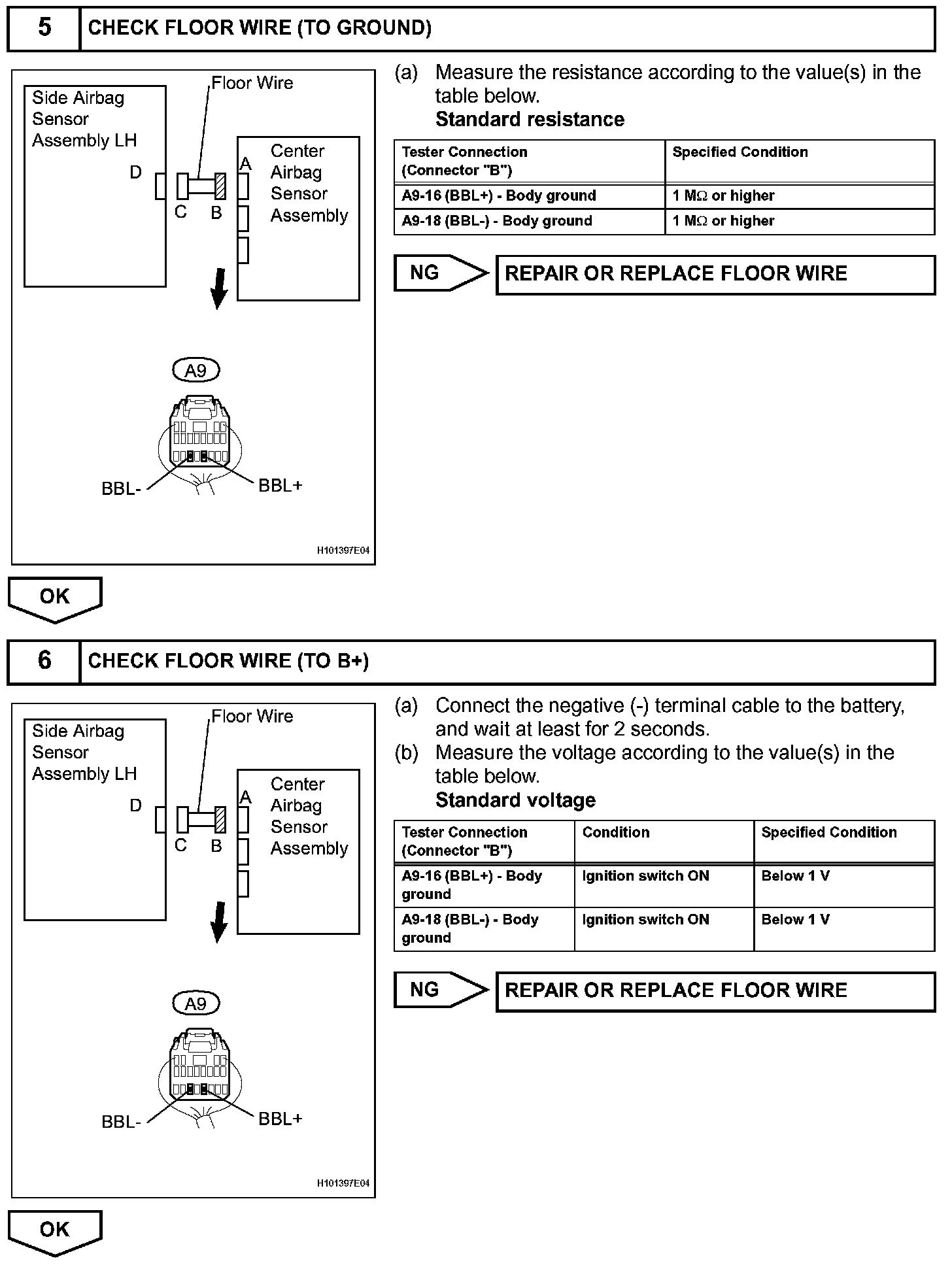

Step 5-6:

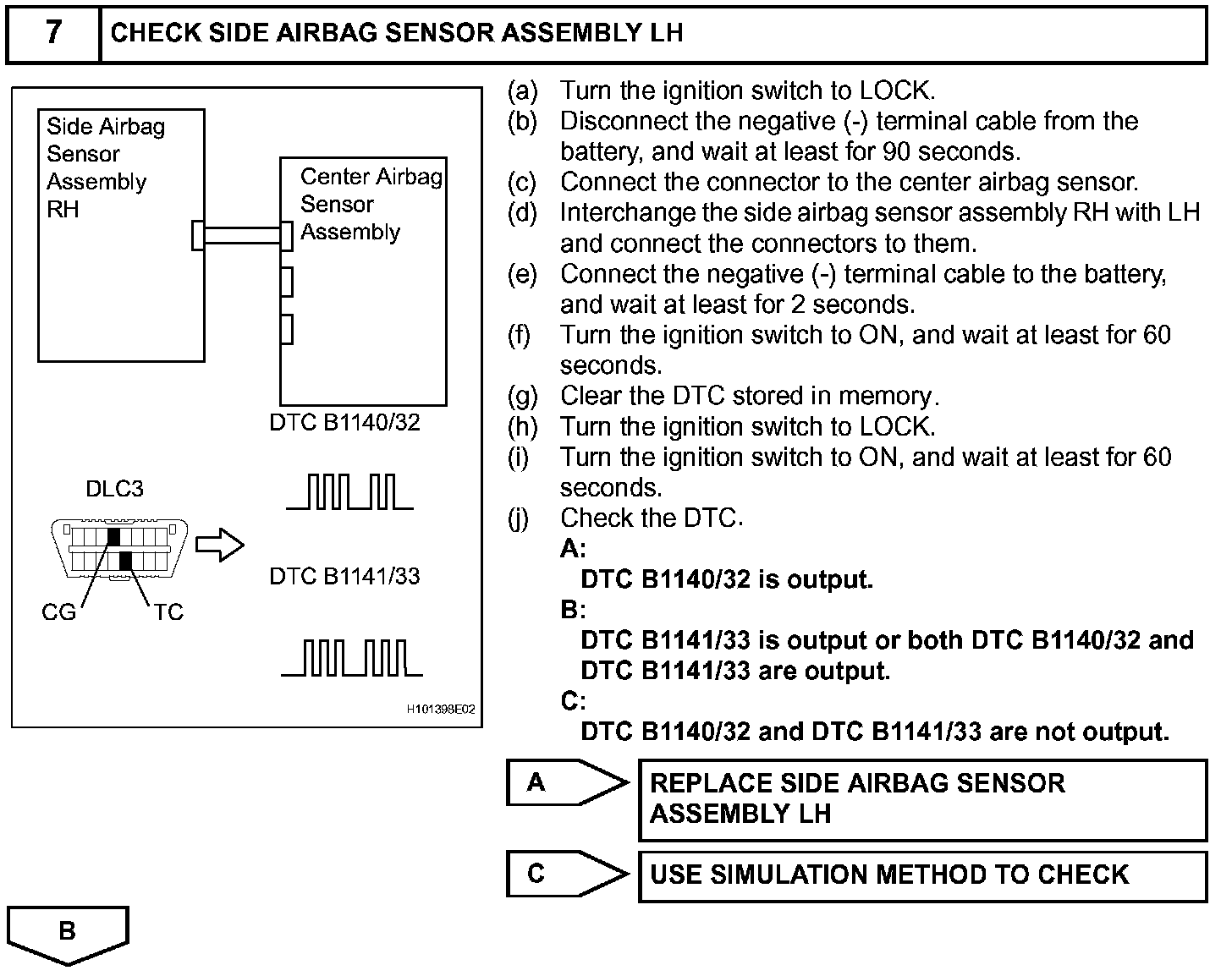

Step 7:

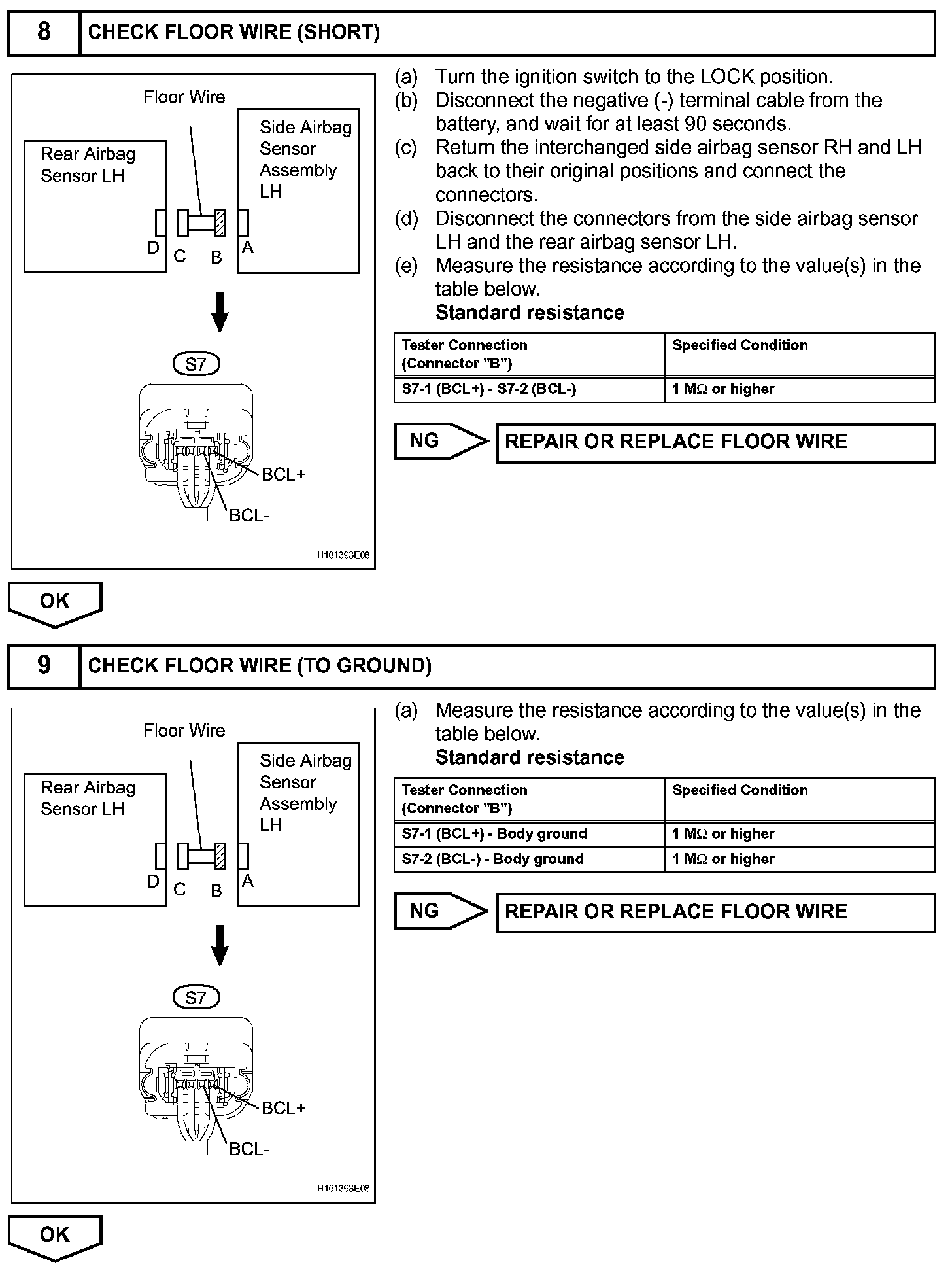

Step 8-9:

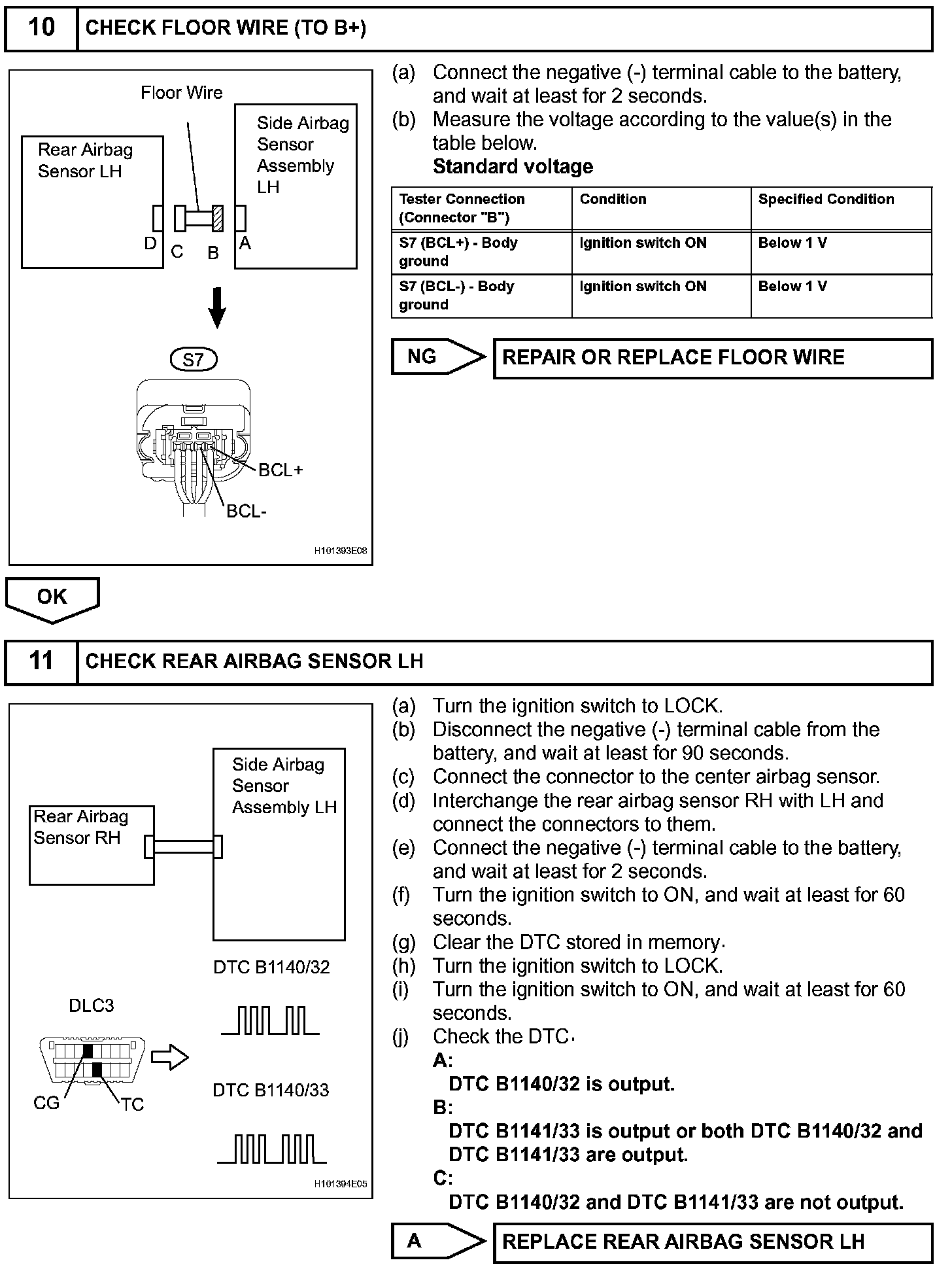

Step 10-11:

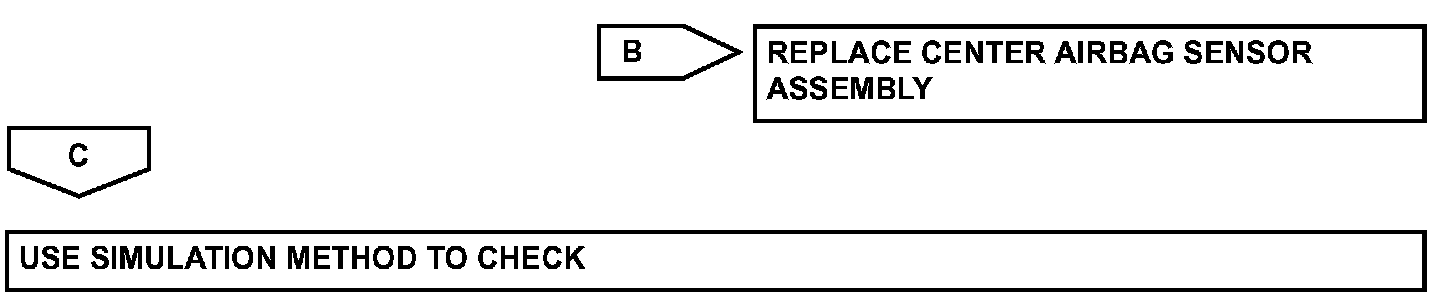

Step 11(continued):

INSPECTION PROCEDURE
