B0116

DTC B0116/48 Open in Side Squib LH Circuit

DESCRIPTION

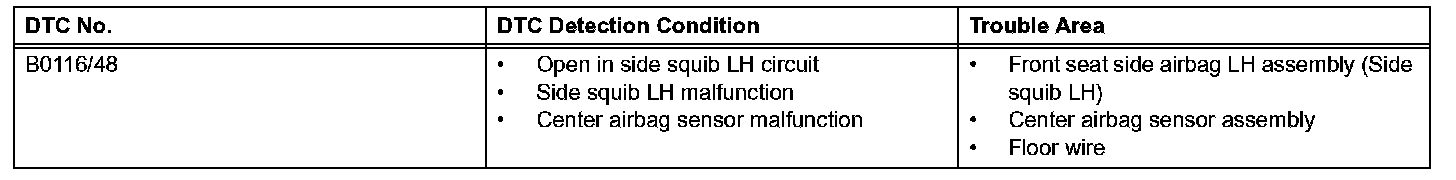

DTC Detection Condition:

The side squib LH circuit consists of the center airbag sensor and the front seat side airbag assembly LH. This circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0116/48 is recorded when an open is detected in the side squib LH circuit.

HINT: DTC B0116/48 is indicated only for the vehicle equipped with the side airbag.

Wiring Diagram:

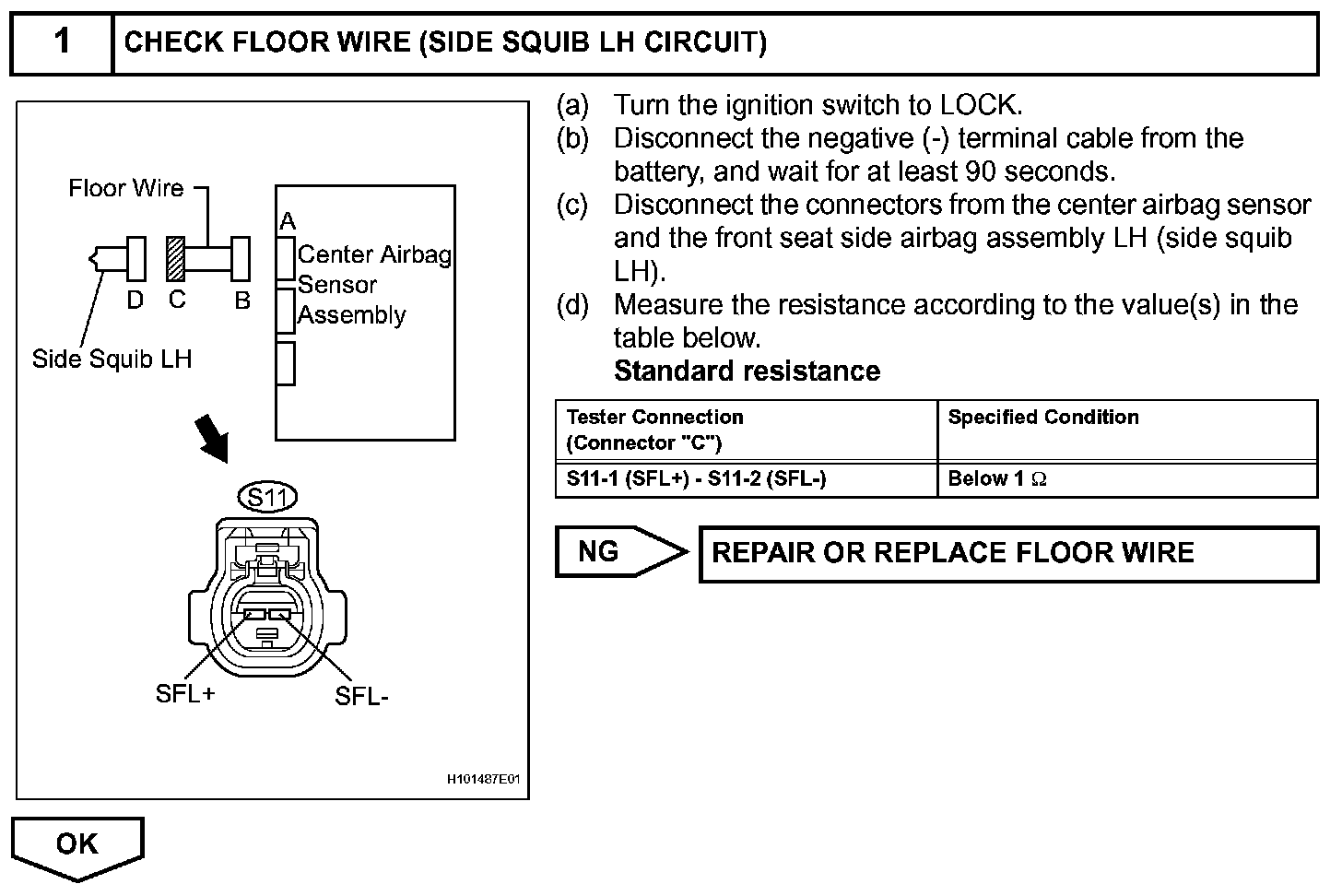

Step 1:

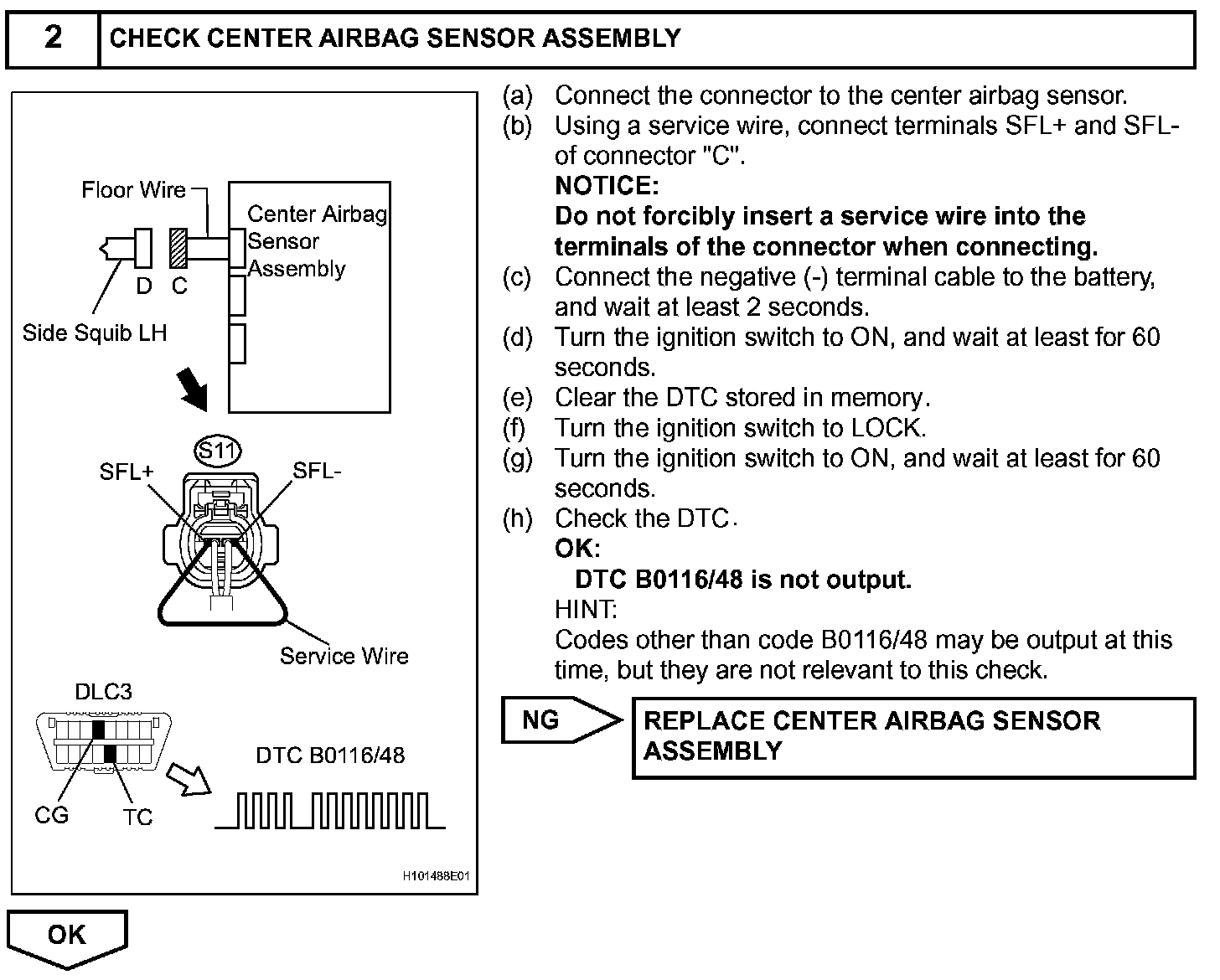

Step 2:

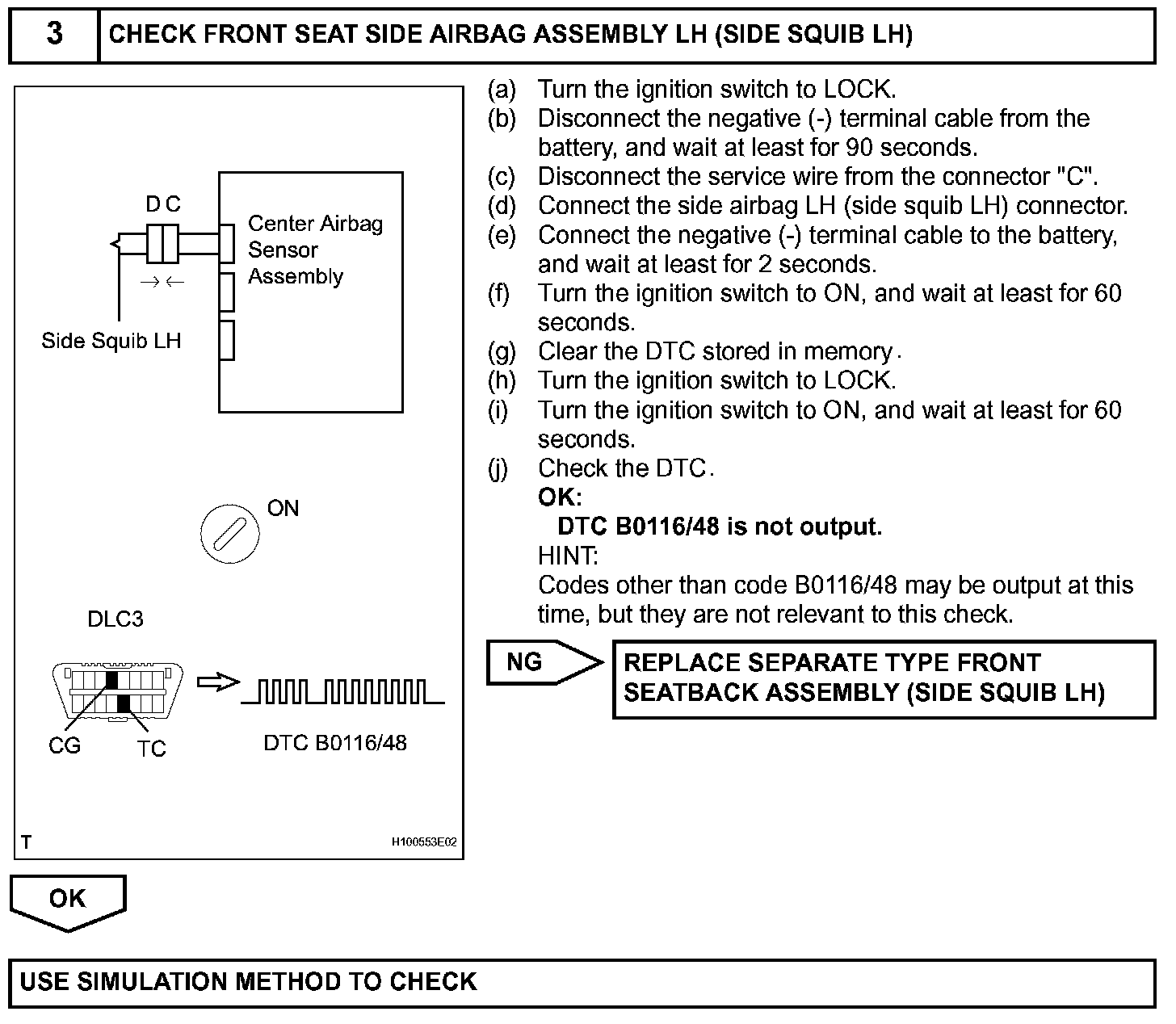

Step 3:

INSPECTION PROCEDURE
