B0111

DTC B0111/44 Open in Side Squib RH Circuit

DESCRIPTION

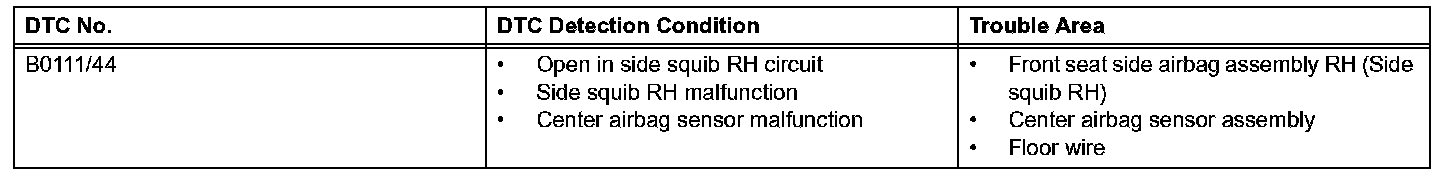

DTC Detection Condition:

The side squib RH circuit consists of the center airbag sensor and the front seat side airbag assembly RH. The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0111/44 is recorded when an open is detected in the side squib RH circuit.

HINT: DTC B0111/44 is indicated only for the vehicle equipped with the side airbag.

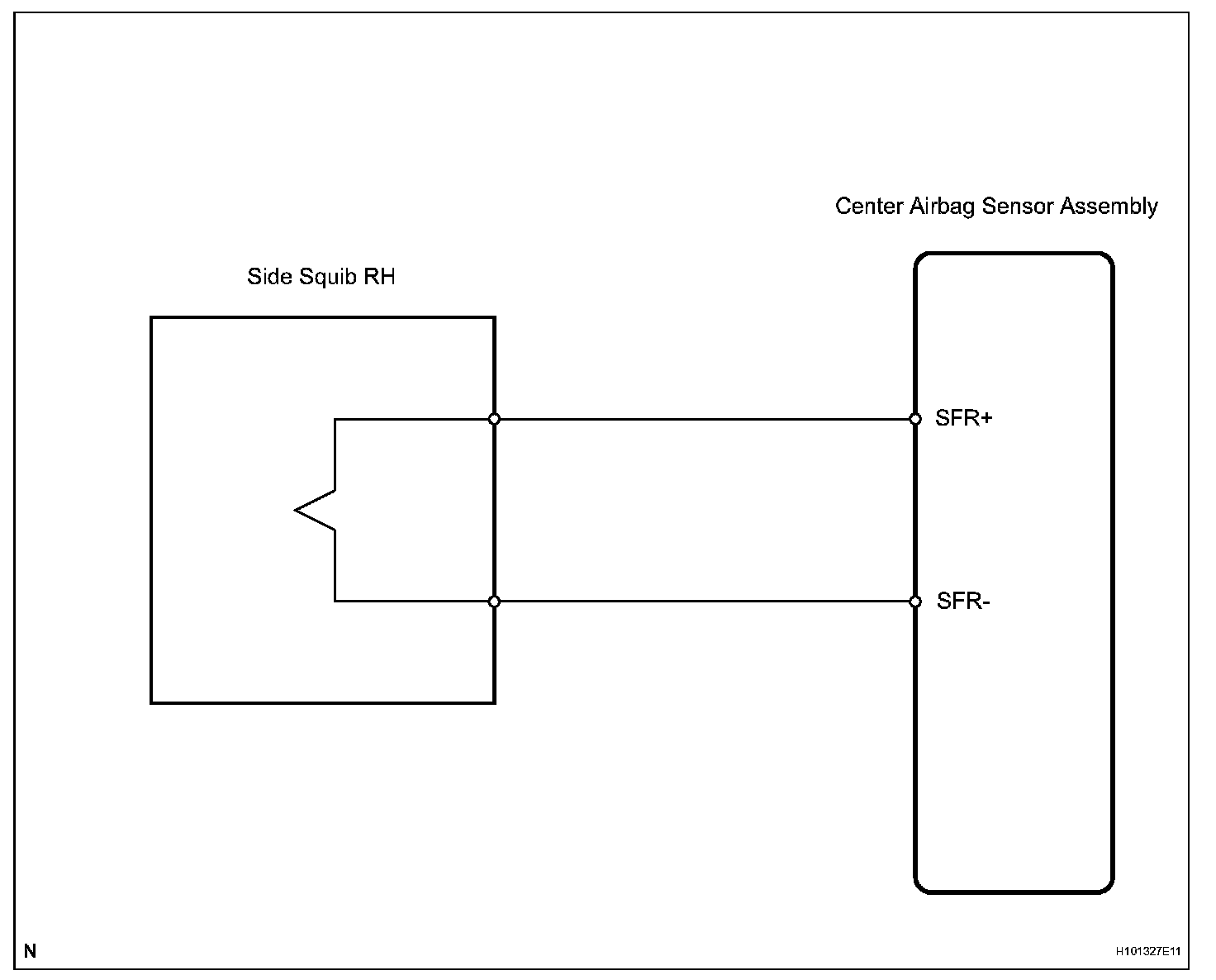

Wiring Diagram:

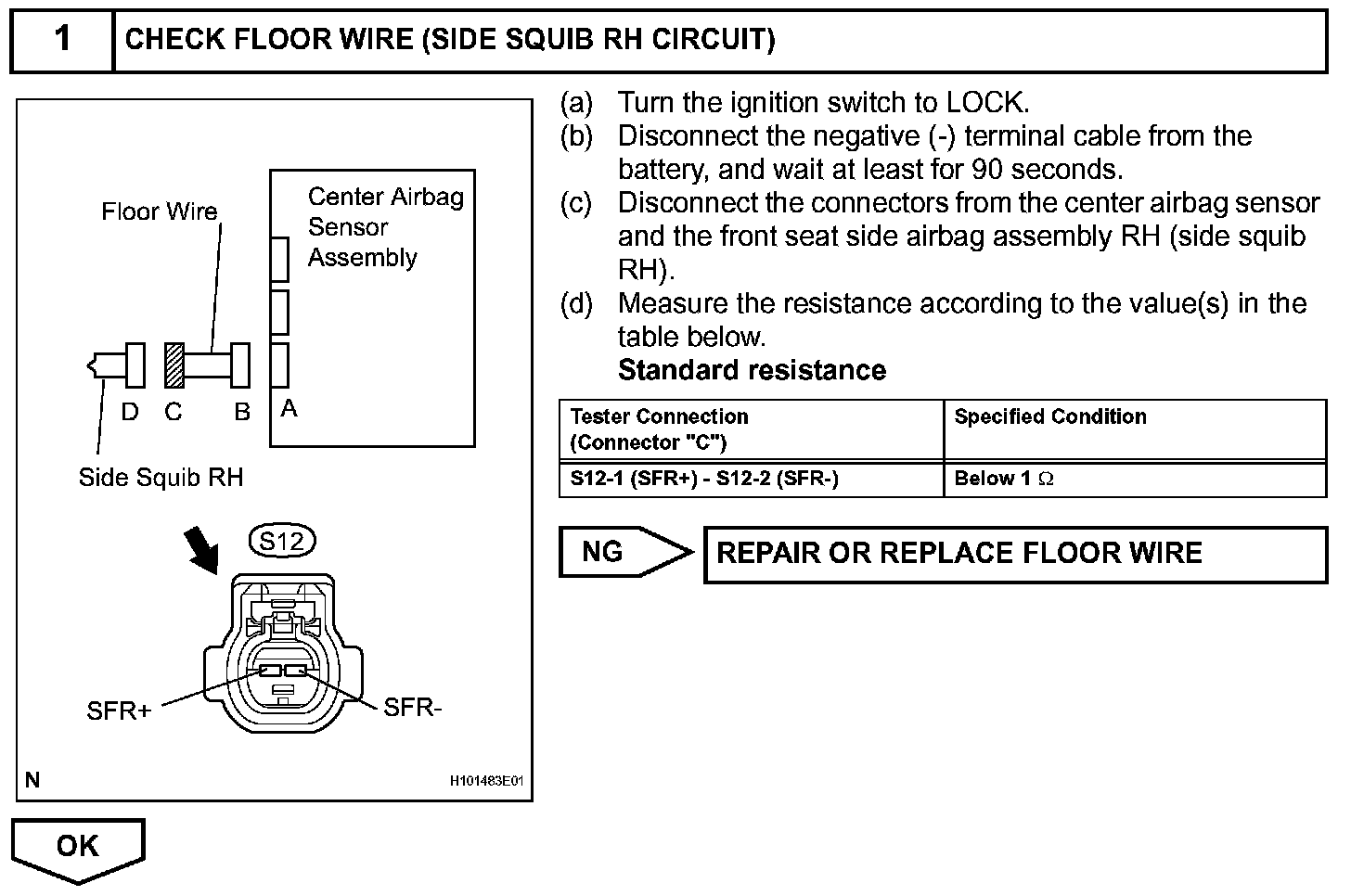

Step 1:

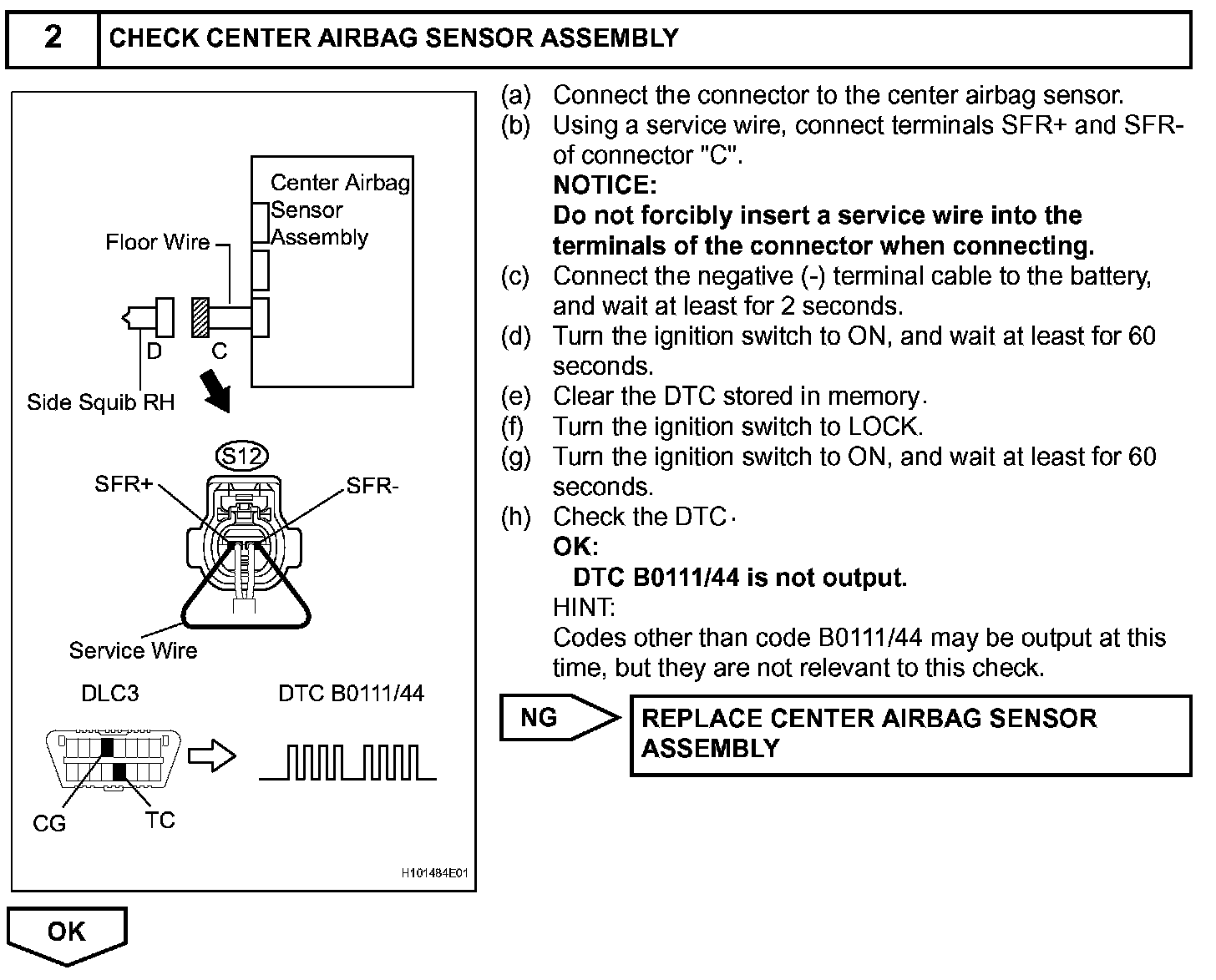

Step 2:

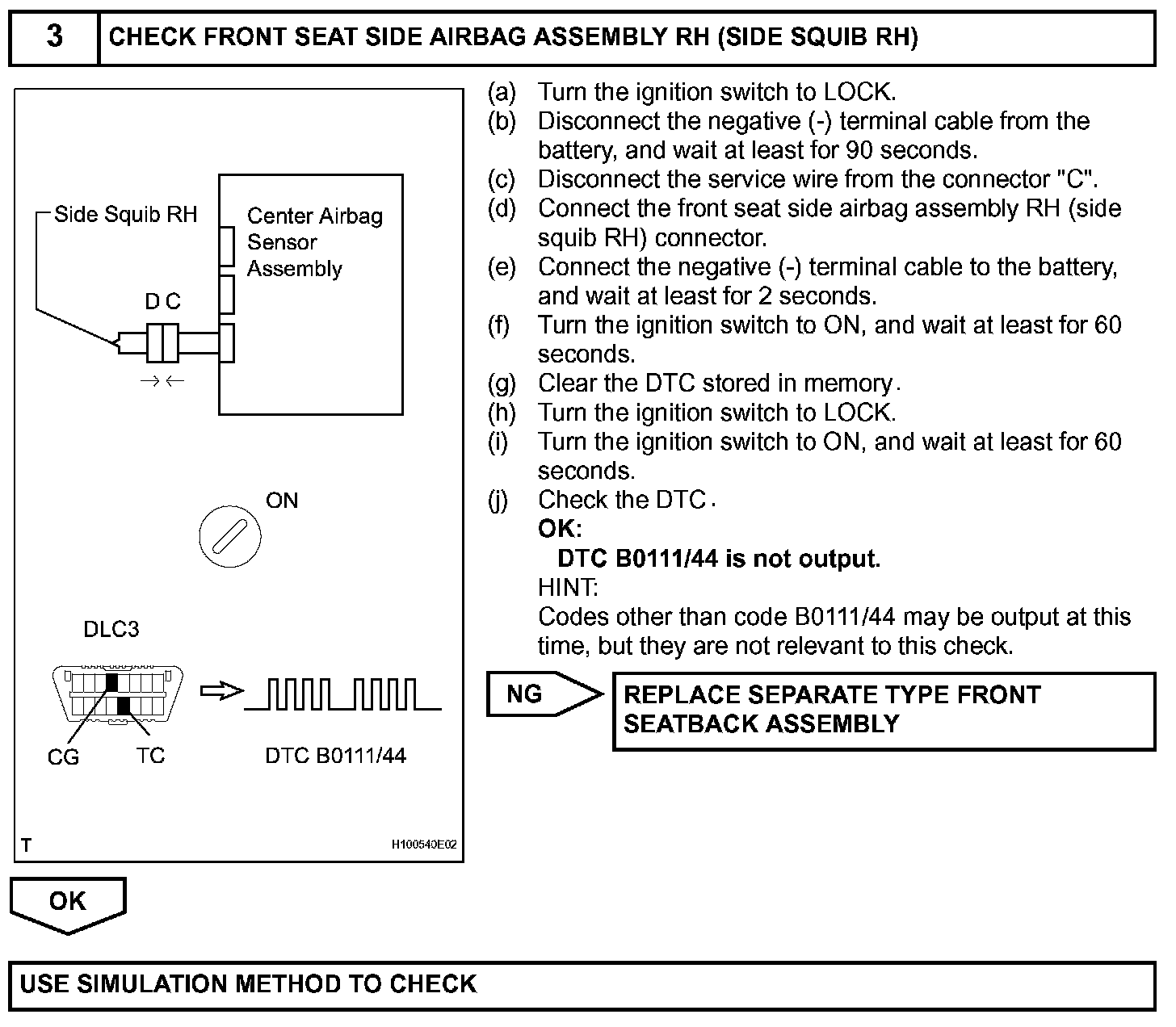

Step 3:

INSPECTION PROCEDURE
