B0110

DTC B0110/43 Short in Side Squib RH Circuit

DESCRIPTION

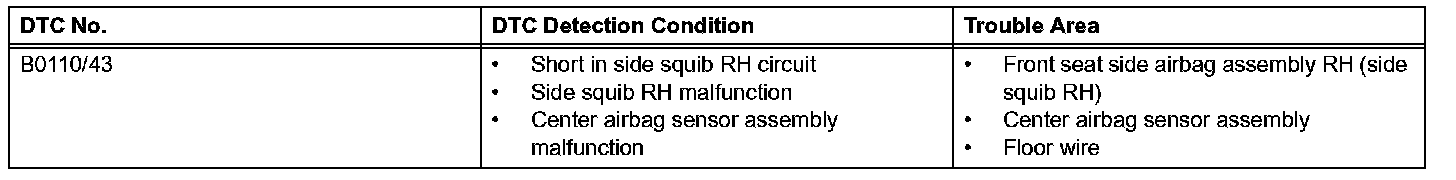

DTC Detection Condition:

The side squib RH circuit consists of the center airbag sensor and the front seat side airbag assembly RH. The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0110/43 is recorded when a short is detected in the side squib RH circuit.

HINT: DTC B0110/43 is indicated only for the vehicle equipped with the side airbag.

Wiring Diagram:

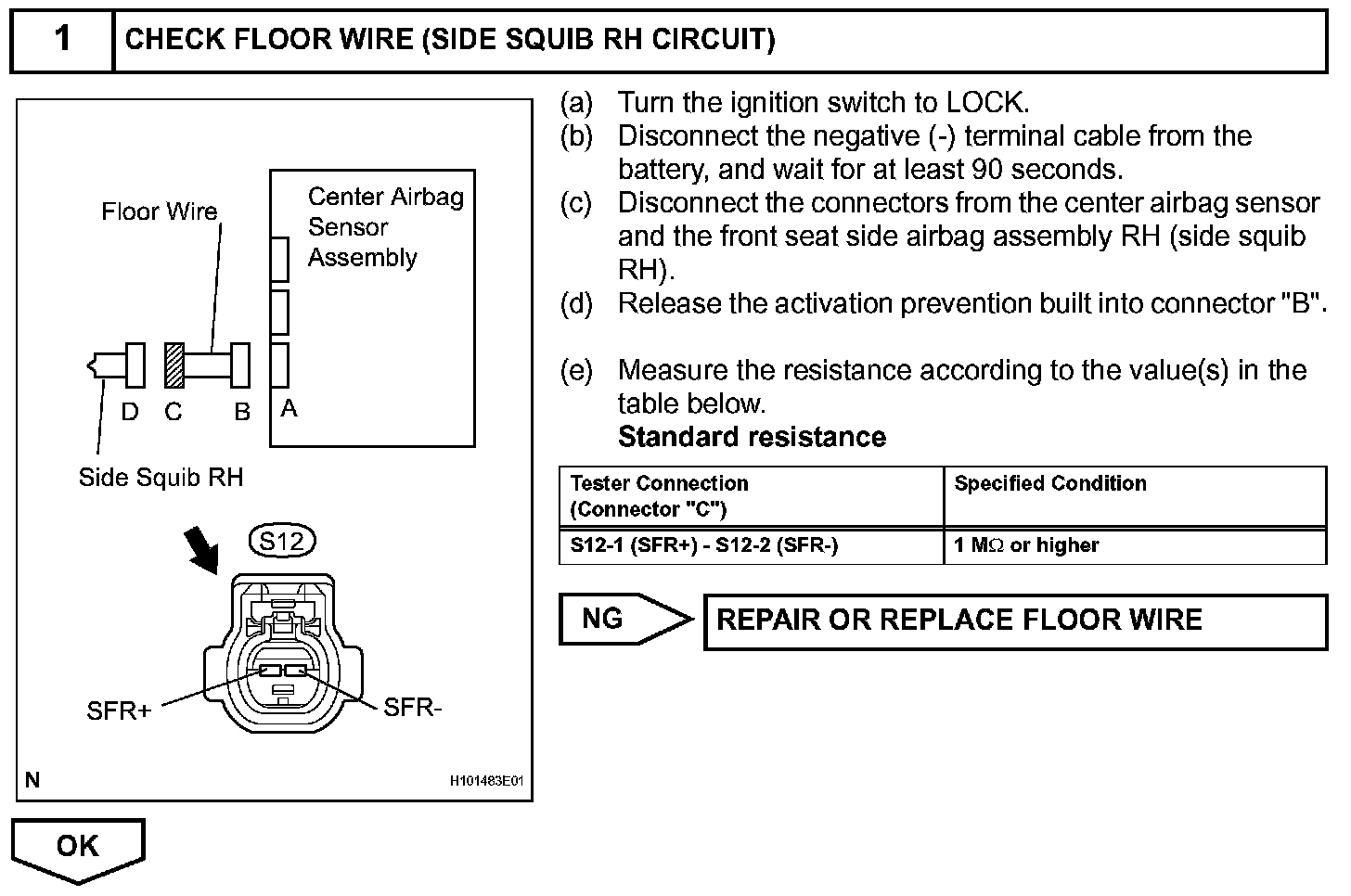

Step 1:

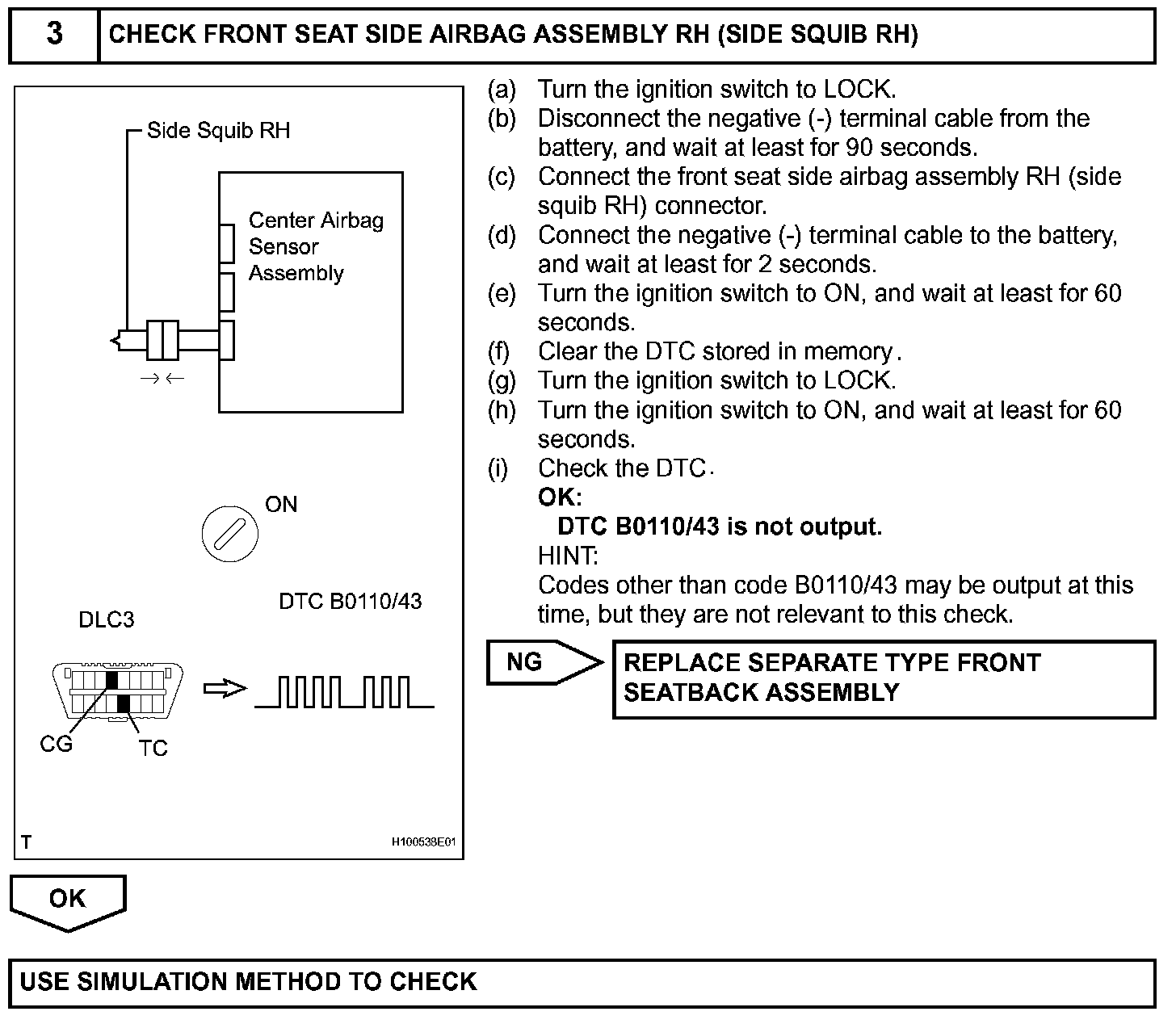

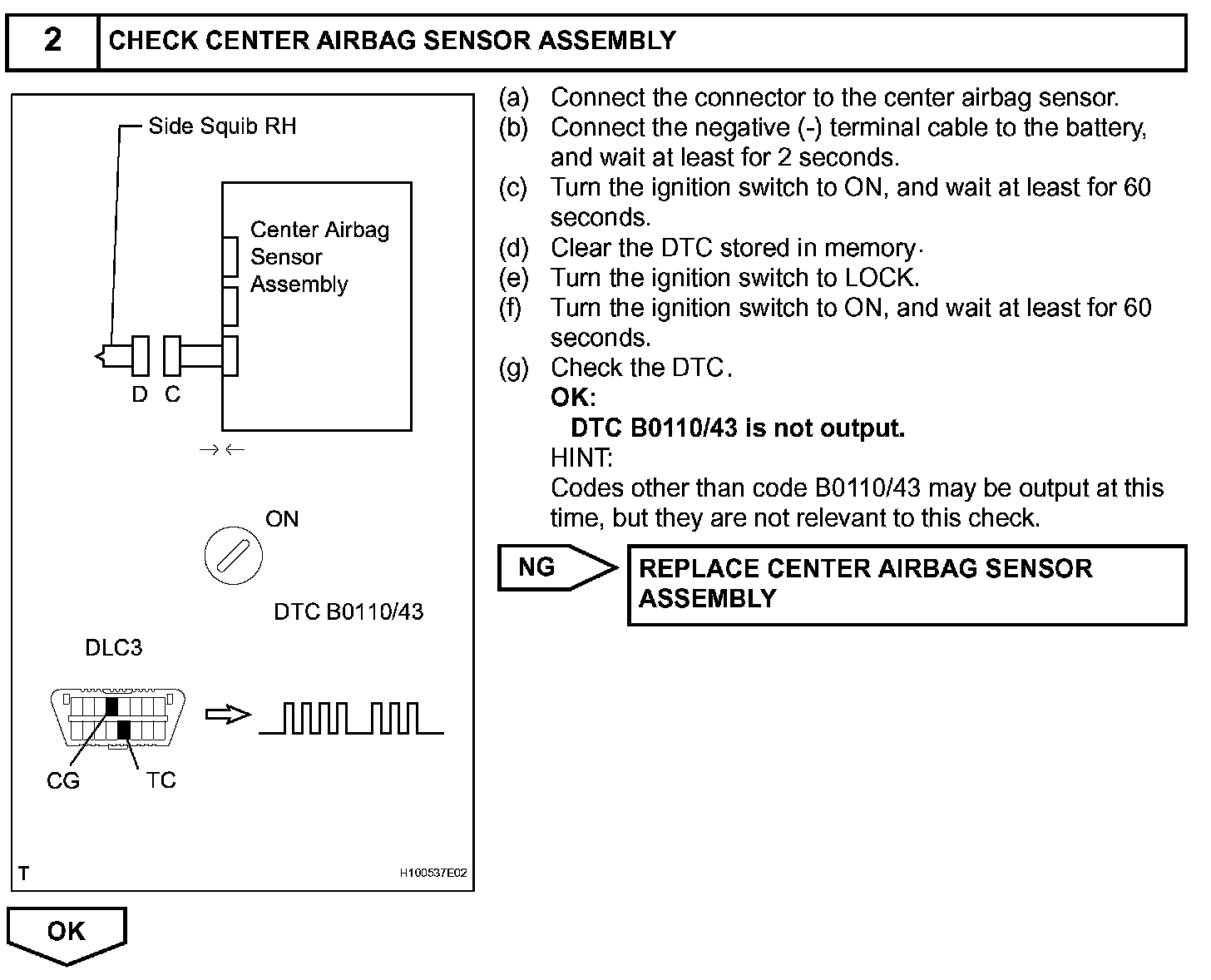

Step 2:

Step 3:

INSPECTION PROCEDURE
