B0105

DTC B0105/53 Short in Front Passenger Side Squib Circuit

DESCRIPTION

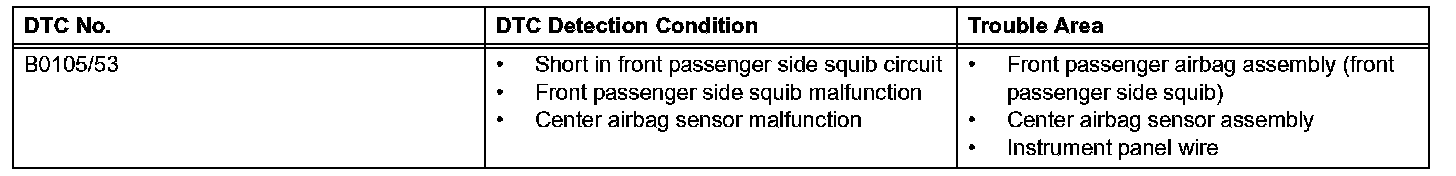

DTC Detection Condition:

The front passenger side squib circuit consists of the center airbag sensor and the front passenger airbag. The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0105/53 is recorded when a short is detected in the front passenger side squib circuit.

Wiring Diagram:

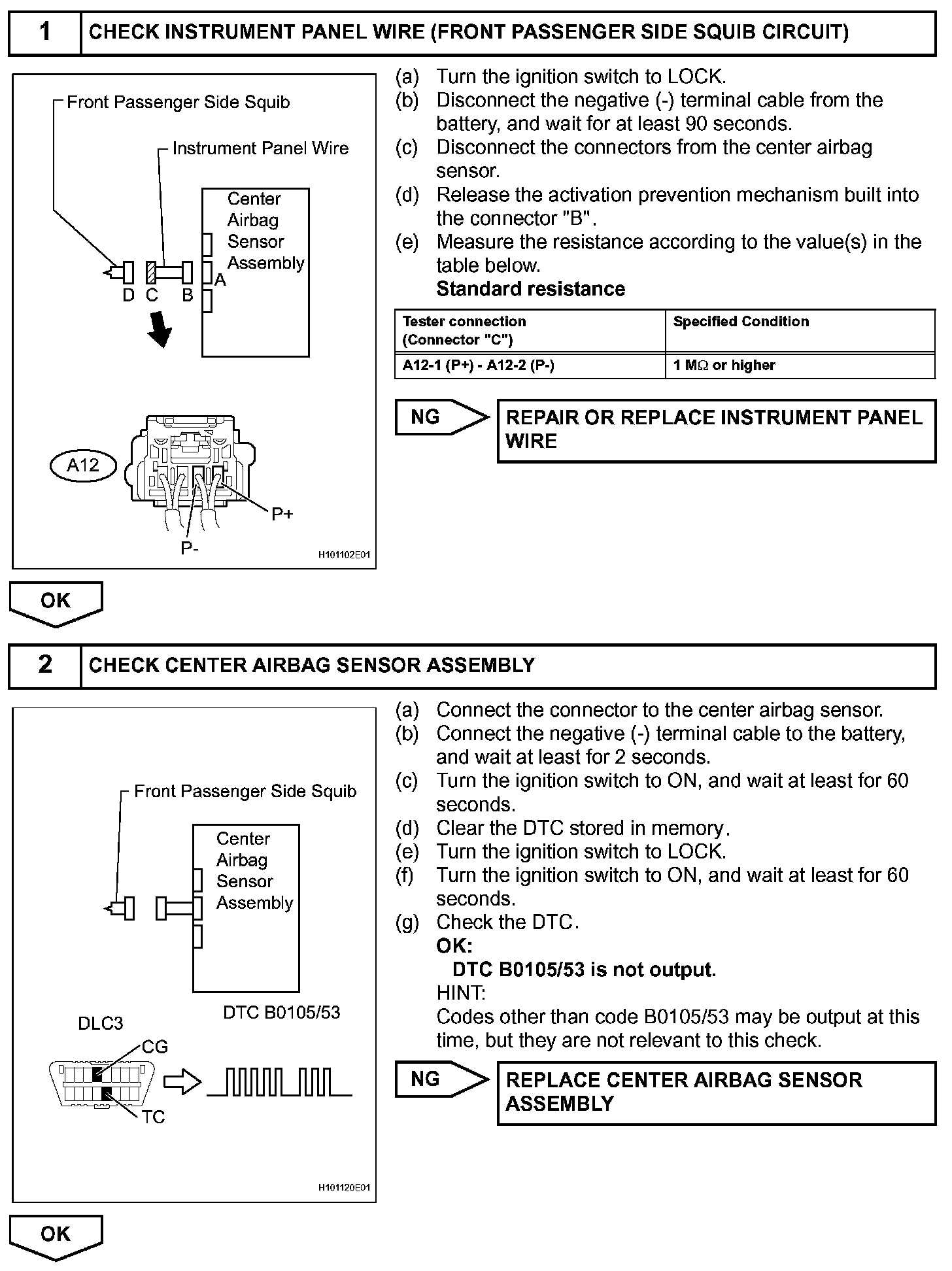

Step 1-2:

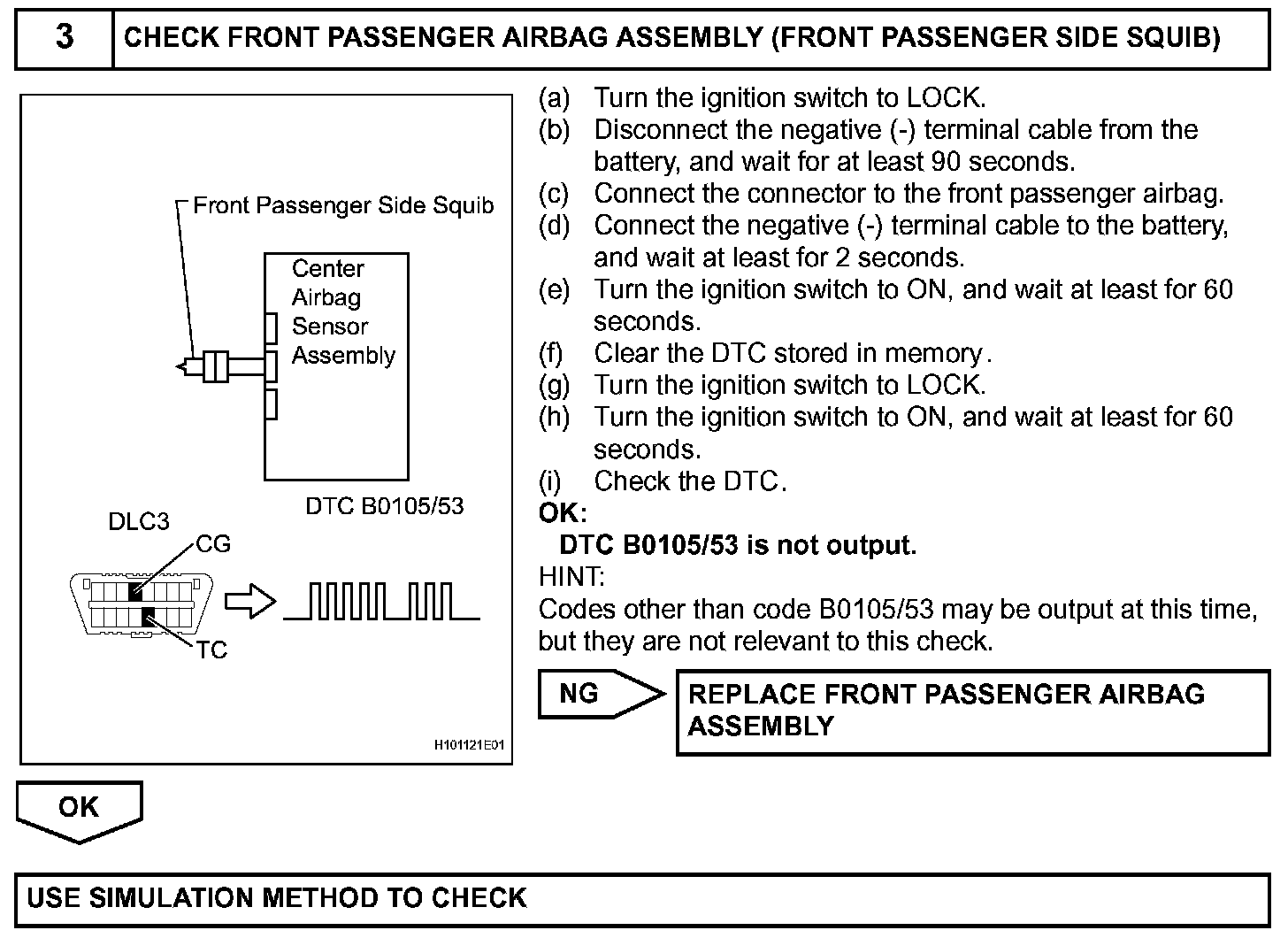

Step 3:

INSPECTION PROCEDURE
