B0102

DTC B0102/11 Short to GND in Driver Side Squib Circuit

DESCRIPTION

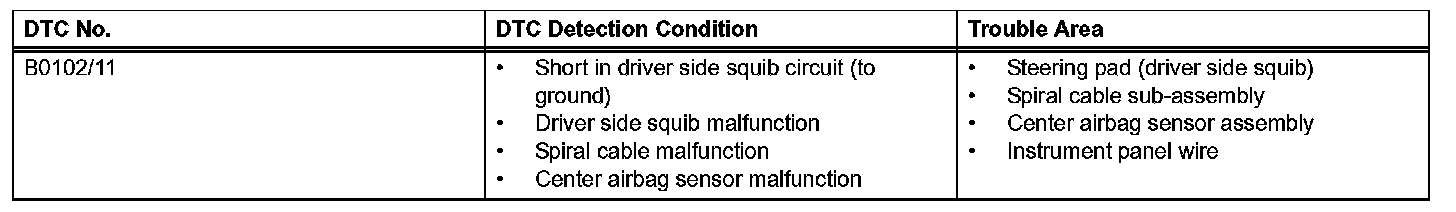

DTC Detection Condition:

The driver side squib circuit consists of the center airbag sensor, the spiral cable and the steering pad. The circuit instructs the SRS to deploy when deployment conditions are met.

DTC B0102/11 is recorded when a ground short is detected in the driver side squib circuit.

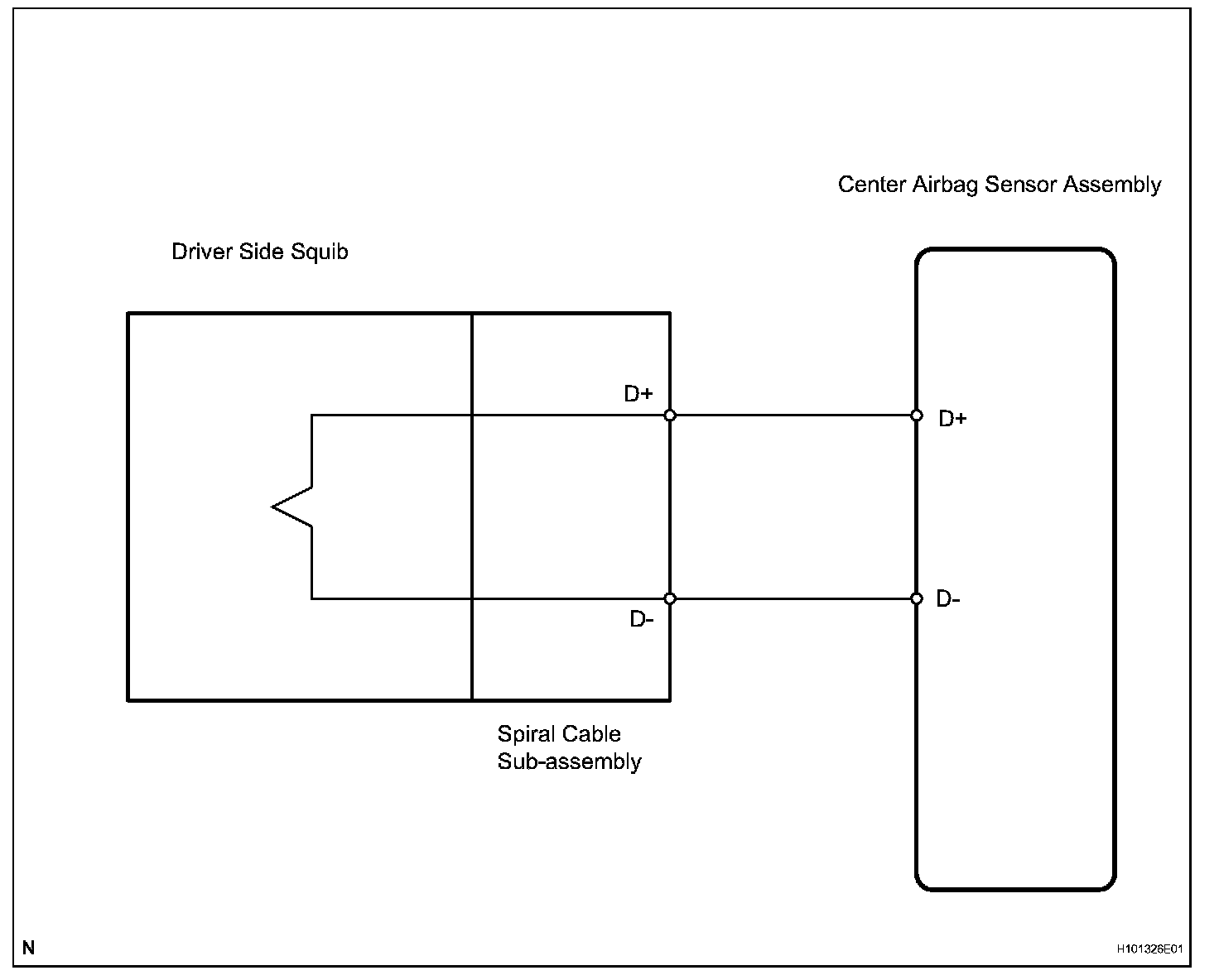

Wiring Diagram:

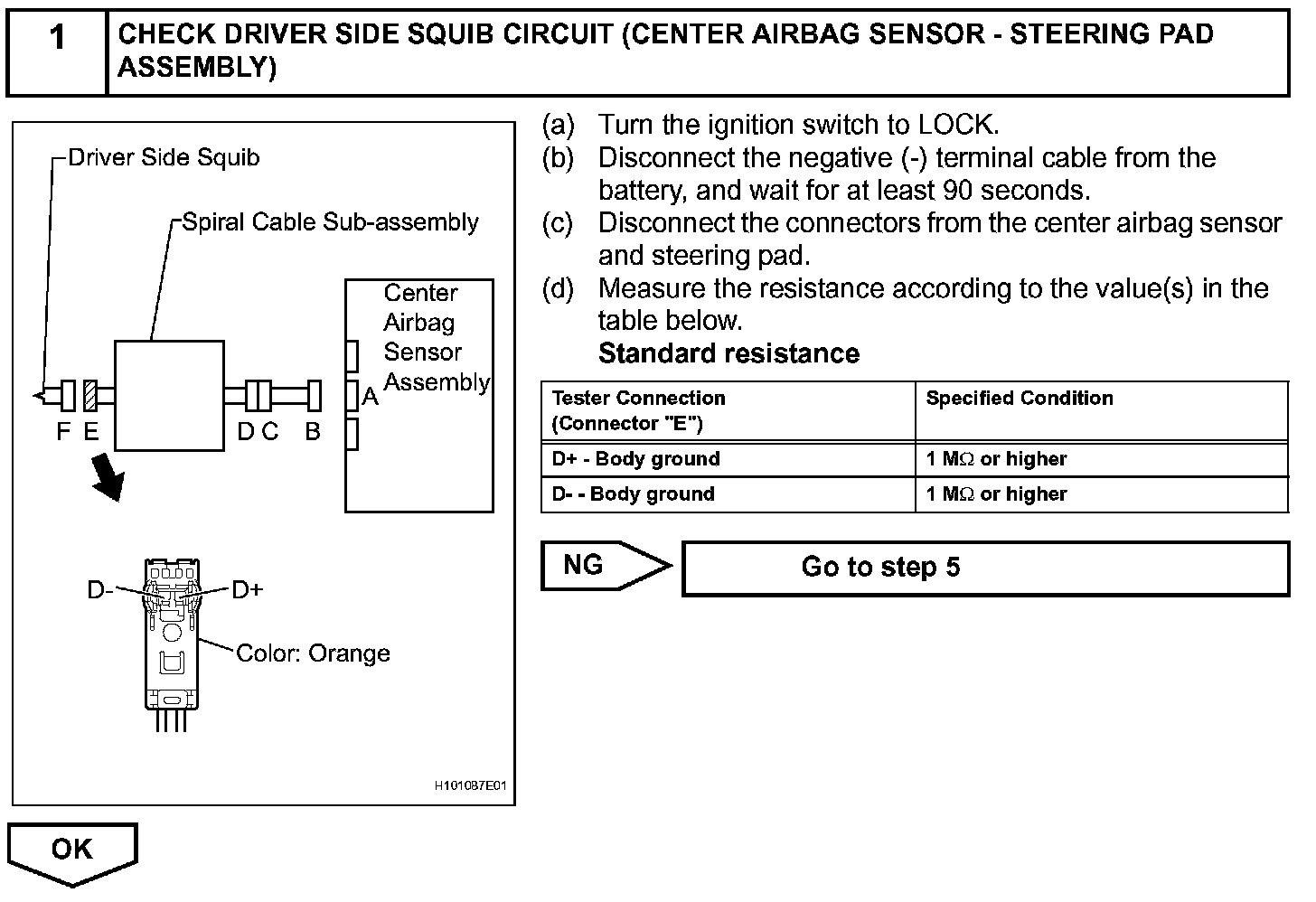

Step 1:

Step 2:

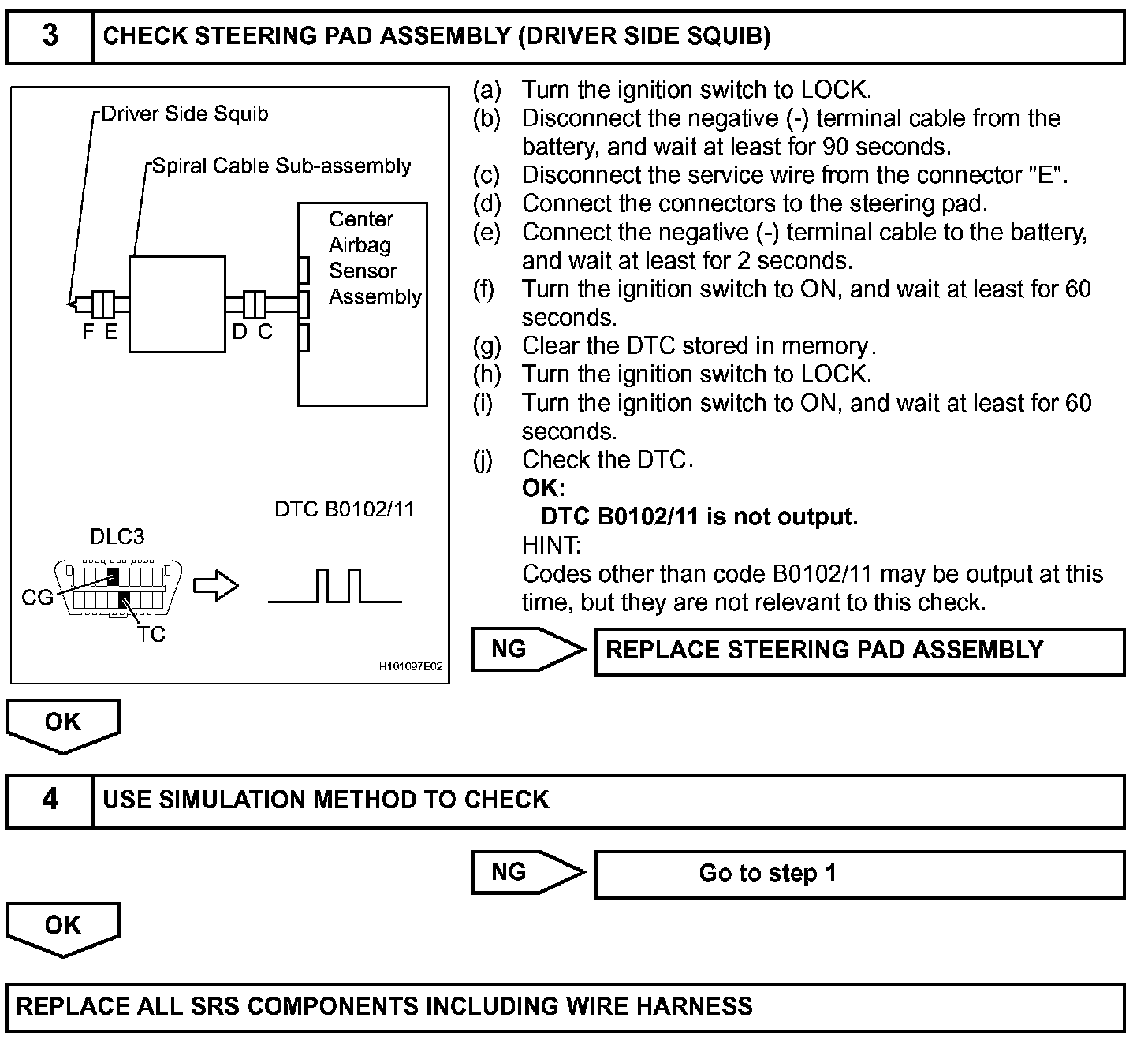

Step 3-4:

Step 5-6:

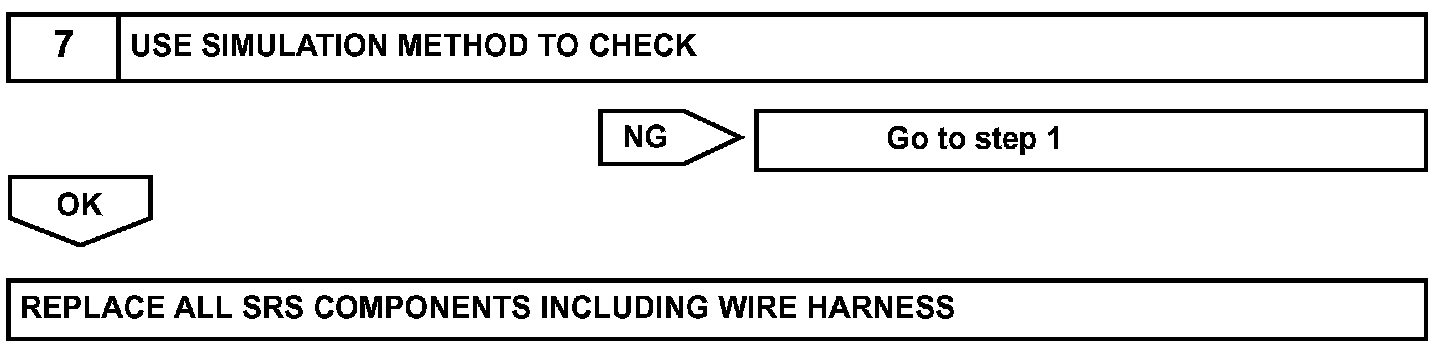

Step 7:

INSPECTION PROCEDURE
