Remote Up / Down Function Does Not Operate

Remote Up / Down Function does not Operate

DESCRIPTION
Operating the passenger side power window switch on the power window regulator master switch inputs a remote signal to the power window regulator switch. Then, the power window regulator switch drives the passenger side window motor.

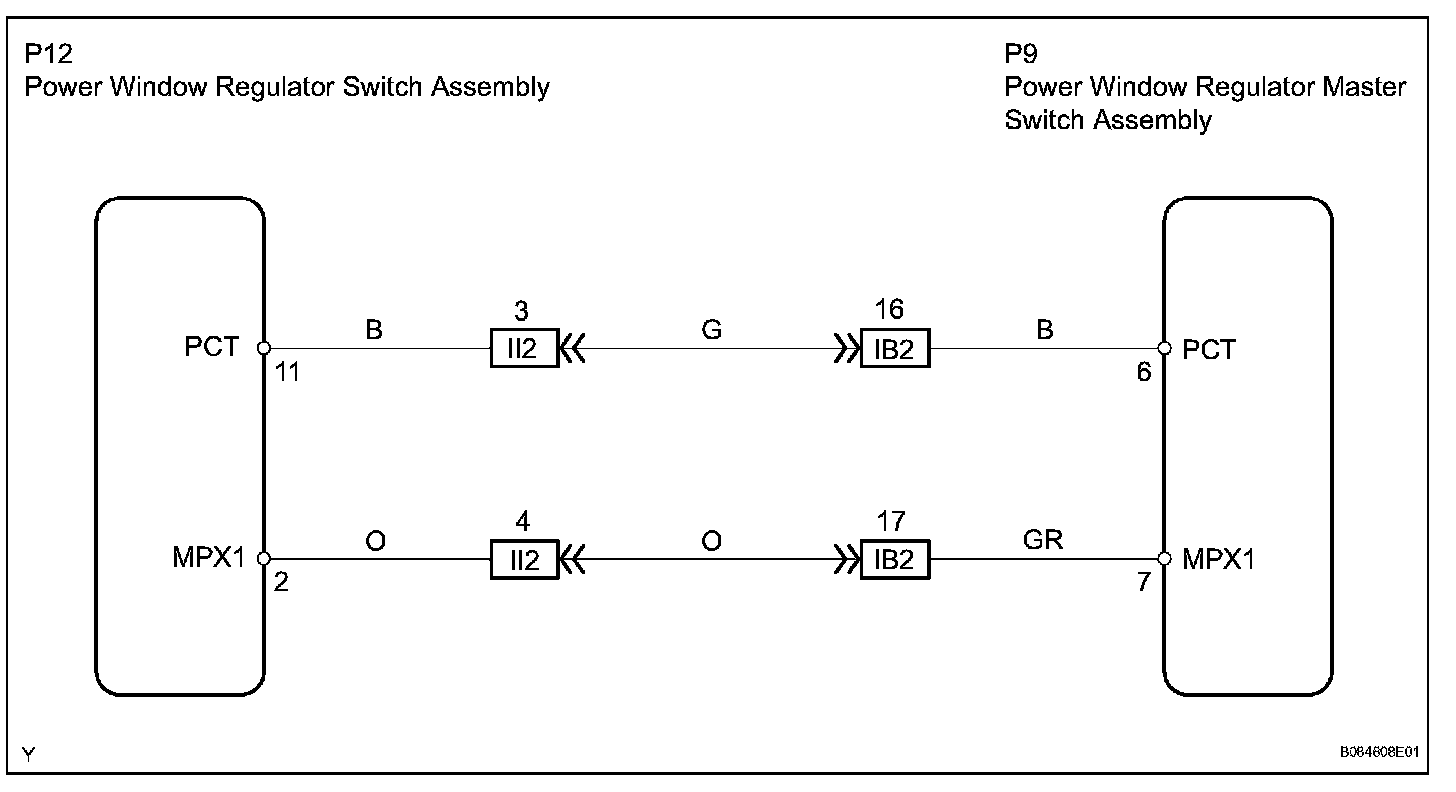

Wiring Diagram:

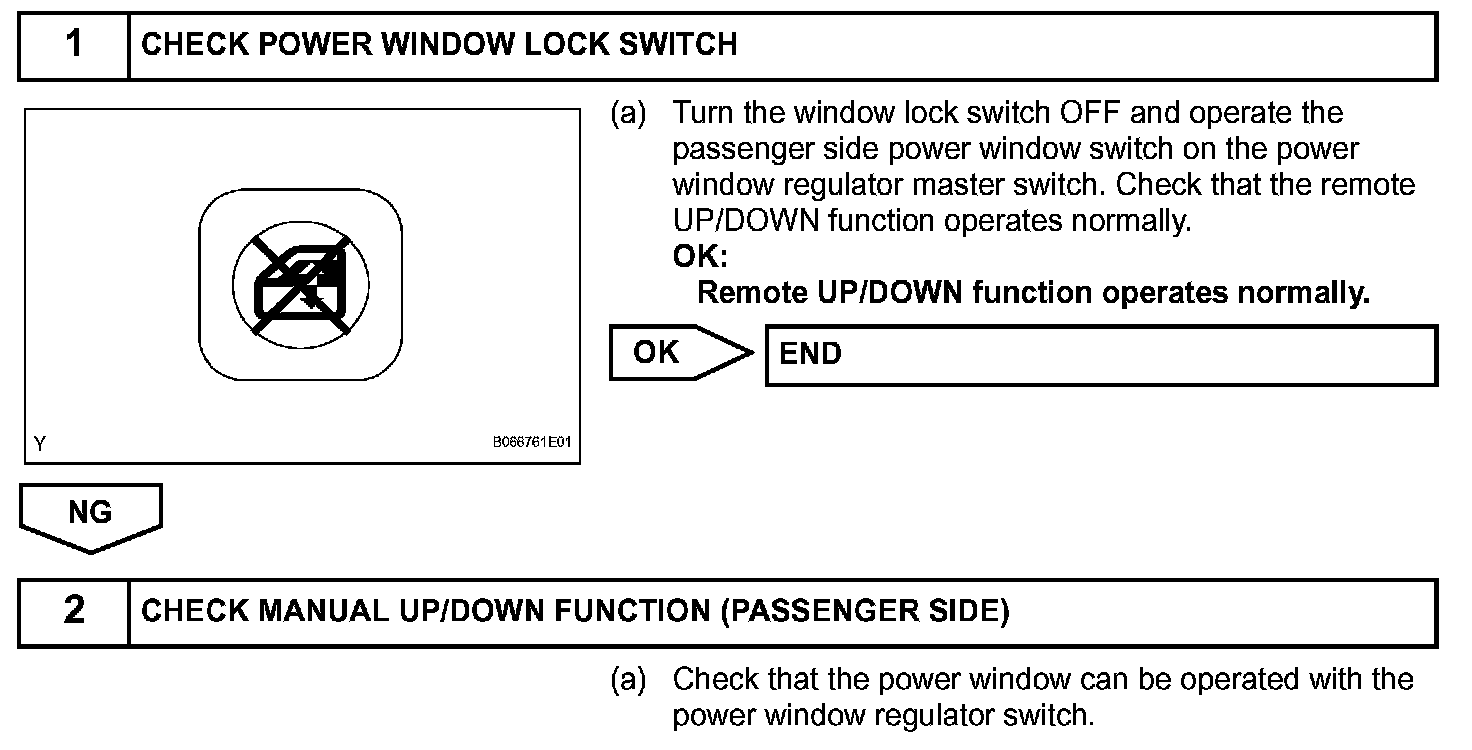

Step 1-2:

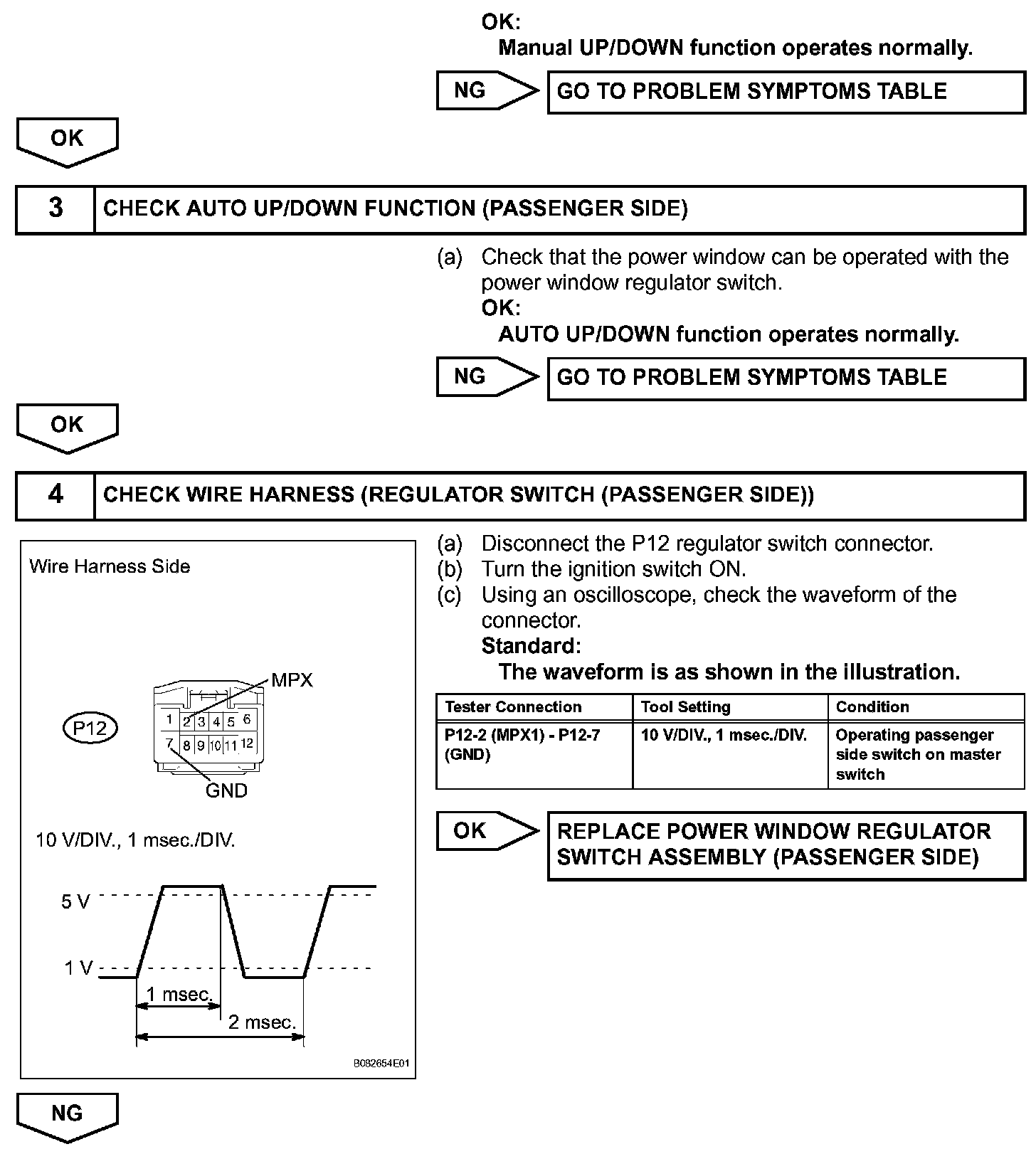

Step 2(continued)-4:

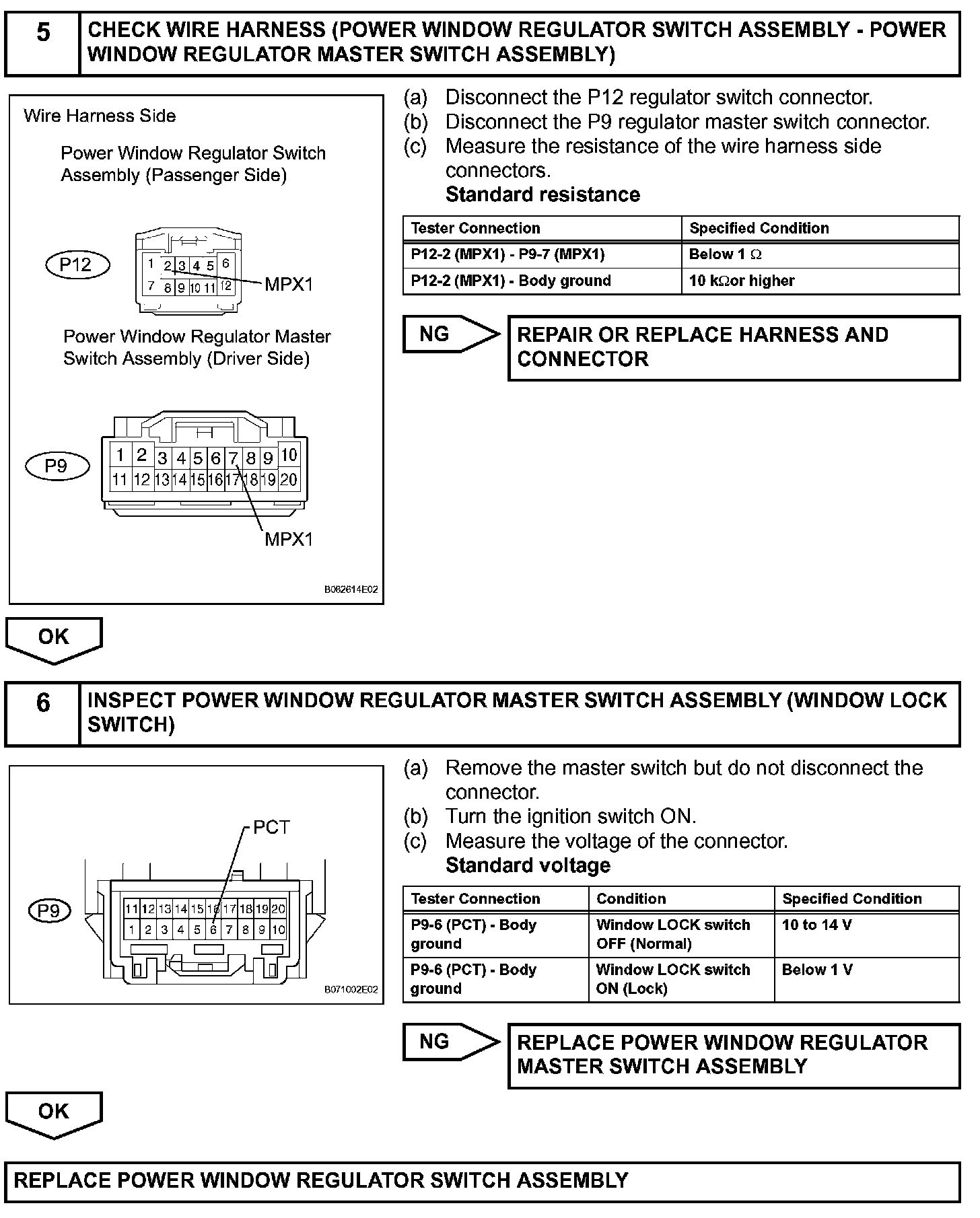

Step 5-6:

INSPECTION PROCEDURE
