Driver Side Power Window Does Not Operate With Power Window Master Switch

Driver Side Power Window does not Operate with Power Window Master Switch

DESCRIPTION
If the manual UP/DOWN function does not operate, a malfunction may be present in the power window regulator motor, the power window regulator master switch or the wire harness.

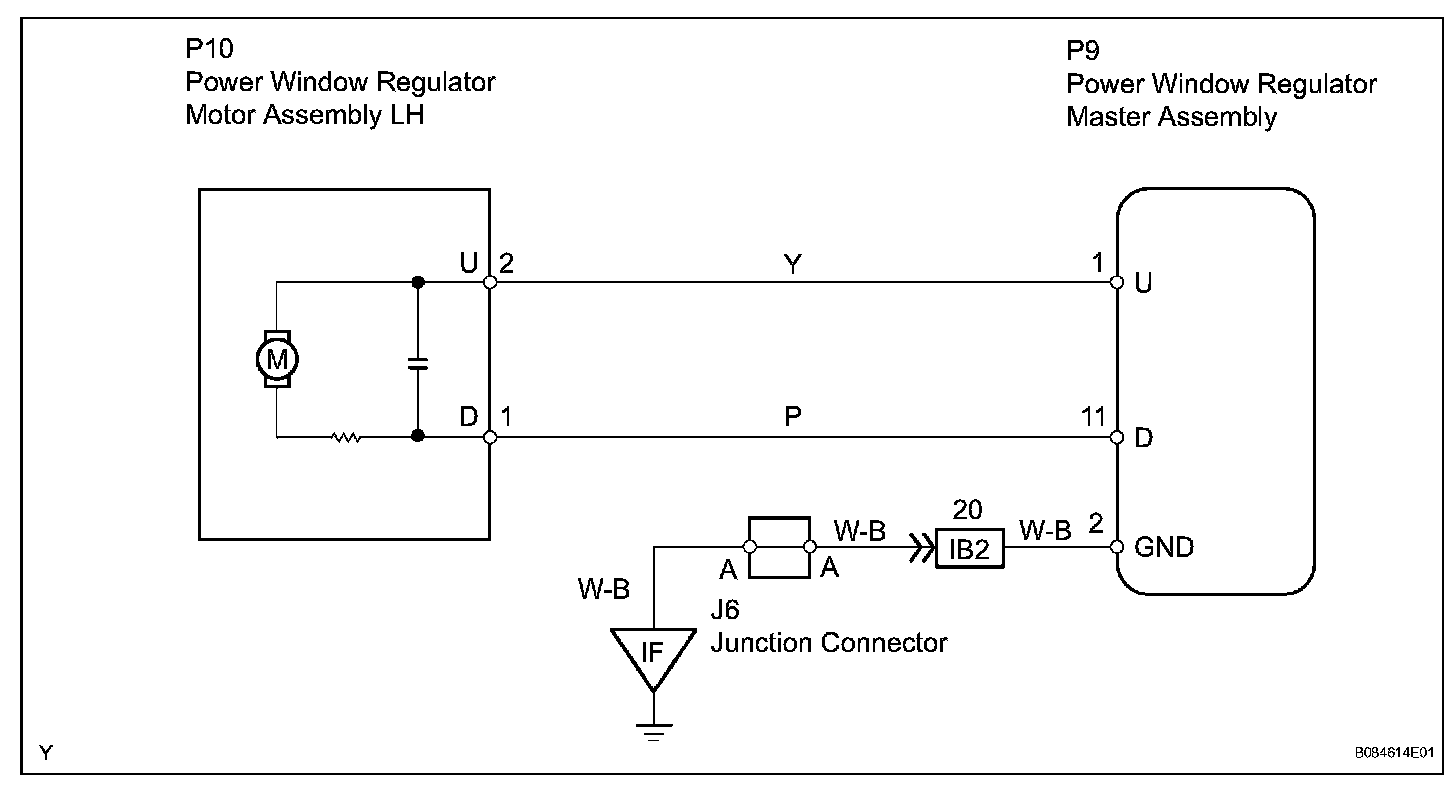

Wiring Diagram:

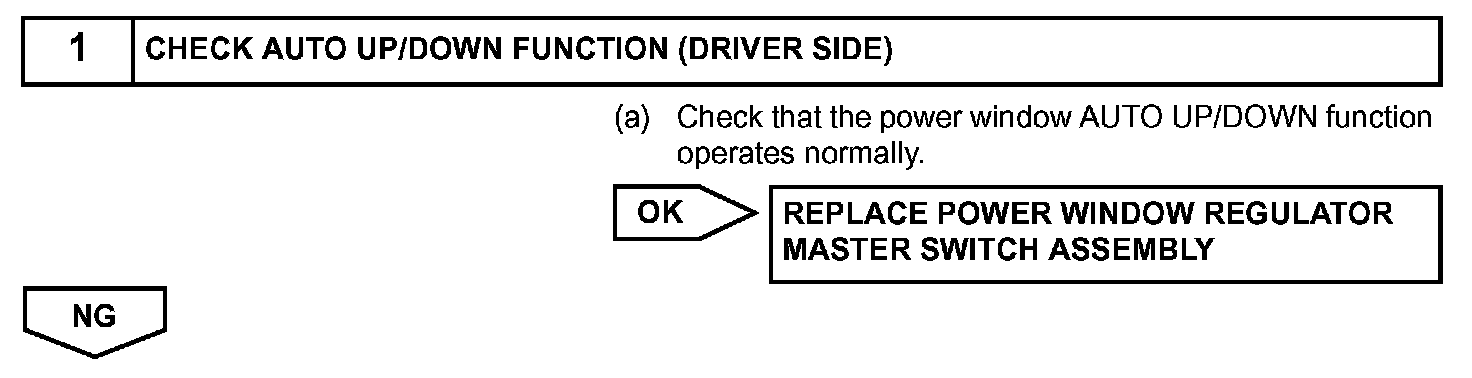

Step 1:

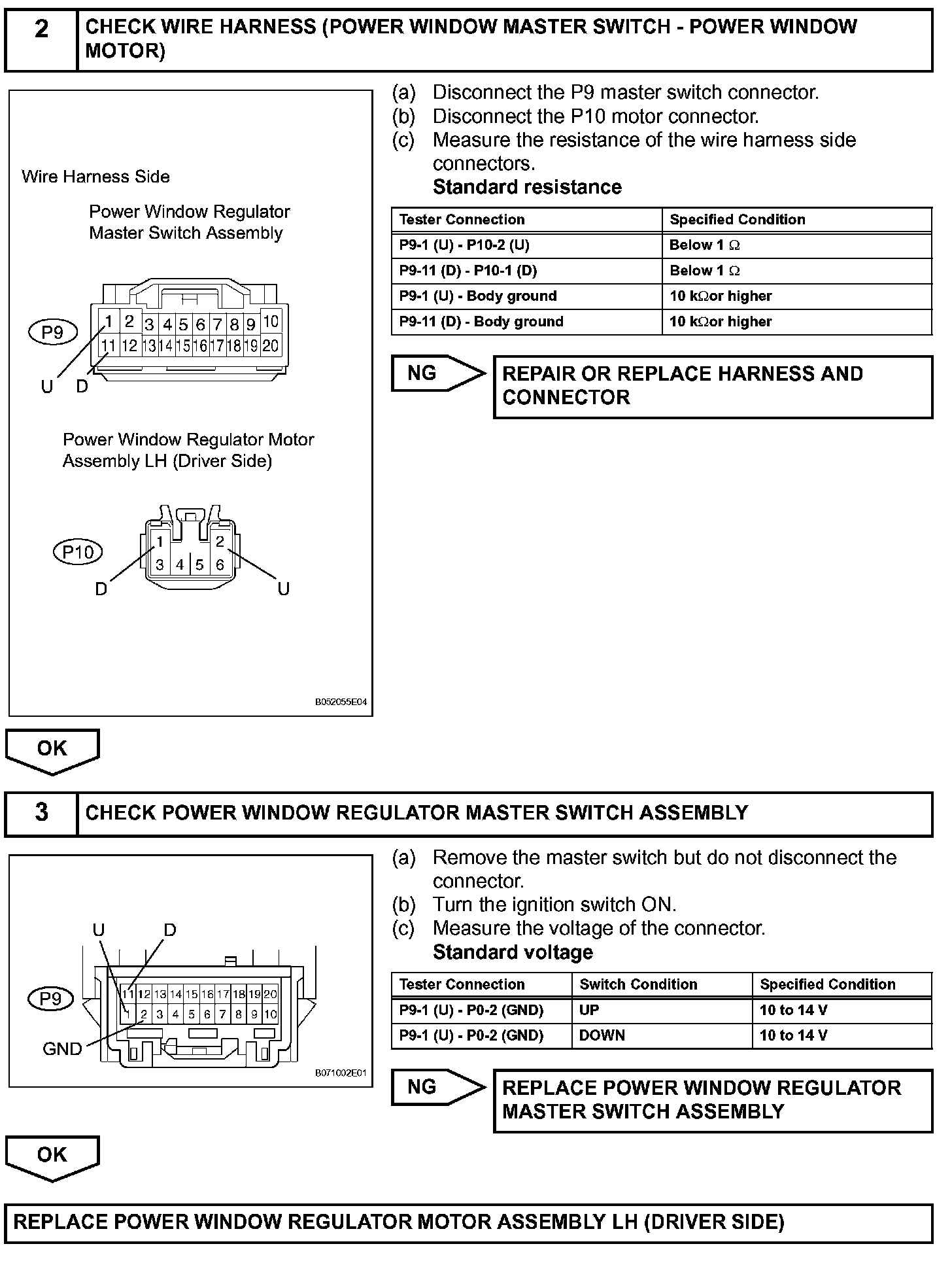

Step 2-3:

INSPECTION PROCEDURE
