Front Axle Hub Bolt

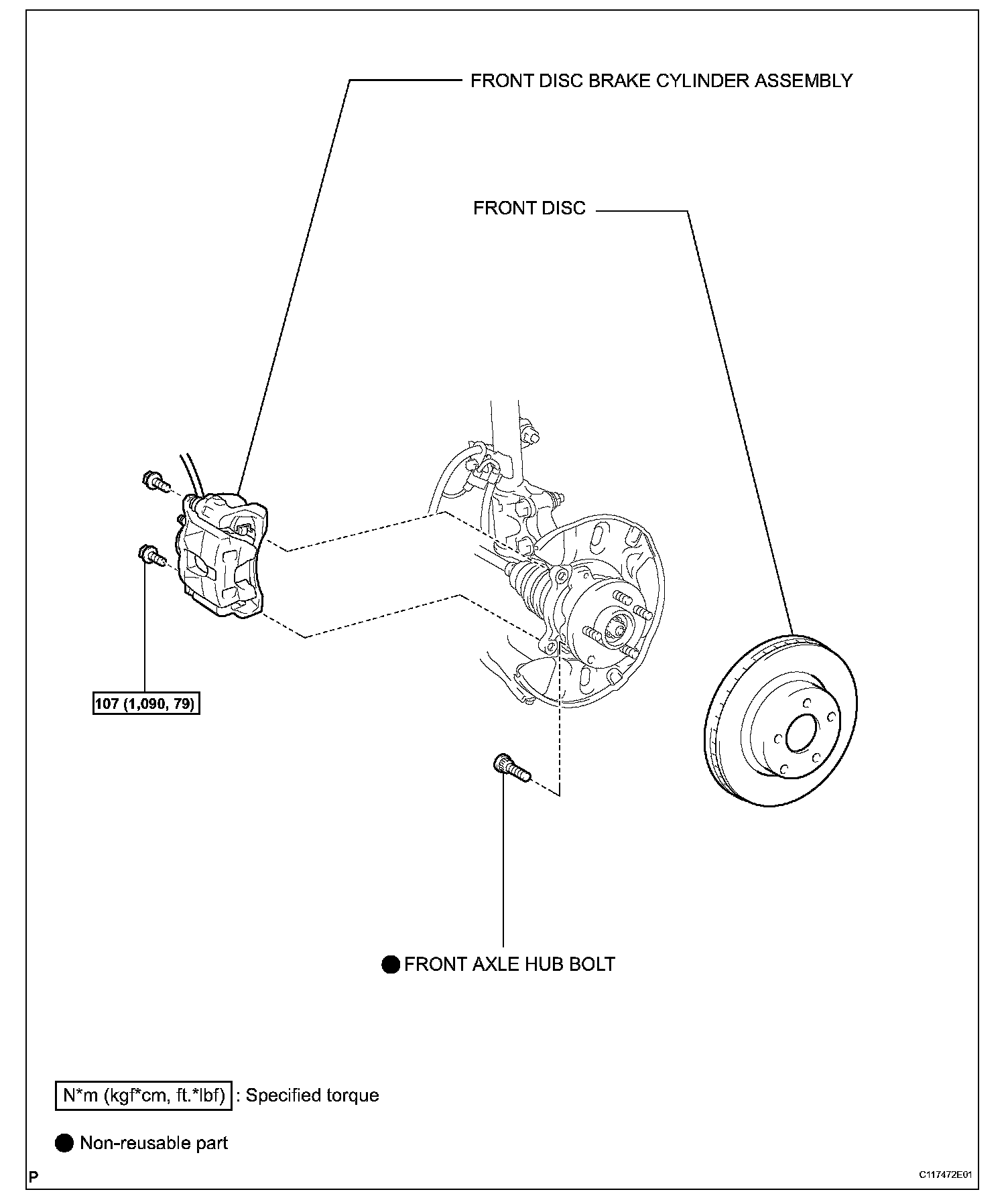

FRONT AXLE HUB BOLTCOMPONENTS:
REPLACEMENT
HINT:
^ Use the same procedures for the RH side and LH side.
^ The procedures listed are for the LH side.
^ A bolt without a torque specification is shown in the standard bolt chart.
1. REMOVE FRONT WHEEL
2. REMOVE FRONT DISC BRAKE CYLINDER ASSEMBLY

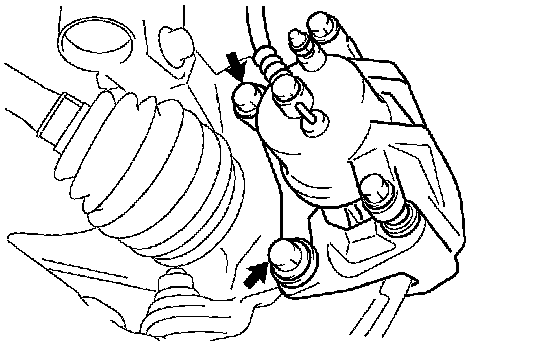

a. Remove the 2 bolts and disconnect the disc brake caliper assembly LH from the steering knuckle.
NOTICE:
^ Use a string or equivalent to keep the brake caliper from hanging down by the flexible hose.
^ The friction surface of the pad and disc must be free from oil, grease and paint.
3. REMOVE FRONT DISC
4. REMOVE FRONT AXLE HUB BOLT
a. Temporarily install the 2 hub nuts.

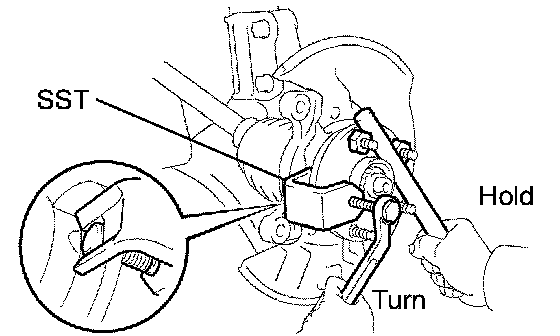

b. Using SST and a hammer handle or an equivalent to hold the axle hub LH, remove the LH hub bolt.
SST 09628-10011
5. INSTALL FRONT AXLE HUB BOLT

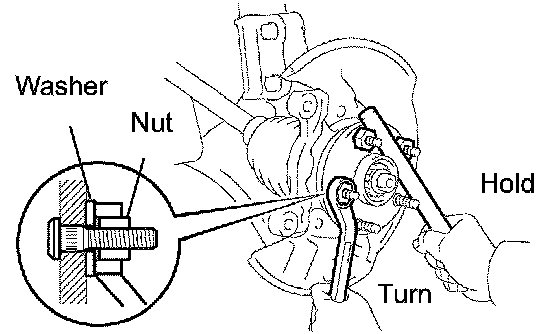

a. Install a washer and nut to a new LH hub bolt as shown in the illustration.
b. Using a hammer handle or an equivalent to hold the axle hub LH, install the LH hub bolt by tightening the nut.
6. INSTALL FRONT DISC
7. INSTALL FRONT DISC BRAKE CYLINDER ASSEMBLY
a. Install the disc brake caliper with the 2 bolts to the steering knuckle LH.
Torque: 107 Nm (1,090 kgf-cm, 79 inch lbs.)
8. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
