Rear Stabilizer Bar

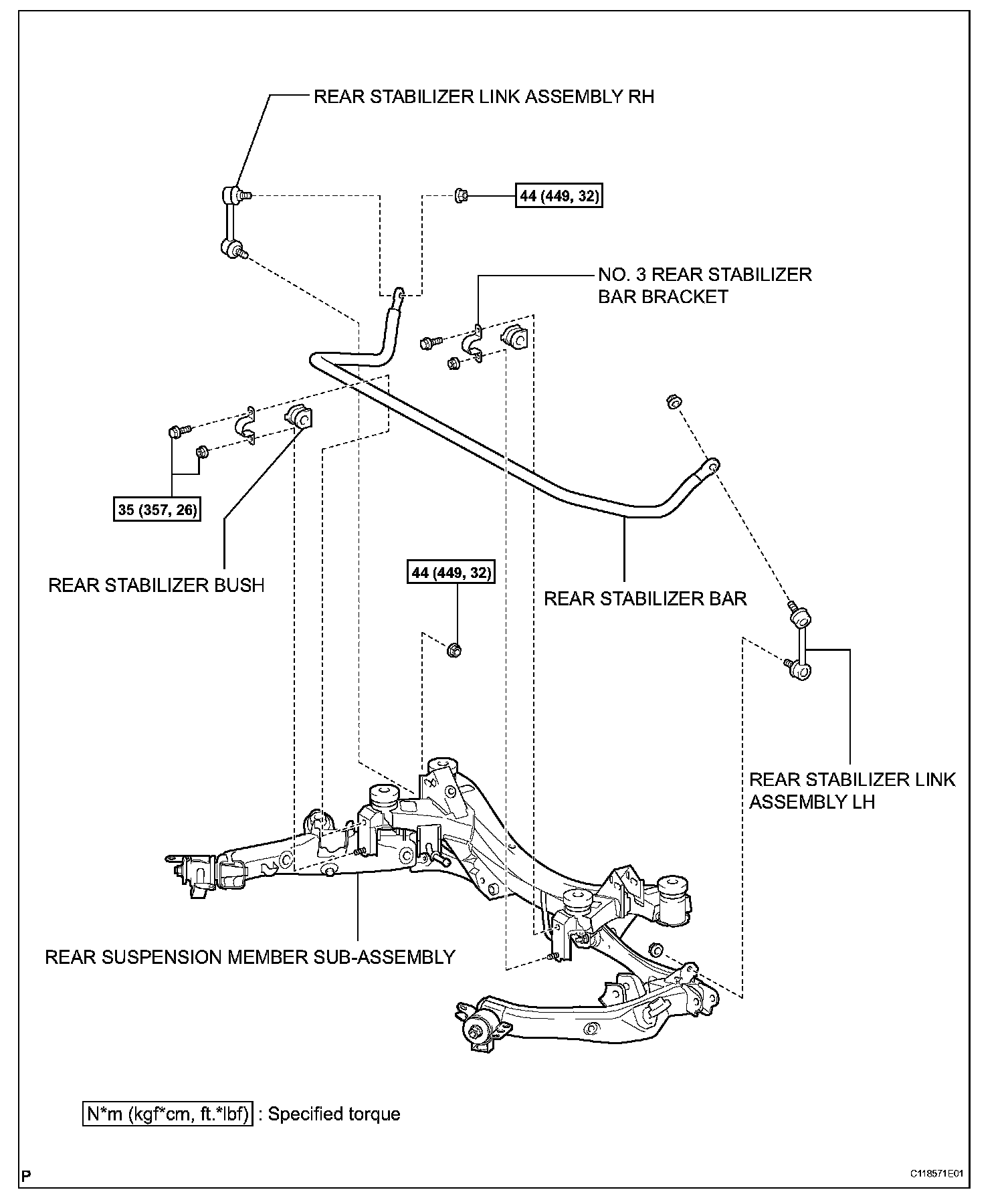

REAR STABILIZER BARCOMPONENTS:
REMOVAL
1. REMOVE REAR STABILIZER LINK ASSEMBLY LH

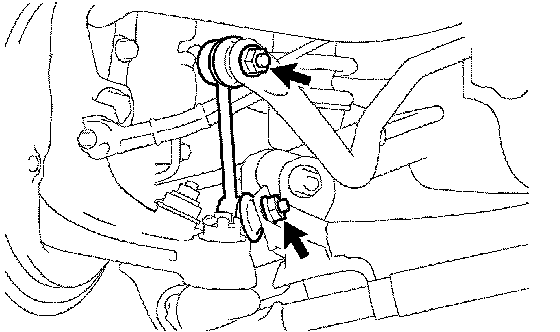

a. Remove the 2 nuts and stabilizer link LH.
HINT: If the ball joint turns together with the nut, use a 5 mm hexagon wrench to hold the stud.
2. REMOVE REAR STABILIZER LINK ASSEMBLY RH
HINT: Use the same procedures described for the LH side.
3. REMOVE REAR STABILIZER BAR
a. Remove the 2 bolts, 2 nuts and 2 No. 3 stabilizer bar brackets from the suspension member.
b. Remove the 2 stabilizer bushes from the stabilizer bar.
INSPECTION
1. INSPECT REAR STABILIZER BAR
a. Before installing the nut, flip the ball joint stud back and forth 5 times as shown in the illustration.
b. Using a torque wrench, continuously turn the nut for 2 to 4 seconds per turn, and take the torque reading on the fifth turn.
Torque:
Standard turning torque 1.0 Nm (10 kgf-cm, 8.7 inch lbs.) or less
NOTICE:
^ Make sure that neither unusual drag nor rattle occurs during the rotation.
^ Make sure that neither crack nor grease leakage exists on the dust cover.
^ Make sure that the stabilizer link LH is not deformed.
INSTALLATION
1. INSTALL REAR STABILIZER BAR
a. Install the 2 stabilizer bushes to the stabilizer bar.
HINT:

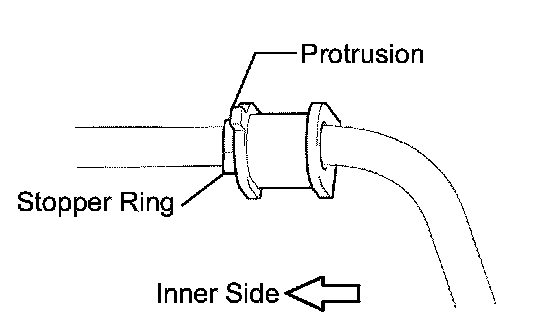

^ Install the stabilizer bush to the outer side of the stopper ring on the stabilizer bar.
^ Install the stabilizer bush with the protrusion facing towards the inside of the vehicle.

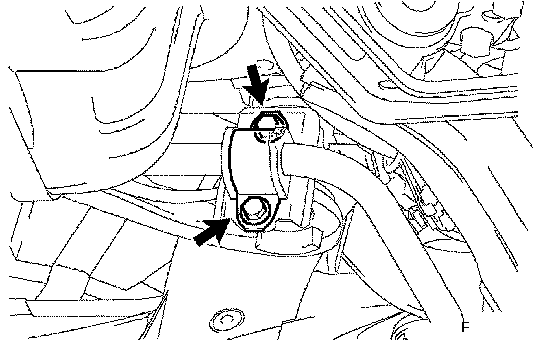

b. Install the stabilizer bar and 2 No. 3 stabilizer bar brackets with the 2 bolts and 2 nuts.
Torque: 35 Nm (357 kgf-cm, 26 ft. lbs.)
2. INSTALL REAR STABILIZER LINK ASSEMBLY LH

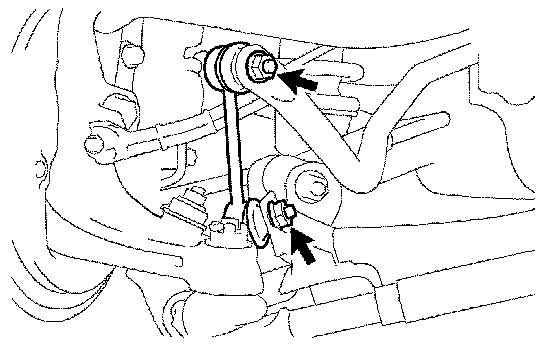

a. Install the stabilizer link LH with the 2 nuts.
Torque: 44 Nm (49 kgf-cm, 32 ft. lbs.)
HINT: If the ball joint turns together with the nut, use a 5 mm hexagon wrench to hold the stud.
3. INSTALL REAR STABILIZER LINK ASSEMBLY RH
HINT: Use the same procedures described for the LH side.
4. INSTALL REAR WHEEL ALIGNMENT
a. Inspect and adjust the rear wheel alignment.
