Inspection

STEERING LINKAGE

INSPECTION





1. INSPECT POWER STEERING RACK

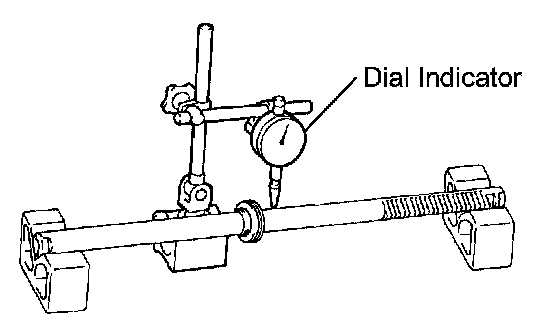

a. Using a dial indicator, check for runout of the steering rack and teeth wear.
Maximum runout: 0.1 mm (0.004 inch)
If runout exceeds the maximum, replace the power steering rack.

NOTICE: Make sure that the steering rack is placed horizontally.

b. Check the rack surface for wear and damage.
If runout exceeds the maximum, replace the power steering link assembly.
