CLUTCH START SWITCH

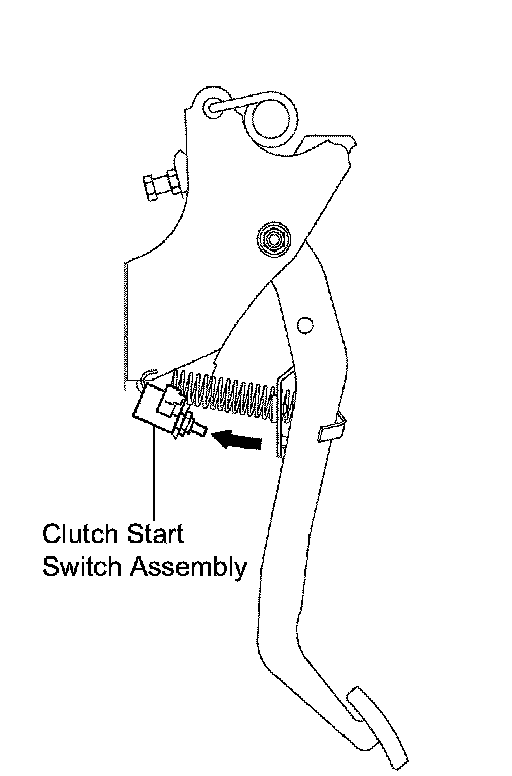

COMPONENTS:

ON-VEHICLE INSPECTION





1. CHECK CLUTCH START SYSTEM
a. Check that the engine does not start when the clutch pedal is released.
b. Check that the engine starts when the clutch pedal is fully depressed.
If necessary, inspect and replace the clutch start switch assembly.

REMOVAL
1. REMOVE CLUTCH START SWITCH ASSEMBLY
a. Disconnect the clutch start switch connector.
b. Remove the nut and clutch start switch from the clutch pedal support.

INSPECTION





1. INSPECT CLUTCH START SWITCH ASSEMBLY
a. Check the continuity between the terminals when the switch is ON and OFF.





OK

INSTALLATION
1. INSTALL CLUTCH START SWITCH ASSEMBLY
a. Install the clutch start switch with the nut.
Torque: 16 Nm (160 kgf-cm, 12 ft. lbs.)
b. Connect the clutch start switch connector.
