Home >> Scion >> 2006 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Manual Transmission/Transaxle >> System Specifications >> Torque

Torque

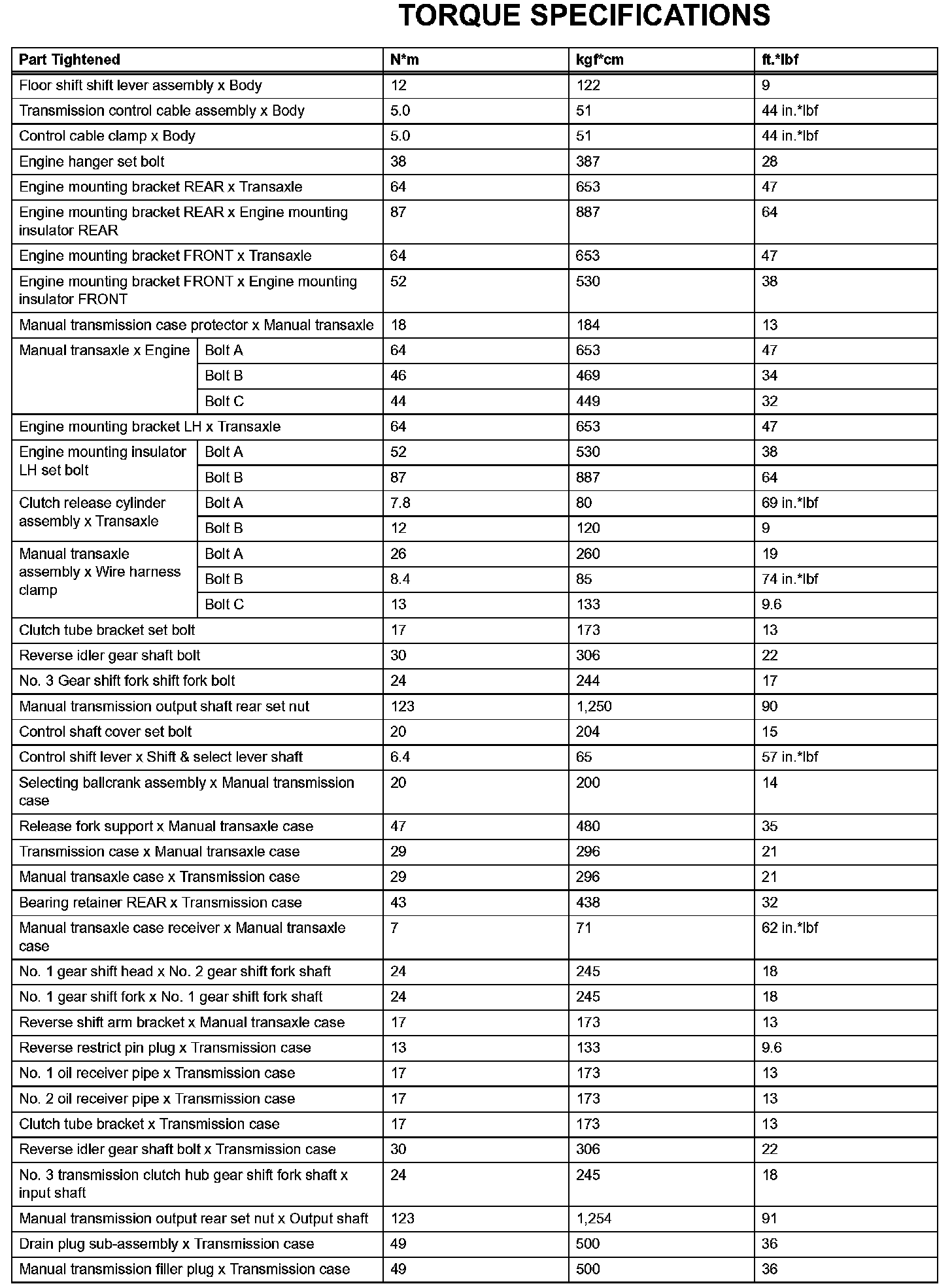

Manual Transaxle-Torque Specifications (Part 1):



Manual Transaxle-Torque Specifications (Part 2):
