System Specifications

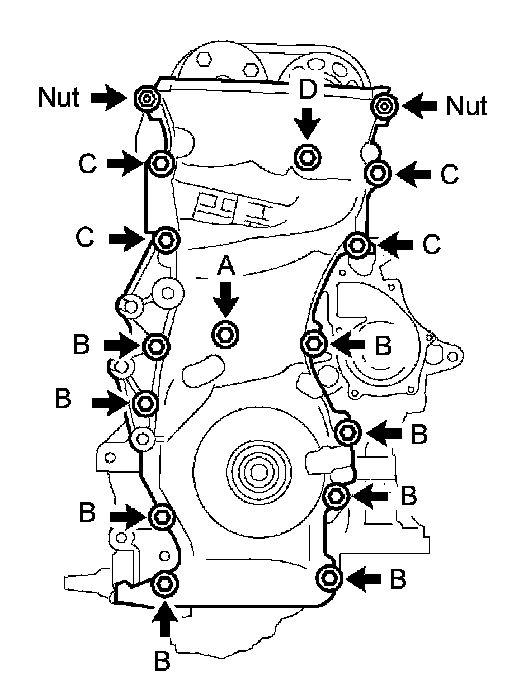

Timing Chain Cover Nut & Bolts

Bolt length:

Bolt A 9.0 Nm (92 kgf-cm, 80 inch lbs.)
Bolt B 25 Nm (255 kgf-cm, 18 ft. lbs.)
Bolt C 55 Nm (561 kgf-cm, 41 ft. lbs.)
Bolt D 43 Nm (438 kgf-cm, 32 ft. lbs.)
Nut 11 Nm (112 kgf-cm, 8 ft. lbs.)

Crankshaft pulley bolt 180 Nm (1,835 kgf-cm, 133 ft. lbs.)
