Crankshaft, Engine

Crankshaft
Circle runout
Maximum taper & distortion 0.003 mm (0.0001 inch)
Main journal
Standard diameter 54.998 to 55.000 mm (2.1649 to 2.1654 inch)
Maximum taper & distortion 0.003 mm (0.0001 inch)
Crank pin
Standard diameter 47.990 to 48.000 mm (1.8894 to 1.8898 inch)
Maximum taper & distortion 0.003 mm (0.0001 inch)

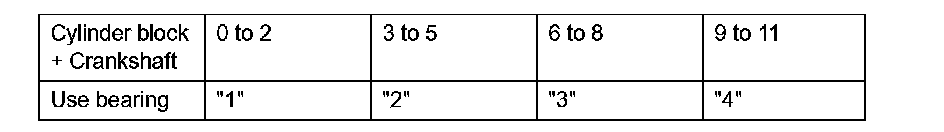

Crankshaft Main Bearing Size Codes

Standard diameter (Reference):

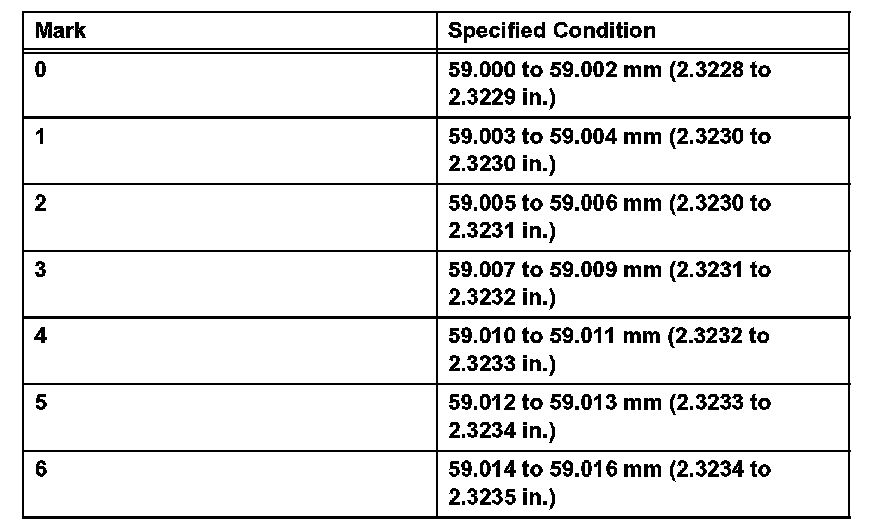

Standard cylinder block journal bore diameter:

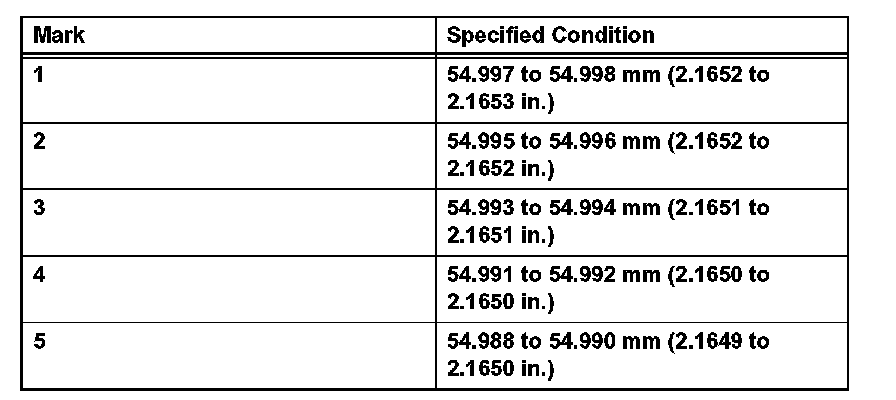

Standard crankshaft journal diameter:

Standard crankshaft journal diameter:

Standard bearing center wall thickness:
