Connecting Rod, Engine

Connecting Rod
Small end bore diameter 22.005 to 22.014 mm (0.8663 to 0.8667 inch)
Maximum misalignment 0.05 mm (0.0020 inch) per 100 mm (3.94 inch)
Maximum twist 0.15 mm (0.0059 inch) per 100 mm (3.94 inch)
Thrust clearance
Standard 0.160 to 0.362 mm (0.0063 to 0.0143 inch)
Maximum 0.362 mm (0.0143 inch)
Oil clearance
Standard 0.024 to 0.048 mm (0.0009 to 0.0019 inch)
Maximum 0.08 mm (0.0032 inch)

Connecting Rod Bolts





Diameter

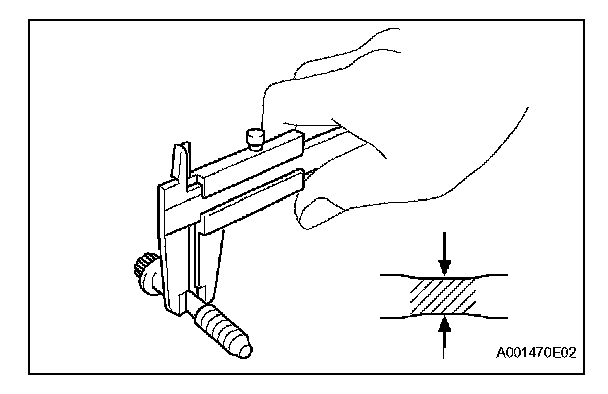

Standard 7.2 to 7.3 mm (0.283 to 0.287 inch)
Minimum 7.0 mm (0.276 inch)

First pass 24.5 Nm (250 kgf-cm, 18 ft. lbs.)
Final pass Tighten 90°
