Back Door Courtesy Switch

INSPECTION




1. INSPECT BACK DOOR LOCK ASSEMBLY
a. Inspect the back door courtesy light switch.

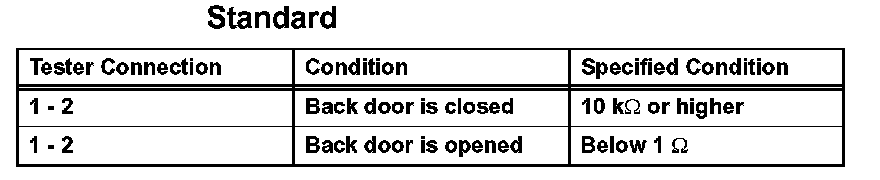

1. Measure the resistance according to the value(s) in the table.
