Front Door Courtesy Switch

INSPECTION

1. INSPECT FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY

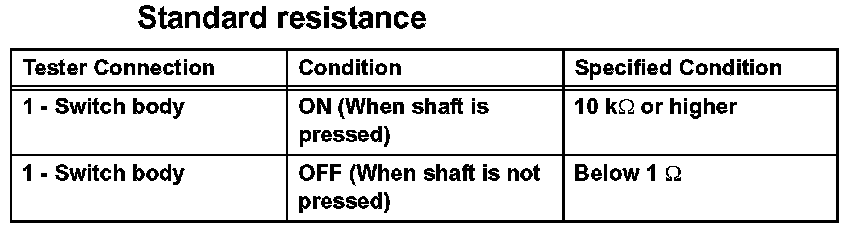

a. Measure the resistance according to the value(s) in the table.
