Driver Side Knee Airbag Assembly
REMOVALCAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY

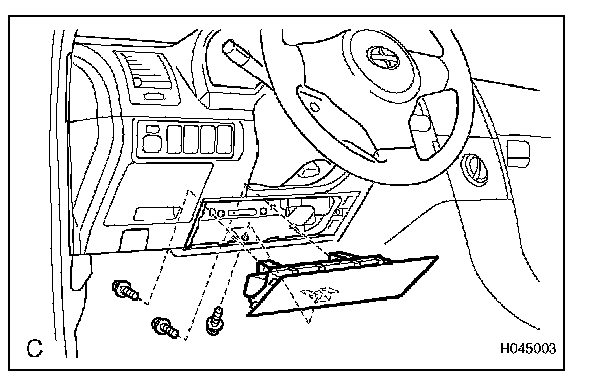

a. Remove the 4 bolts and driver side knee airbag.
b. Disconnect the connector.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
INSTALLATION
CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it.
1. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY
a. Connect the connector.
NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
b. Install the front passenger side knee airbag with the 3 bolts.
Torque:18 N.m (184 kgf.cm, 13 ft.lbf)
2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
4. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
