System Diagram

SYSTEM DIAGRAM

SYSTEM DIAGRAM (PART 1):

SYSTEM DIAGRAM (PART 2):

SYSTEM DIAGRAM (PART 3):

SYSTEM DIAGRAM (PART 4):

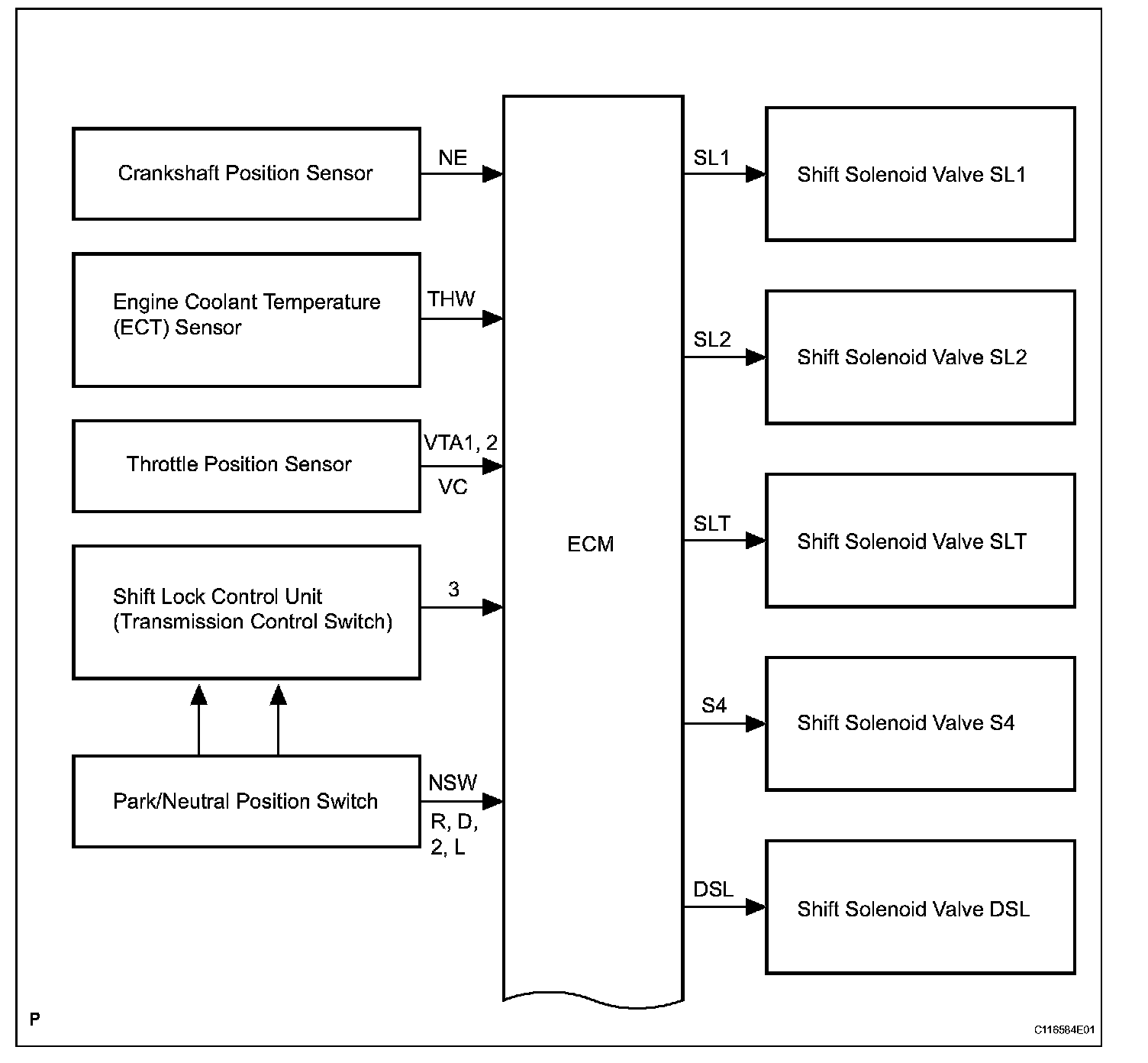

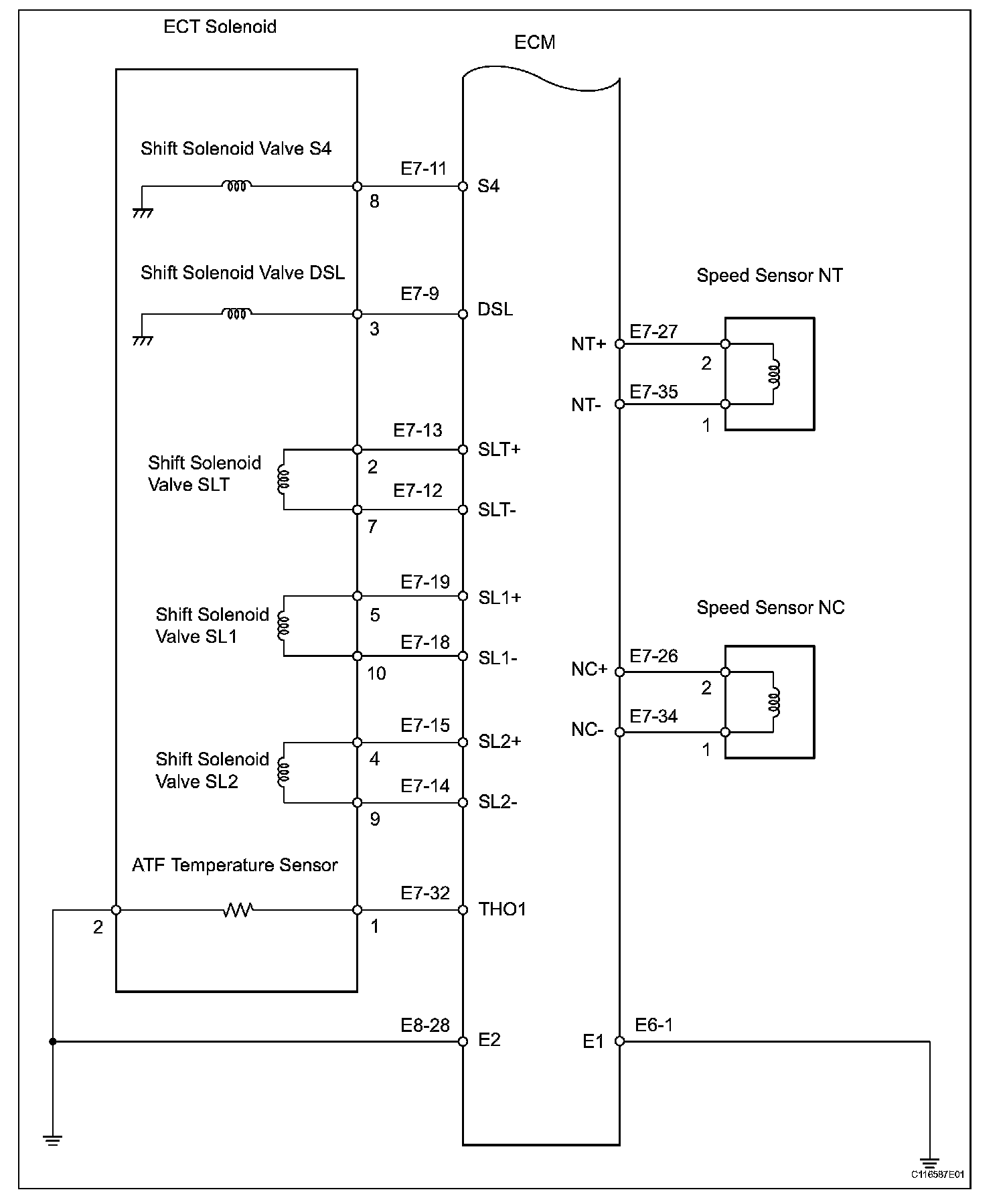

The configuration of the electronic control system in the U241E automatic transaxle is as shown in the chart.
