Fuel Pump Relay: Testing and Inspection

ON-VEHICLE INSPECTION

1. REMOVE EFI RELAY (Marking: EFI)
a. Remove the engine room relay block cover.
b. Remove the EFI relay from the engine room relay block.

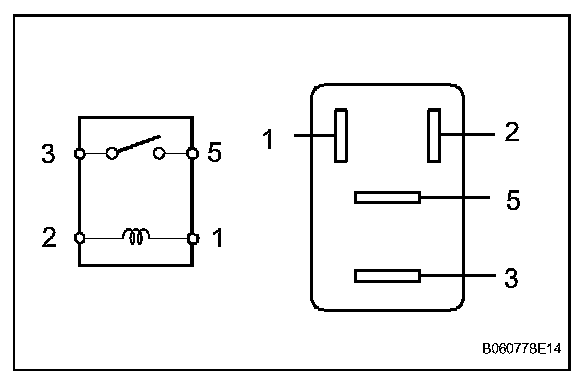

2. INSPECT EFI RELAY

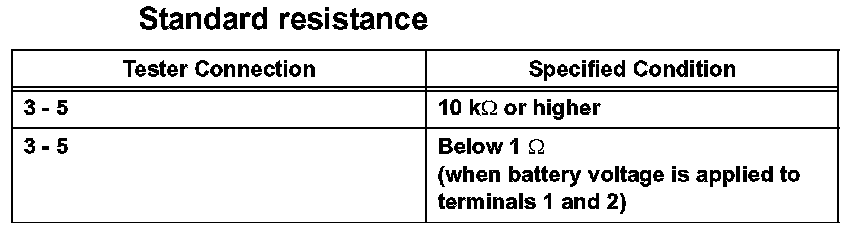

a. Measure the EFI relay resistance.

If the result is not as specified, replace the relay.

3. INSTALL EFI RELAY
