Ignition System: Locations

Ignition System:

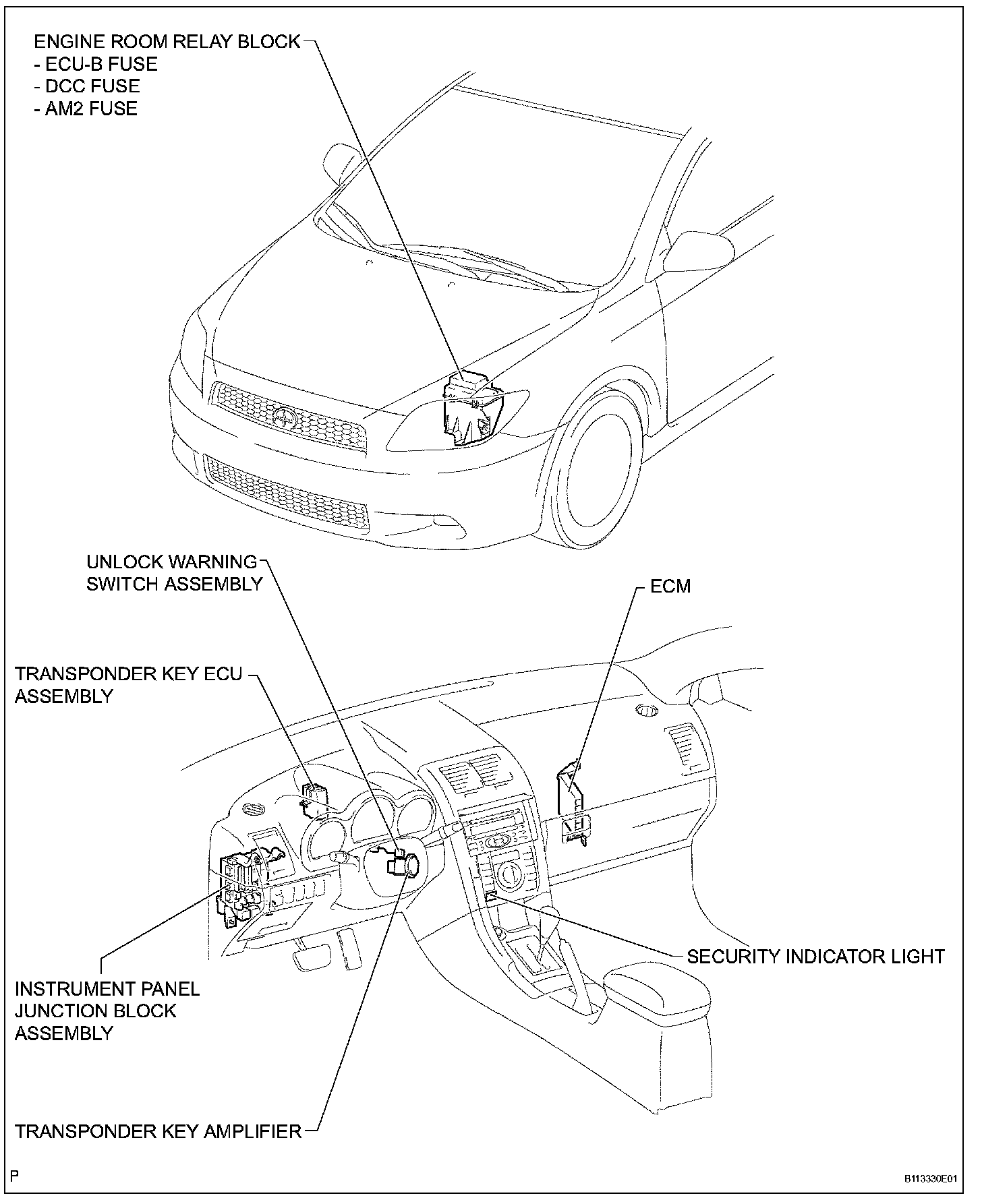

Engine Immobiliser System:

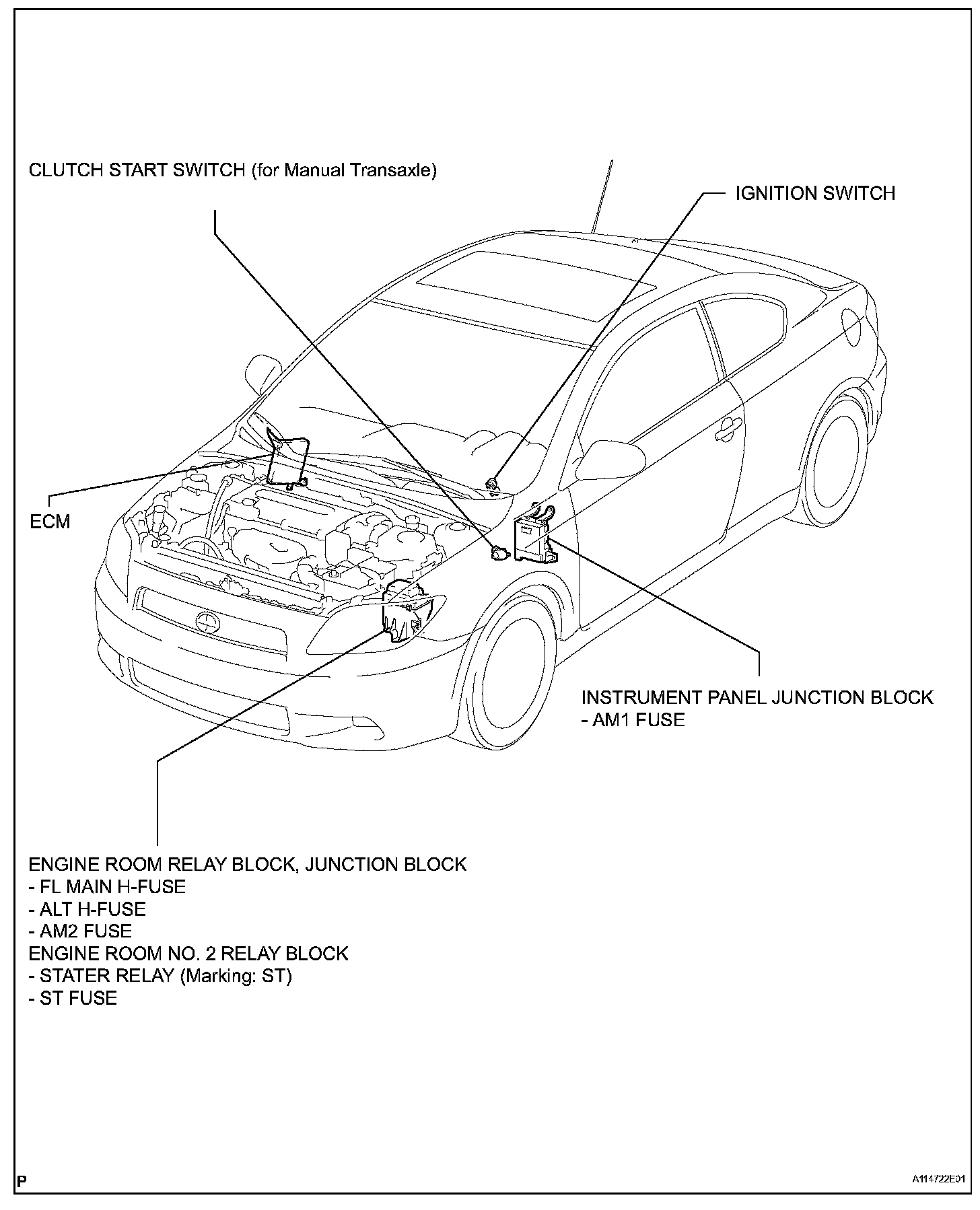

Starting System:

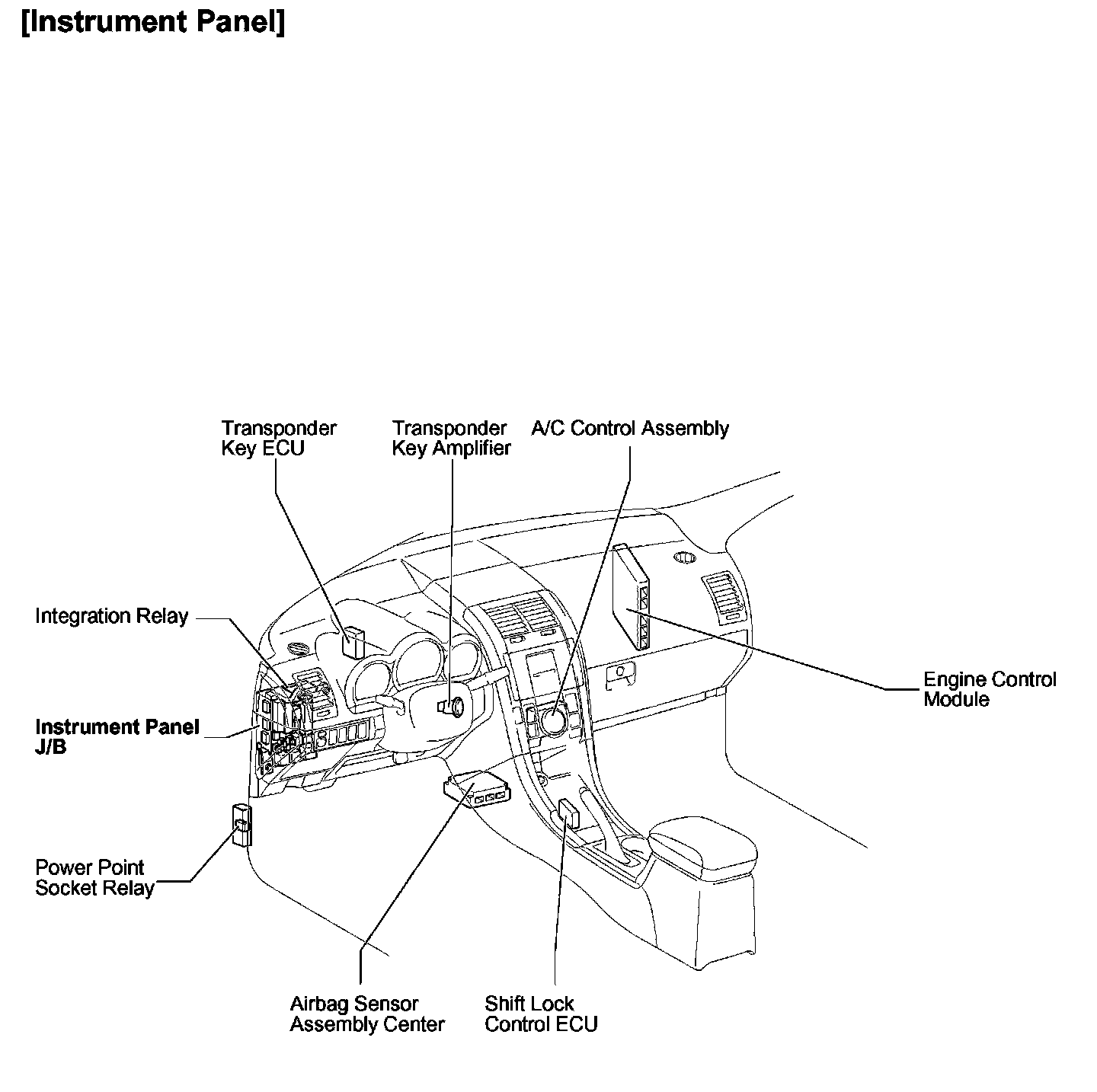

Instrument Panel:
