Home >> Scion >> 2006 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Tools and Equipment

Fuel Delivery and Air Induction: Tools and Equipment

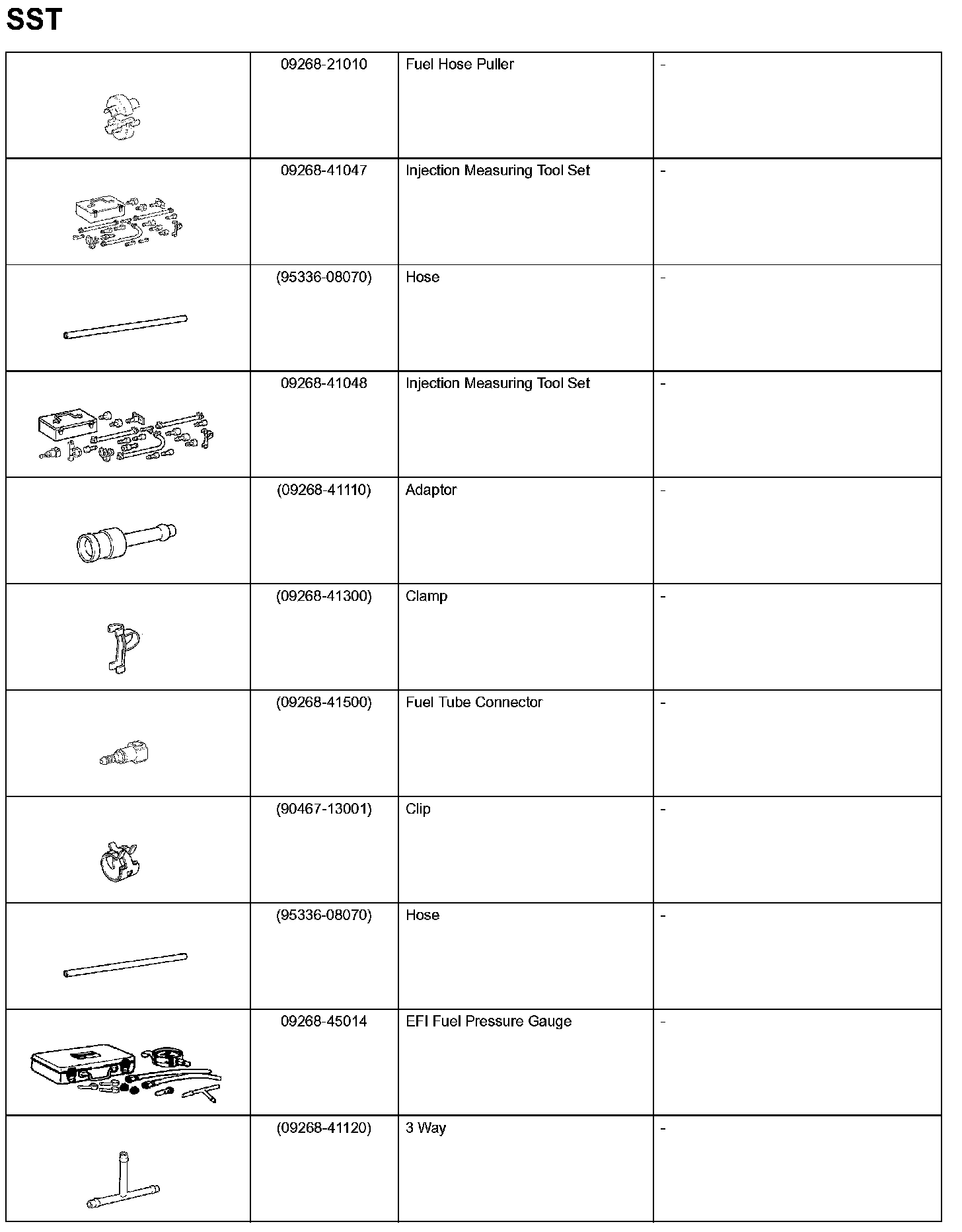

Fuel-SST (Part 1):

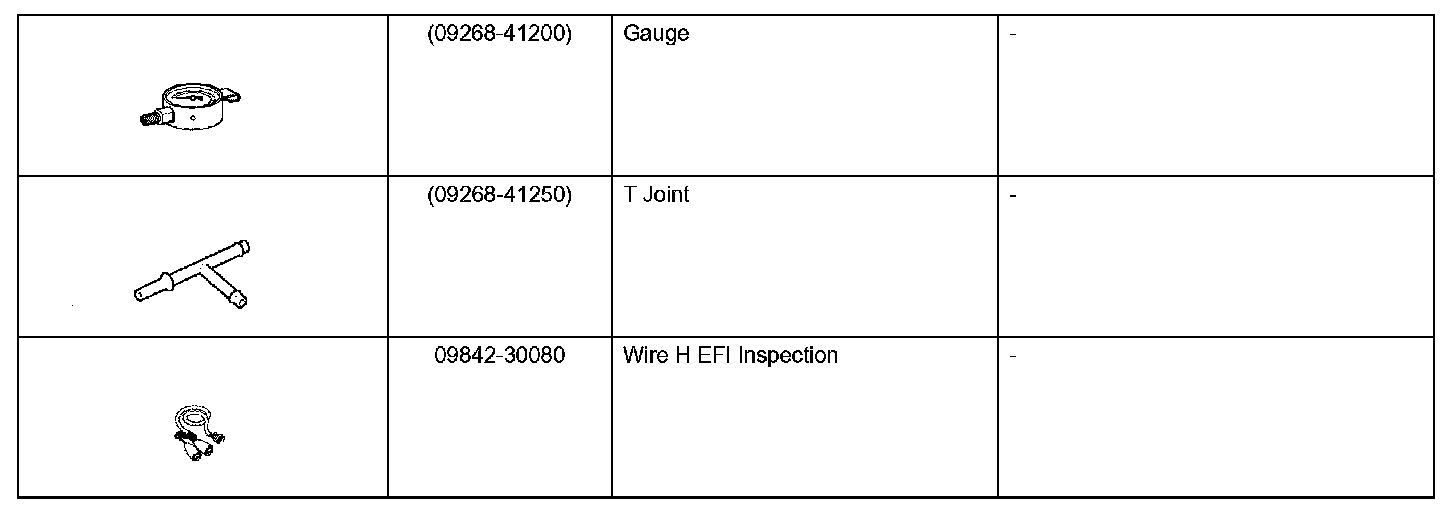

Fuel-SST (Part 2):



Fuel-Recommended Tools:



Fuel-Equipment:
