EVAP System

EVAP System

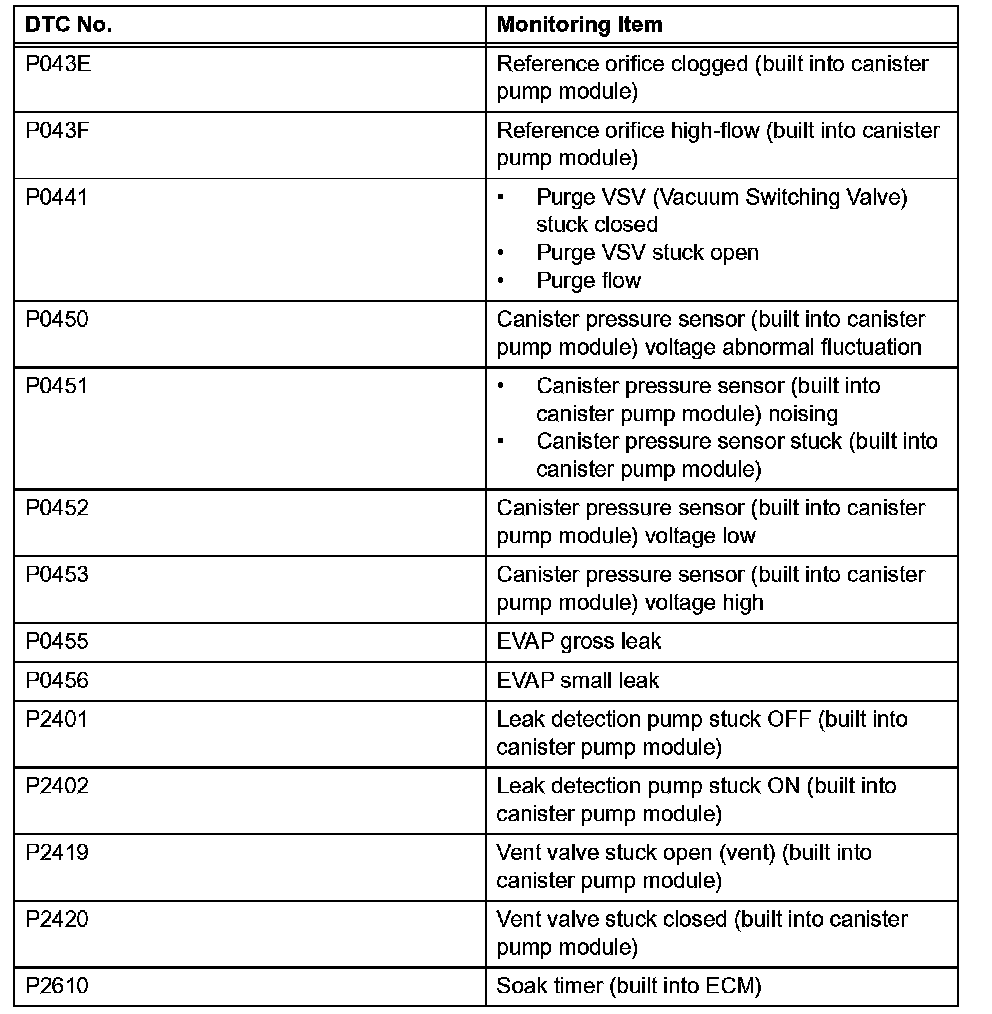

RELATED DTCS

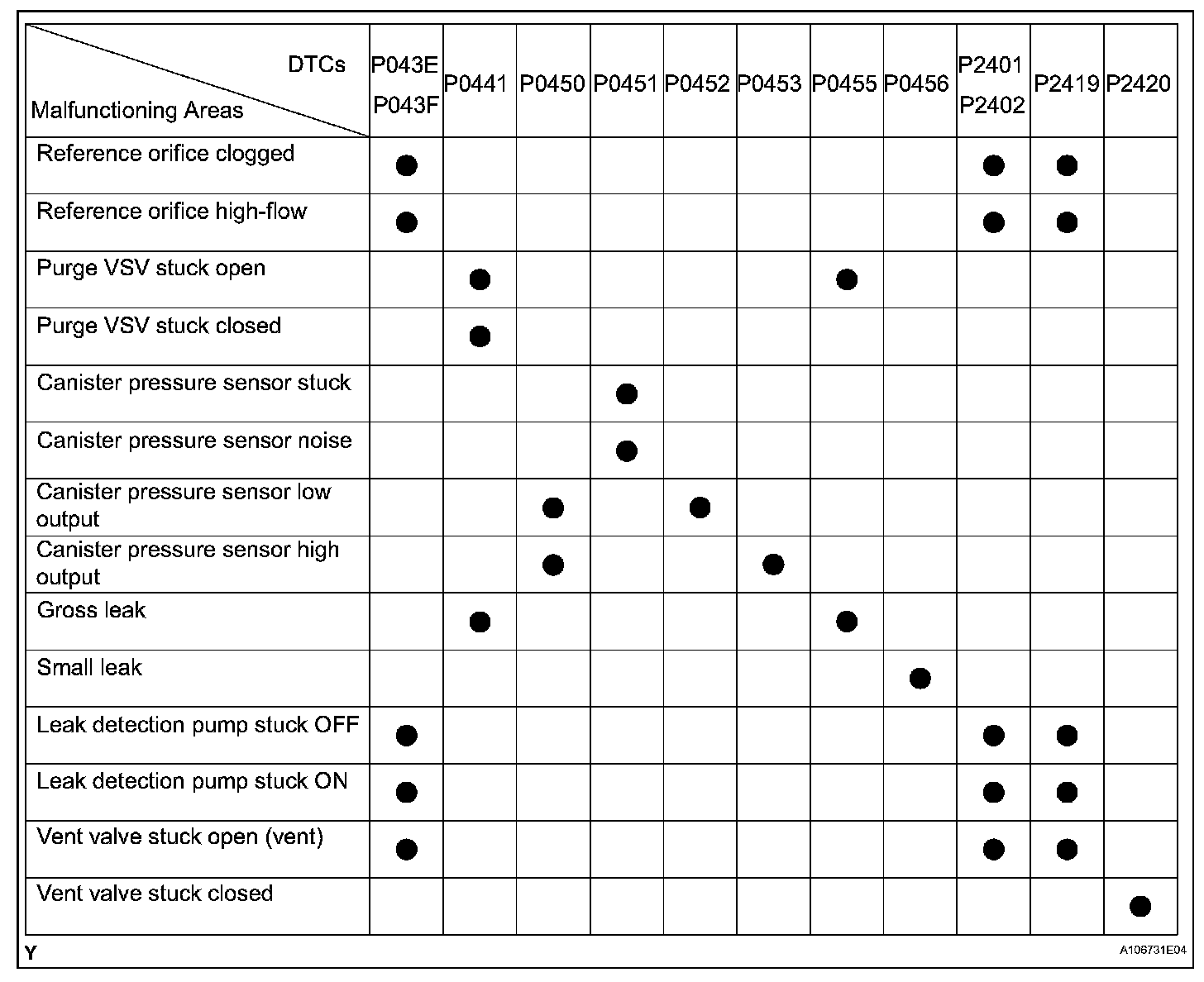

If any EVAP system DTCs are set, the malfunctioning area can be determined using the table given.

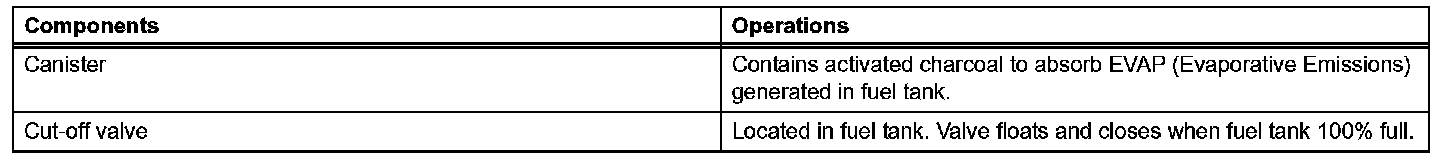

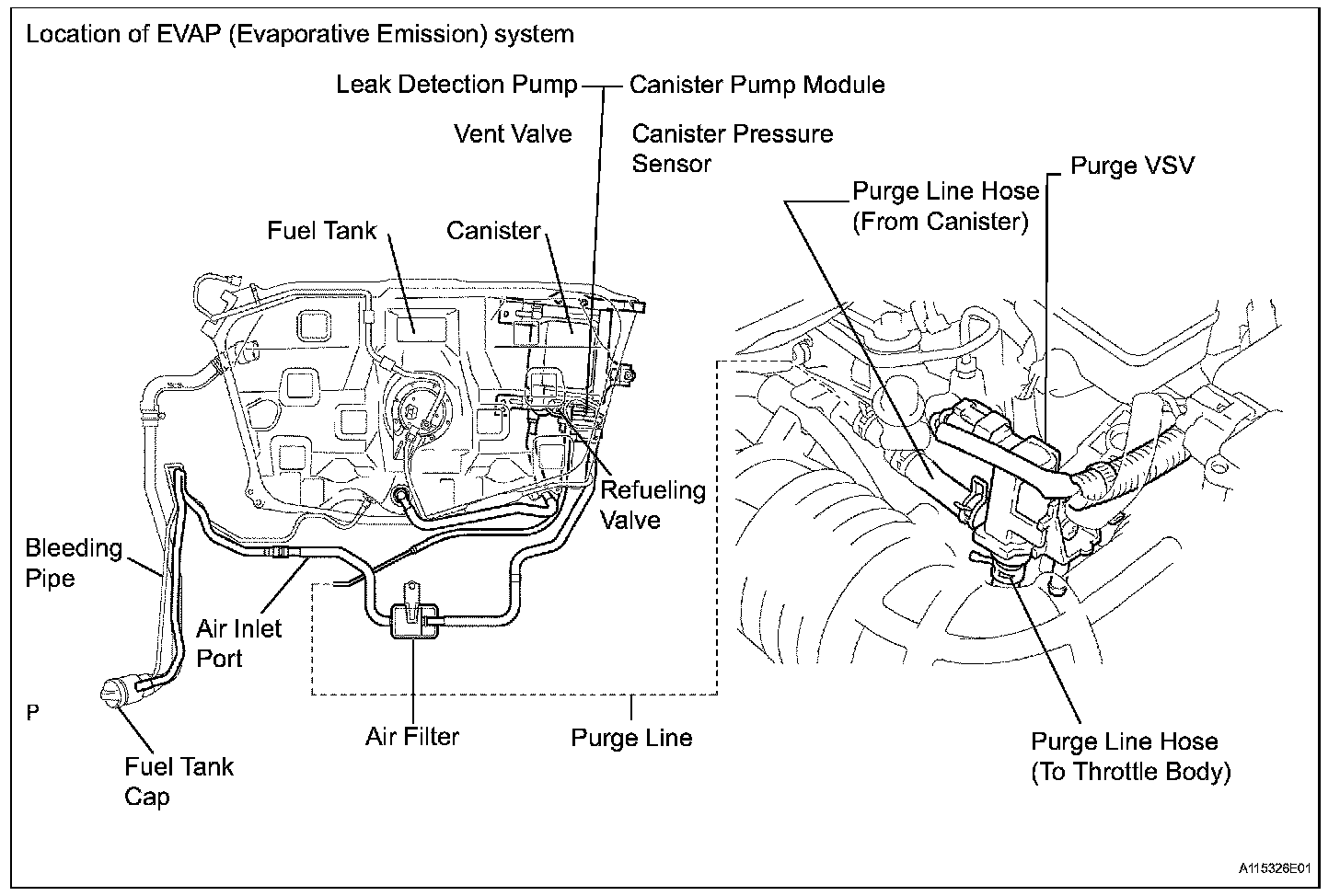

DESCRIPTION

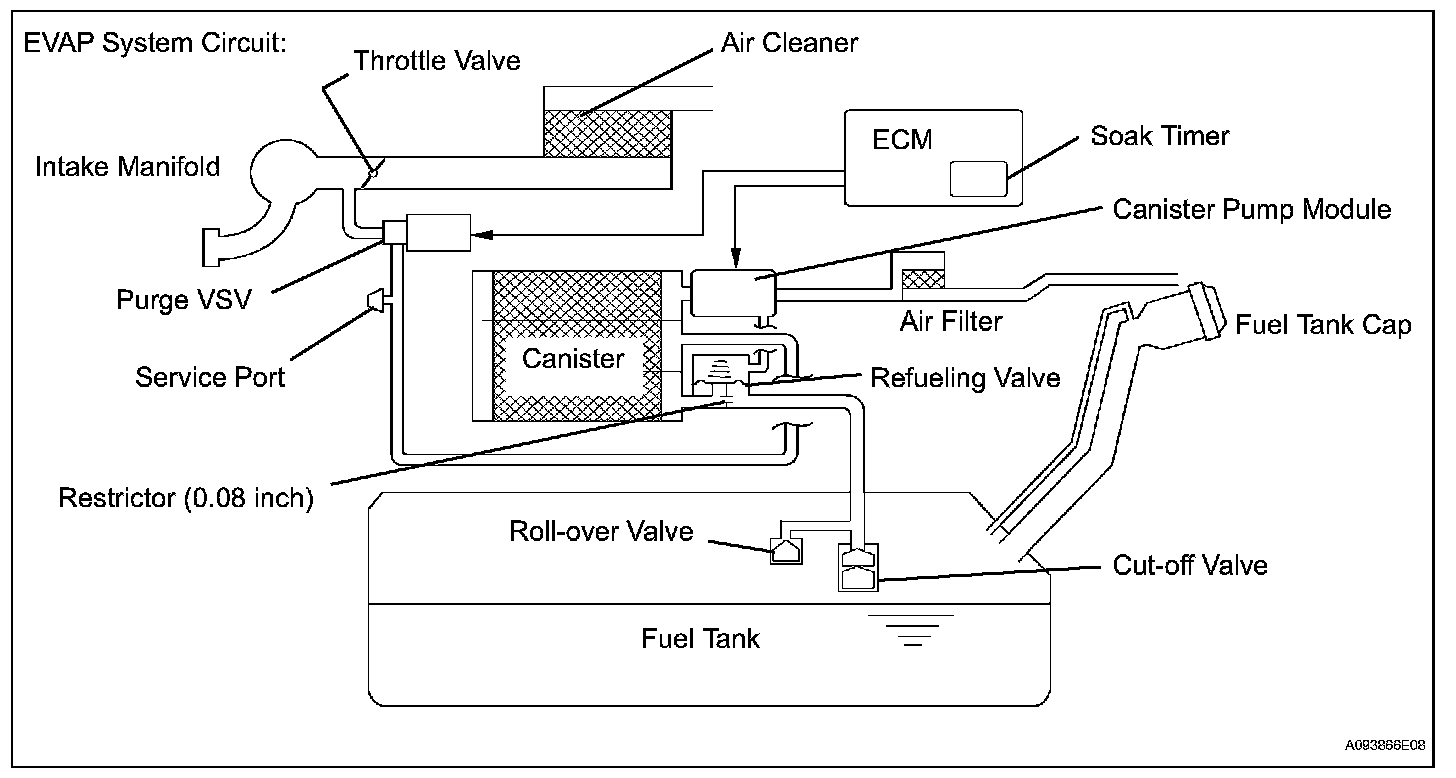

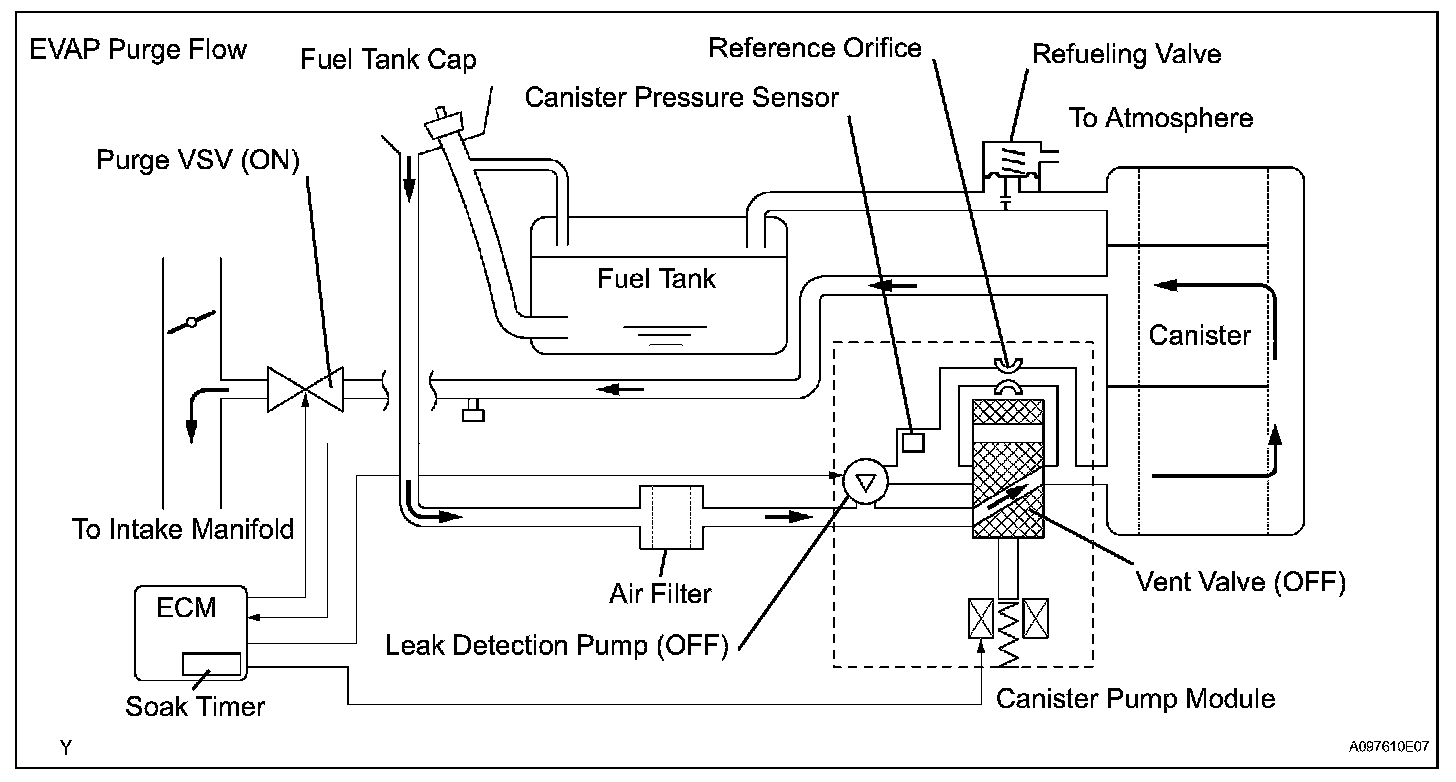

While the engine is running, if a predetermined condition (closed-loop, etc.) is met, the Purge VSV is opened by the ECM and stored fuel vapors in the canister are purged to the intake manifold. The ECM changes the duty cycle ratio of the purge VSV to control purge flow volume.

The purge flow volume is also determined by the intake manifold pressure. Atmospheric pressure is allowed into the canister through the vent valve to ensure that the purge flow is maintained when the negative pressure (vacuum) is applied to the canister.

The following 2 monitors run to confirm appropriate EVAP system operation.

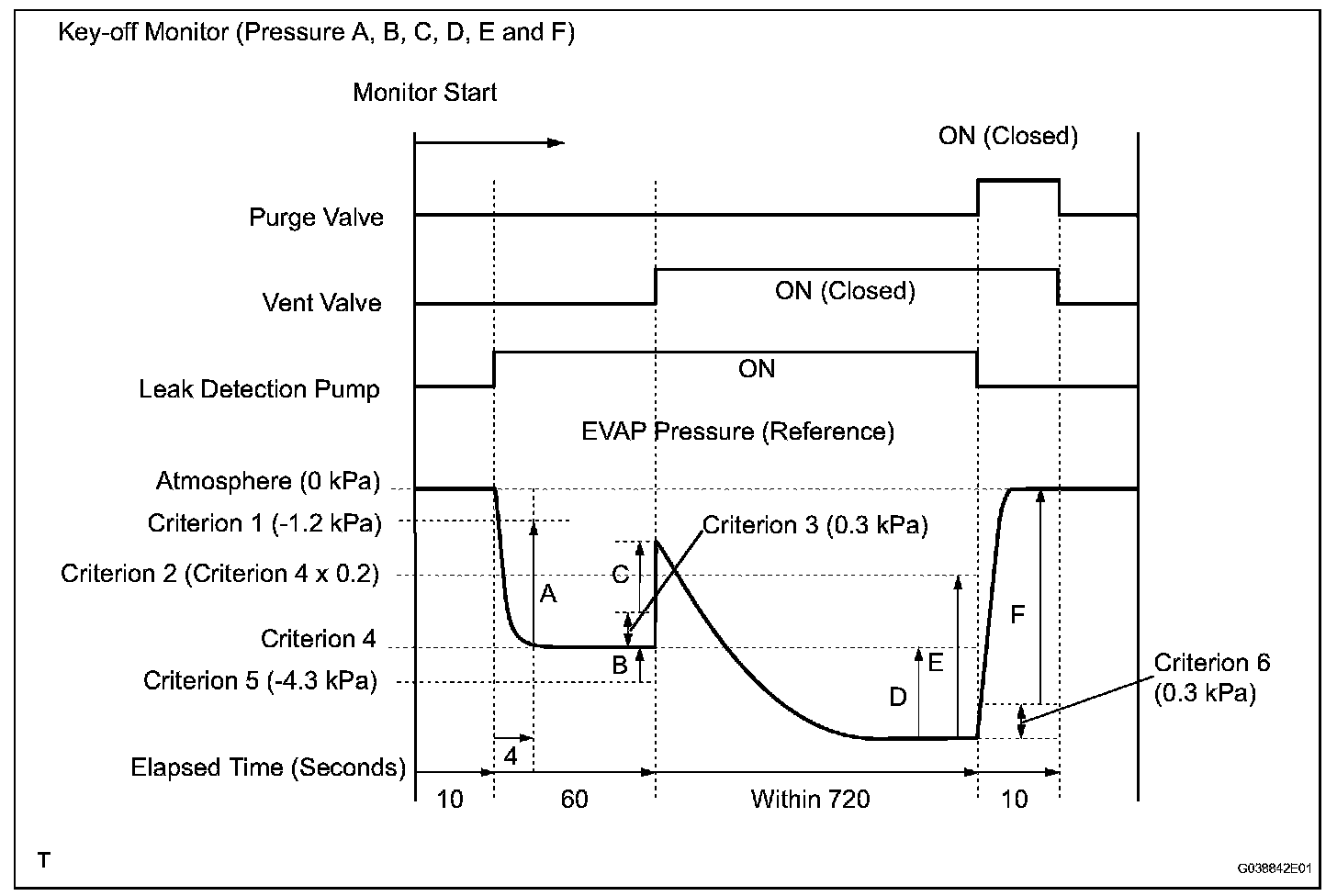

1. Key-off monitor

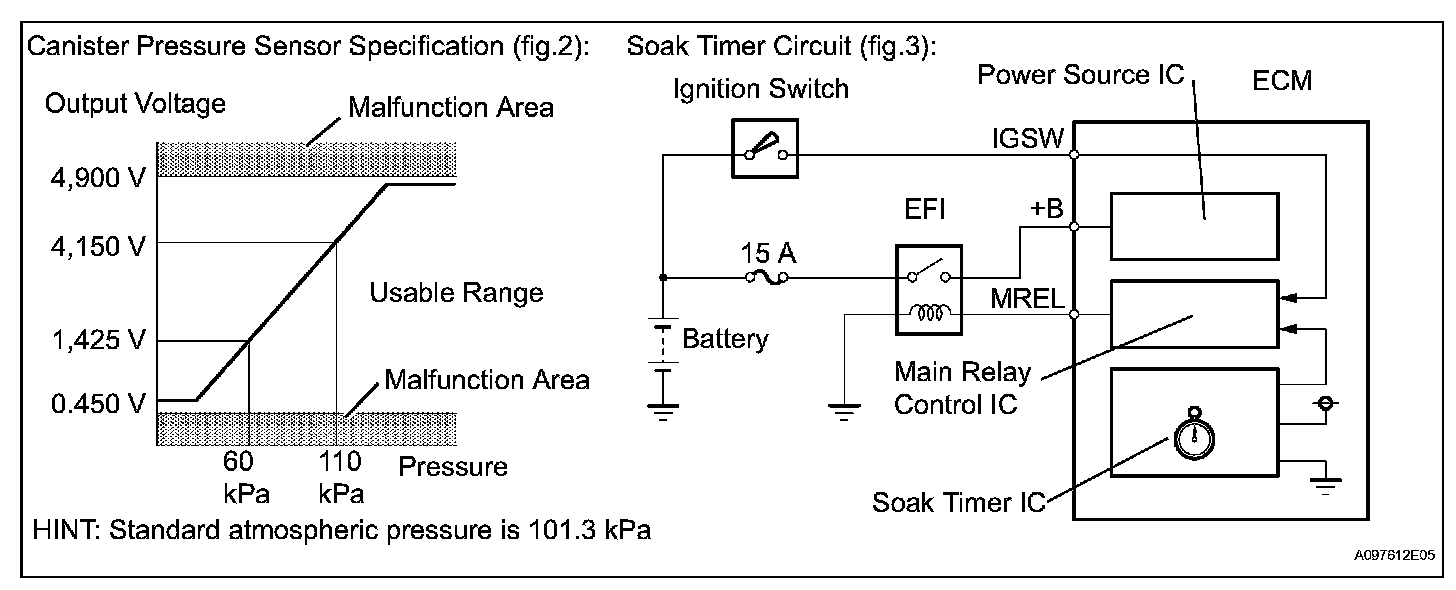

This monitor checks for Evaporative Emission (EVAP) system leaks and canister pump module malfunctions. The monitor starts 5 hours (± 15 minutes) after the ignition switch is turned OFF. 5 hours are required to allow enough time for the fuel to cool down to stabilize the Fuel Tank Pressure (FTP), thus making the EVAP system monitor more accurate.

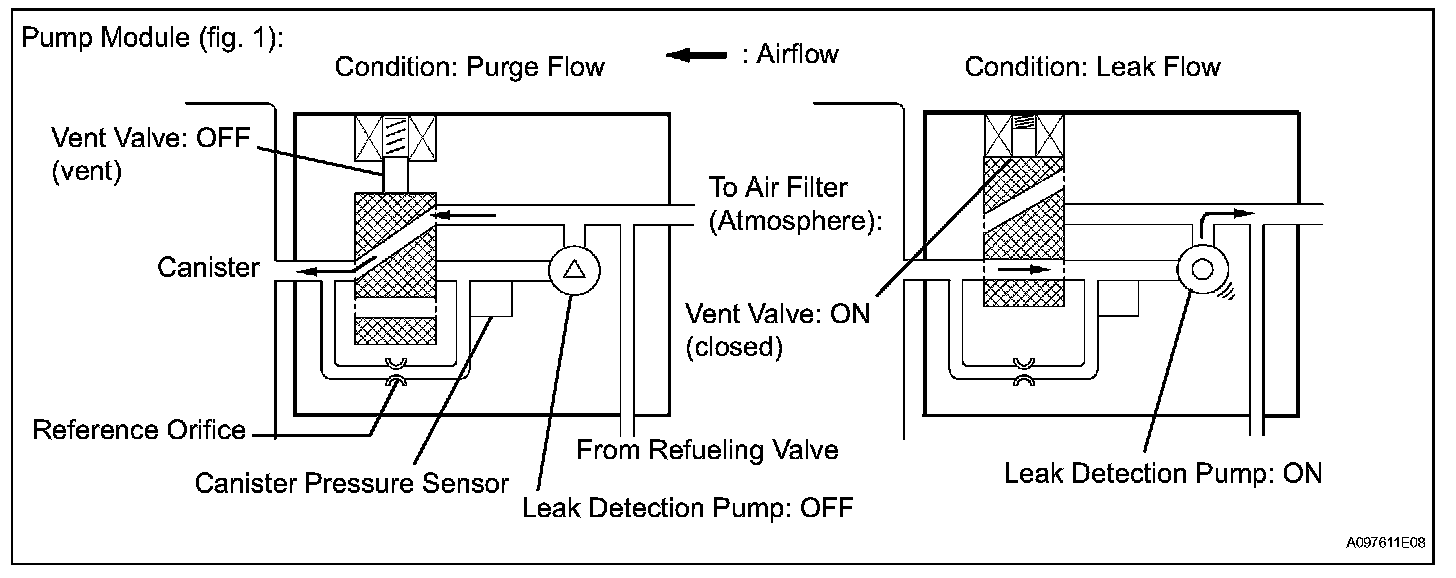

The leak detection pump creates negative pressure (vacuum) in the EVAP system and the pressure is measured. Finally, the ECM monitors for leaks from the EVAP system and malfunctions in both the canister pump module and purge VSV, based on the EVAP pressure.

2. Purge flow monitor
The purge flow monitor consists of the 2 monitors. The 1st monitor is always conducted every time and the 2nd monitor is conducted if necessary.

- The 1st monitor
While the engine is running and the purge VSV is ON (open), the ECM monitors the purge flow by measuring the EVAP pressure change. If negative pressure is not created, the ECM begins the 2nd monitor.

- The 2nd monitor
The vent valve is turned OFF (open) and the EVAP pressure is then measured. If the variation in the pressure is less than 0.5 kPa (3.75 mmHg), the ECM interprets this as the purge VSV being stuck closed, and illuminates the MIL and sets DTC P0441 (2 trip detection logic).
















Atmospheric pressure check:
In order to ensure reliable malfunction detection, the variation between the atmospheric pressures, before and after conduction of the purge flow monitor, is measured by the ECM.

CONFIRMATION DRIVING PATTERN
Check the monitor result after driving with this driving pattern.

1. Key-off monitor drive pattern
a. Connect the intelligent tester to the DLC3.
b. Confirm that the following conditions are satisfied:
- The fuel level is less than 90%.
- The altitude is less than 2,400 m (8,000 ft.).
- The vehicle is stopped (the vehicle speed is less than 3.2 km/h (2 mph).
- The engine coolant temperature is 4.4 to 35 degrees C (4 to 95 degrees F).
- The intake air temperature is 4.4 to 35 degrees C (4 to 95 degrees F).

c. Perform the drive pattern:
1. Allow the engine to idle for 5 minutes or more.
2. Turn the ignition switch OFF and wait 6 hours.

d. Check the monitor result with the intelligent tester.

2. Purge flow monitor drive pattern (P0441)
a. Connect the intelligent tester to the DLC3.

b. Confirm that the following conditions are satisfied:
- The engine coolant temperature is more than 4.4 degrees C (40 degrees F).
- The intake air temperature is more than 4.4 degrees C (40 degrees F).

c. Perform the drive pattern:
1. Remove and reinstall the fuel tank cap to release the fuel tank pressure.
2. Warm the engine until the engine coolant temperature reaches 75 degrees C (167 degrees F) or more.
3. Run the engine at 3,000 rpm once.
4. Allow the engine to idle and turn the air conditioning ON for 1 minute.

d. Check the monitor result with the intelligent tester.

MONITOR RESULT

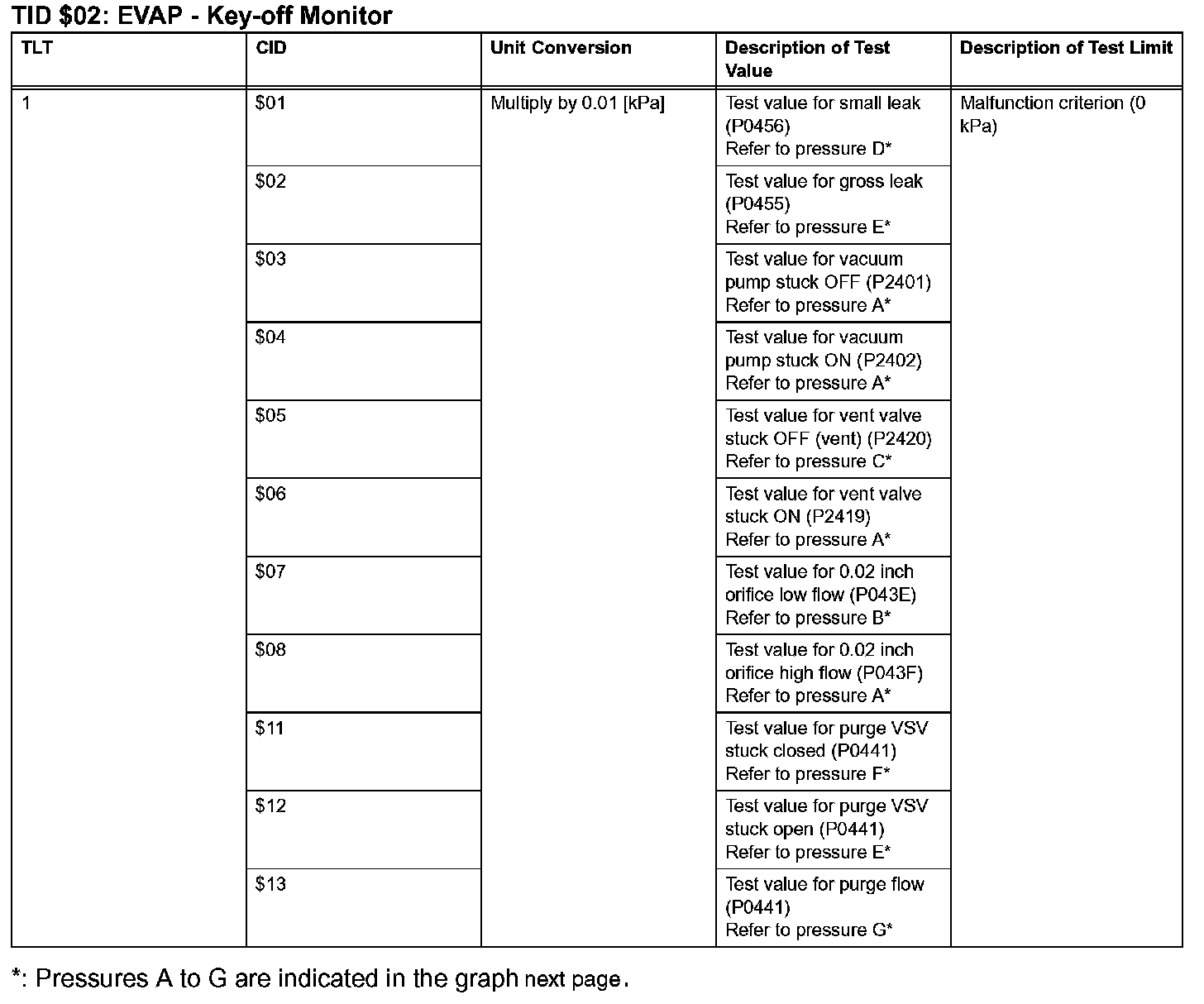

The monitor result (mode 06) allows the OBD II scan tool to display the monitor status, test value and test limit.

A problem in the EVAP system can be found by comparing the test value and test limit. This procedure is described in "CHECKING MONITOR STATUS". Check the monitor result after running the vehicle with monitor drive pattern (Refer to "MONITOR CONFIRMATION DRIVE PATTERN").

- TID (Test Identification) is assigned to each emission-related component.
- TLT (Test Limit Type):
If TLT is 0, the component is malfunctioning when the test value is higher than the test limit.
If TLT is 1, the component is malfunctioning when the test value is lower than the test limit.
- CID (Component Identification) is assigned to each test value.










- Unit Conversion is used to calculate the test value indicated on generic OBD scan tools.

NOTE: The intelligent tester is required to conduct the following diagnostic troubleshooting procedure.

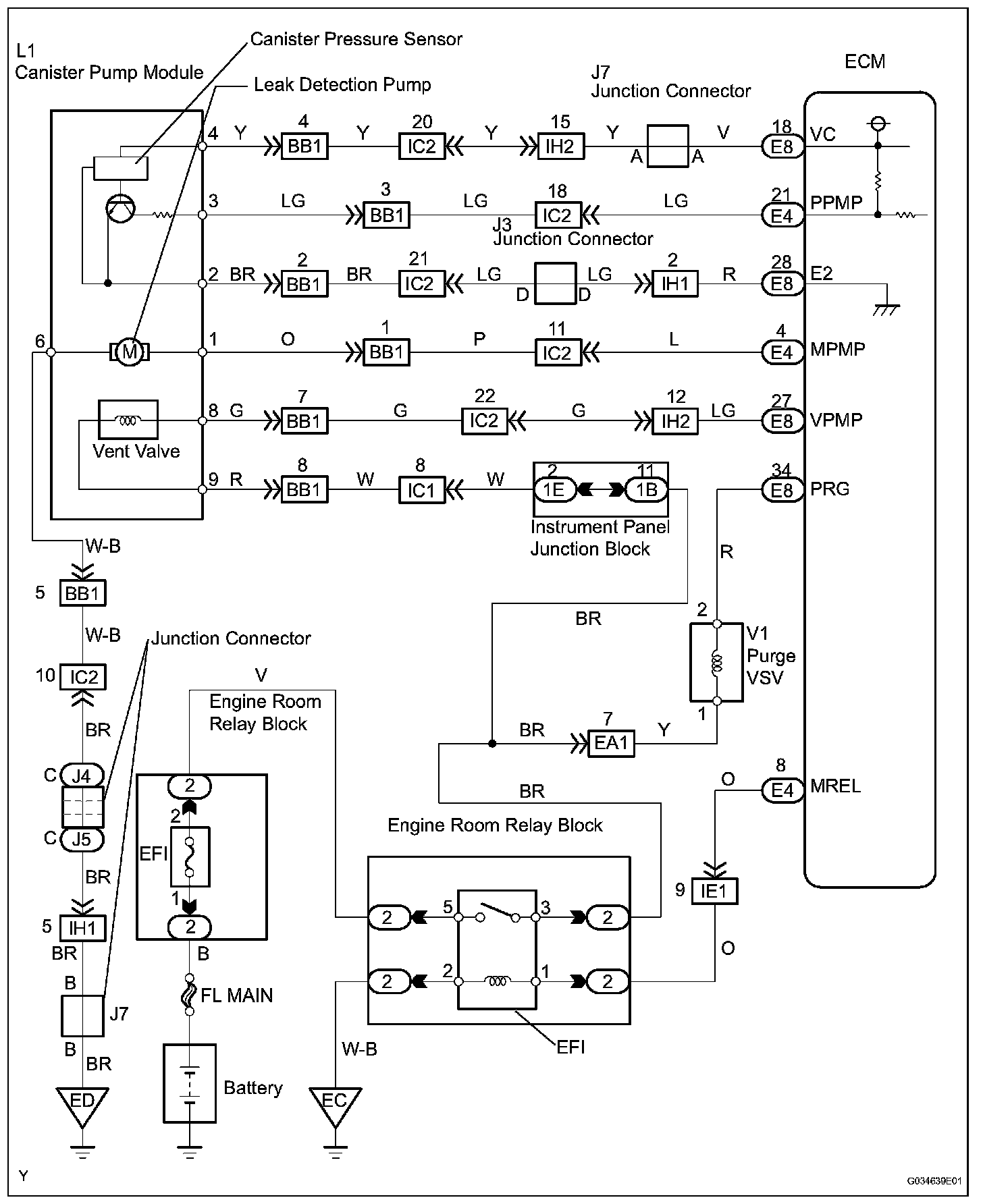

Wiring Diagram:





INSPECTION PROCEDURE

Step 1:

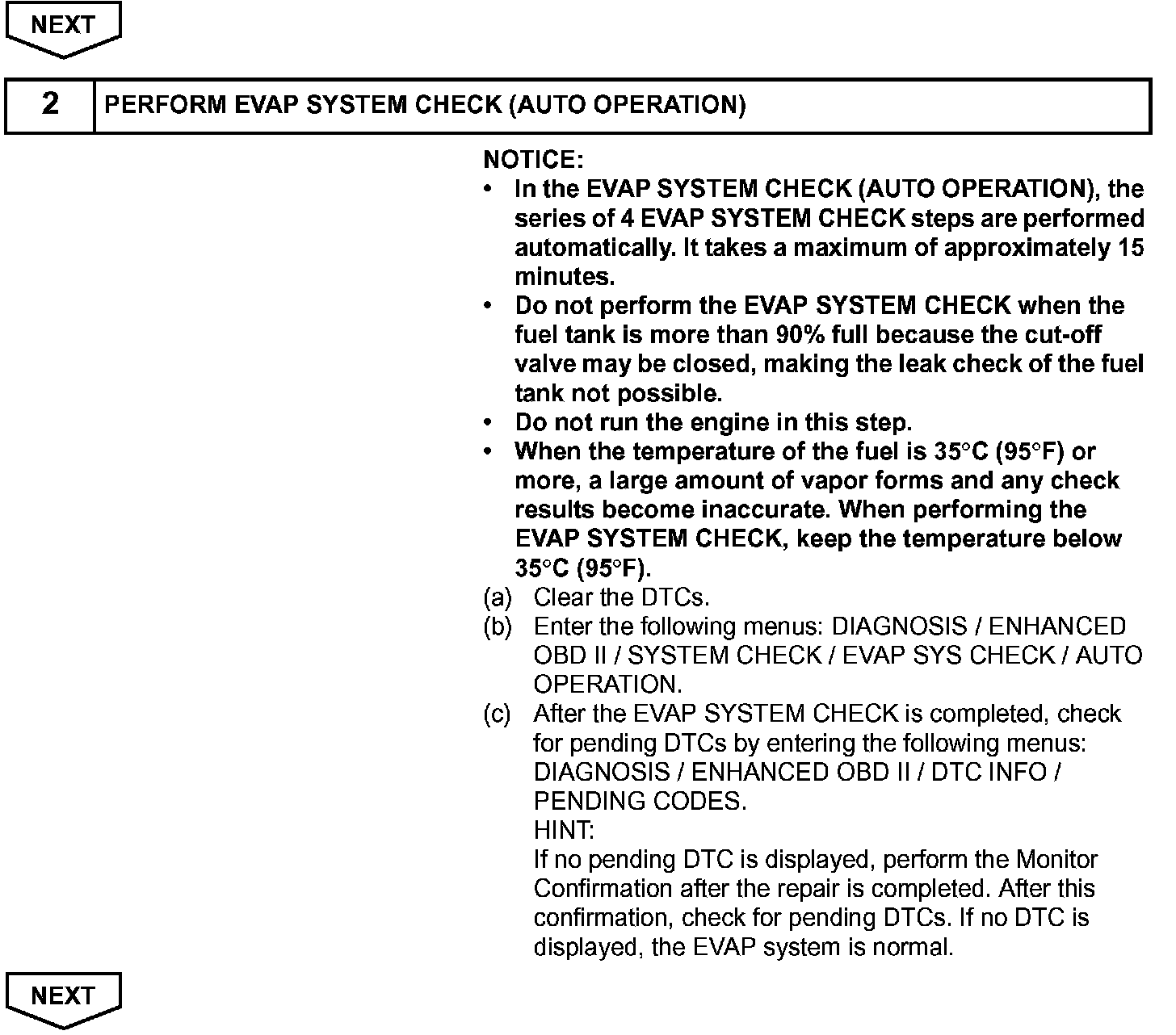

Step 1(Continued)-2:

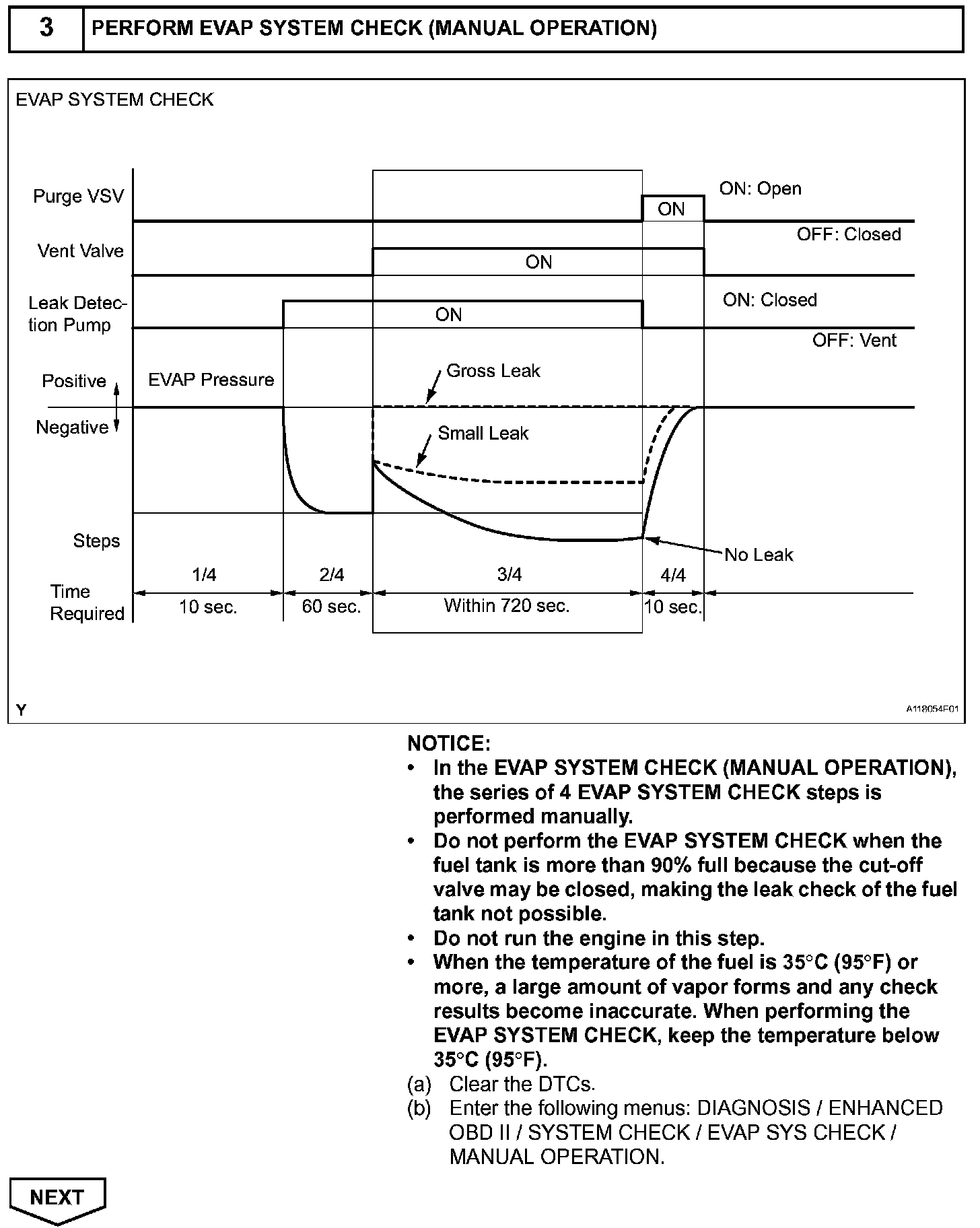

Step 3:

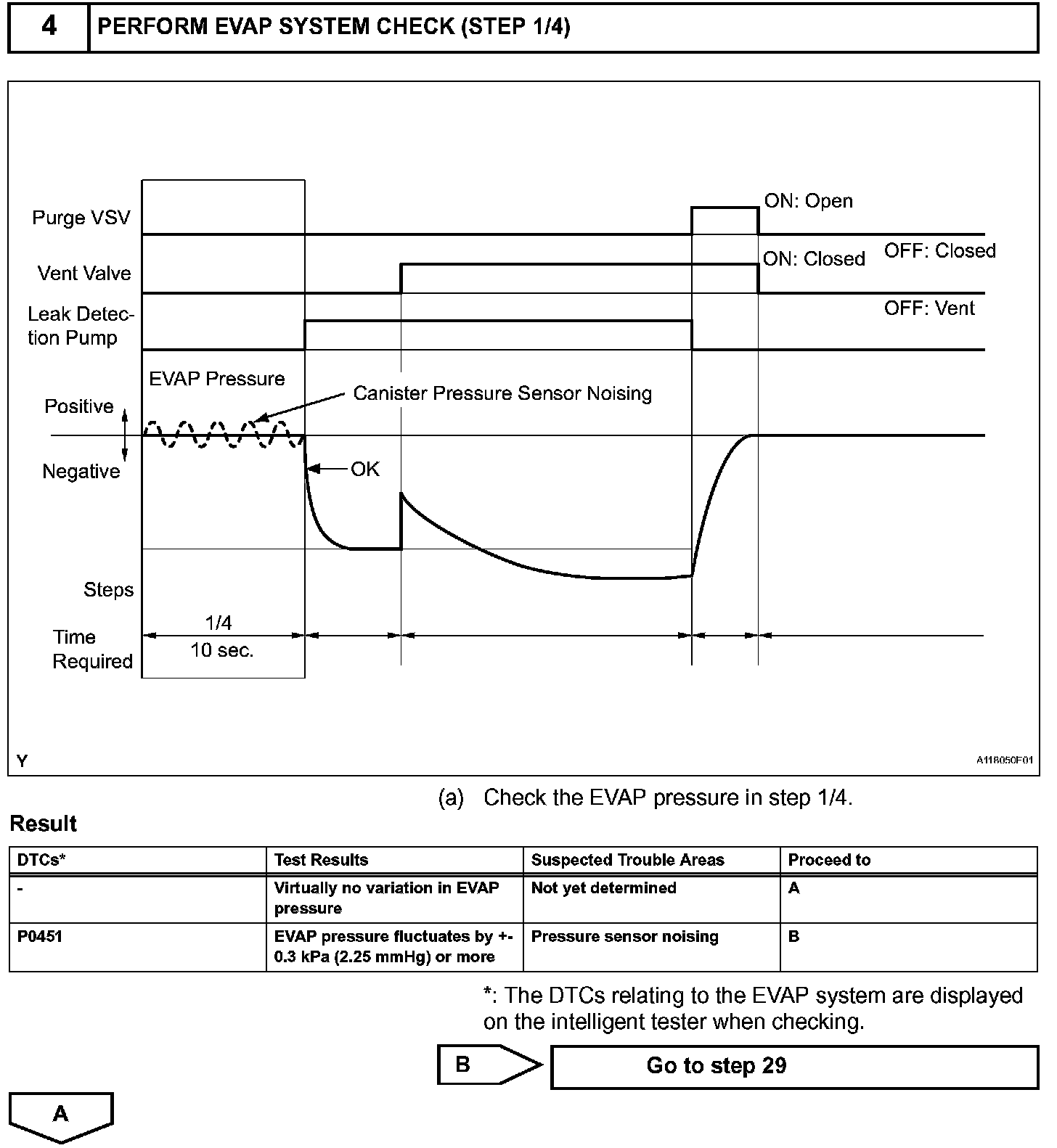

Step 4:

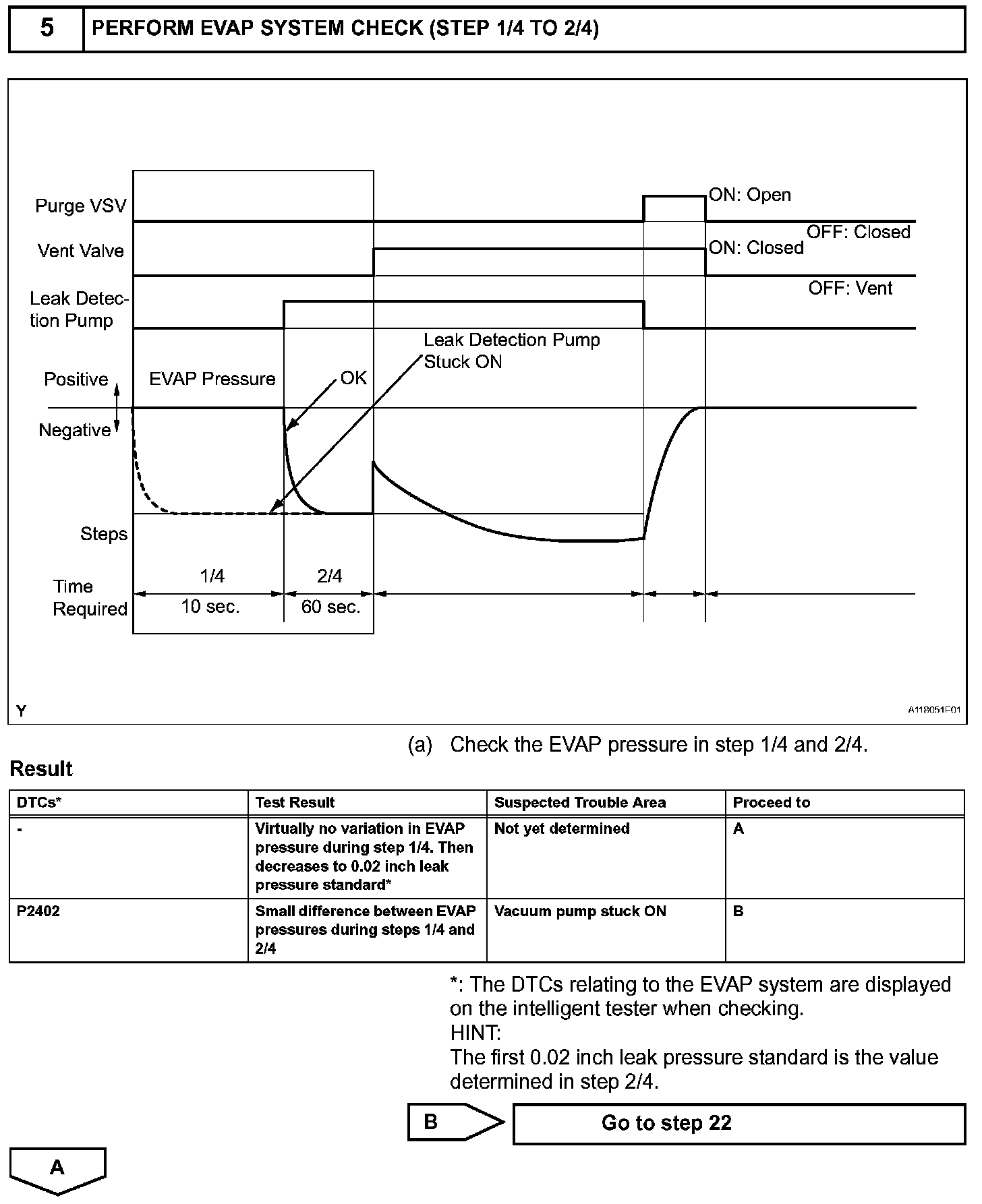

Step 5:




Step 6:

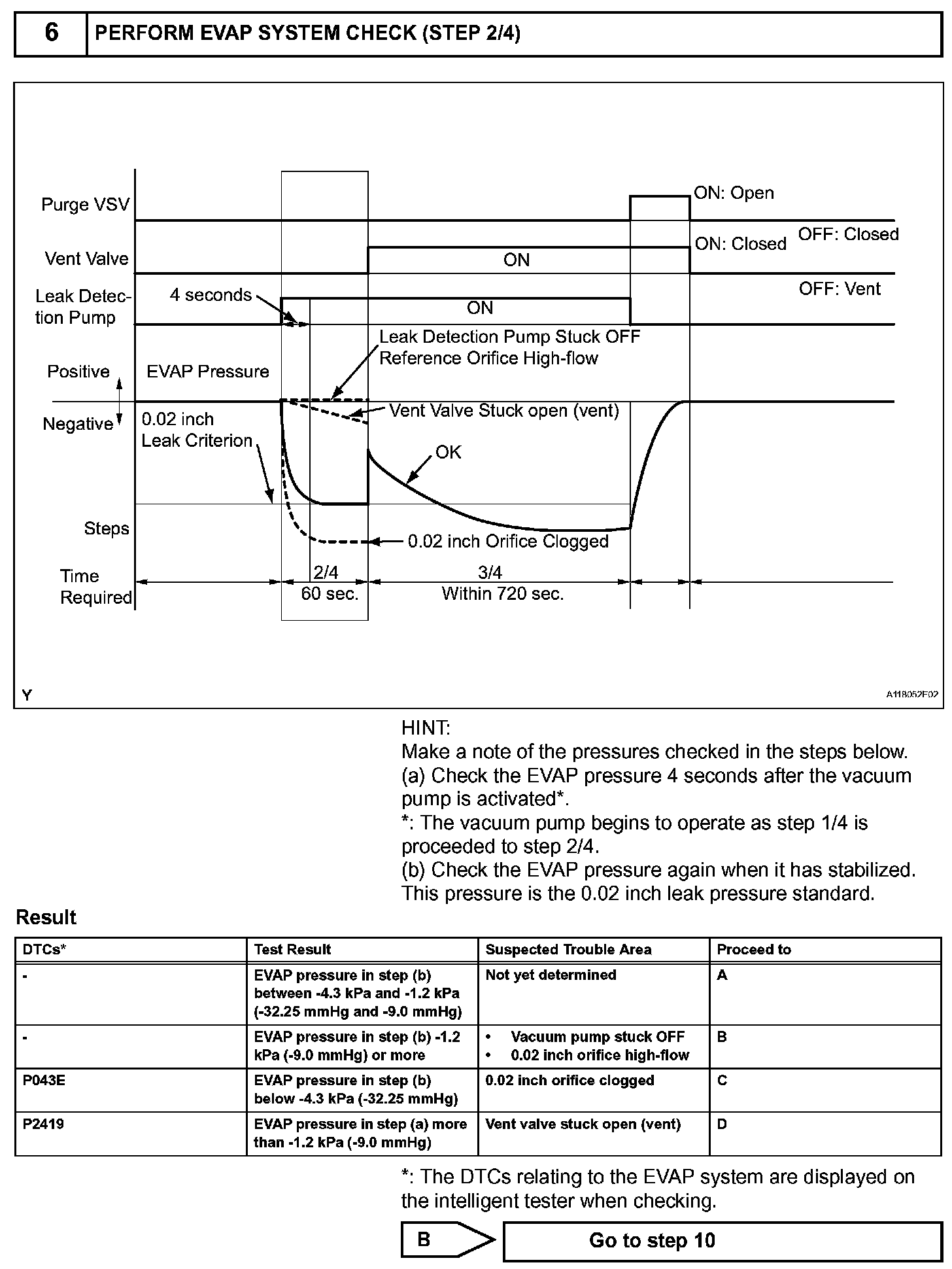

Step 6(Continued)-7:

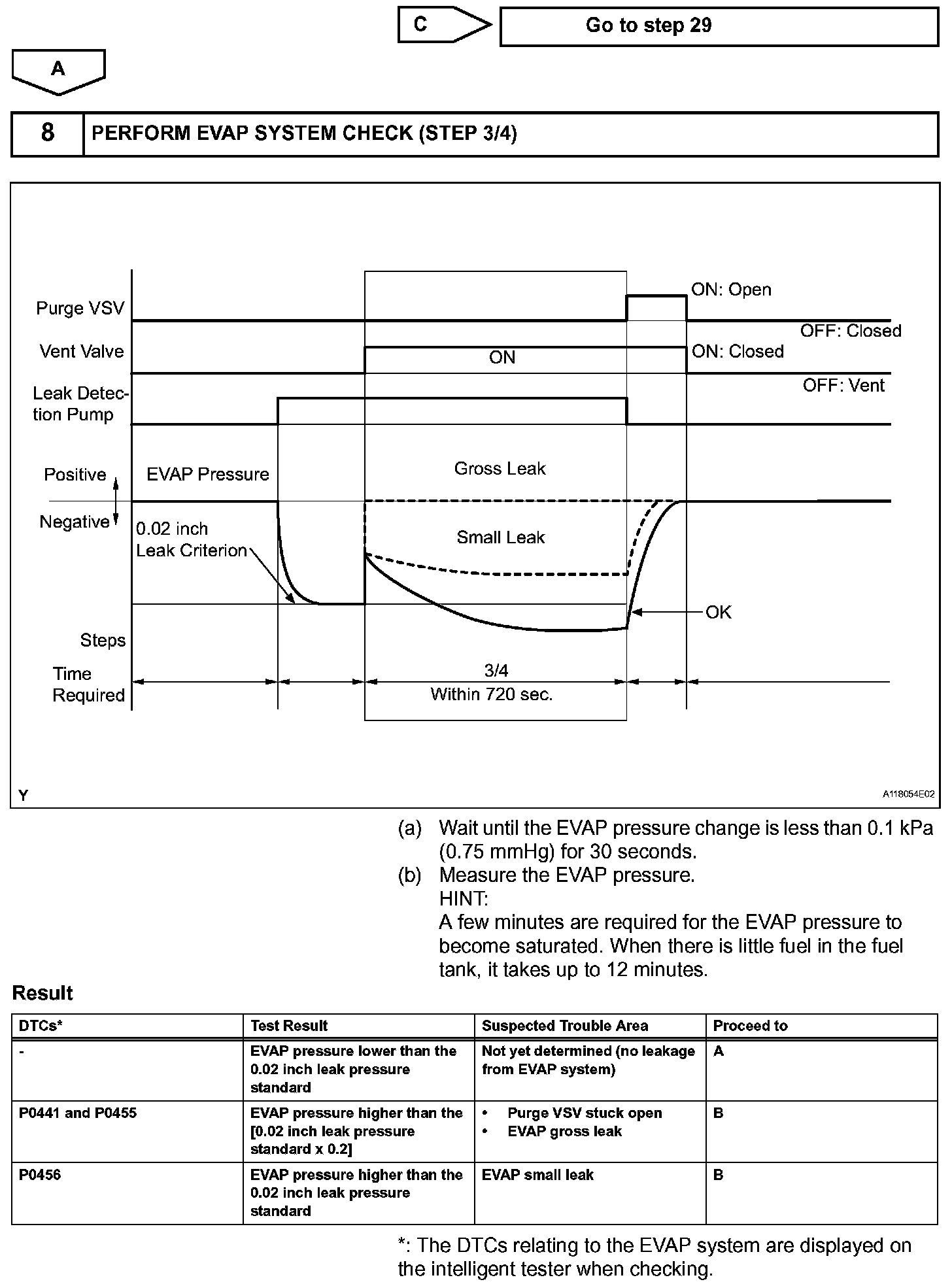

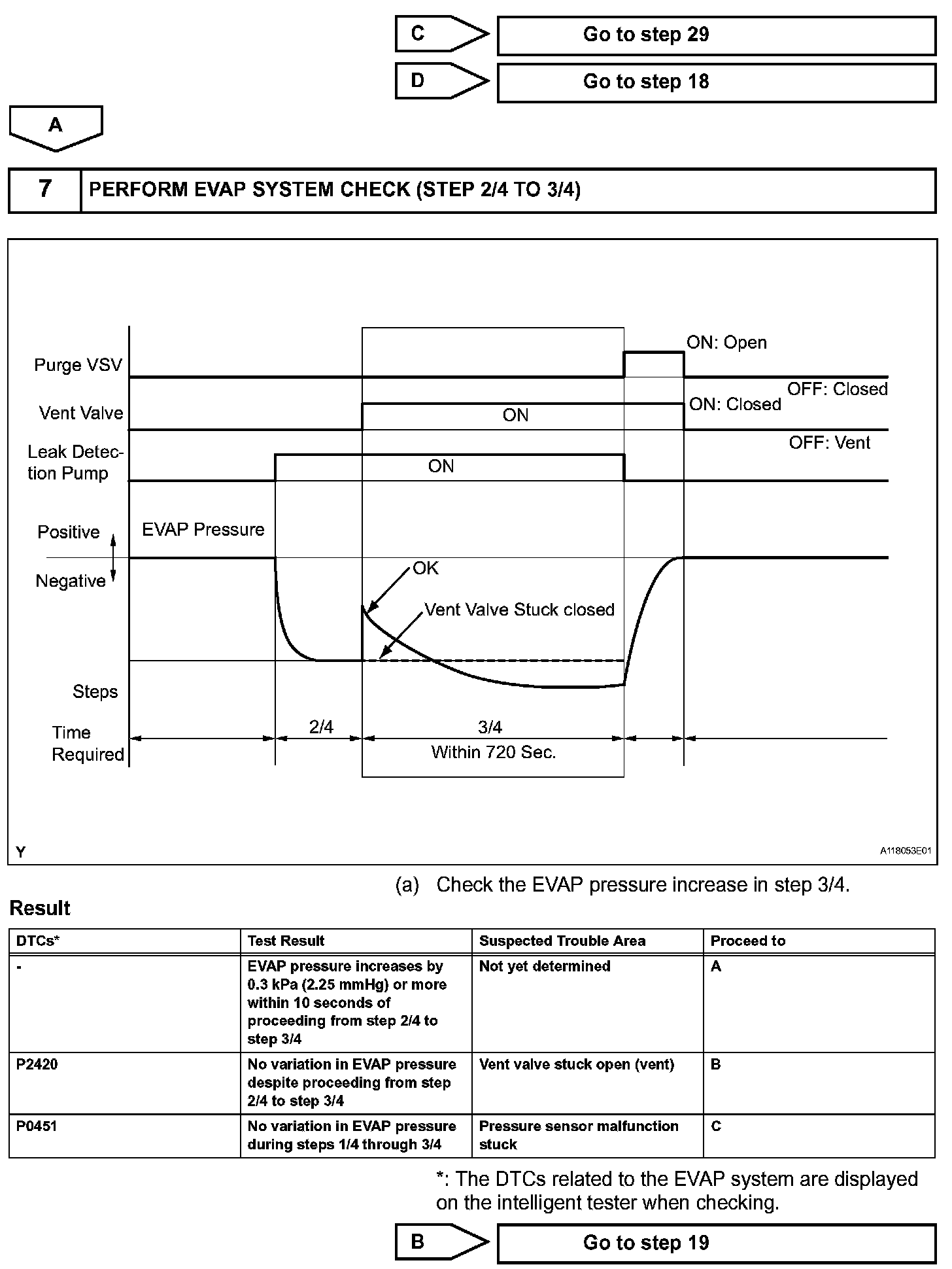

Step 7(Continued)-8:

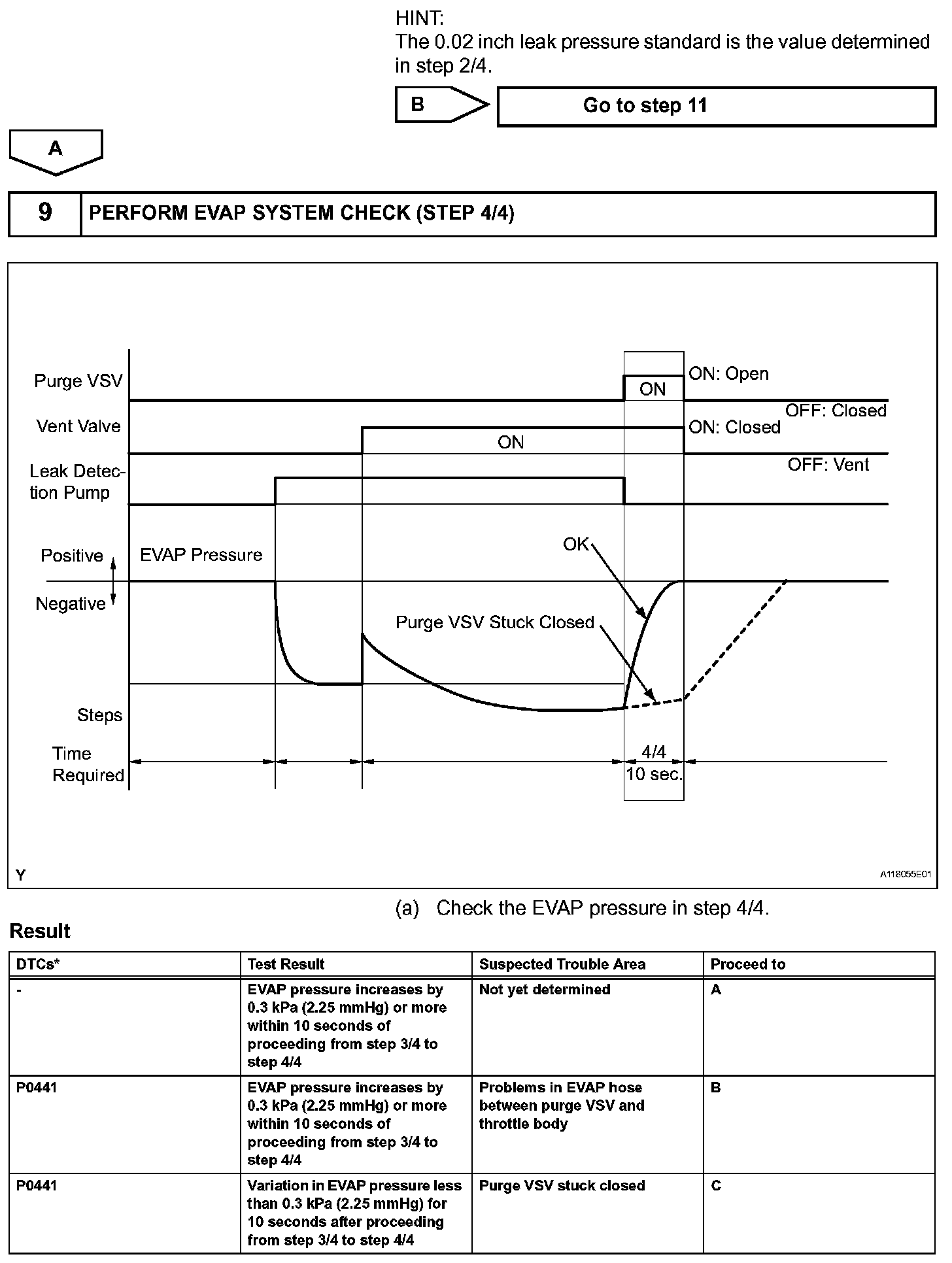

Step 8(Continued)-9:

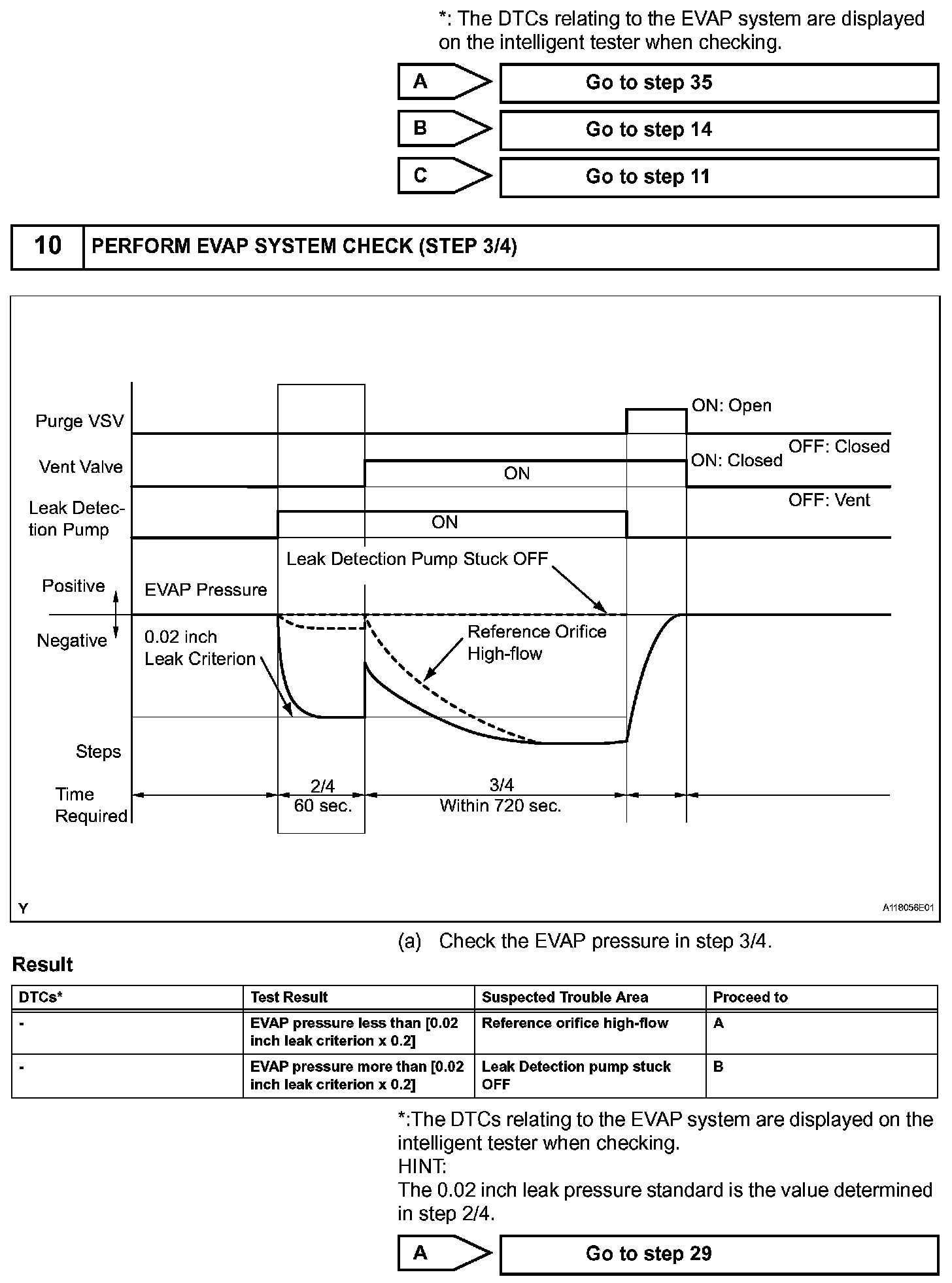

Step 9(Continued)-10:

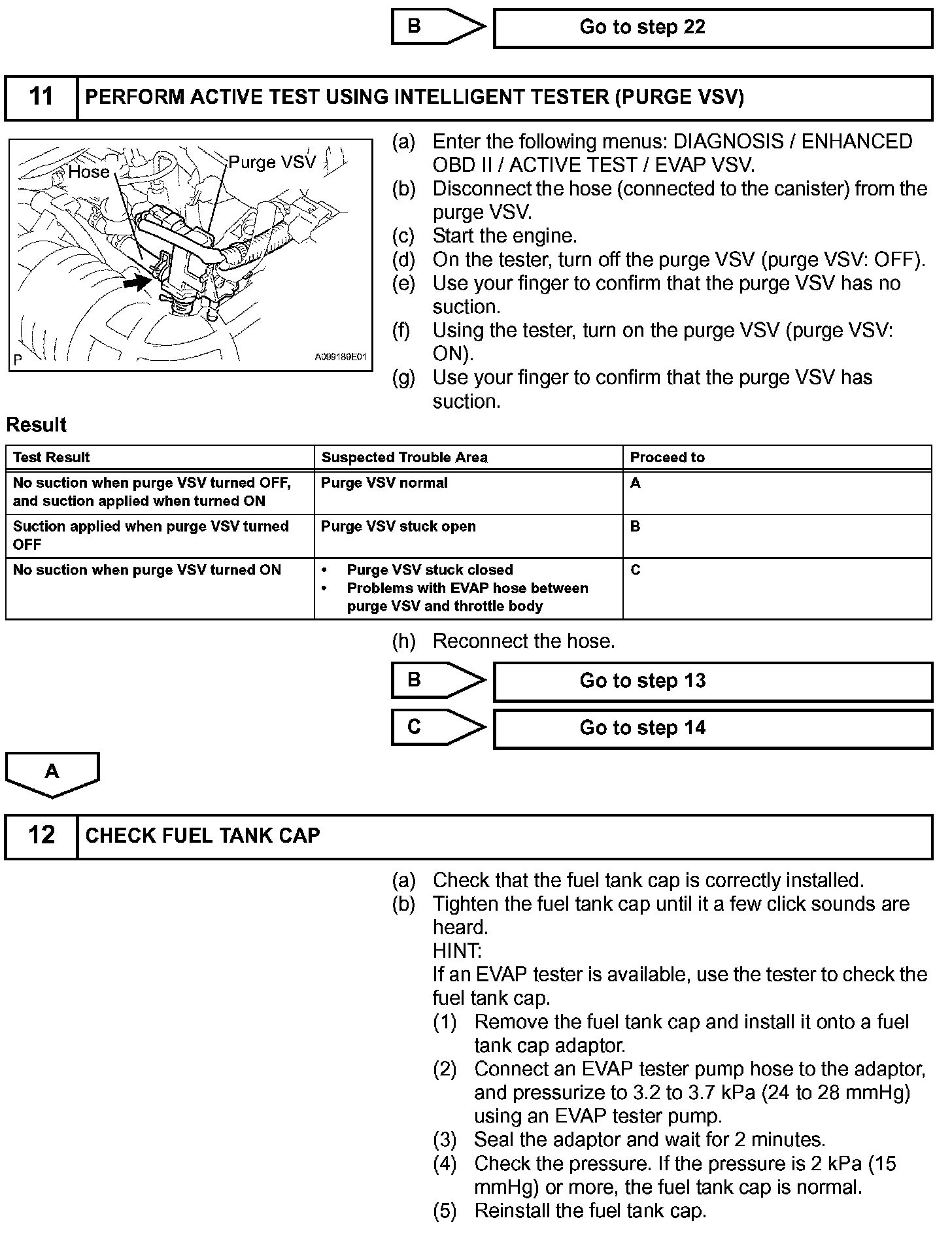

Step 10(Continued)-12:

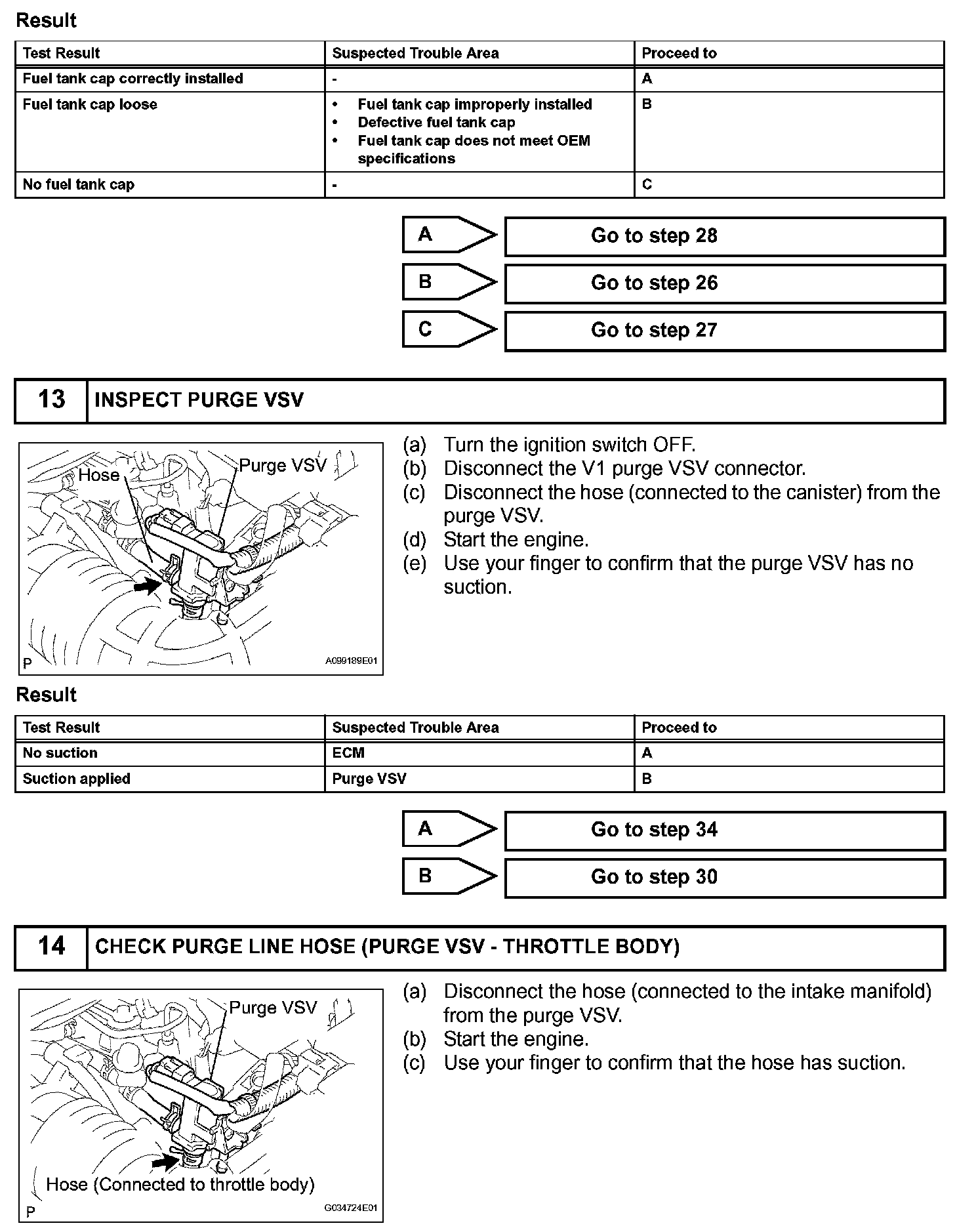

Step 12(Continued)-14:

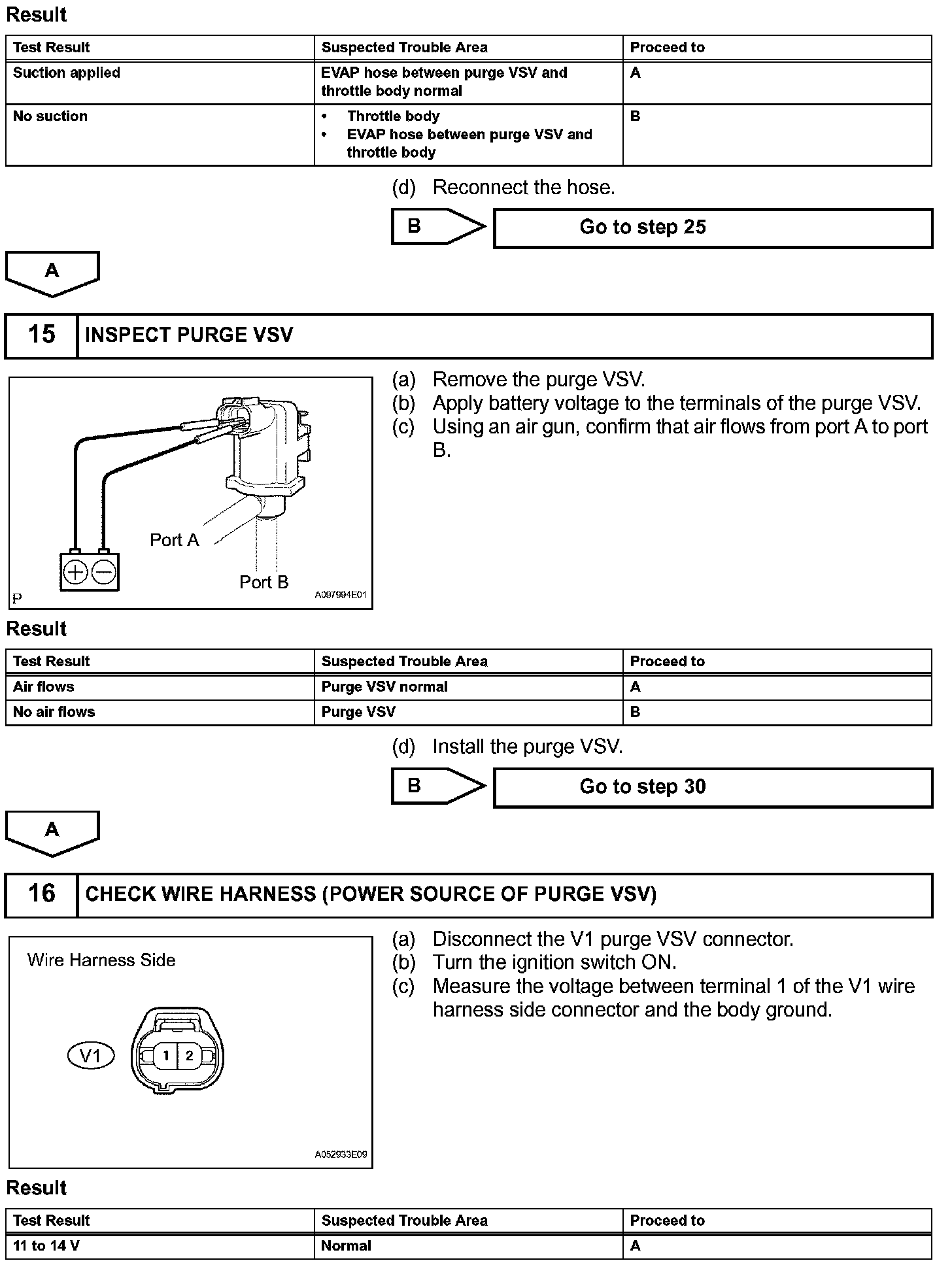

Step 14(Continued)-16:

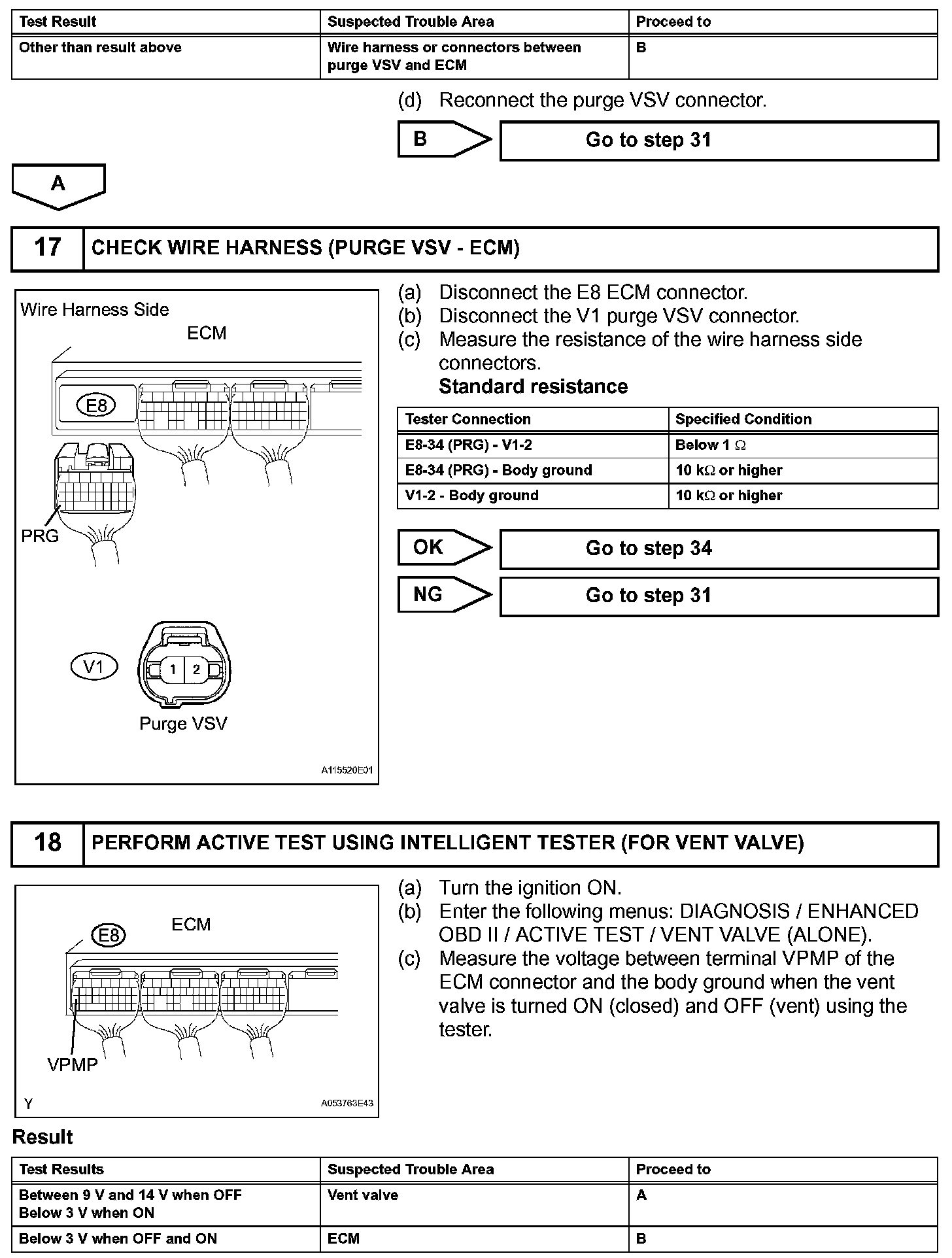

Step 16(Continued)-18:

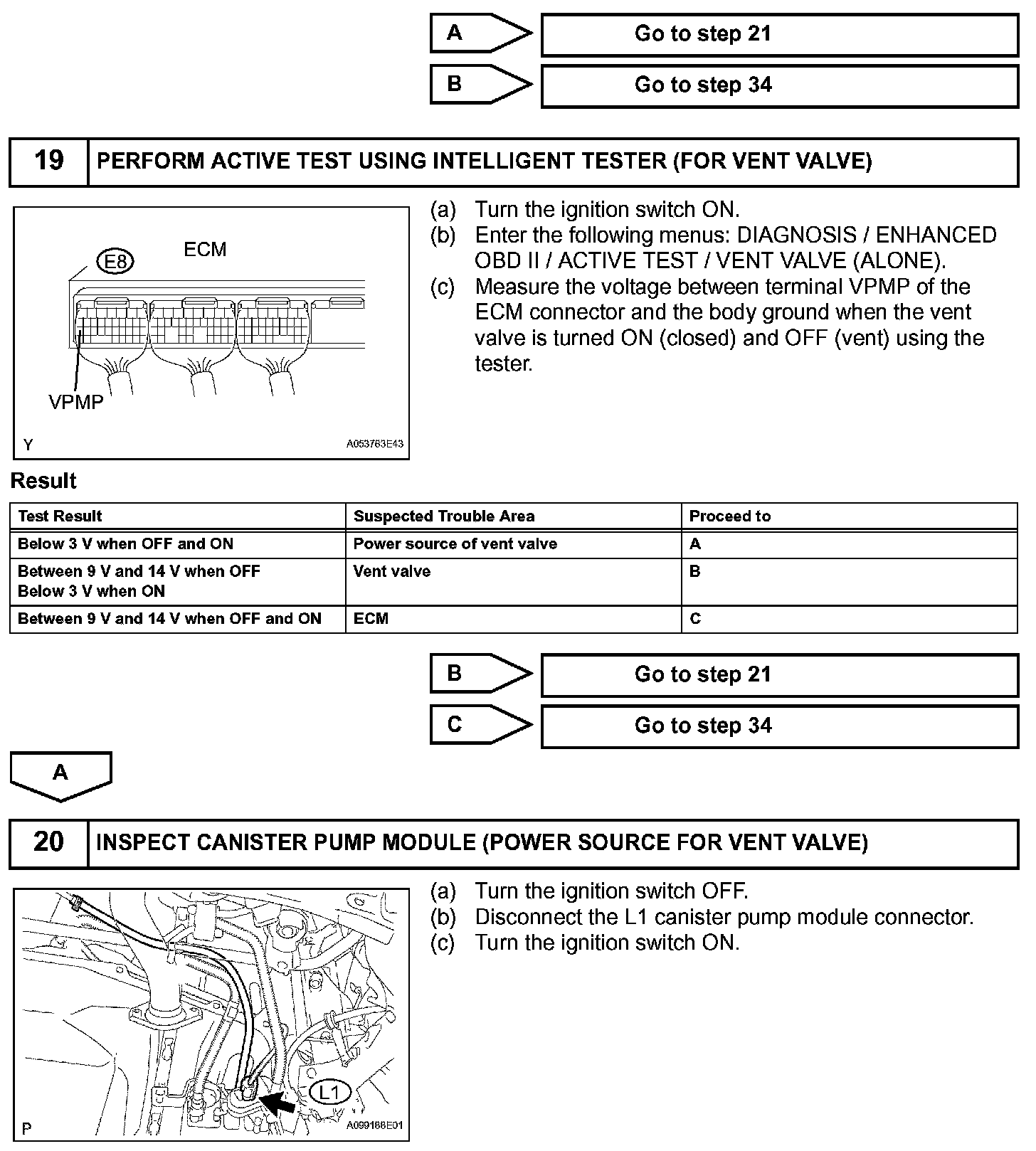

Step 18(Continued)-20:

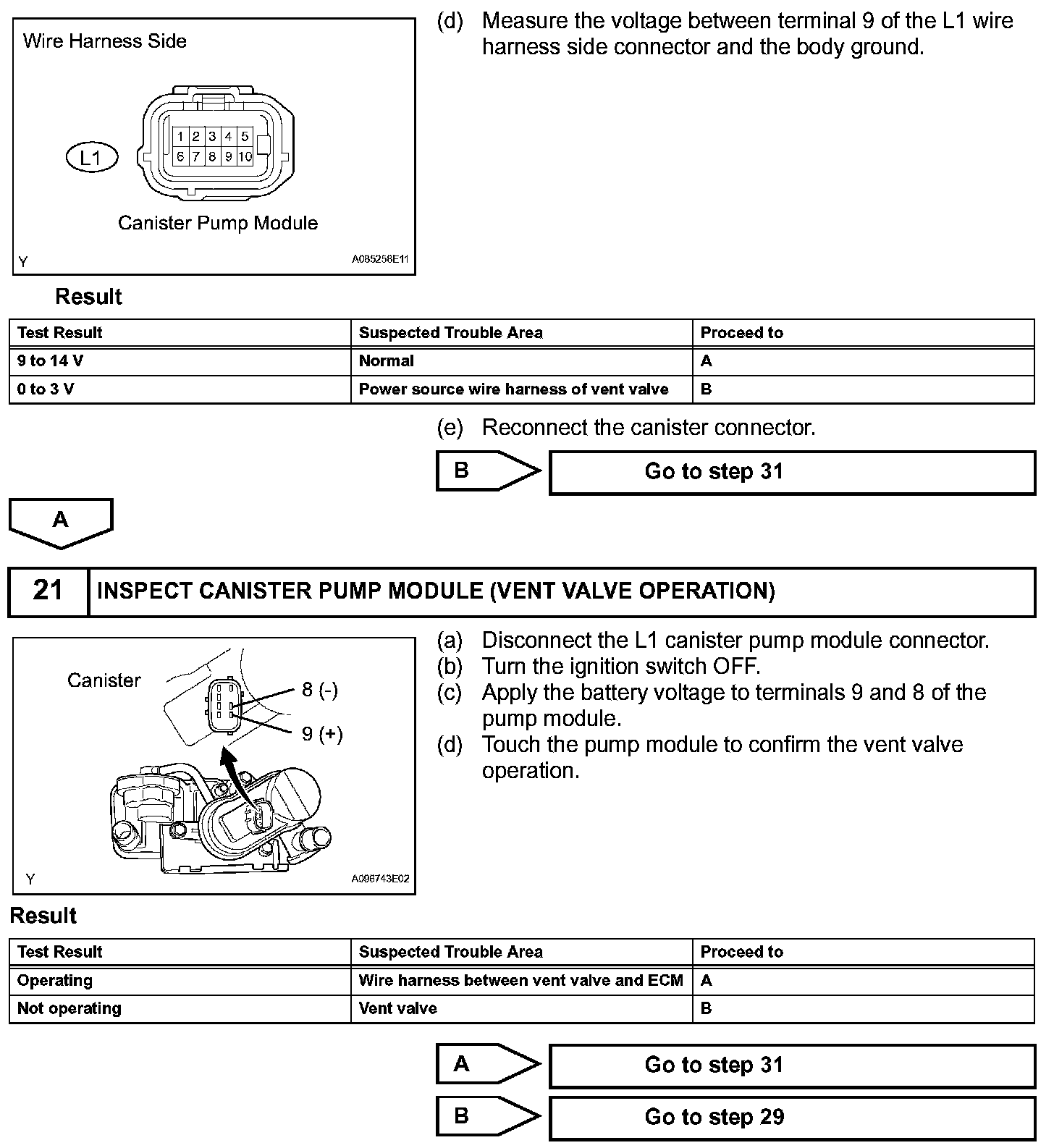

Step 20(Continued)-21:

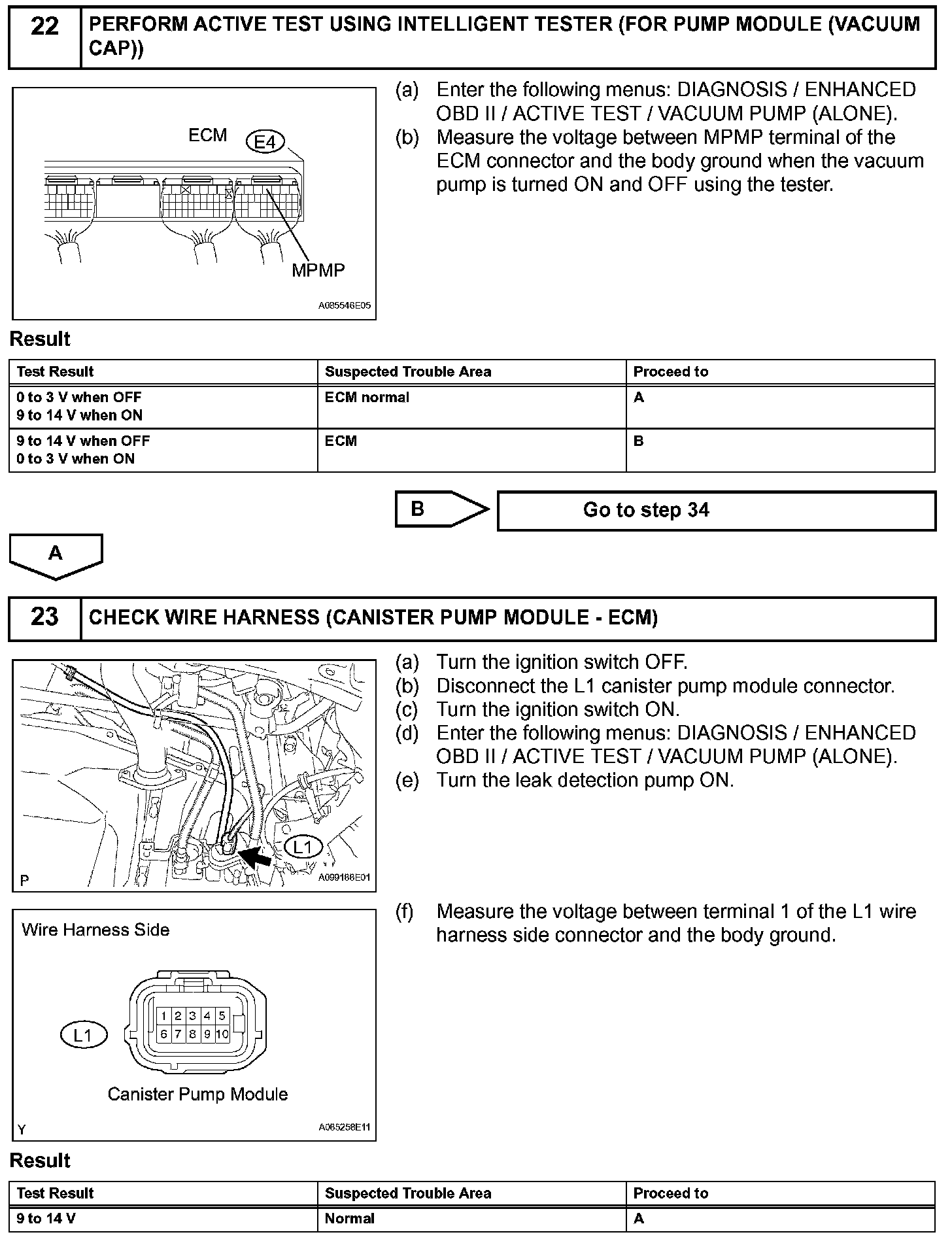

Step 22-23:

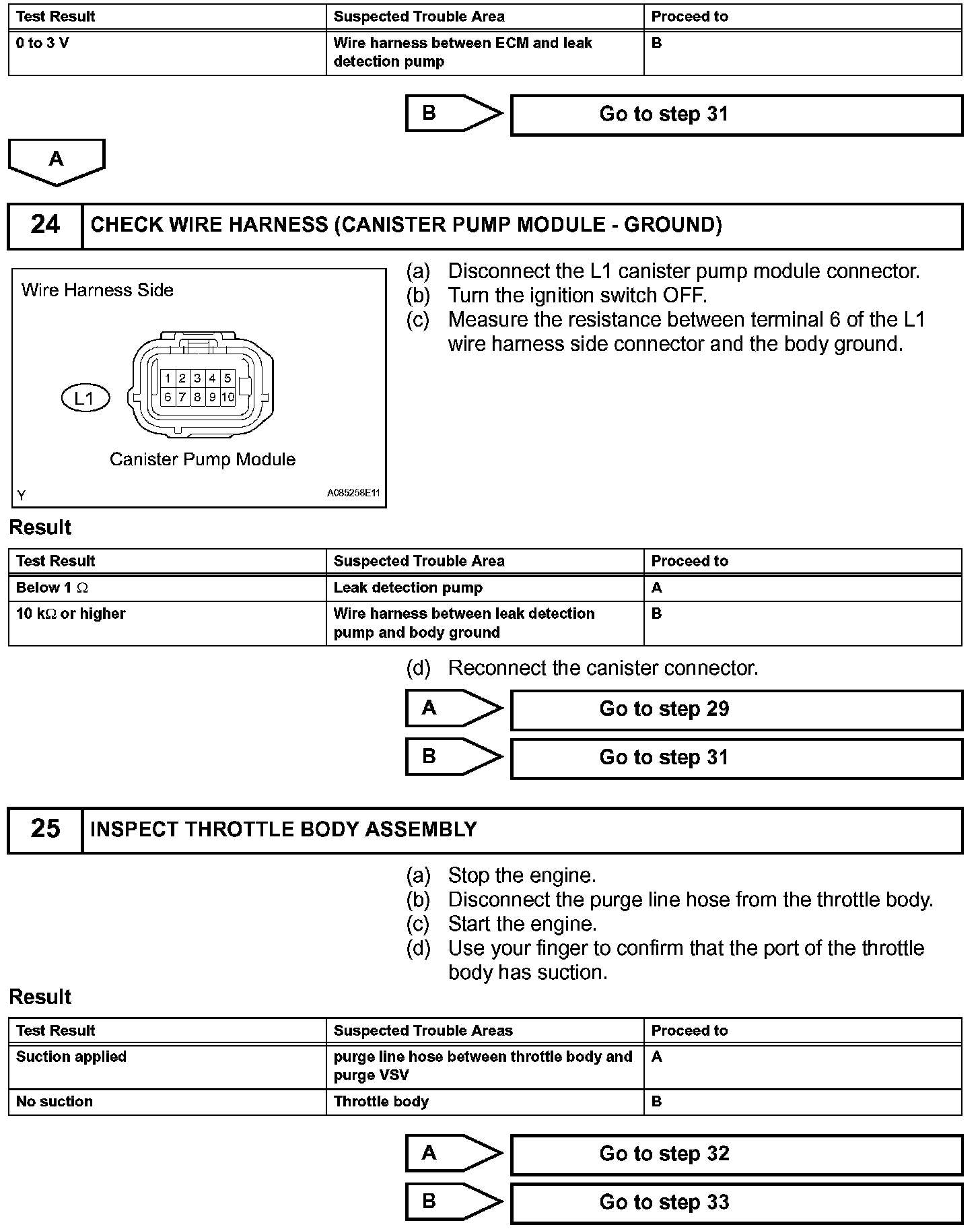

Step 23(Continued)-25:

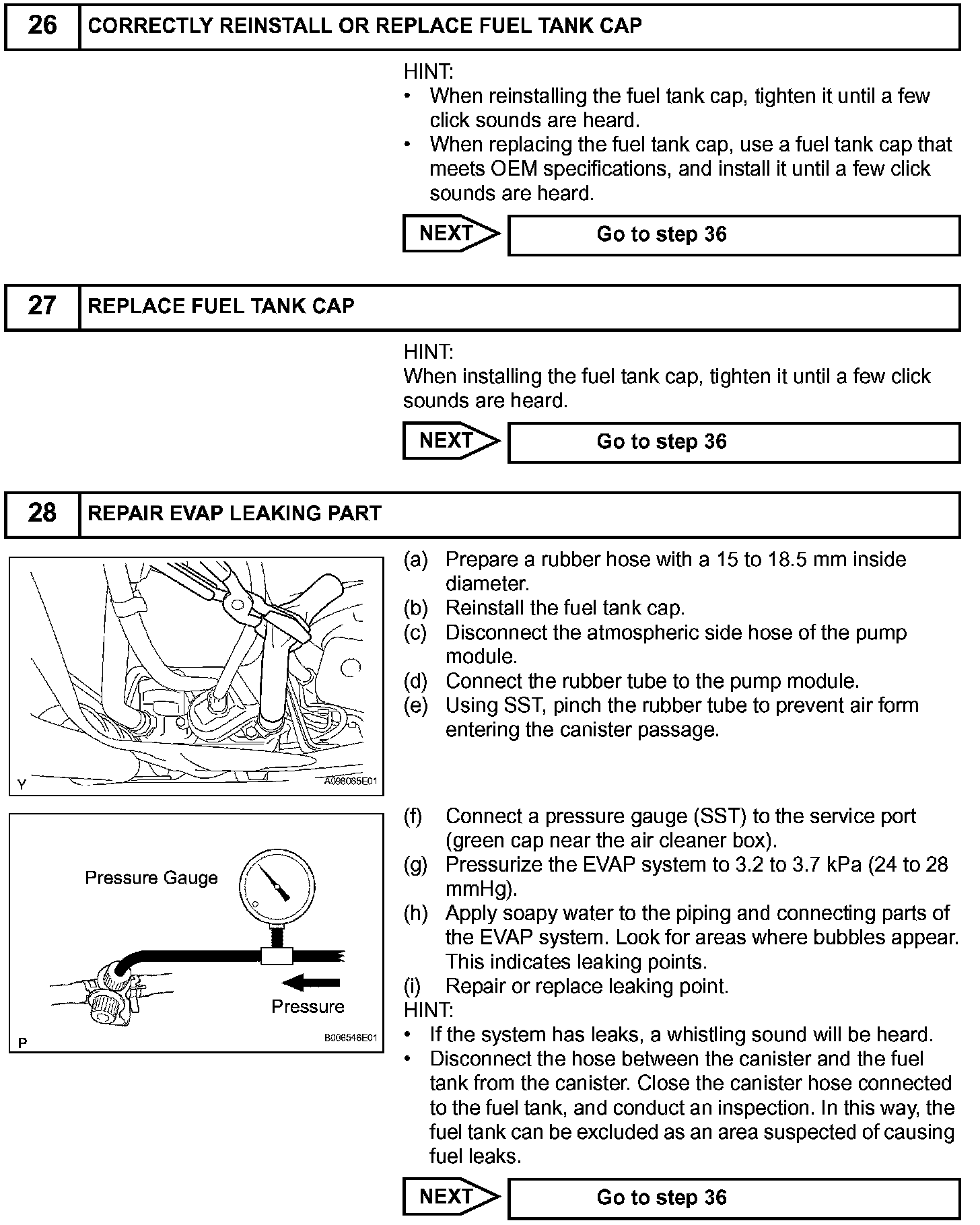

Step 26-28:

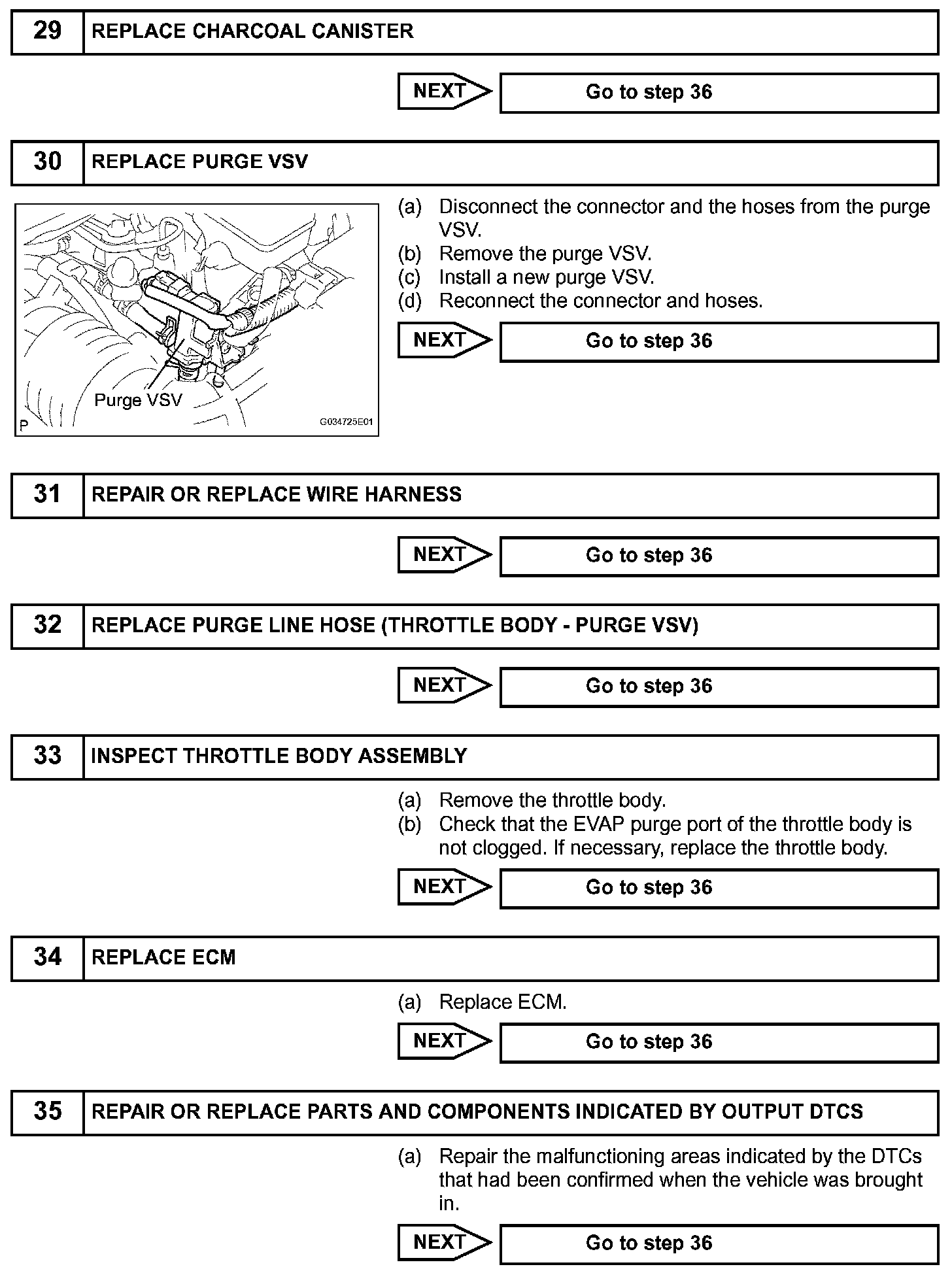

Step 29-35:




Step 36:






HINT:
- Using the intelligent tester monitor results enable the EVAP (Evaporative Emission) system to be confirmed.
- Read freeze frame data using the intelligent tester. Freeze frame data records the engine conditions when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.
