Initial Inspection and Diagnostic Overview

HOW TO PROCEED WITH TROUBLESHOOTING

1. VEHICLE PULLING DIAGNOSIS

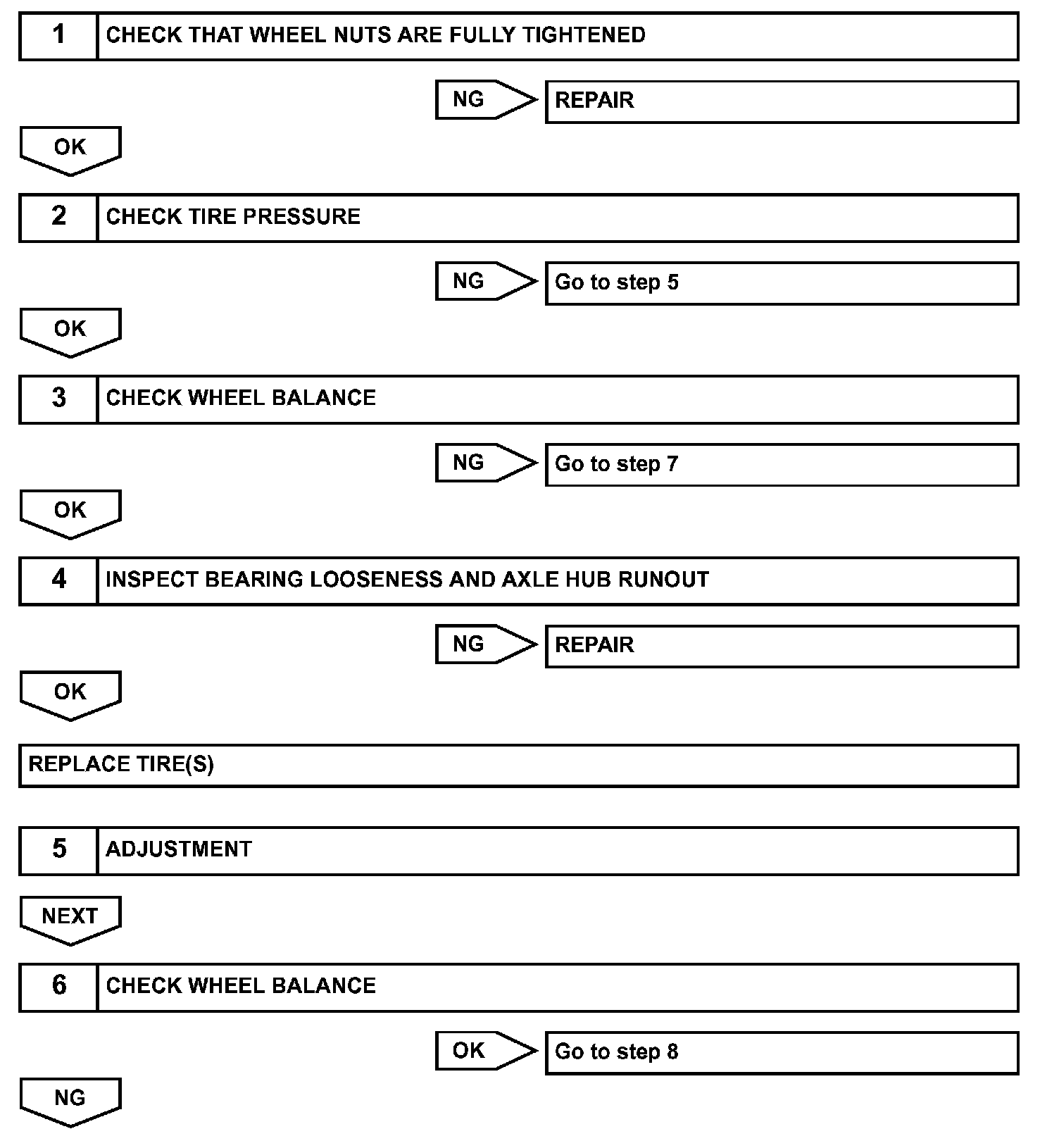

2. DIAGNOSTICS OF TIRE VIBRATION
