Rear Room Light Assembly

INSPECTION




1. INSPECT NO.2 ROOM LIGHT ASSEMBLY

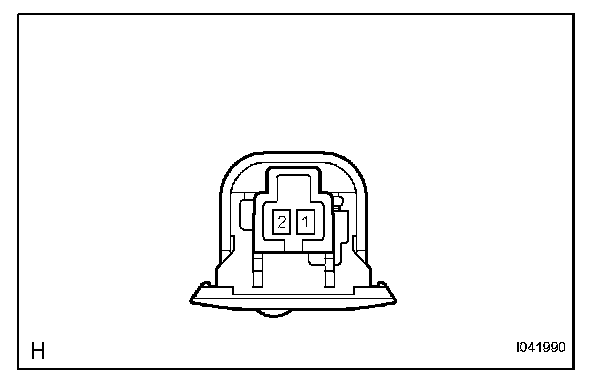

a. Connect the battery positive (+) lead to terminal 2 and the battery negative (-) lead to terminal 1, and then check that the light comes on when the switch is in the ON position.
OK:Light comes on.
