Symptom Related Diagnostic Procedures

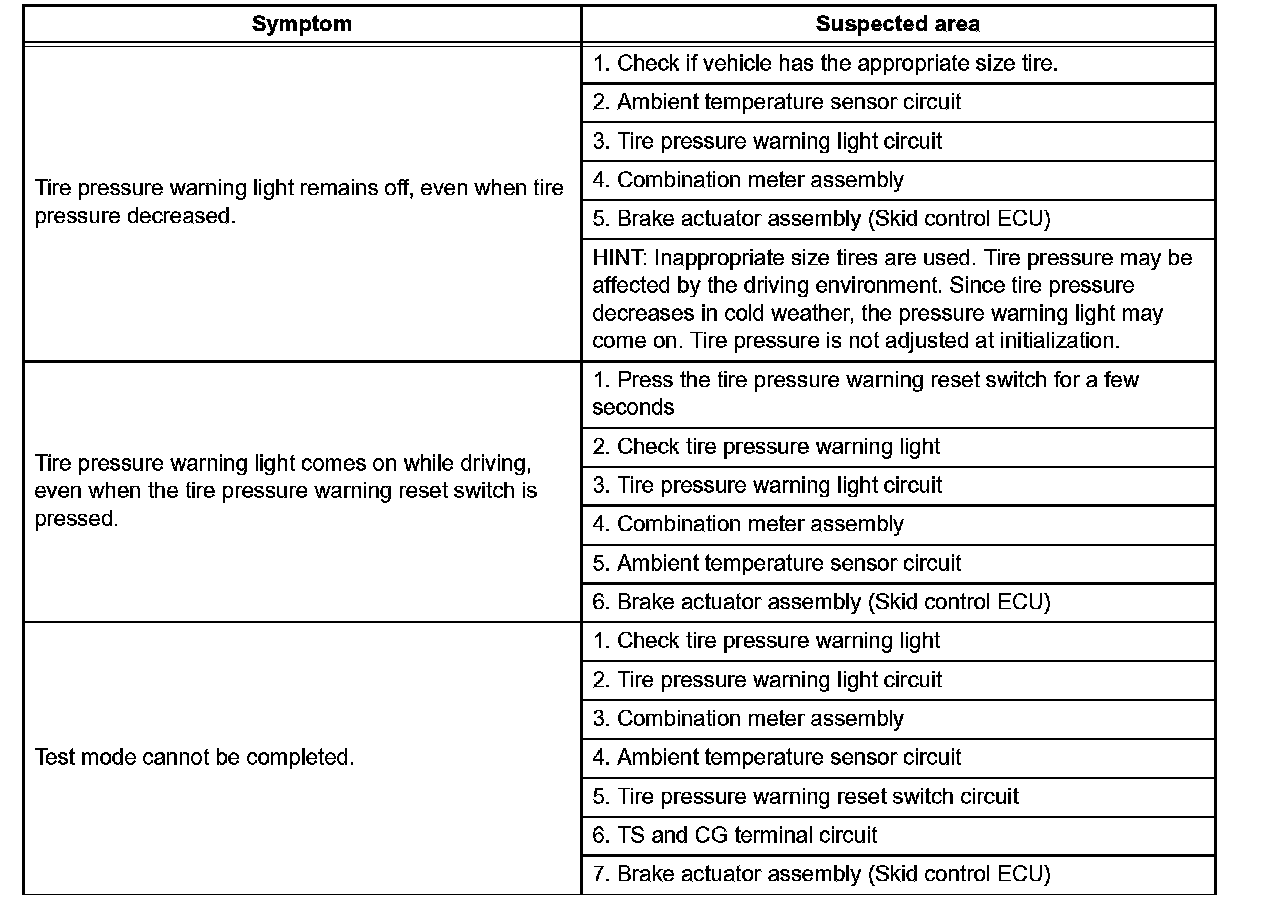

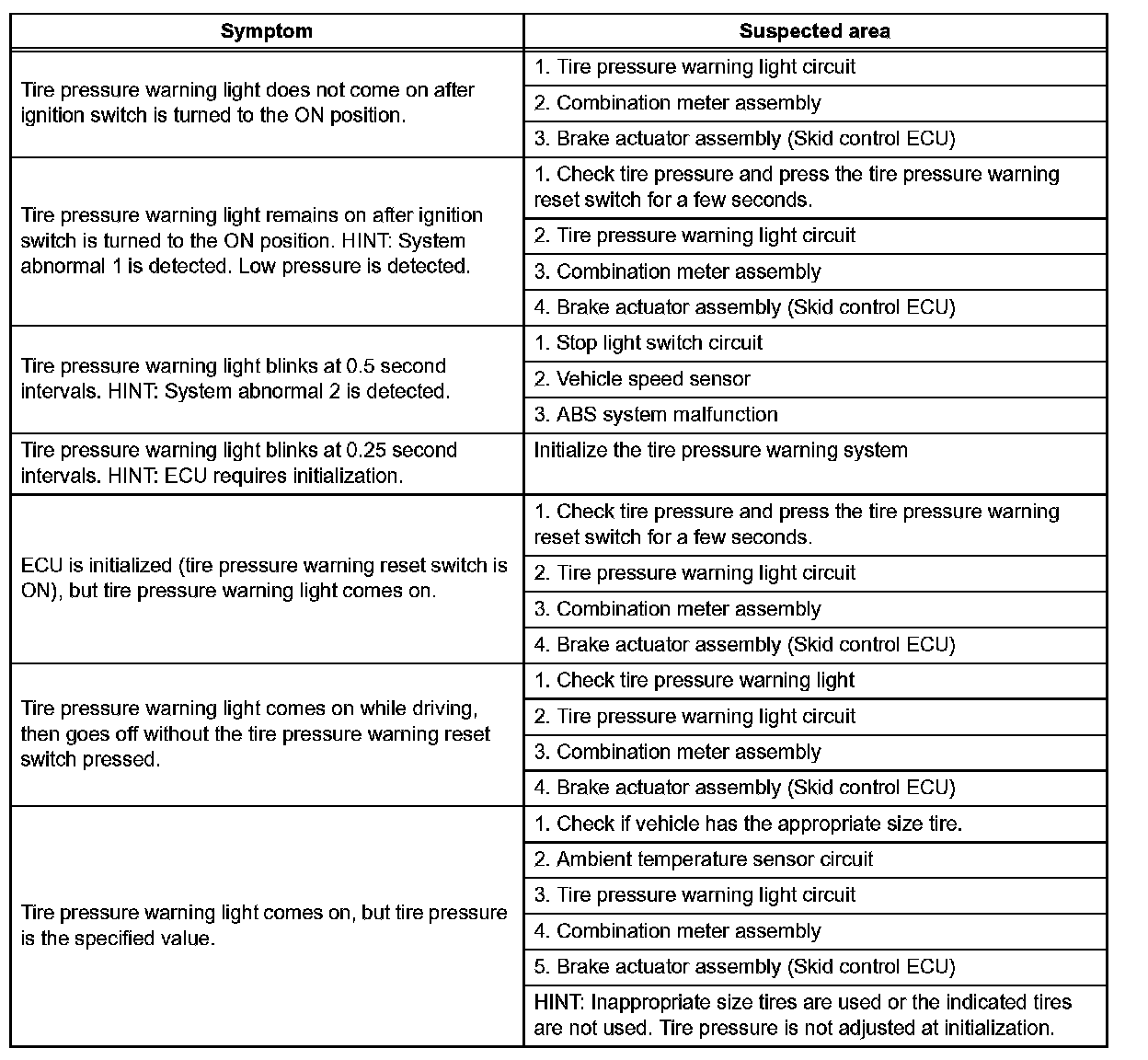

PROBLEM SYMPTOMS TABLECheck the circuits for each problem symptom in the order given in the table, and proceed to the relevant troubleshooting.
HINT:
^ Inspect each circuit in numerical order for the corresponding symptom.
If the malfunction still exists even after checking and confirming that all the circuits are normal, replace the brake actuator assembly.
^ When a malfunction is found in the skid control ECU, replace the brake actuator assembly.
^ When the tire pressure warning light blinks and the ABS warning light comes on, check the ABS system first.
