Stop Light Switch Circuit

Stop Light Switch Circuit

DESCRIPTION
When the stop light switch is ON (brake pedal depressed), the skid control ECU suspends the tire pressure warning system.

WIRING DIAGRAM:

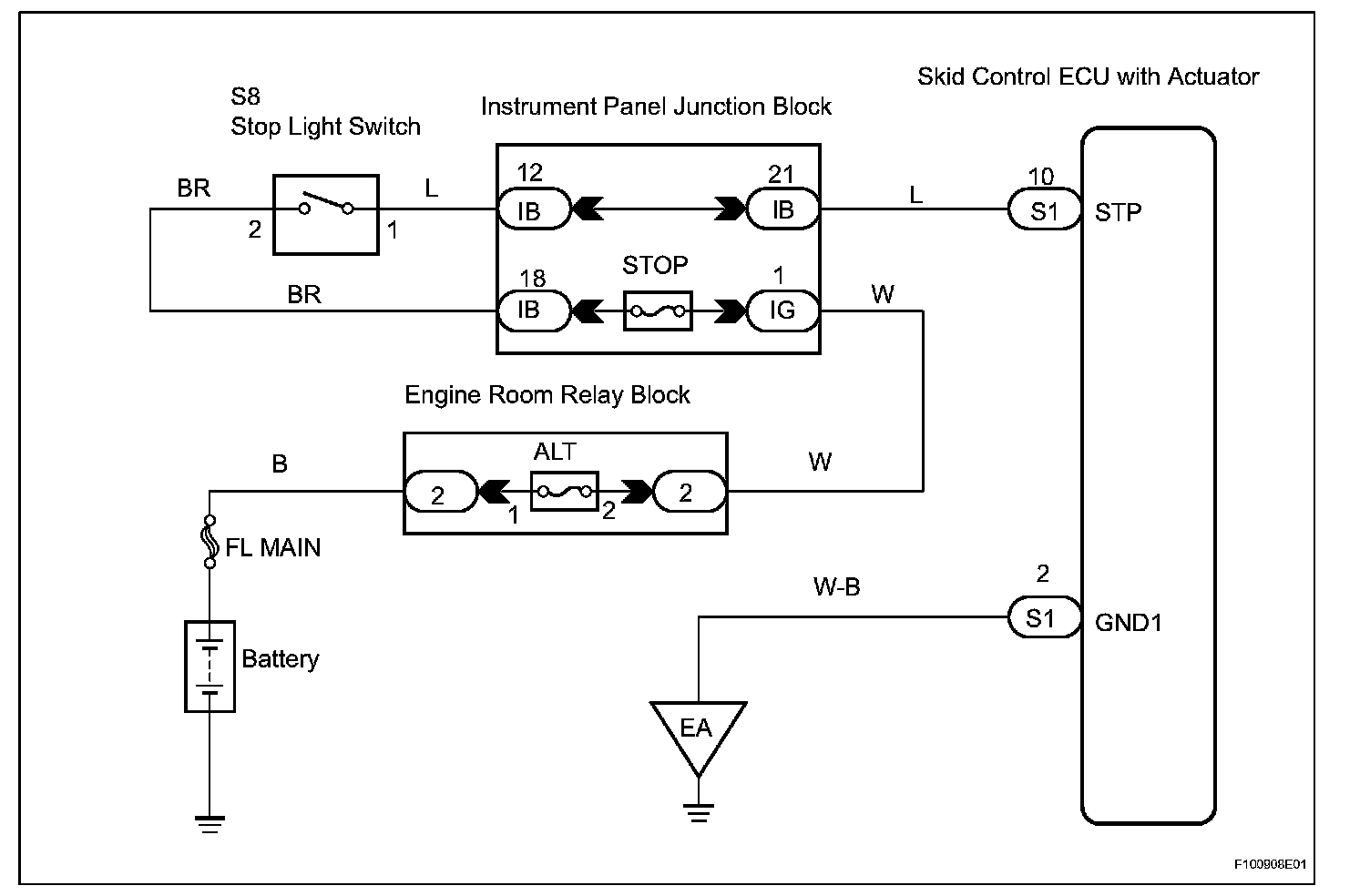

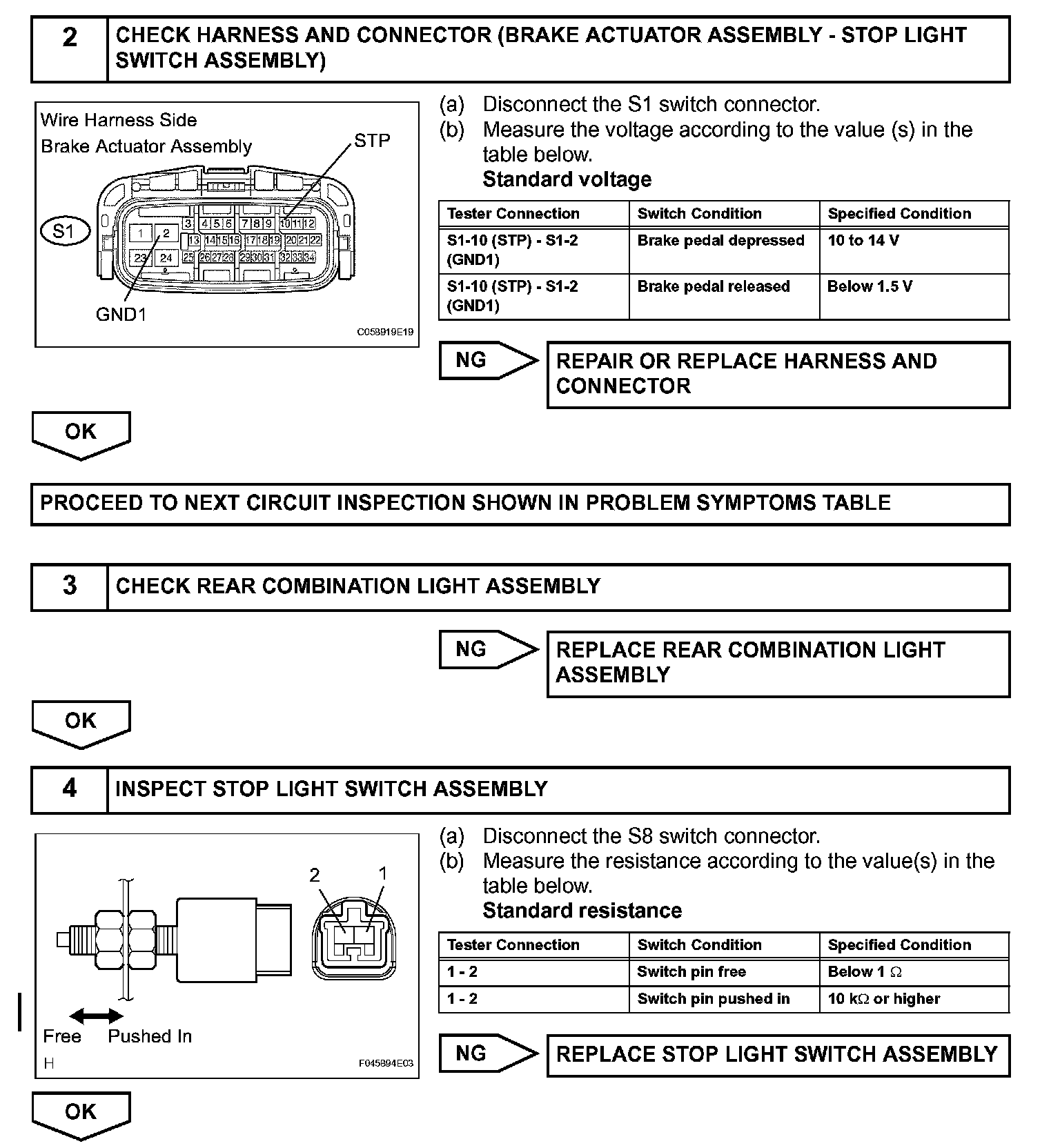

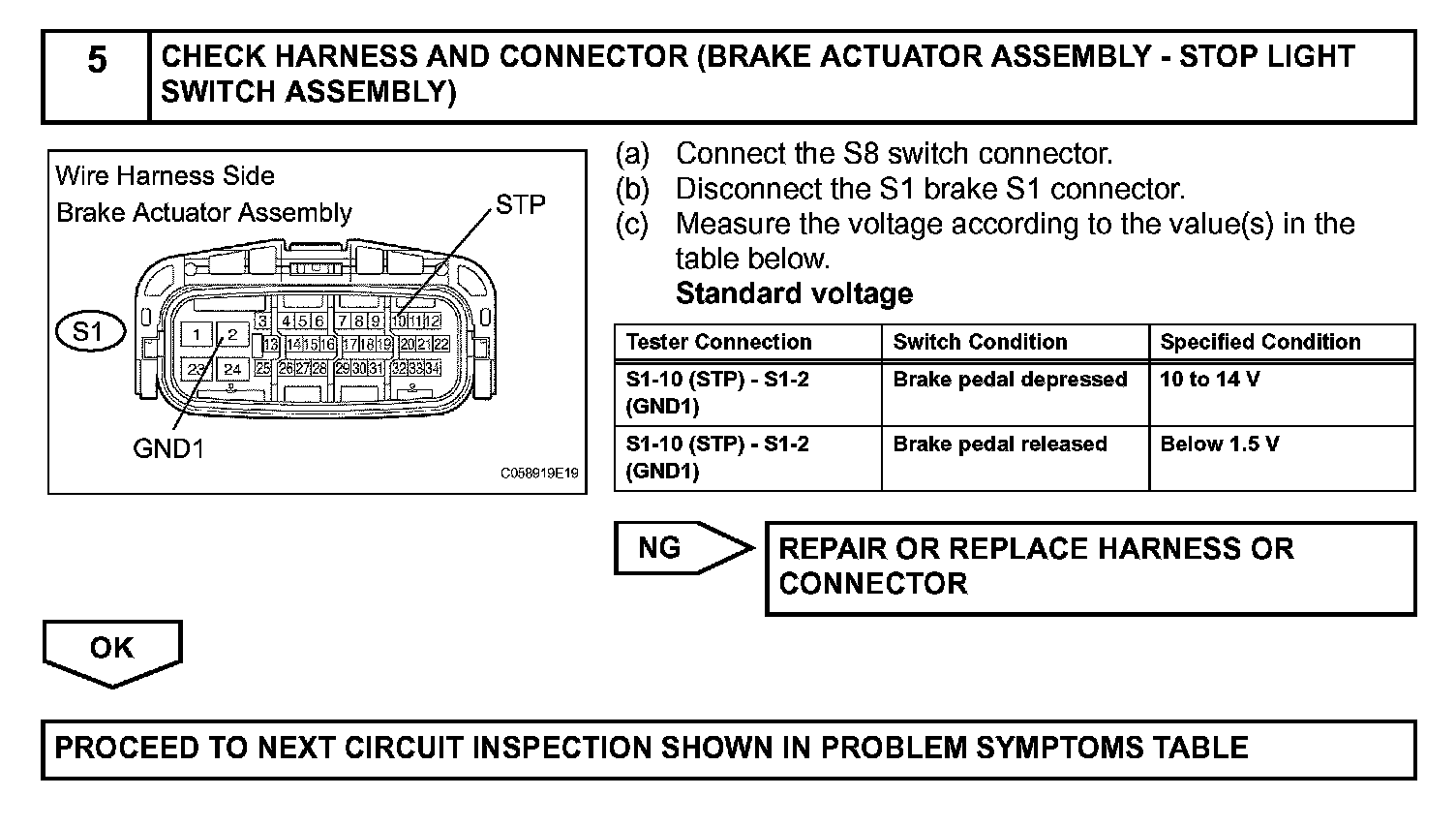

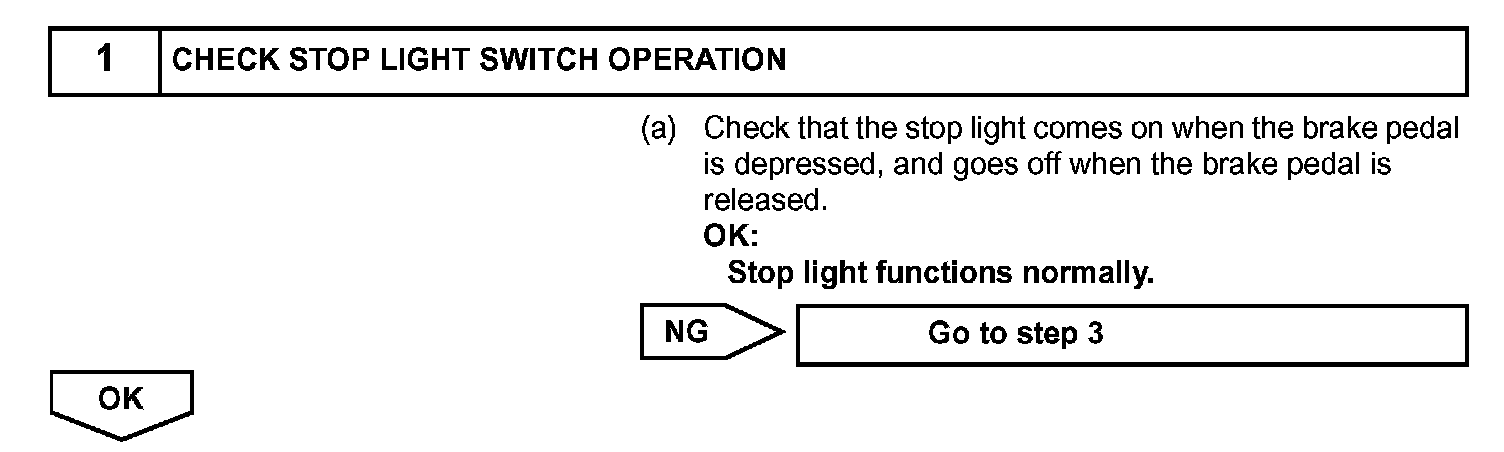

WIRING DIAGRAM
