Seat Belt Warning Light For Passenger Seat Does Not Operate
Seat Belt Warning Light For Passenger Seat Does Not Operate
Seat Belt Warning Light For Passenger Seat Does Not Operate

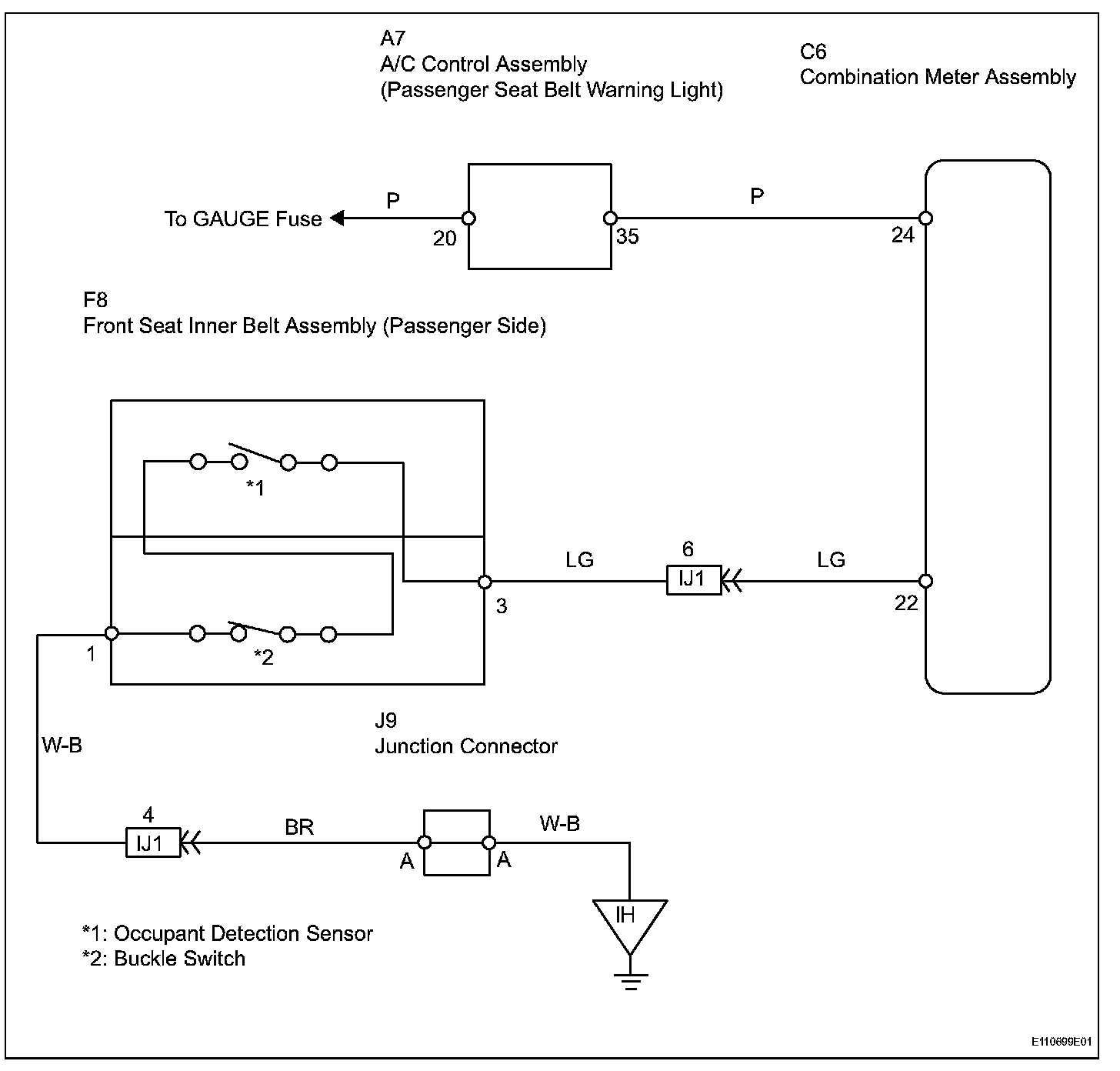

Wiring Diagram:

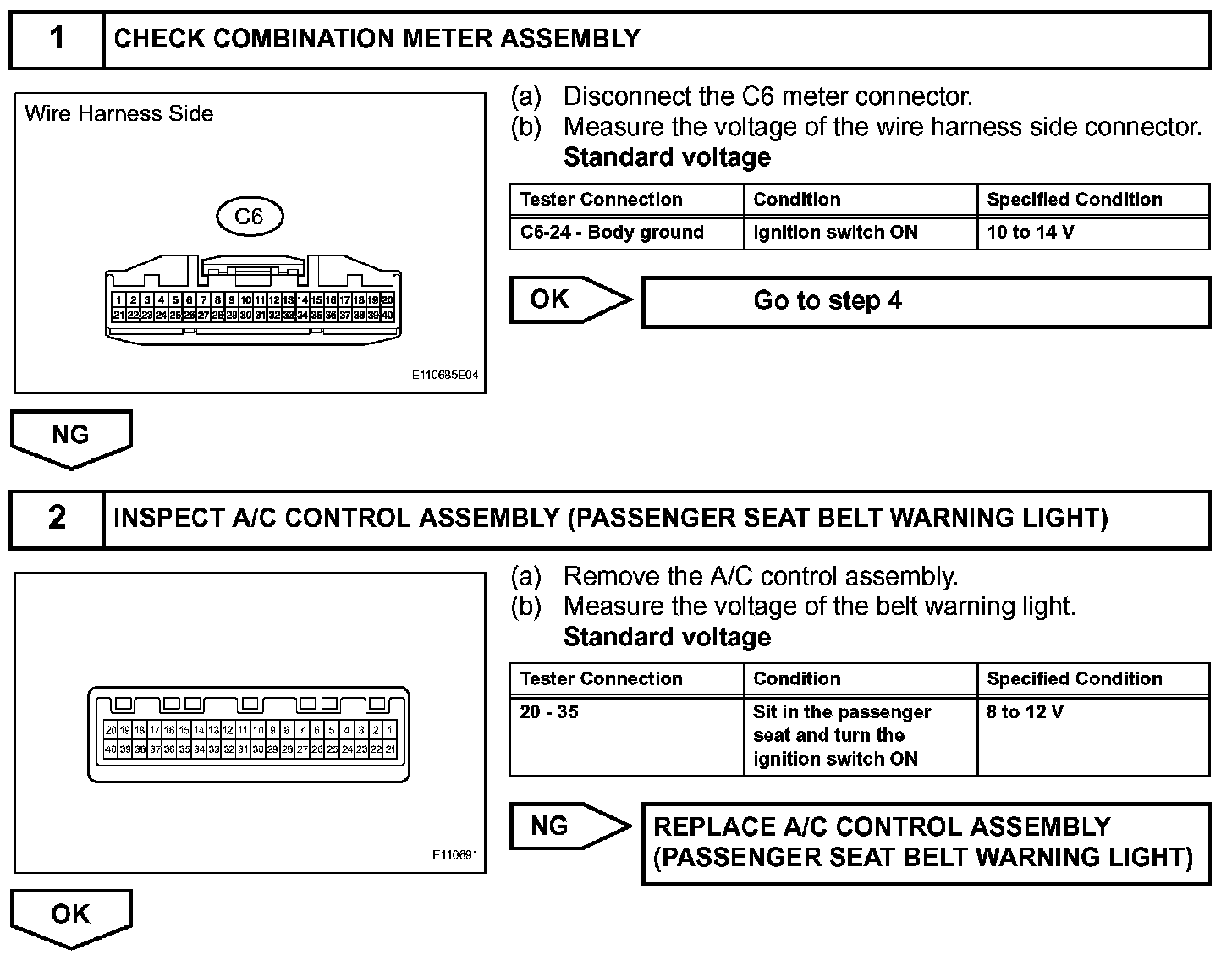

Step 1-2:

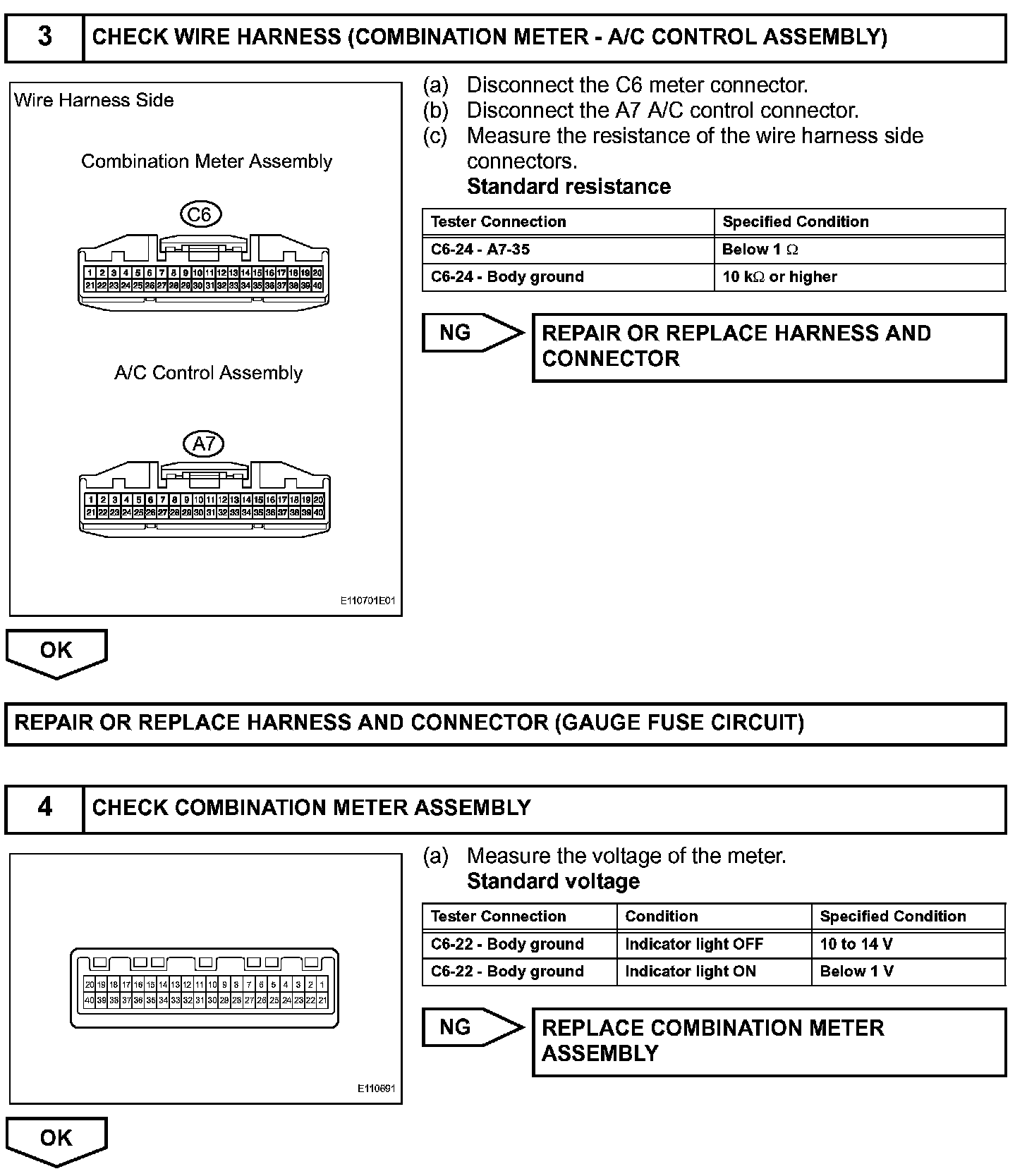

Step 3-4:
Step 5-6:
INSPECTION PROCEDURE
