Home >> Scion >> 2006 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

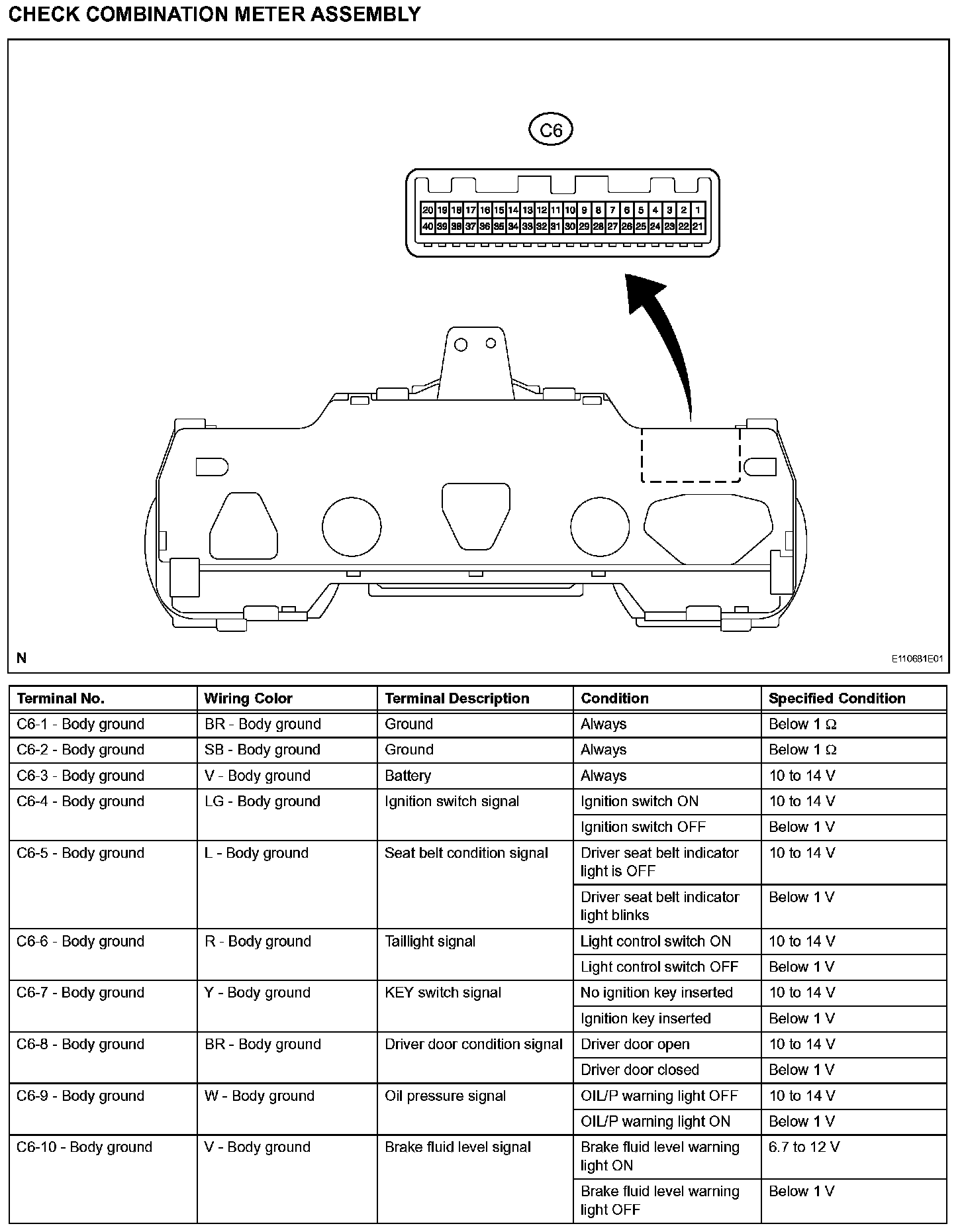

Terminals Of Control Module/Pinouts - Check Combination Meter Assembly (Part 1):

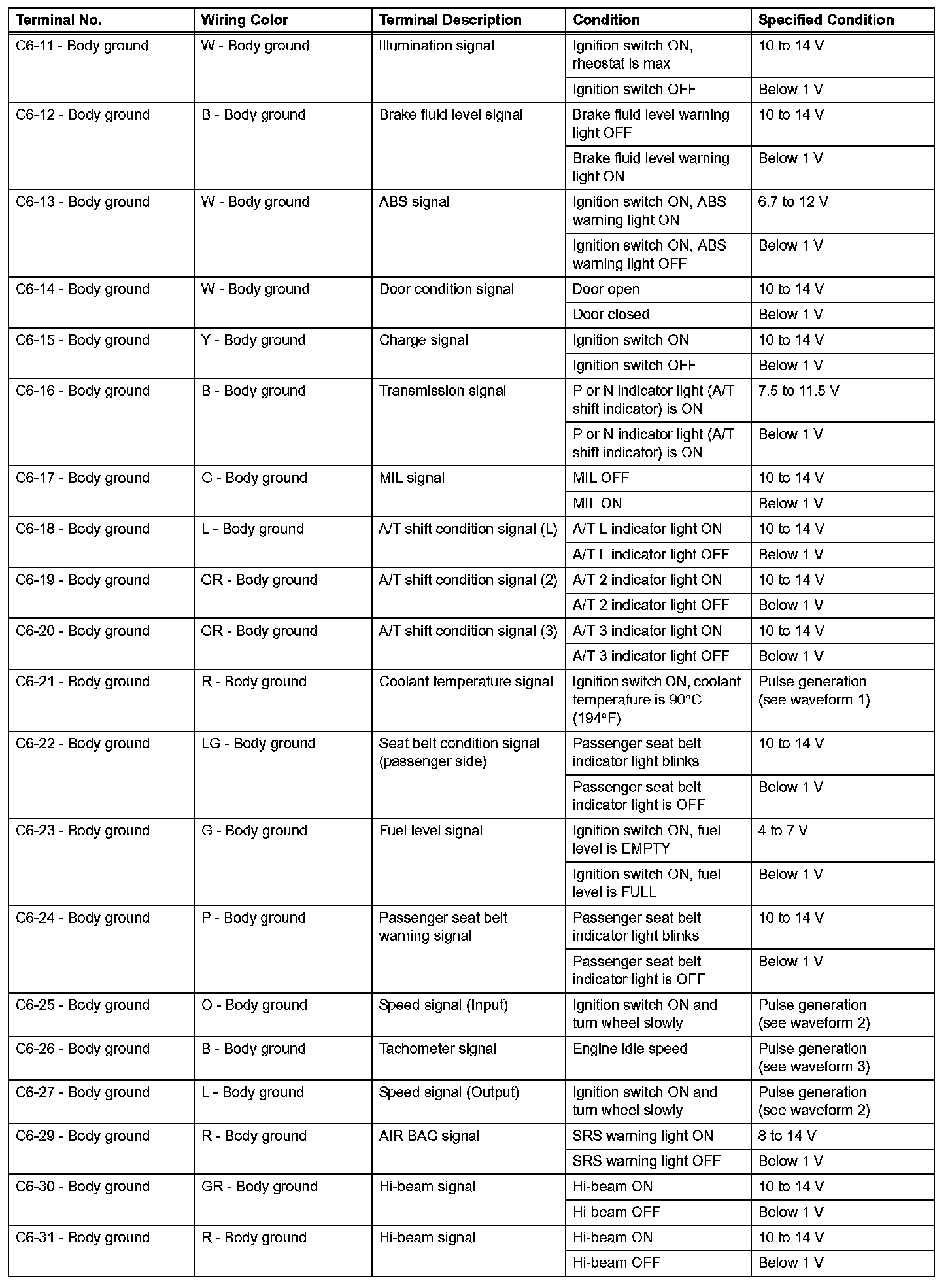

Terminals Of Control Module/Pinouts - Check Combination Meter Assembly (Part 2):

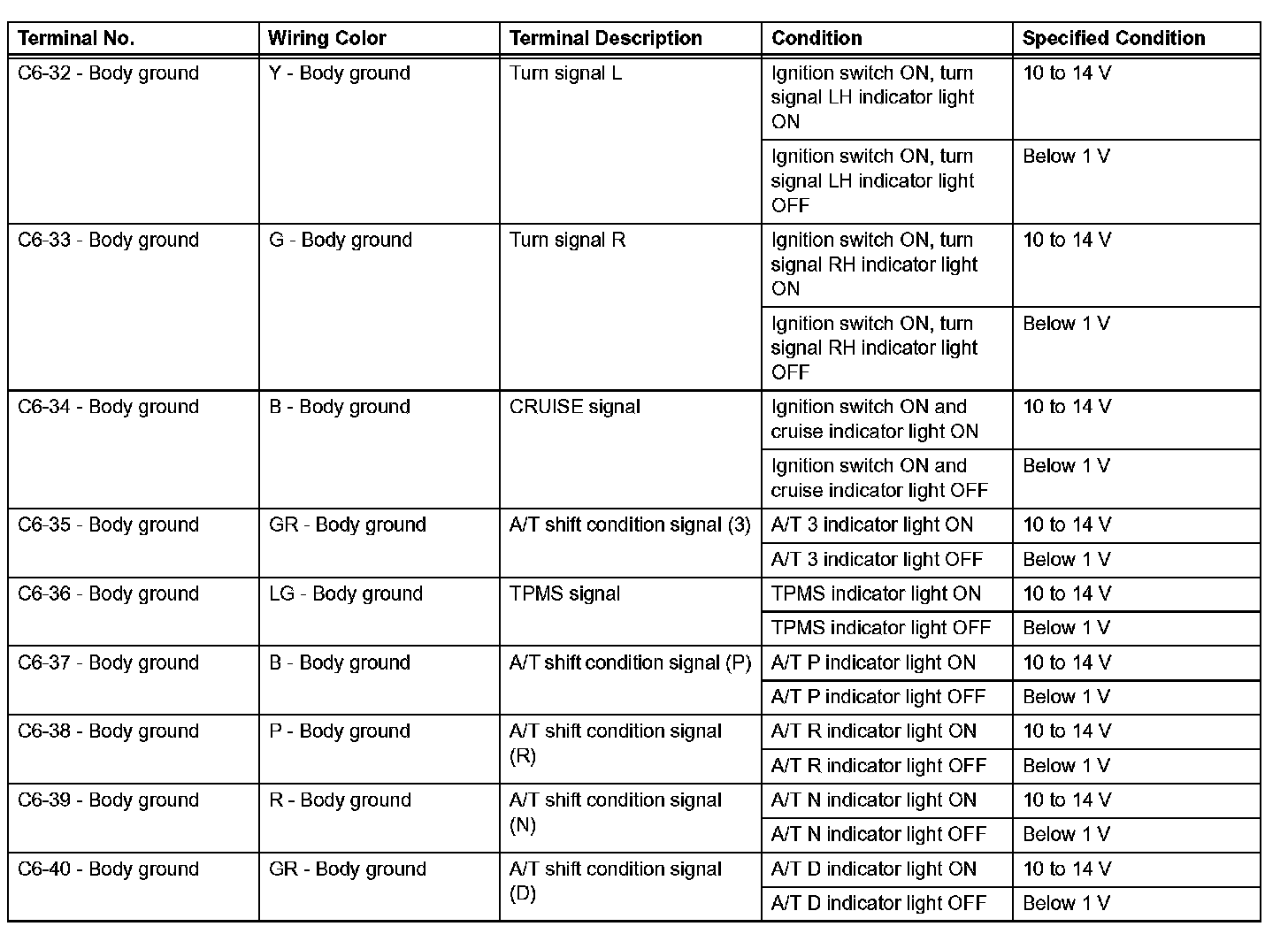

Terminals Of Control Module/Pinouts - Check Combination Meter Assembly (Part 3):

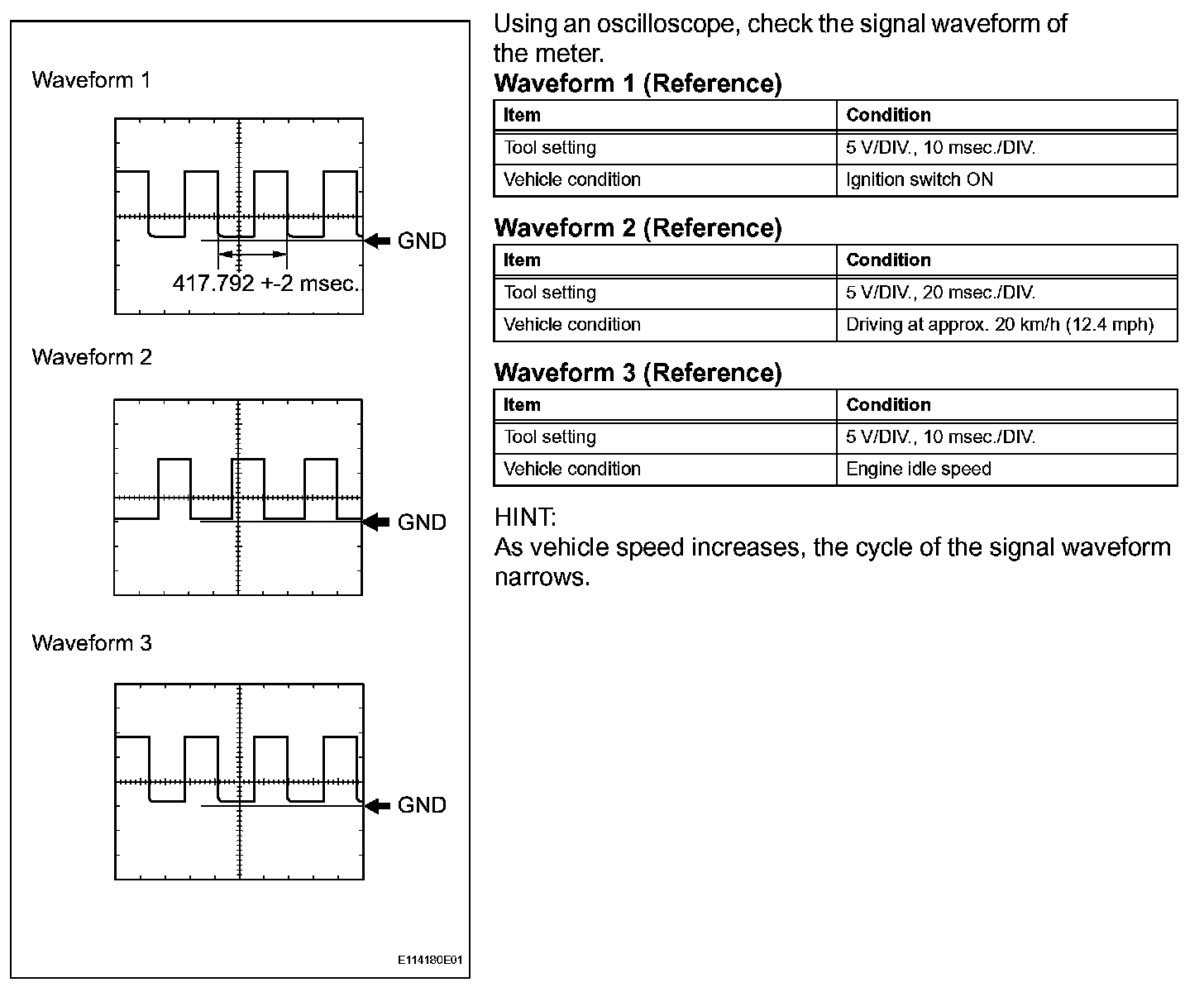

Oscilloscope Waveforms:
