Combination Meter
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE METER HOOD SUB-ASSEMBLY
a. Tilt the steering column assembly down as far as possible.

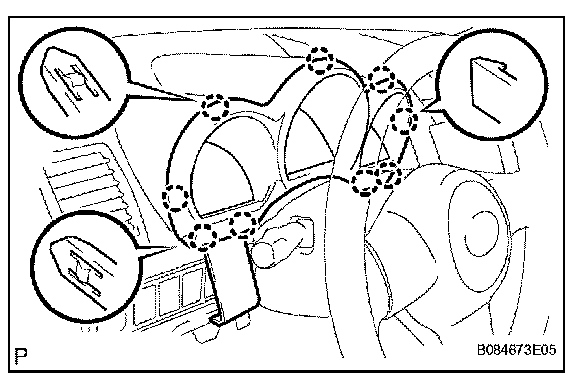

b. Using a moulding remover, detach the 9 claws.
HINT: Tape the moulding remover tip before use.
c. Remove the meter hood.
3. REMOVE COMBINATION METER ASSEMBLY

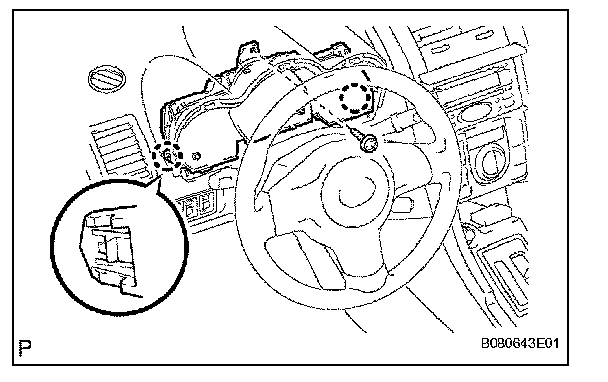

a. Remove the screw and detach the 2 claws.
b. Remove the combination meter and disconnect the connectors.
4. REMOVE COMBINATION METER GLASS

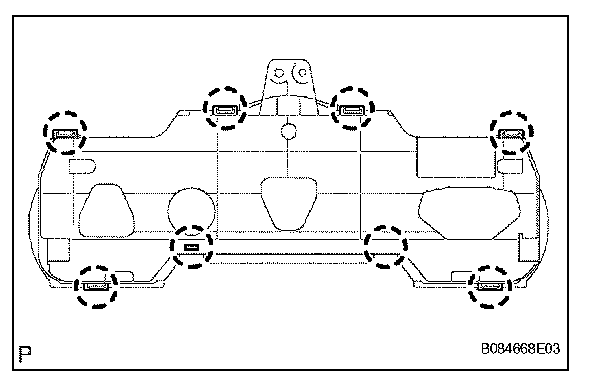

a. Detach the 8 claws, and then remove the combination meter glass.
INSTALLATION
1. INSTALL COMBINATION METER GLASS

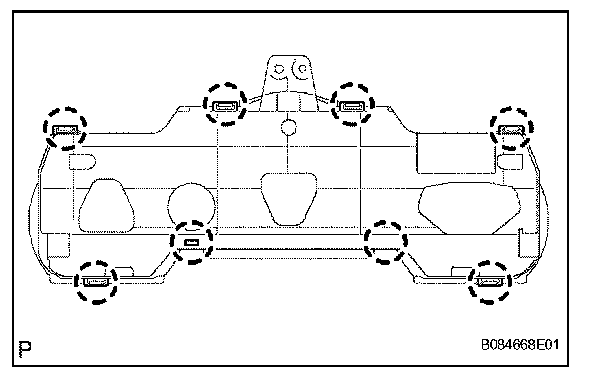

a. Attach the 8 claws to install the combination meter glass.
2. INSTALL COMBINATION METER ASSEMBLY
a. Connect the connector and install the combination meter.

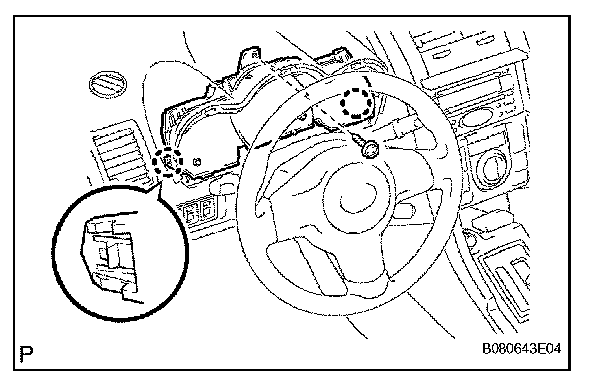

b. Attach the 2 claws to install the screw.
3. INSTALL METER HOOD SUB-ASSEMBLY
a. Attach the 9 claws to install the meter hood.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
6. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
