Lower Instrument Panel

DISASSEMBLY

1. REMOVE FUSE BOX OPENING COVER
2. REMOVE OUTER MIRROR SWITCH ASSEMBLY WITH BEZEL
3. REMOVE TIRE PRESSURE WARNING RESET SWITCH
4. REMOVE INDICATOR LIGHT ASSEMBLY
5. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY LOWER




6. REMOVE STEREO JACK ADAPTER ASSEMBLY

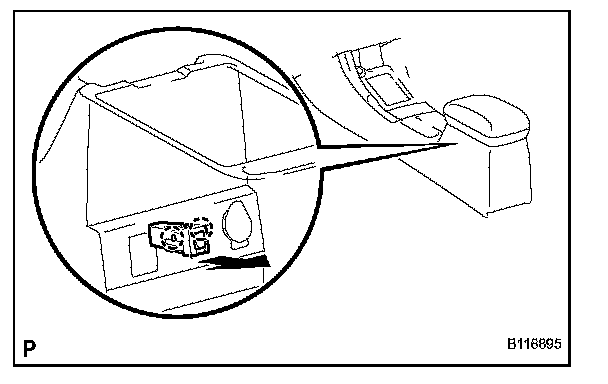

a. Detach the 2 claws and remove the stereo jack adapter assembly.
b. Disconnect the connectors.

REASSEMBLY




1. INSTALL STEREO JACK ADAPTER ASSEMBLY
a. Connect the connectors.

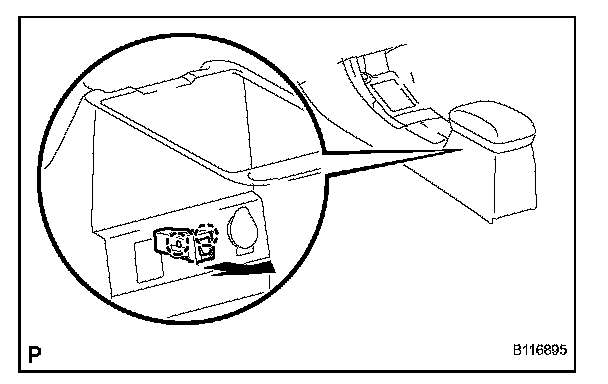

b. Install the stereo jack adapter assembly.

2. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY LOWER
3. INSTALL INDICATOR LIGHT ASSEMBLY
4. INSTALL TIRE PRESSURE WARNING RESET SWITCH
5. INSTALL OUTER MIRROR SWITCH ASSEMBLY WITH BEZEL
6. INSTALL FUSE BOX OPENING COVER
