Fuel Gauge: Testing and Inspection

Malfunction in Fuel Receiver Gauge

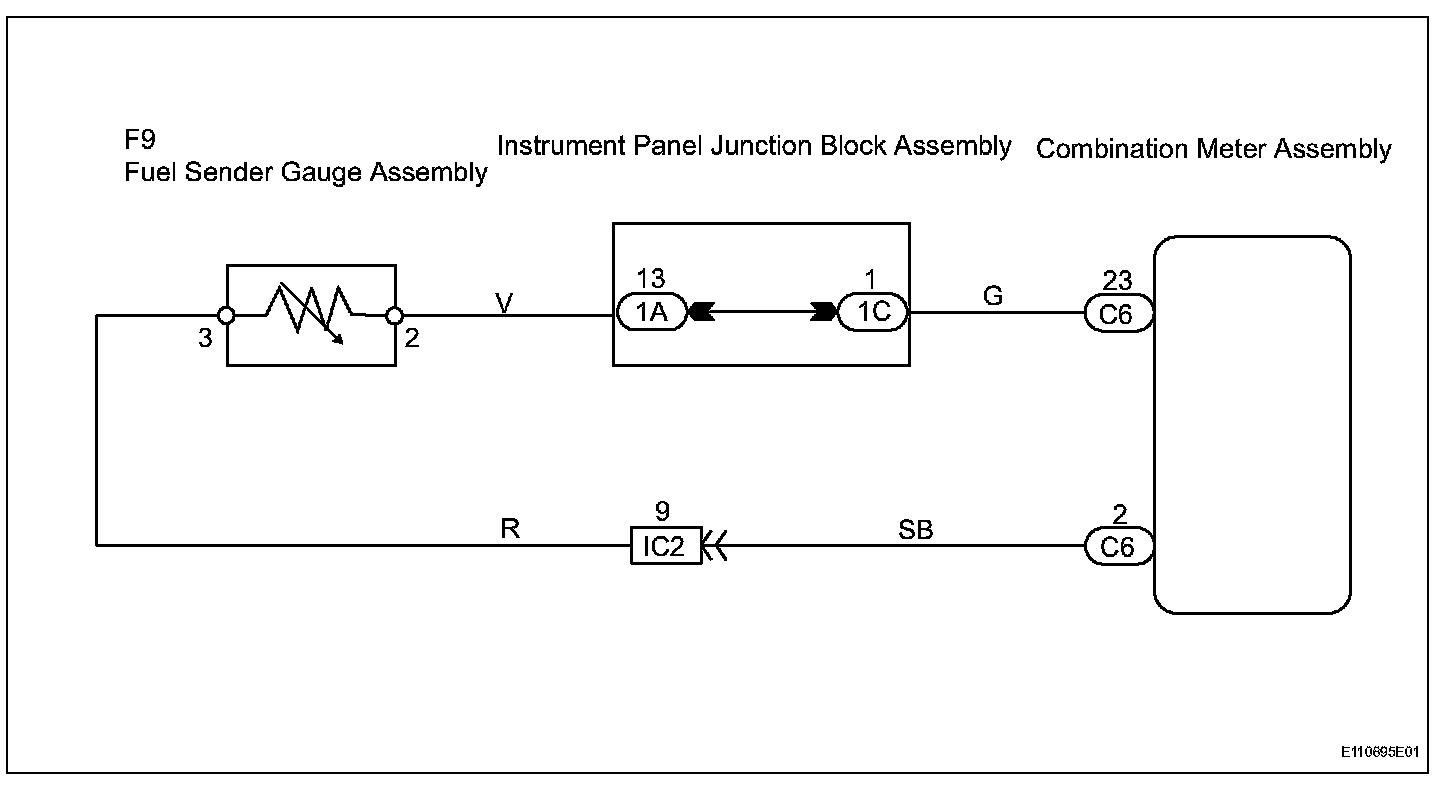

Wiring Diagram:

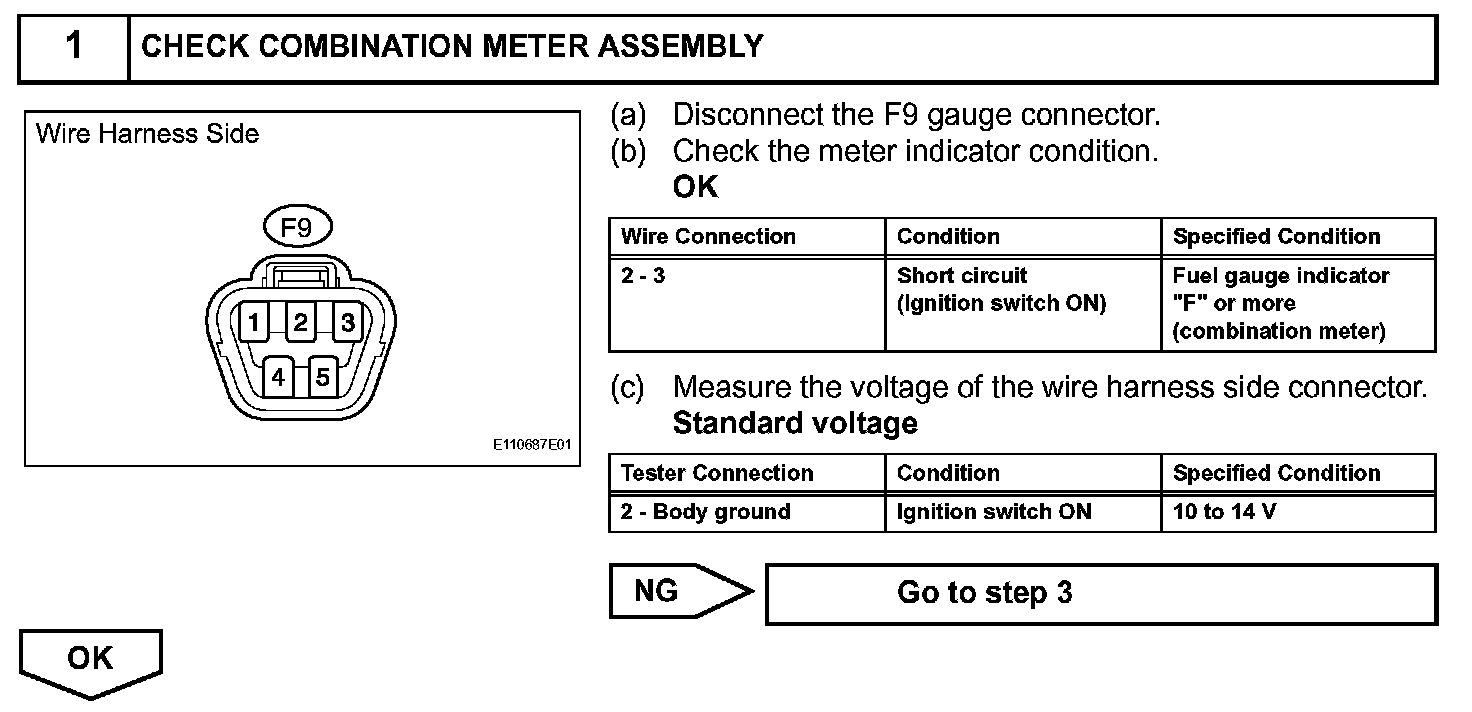

Step 1:

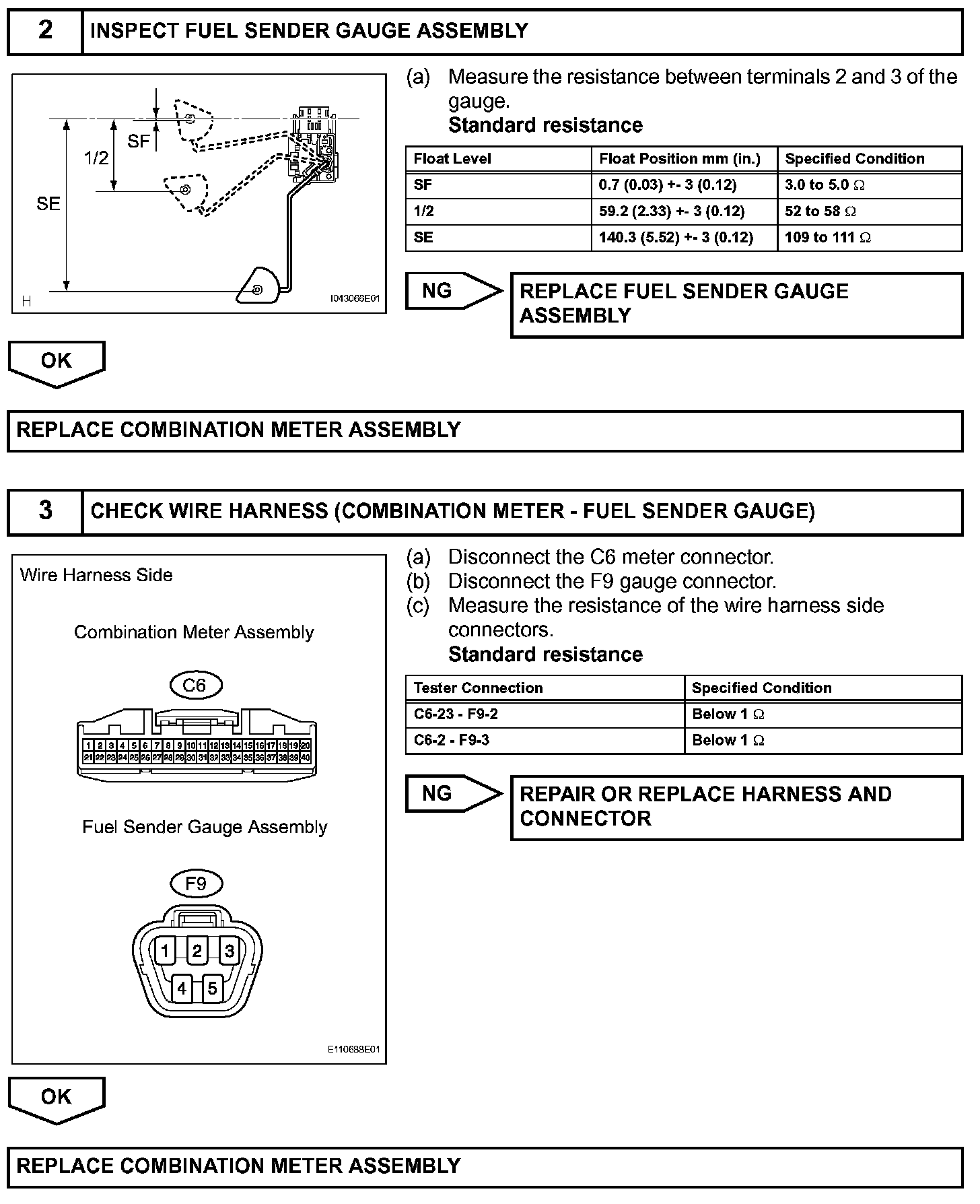

Step 2-3:




INSPECTION PROCEDURE
