Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

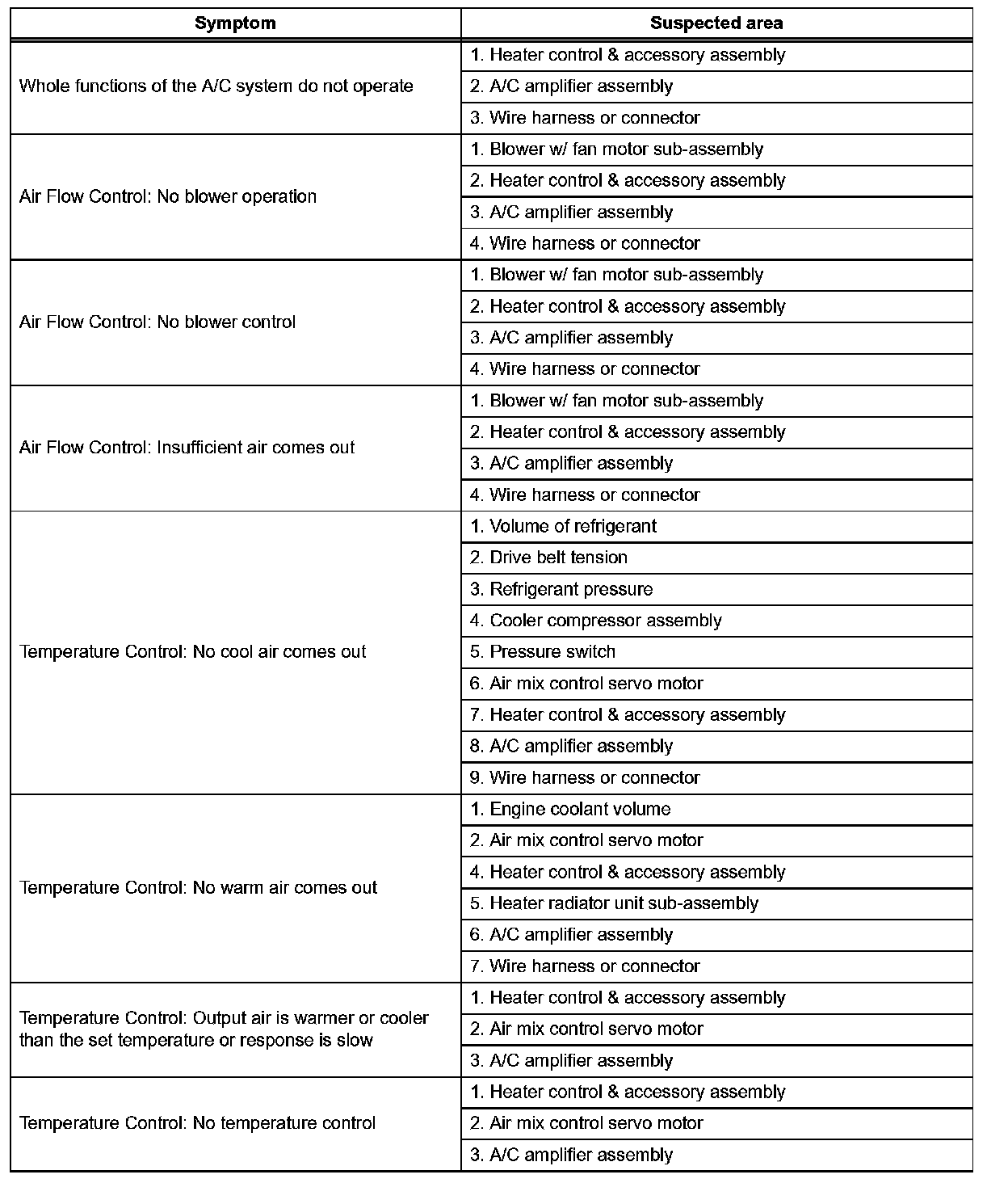

Problem Symptoms Table (Part 1):

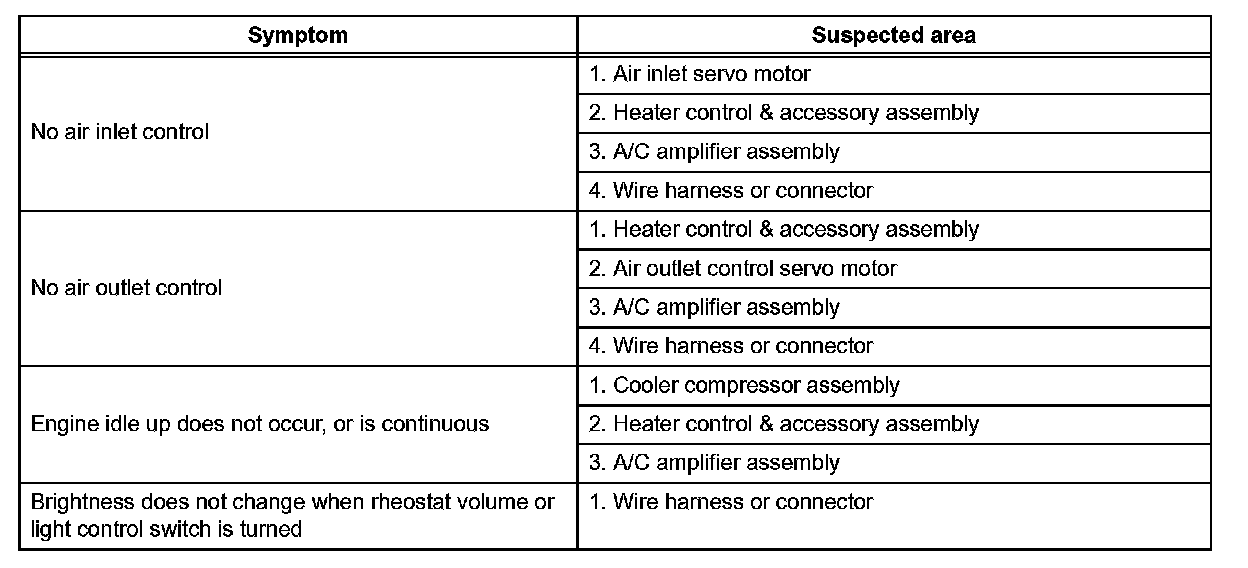

Problem Symptoms Table (Part 2):

Check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.

HINT: Inspect the "Fuse" and "Relay" before inspecting the suspected area as shown in the table below.Inspect each malfunction circuit in numerical order for the corresponding symptom.
If the malfunction still exists even after checking and confirming that all the circuits are normal, replace the A/C amplifier.
