Blower Motor: Testing and Inspection

ON-VEHICLE INSPECTION




1. INSPECT BLOWER WITH FAN MOTOR SUB-ASSEMBLY

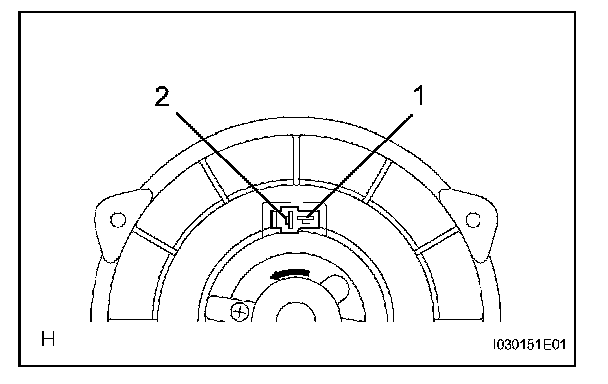

a. Disconnect the B3 blower W/ fan motor connector.
b. Connect the positive (+) lead from the battery to terminal 2 and negative (-) lead to terminal 1, and then check that the motor operates smoothly.
If the operation is not as specified, replace the blower motor.
