Air Outlet Control Servo Motor

INSPECTION




1. INSPECT AIR OUTLET CONTROL SERVO MOTOR
a. Inspect the servo motor operation.

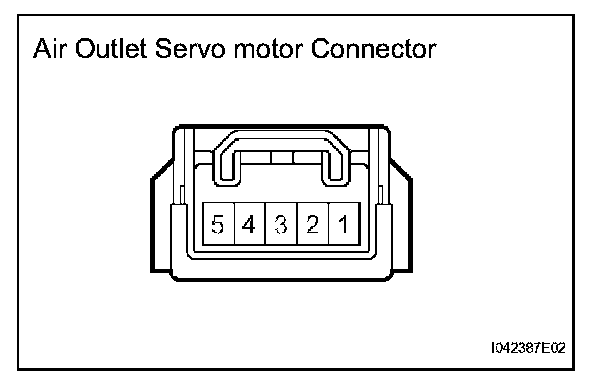

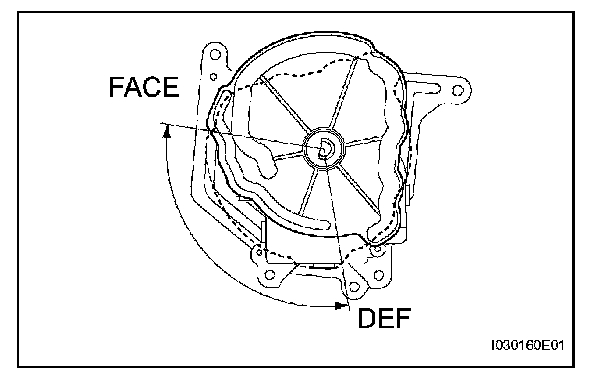

1. Connect the positive (+) lead from the battery to terminal 4 and negative (-) lead to terminal 5, and then check that the lever turns to the "FACE" position smoothly.
2. Connect the positive (+) lead from the battery to terminal 5 and negative (-) lead to terminal 4, and then check that the lever turns to the "DEF" position smoothly.
If the operation is not as specified, replace the air outlet control servo motor.
