Exploded Views
>>
Air Bag
Air Bag
Steering Pad:

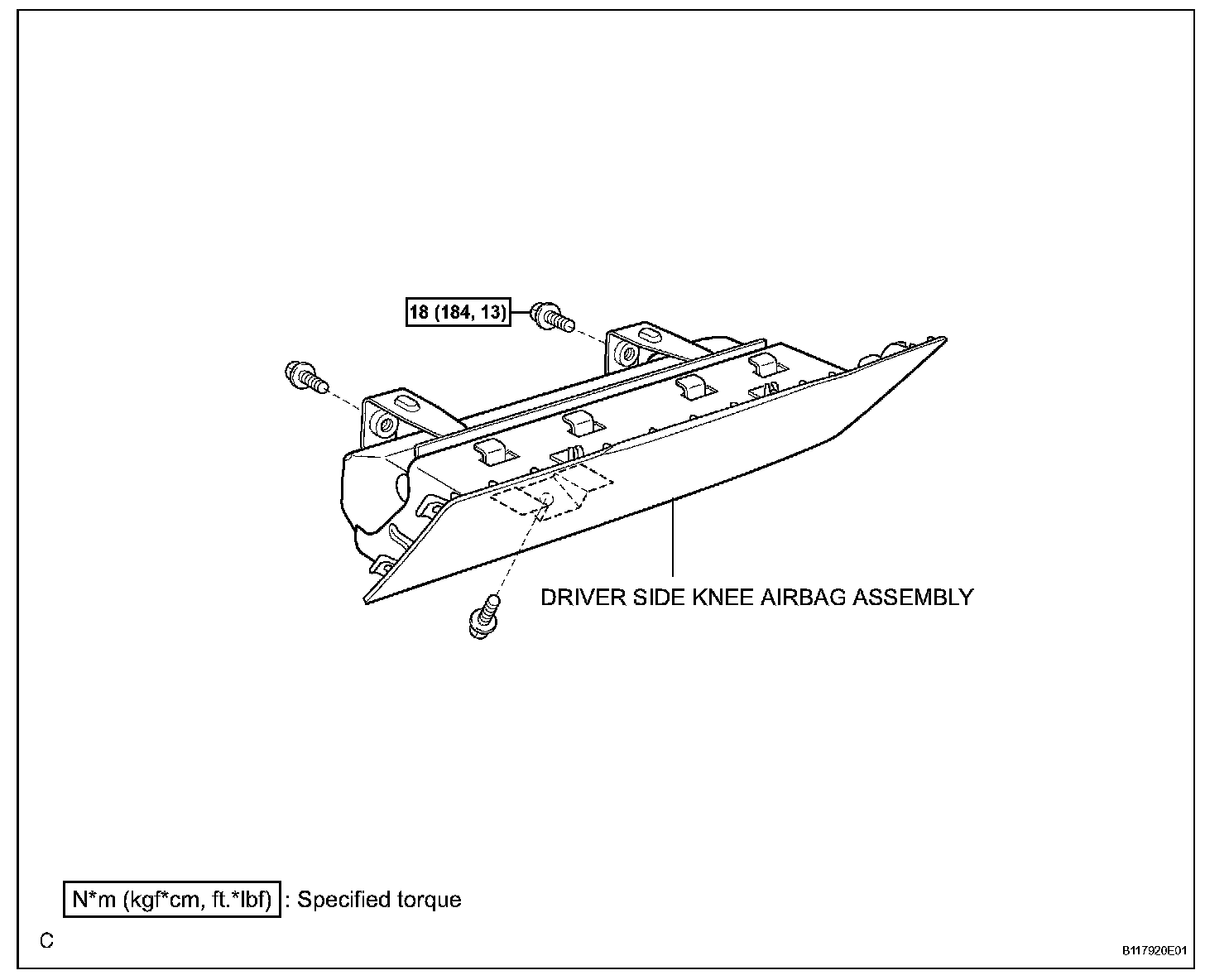

Driver Side Knee Airbag Assembly:

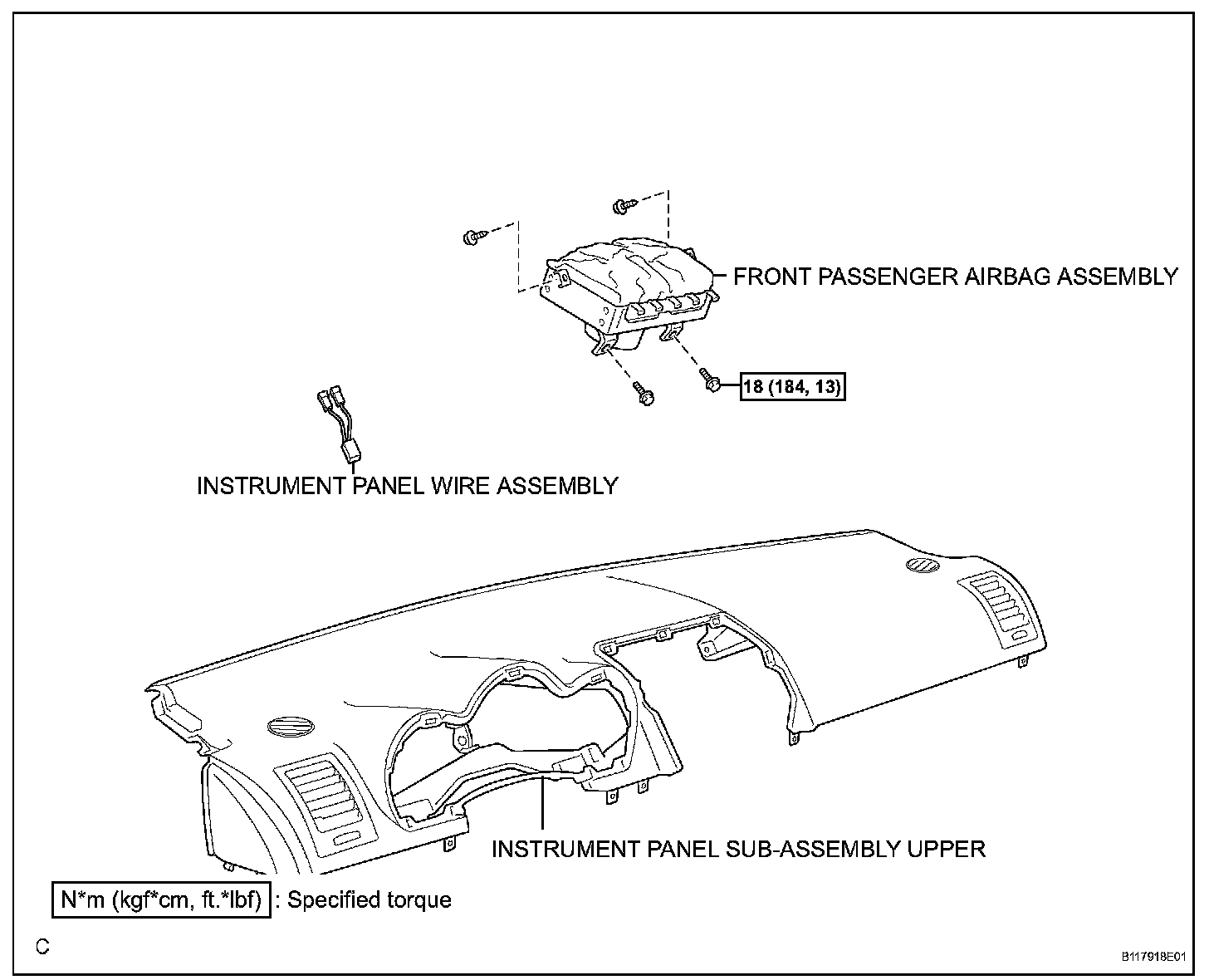

Front Passenger Airbag Assembly:

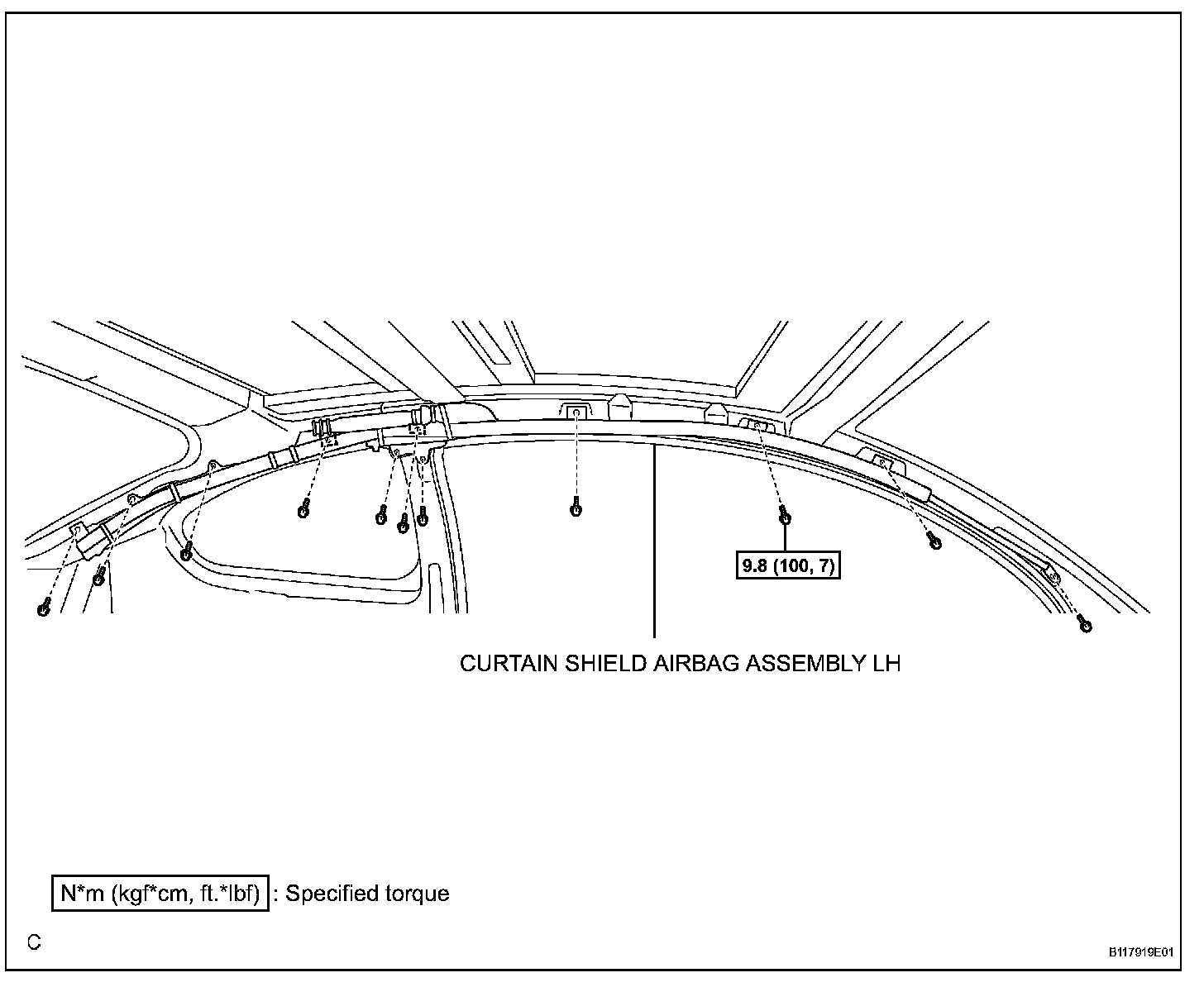

Curtain Shield Airbag Assembly:

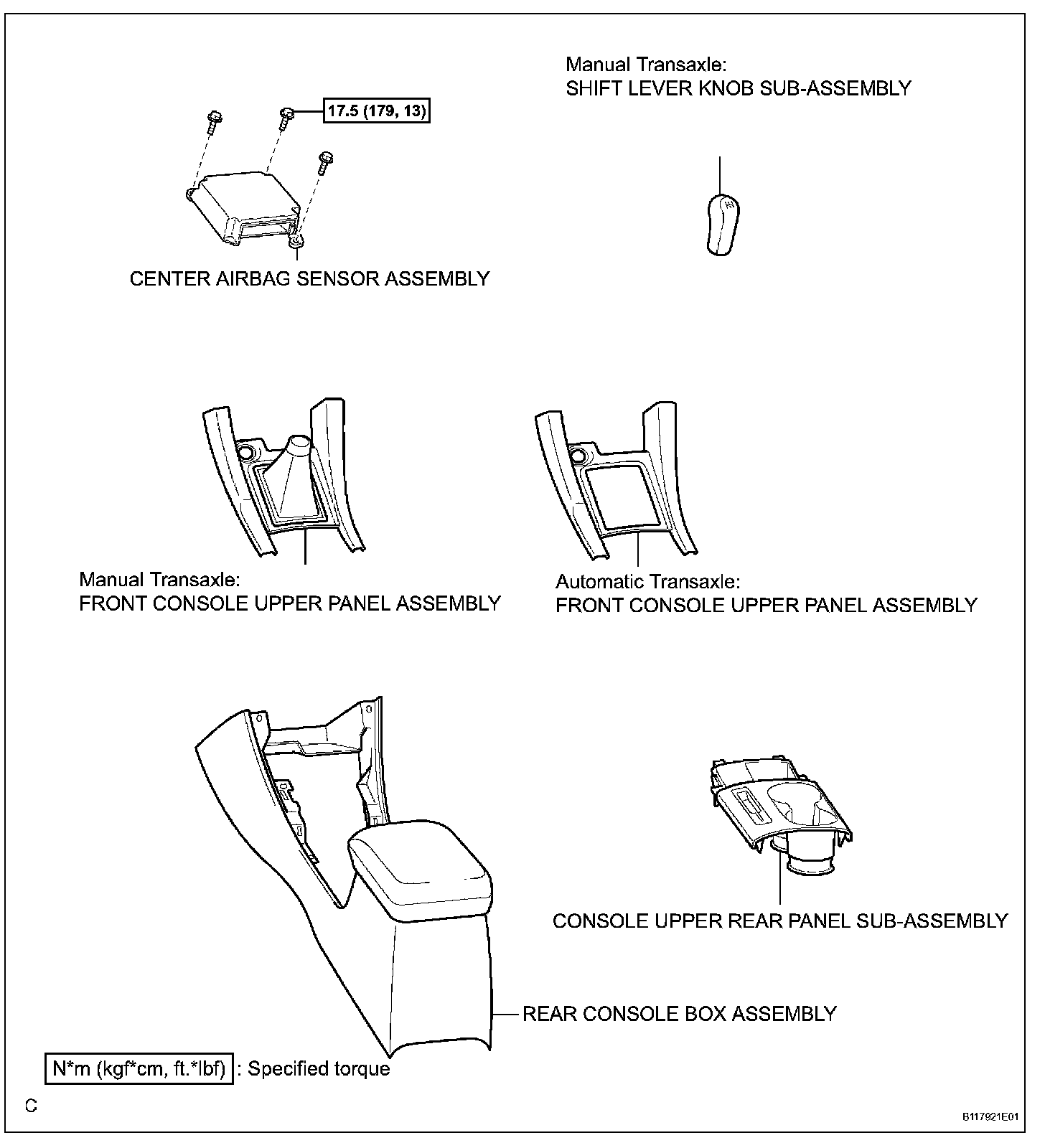

Center Airbag Sensor Assembly:
