Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

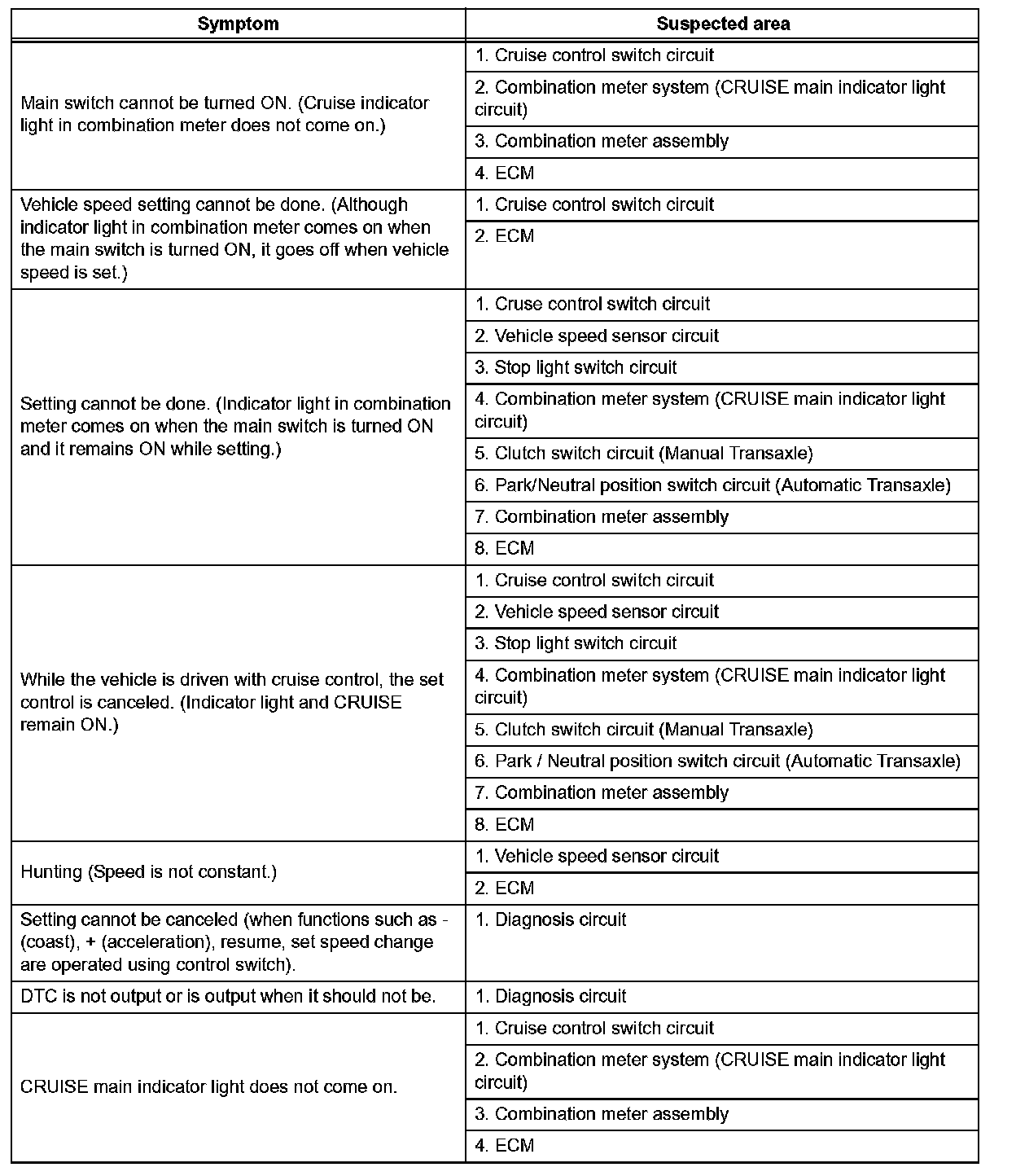

Problem Symptoms Table:

If a normal system code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in the order given in the table below and proceed to the relevant troubleshooting.

HINT: Inspect the fuses and relays before confirming the suspected areas as shown in the table.
Inspect each malfunction circuit in numerical order for the corresponding symptom.
