Road Test

ROAD TEST

HINT: SET and '-', RES and '+', ON-OFF functions share the same switch. Operate the cruise control main switch according to the directions ( ) indicated on the switch.

1. PROBLEM SYMPTOM CONFIRMATION
a. Inspect the SET function.
1. Push the ON-OFF button.
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push down the cruise control main switch to "SET / -".
4. After releasing the switch, check that the vehicle cruises at the set speed.

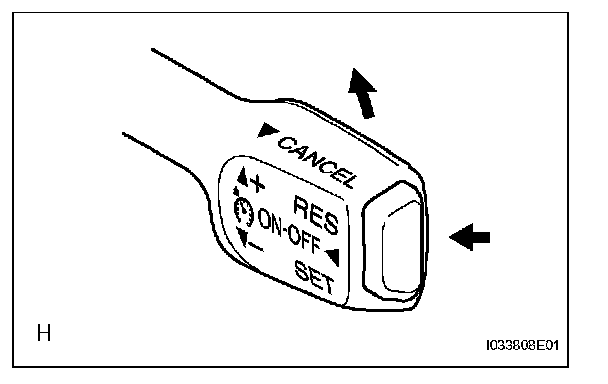

b. Inspect the '+' (ACCEL) function.
1. Push the ON-OFF button on.
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push down the cruise control main switch to "SET / -".
4. Check that vehicle speed increases while the cruise control main switch is pushed up to "RES / +" , and that the vehicle cruises at the newly set speed when the switch is released.
5. Momentarily (approximately 0.6 seconds) push up the cruise control main switch to "RES / +" and then immediately release it. Check that vehicle speed increases by approximately 1.6 km/h (1.0 mph) (Tap-up function).

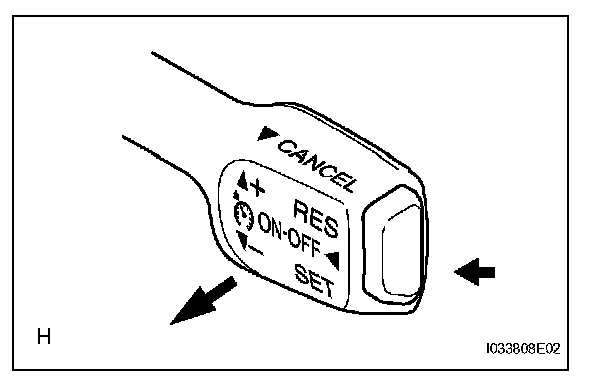

c. Inspect the '-' (COAST) function.
1. Push the ON-OFF button on.
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push down the cruise control main switch to "SET / -".
4. Check that vehicle speed decreases while the cruise control main switch is pushed down to "SET / -", and the vehicle cruises at the newly set speed when the switch is released.
5. Momentarily (approximately 0.6 seconds) push down the cruise control main switch to " SET / -", and then immediately release it. Check that the vehicle speed decreases by approximately 1.6 km/h (1.0 mph) (Tap-down function).

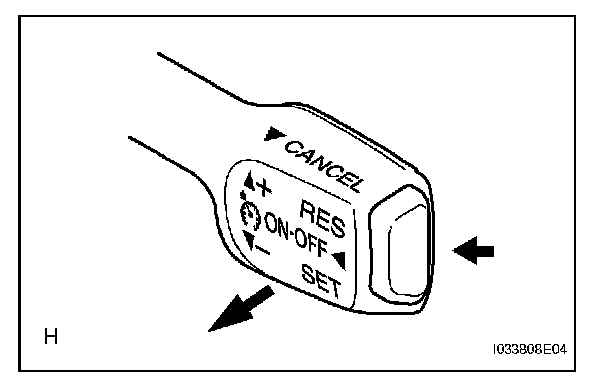

d. Inspect the CANCEL function.
1. Push the ON-OFF button on.
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push down the cruise control main switch to "SET / -".
4. When doing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.
- Depressing the brake pedal
- Depressing the clutch pedal (Manual Transaxle)
- Moving the shift lever from the D position to the N, 2 or L position.
- Pushing the ON-OFF button off
- Pulling the cruise control main switch to CANCEL




e. Inspect the RES (RESUME) function.
1. Push the ON-OFF button on.
2. Drive at the required speed (40 km/h (25 mph) or higher).
3. Push down the cruise control main switch to "SET / -".
4. When doing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.
- Depressing the brake pedal
- Depressing the clutch pedal (manual Transaxle)
- Moving the shift lever from the D position to the N, 2 or L position.
- Pulling the cruise control main switch to CANCEL

5. After pushing the cruise control main switch to "RES / +" at a driving speed of more than 40 km/ h (25 mph), check that the vehicle restores the speed prior to the cancellation.
