Cruise Main Indicator Light Circuit
Cruise Main Indicator Light CircuitDESCRIPTION
When the cruise control main switch is turned off, the cruise control does not operate.

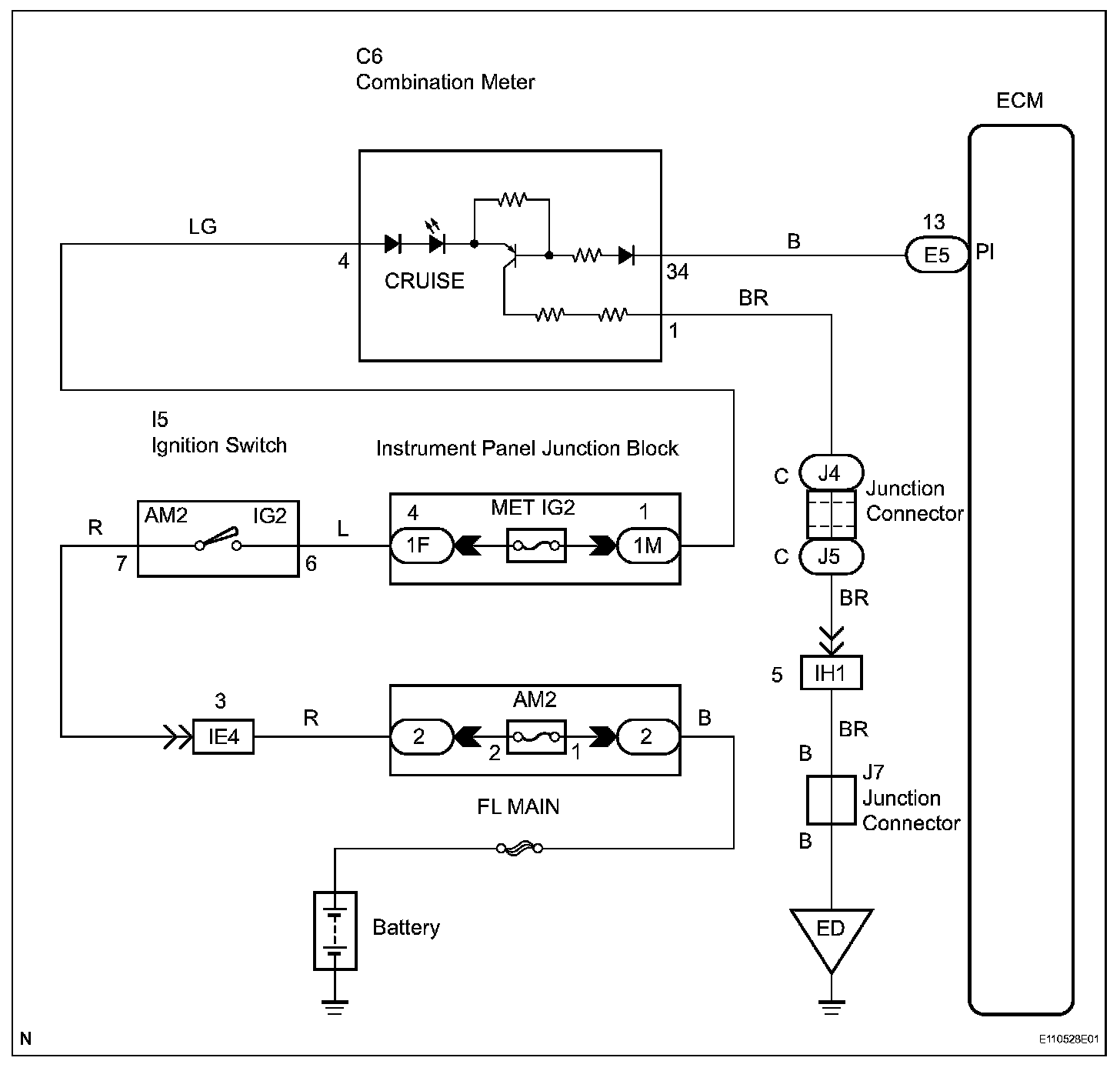

Wiring Diagram:

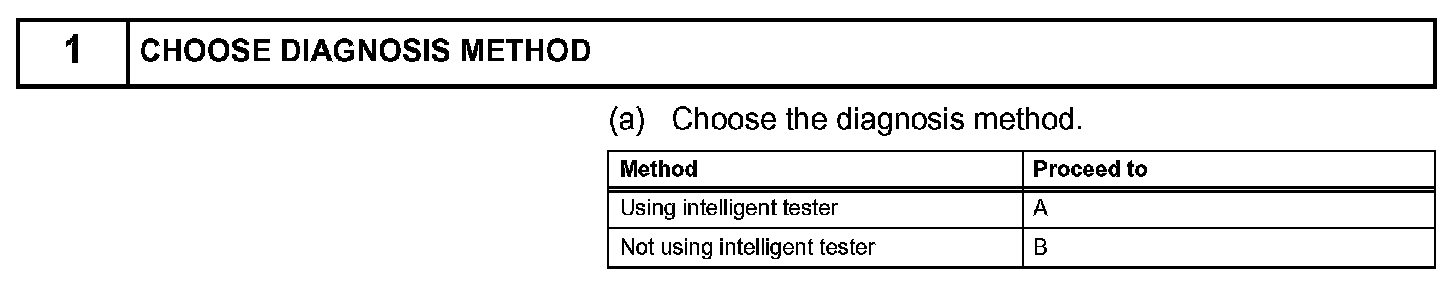

Step 1:
Step 1(continued)-3:
Step 4:

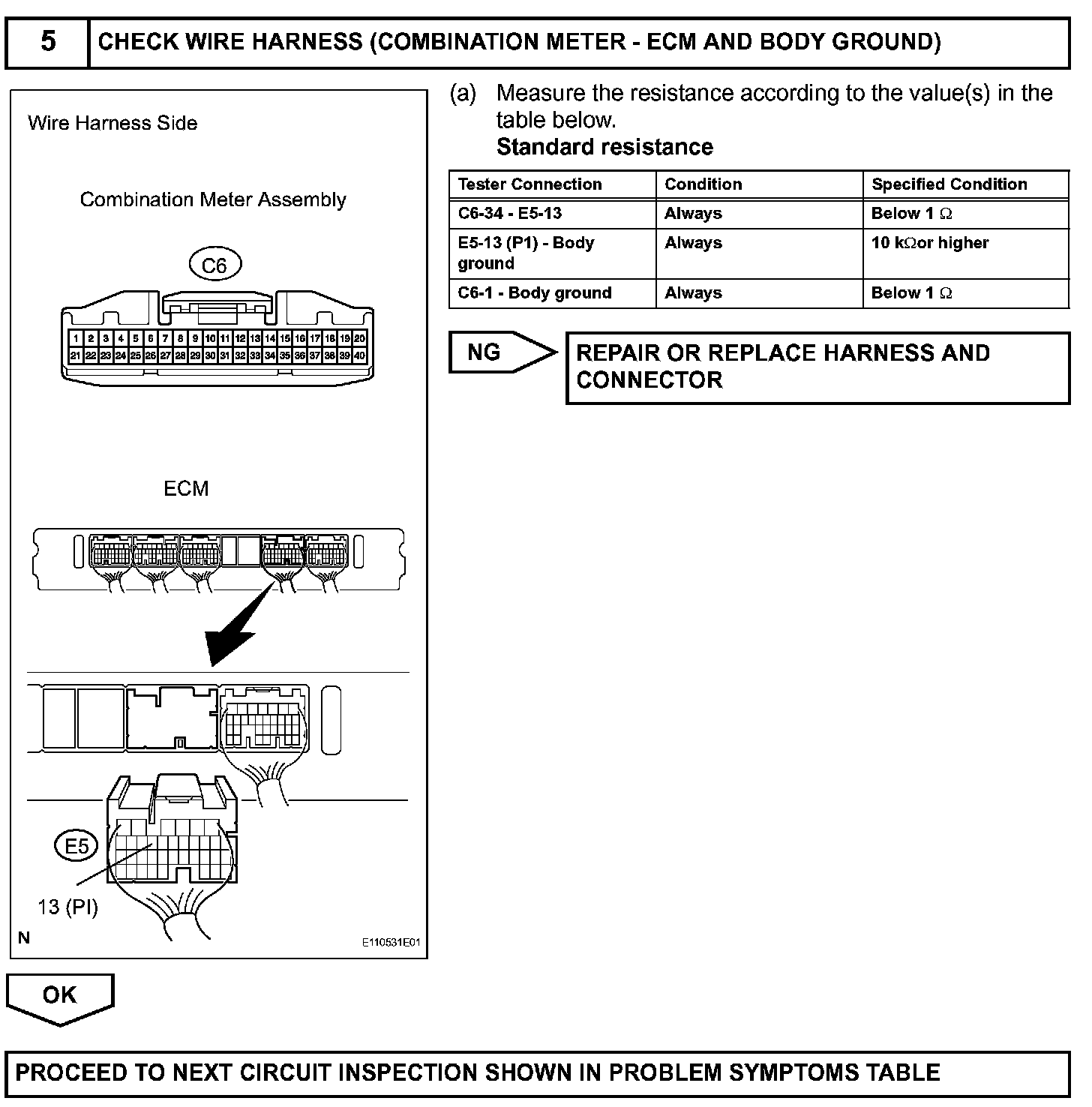

Step 5:
INSPECTION PROCEDURE
