ABS Warning Light Circuit (Does Not Light Up)
ABS Warning Light Circuit (Does Not Light Up)
ABS Warning Light does not Come ON

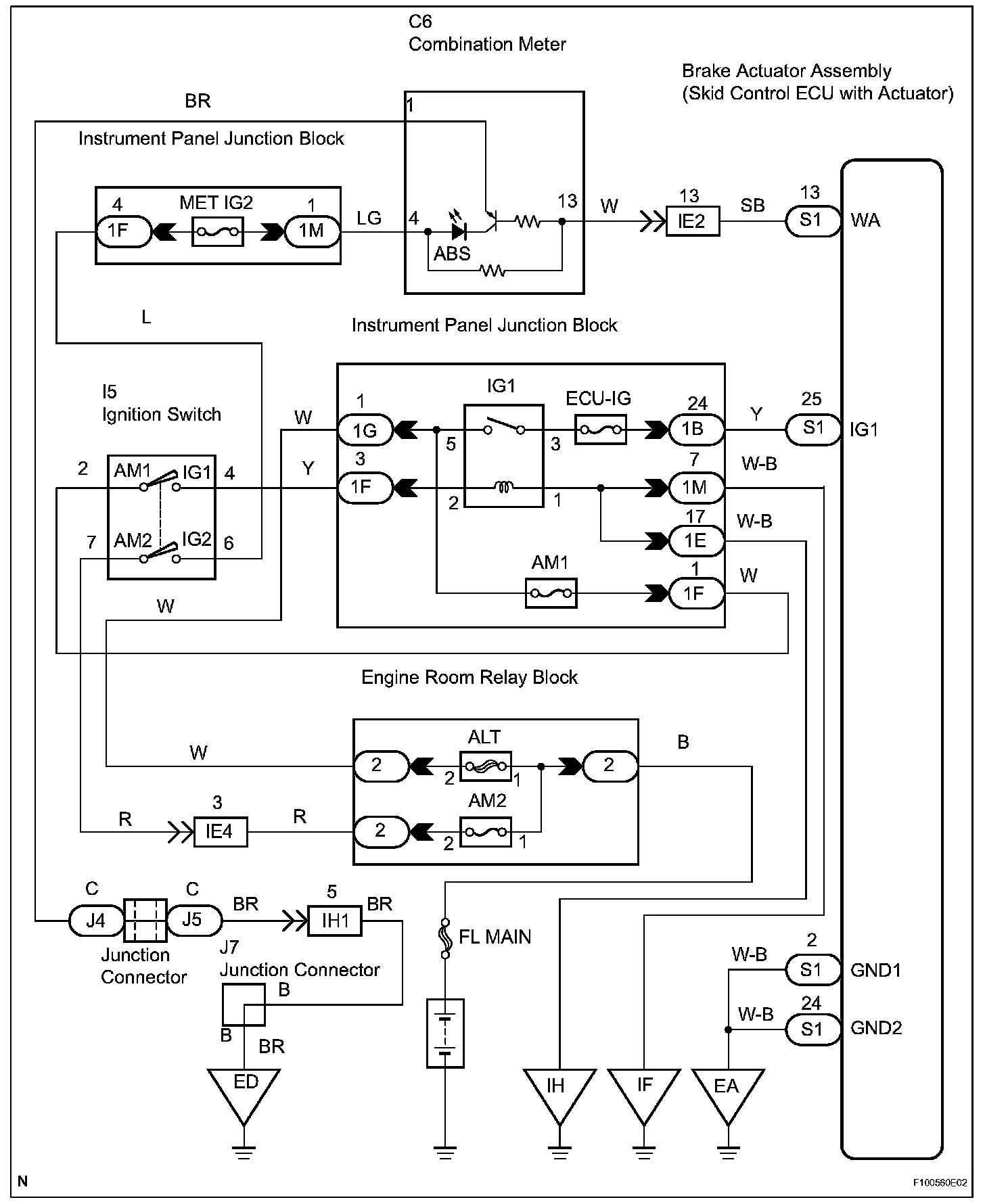

Wiring Diagram:
Step 1:

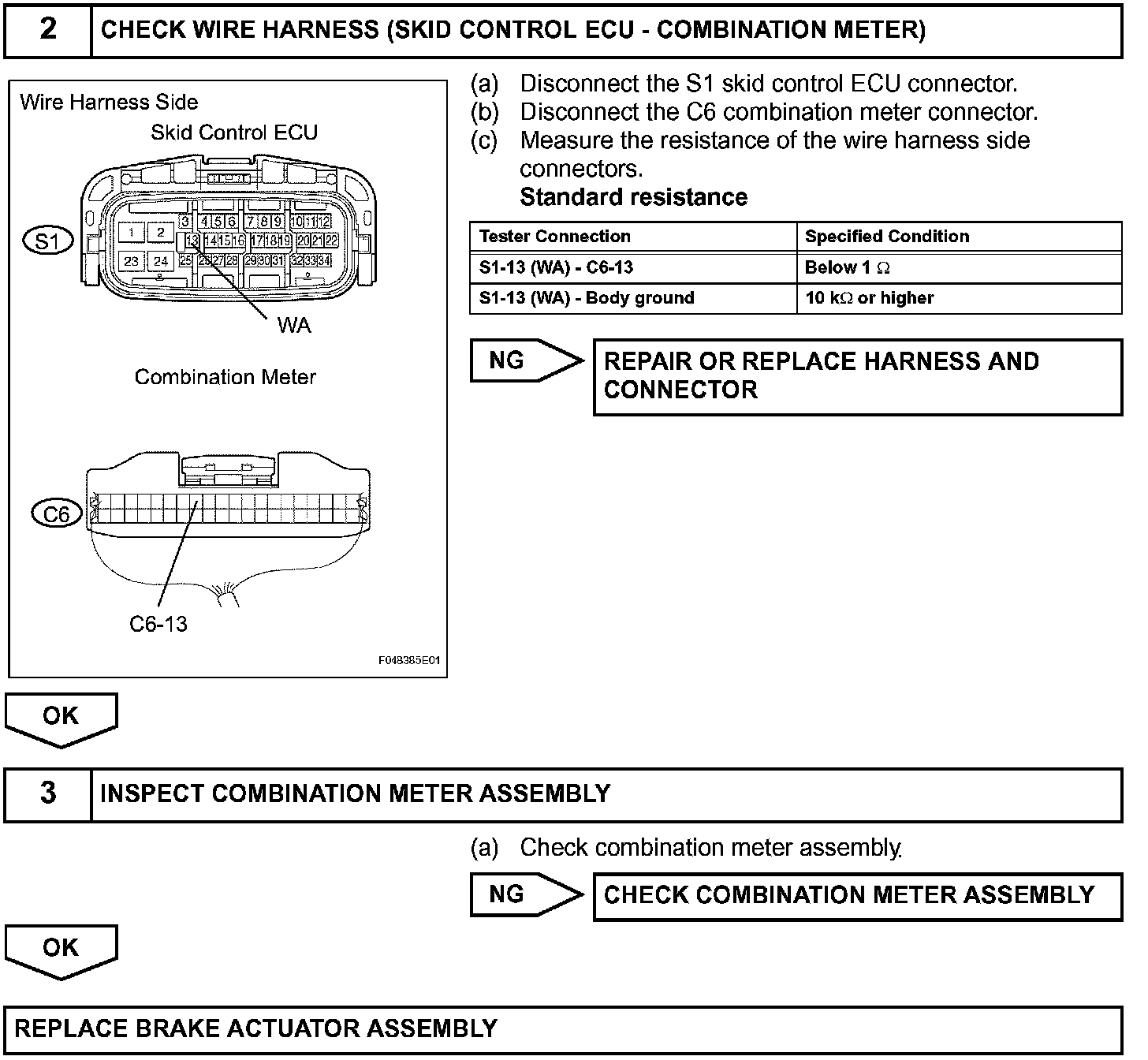

Step 2-3:
INSPECTION PROCEDURE
