Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

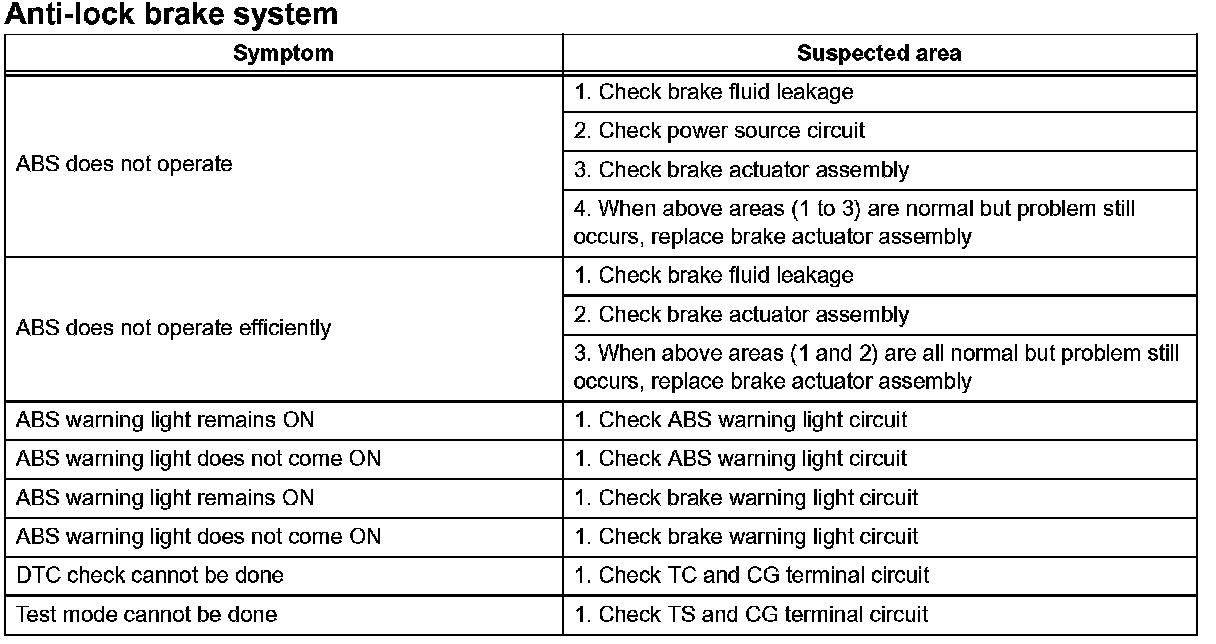

Problem Symptoms Table - Anti-lock Brake System:

If the ABS has a problem even when DTCs are not output, use the table given to identify the potential causes of the symptoms.

NOTE: When replacing the brake actuator assembly or sensor, turn the ignition switch OFF.
