All Doors Cannot Be Locked / Unlocked Simultaneously

All Doors cannot be Locked / Unlocked Simultaneously

DESCRIPTION
The integration relay drives the door lock motors with driver/passenger side door control switch signals, or driver/passenger side door key cylinder signals.

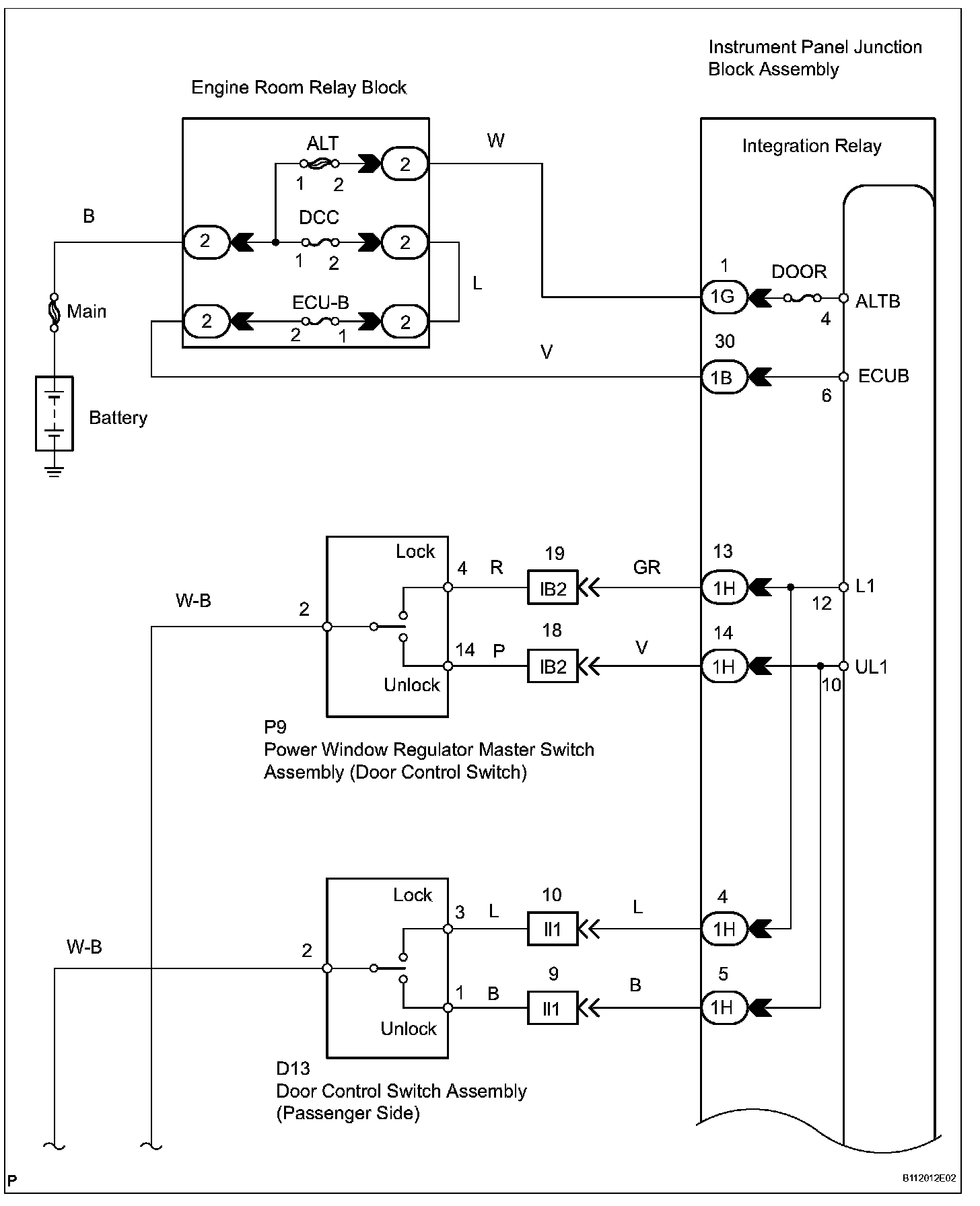

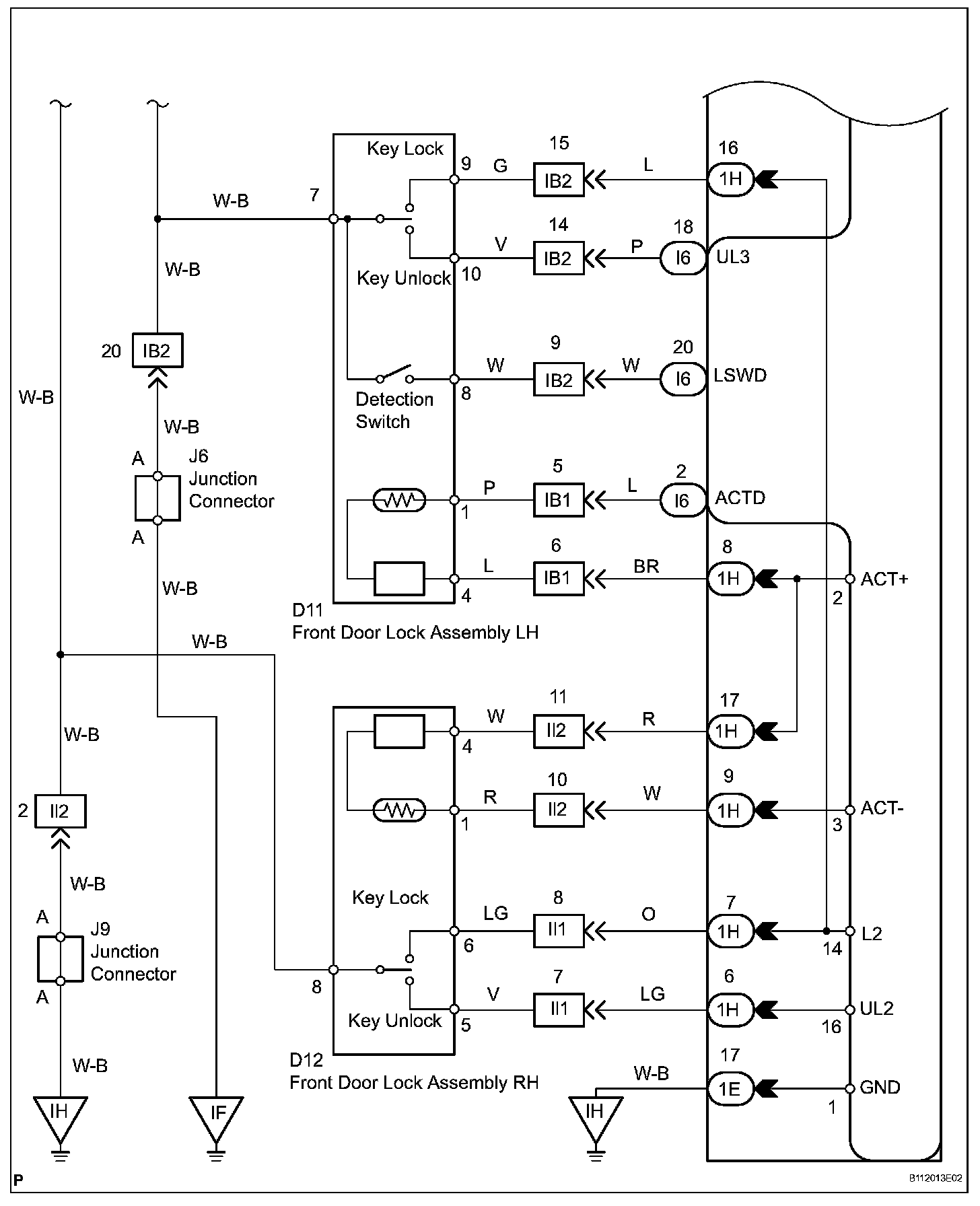

Wiring Diagram (Part 1):

Wiring Diagram (Part 2):

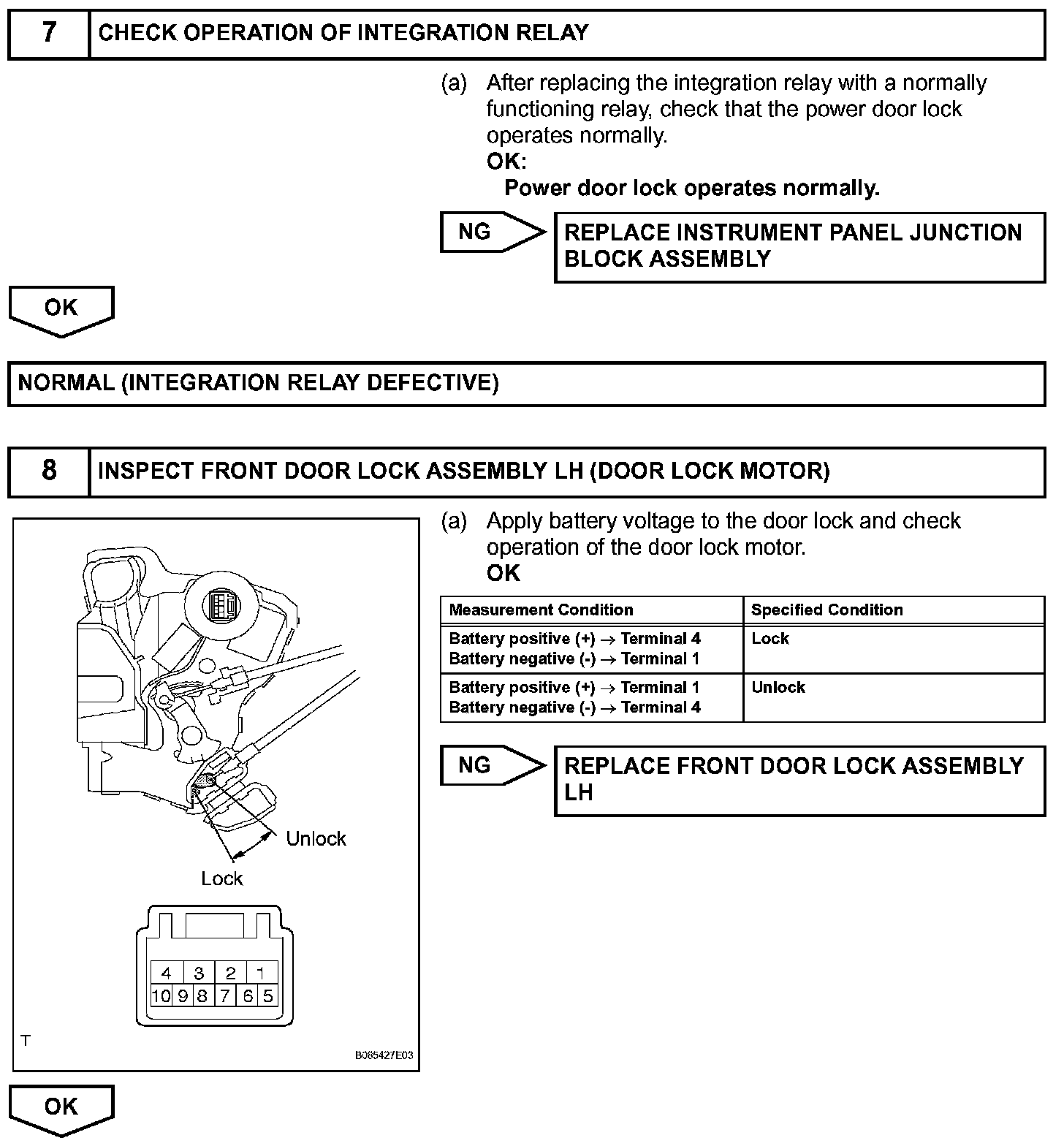

Step 1-2:

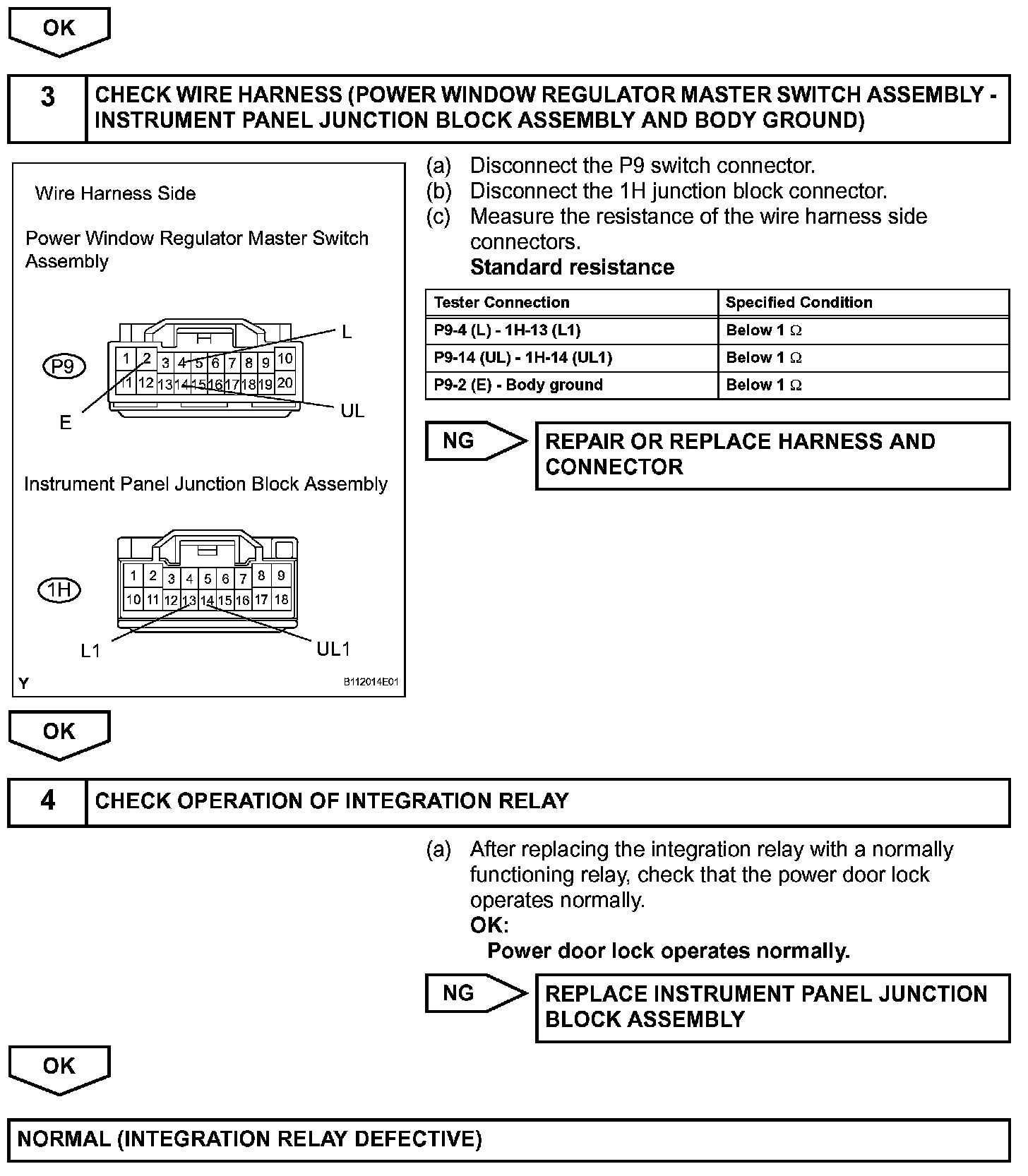

Step 2(continued)-4:

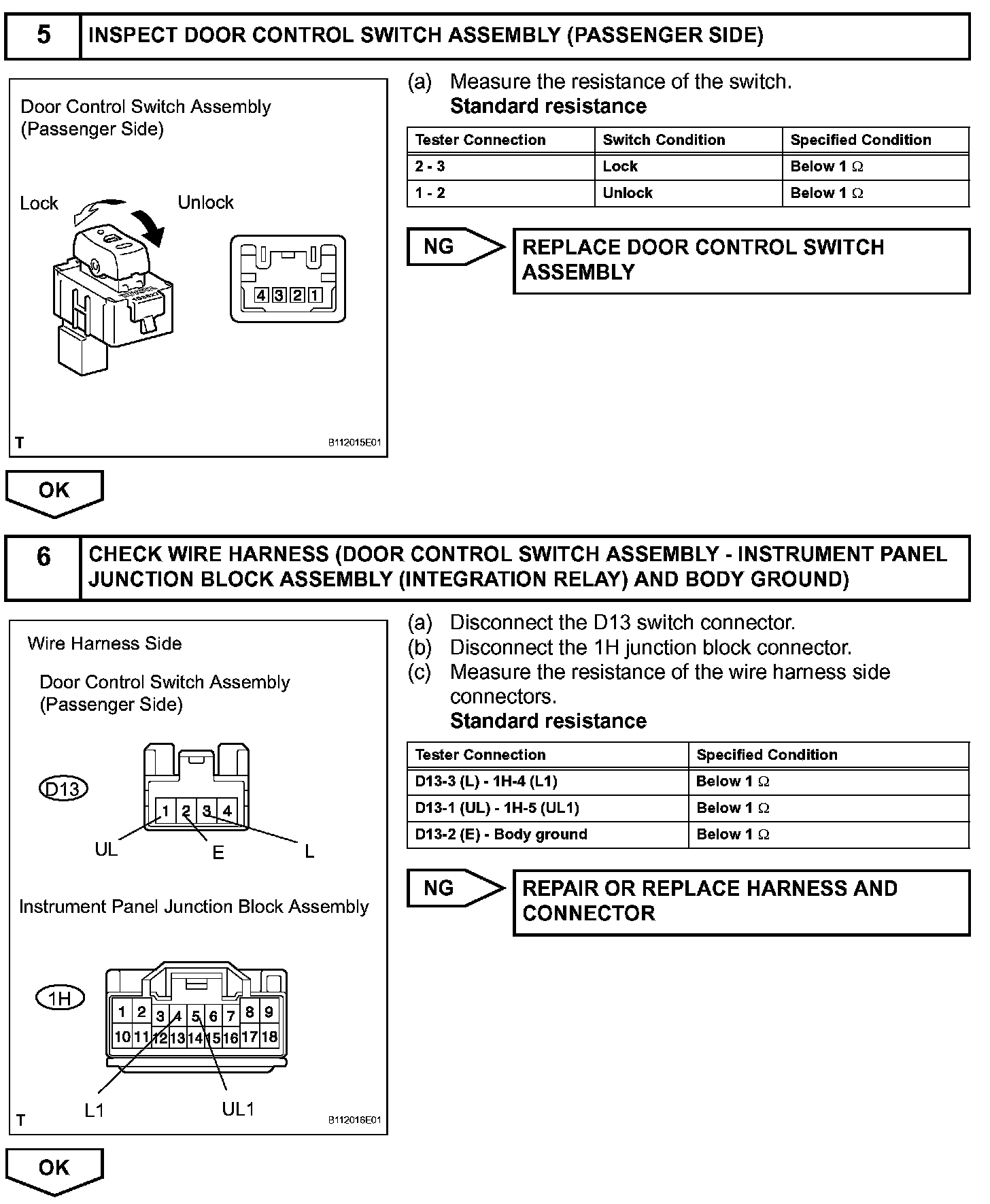

Step 5-6:

Step 7-8:

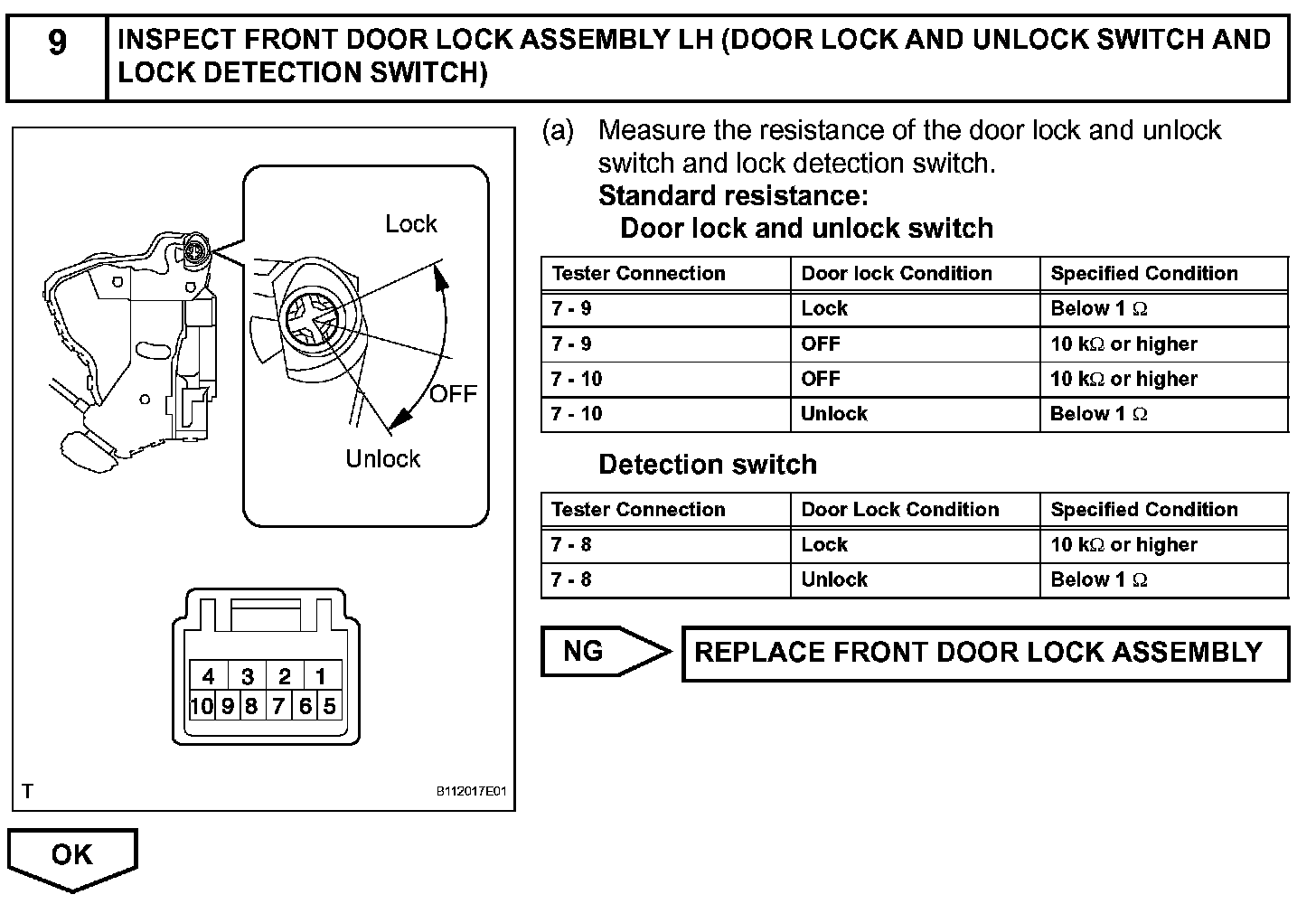

Step 9:

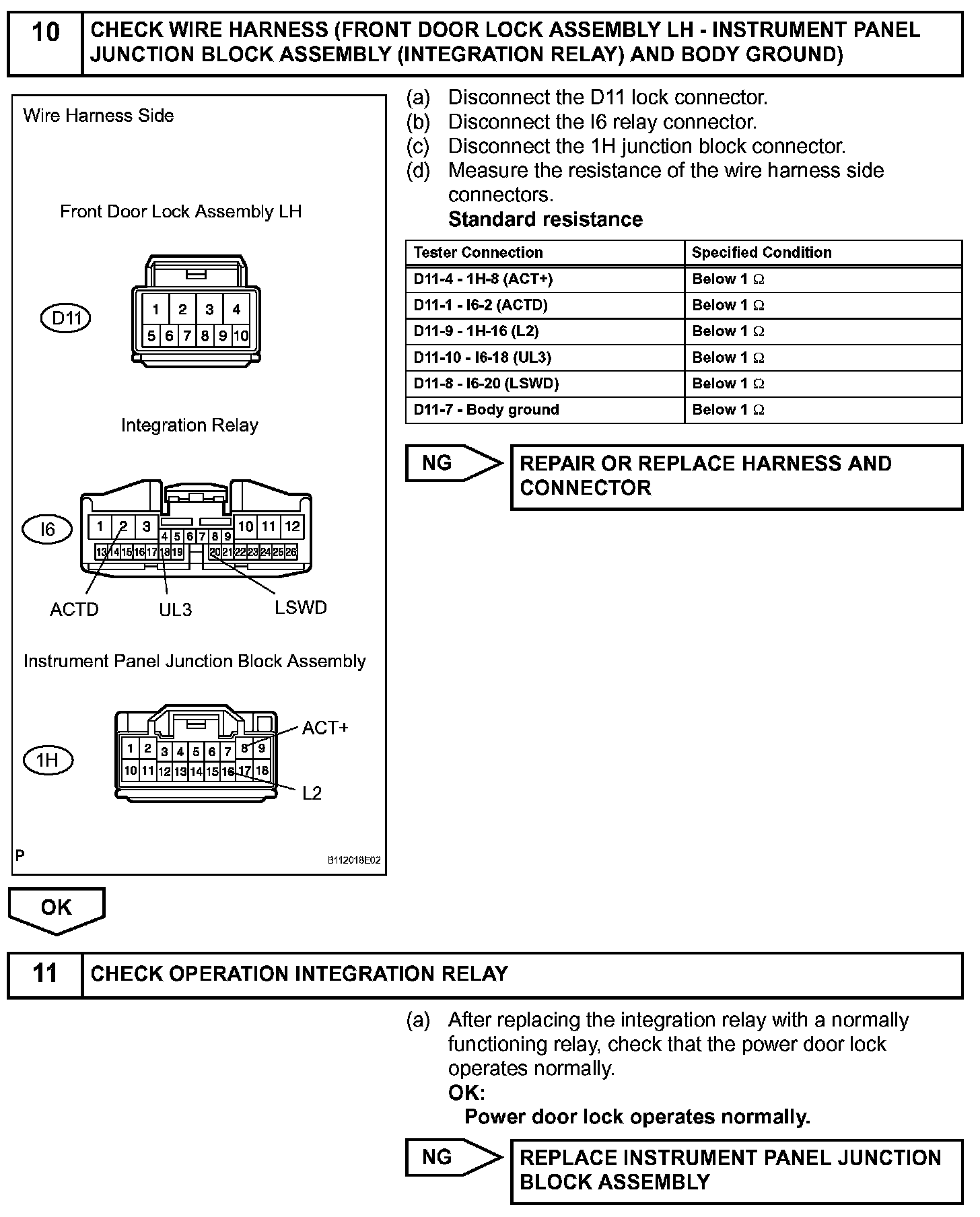

Step 10-11:

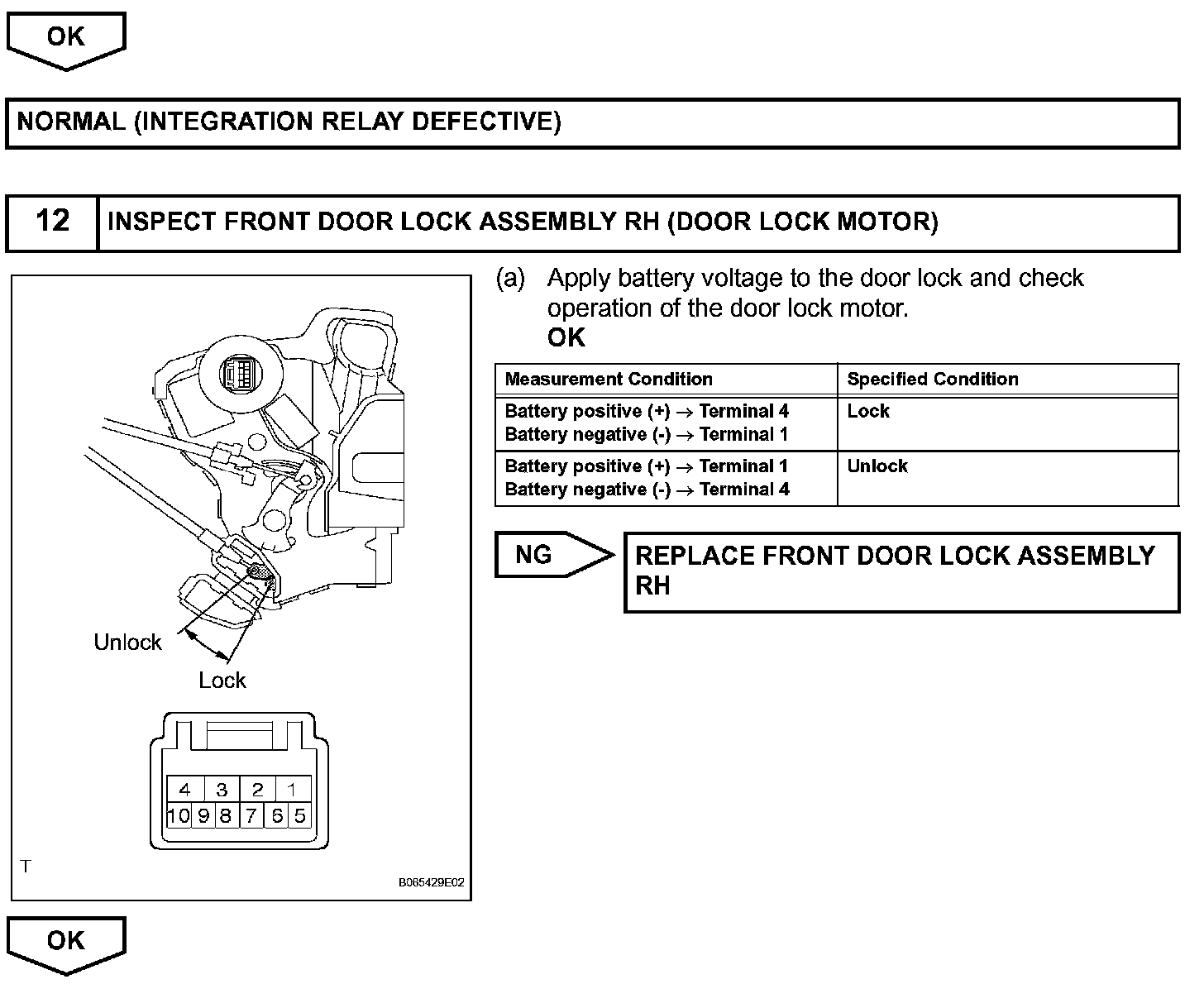

Step 11(continued)-12:

Step 13-14:

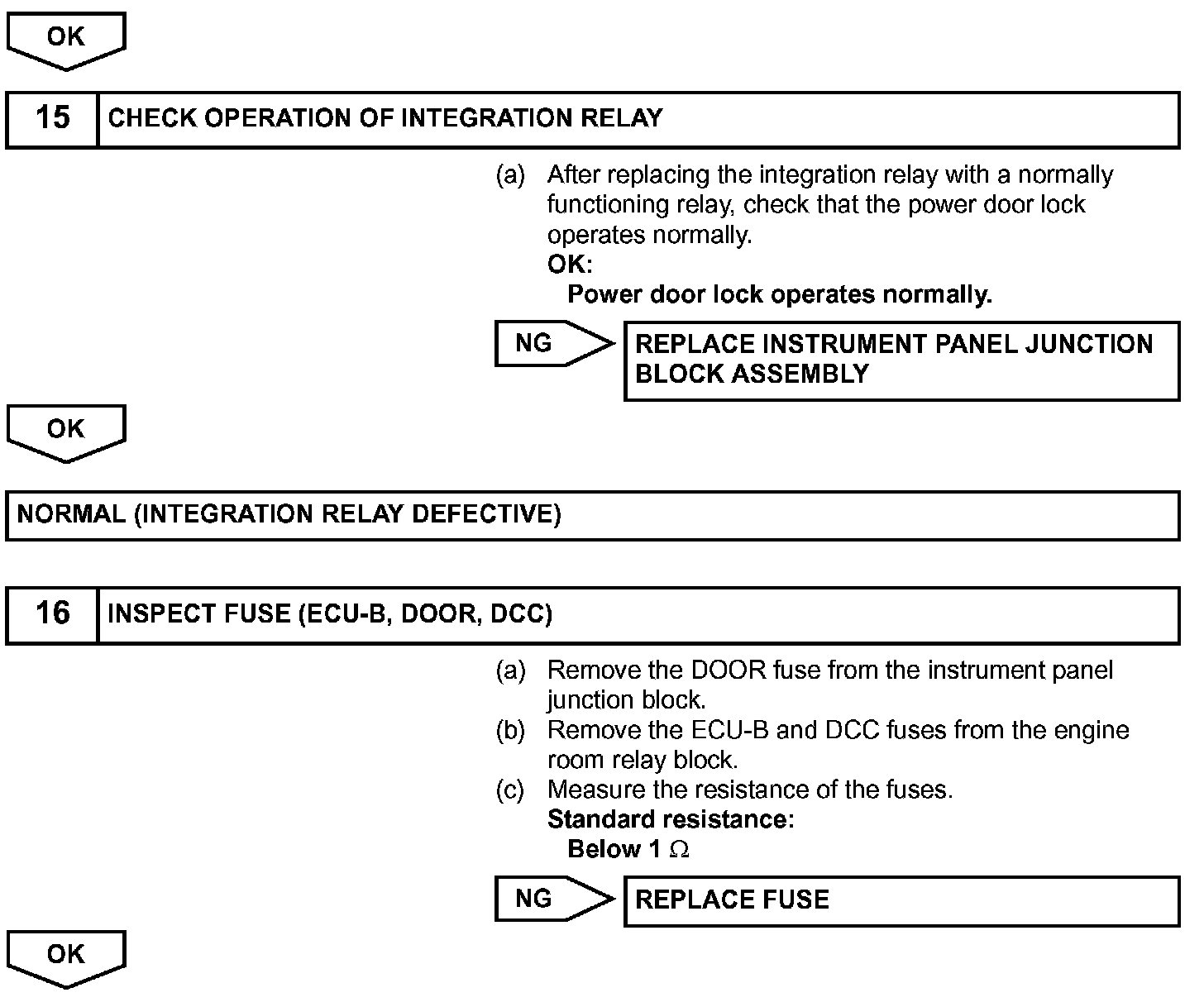

Step 14(continued)-16:

Step 17:

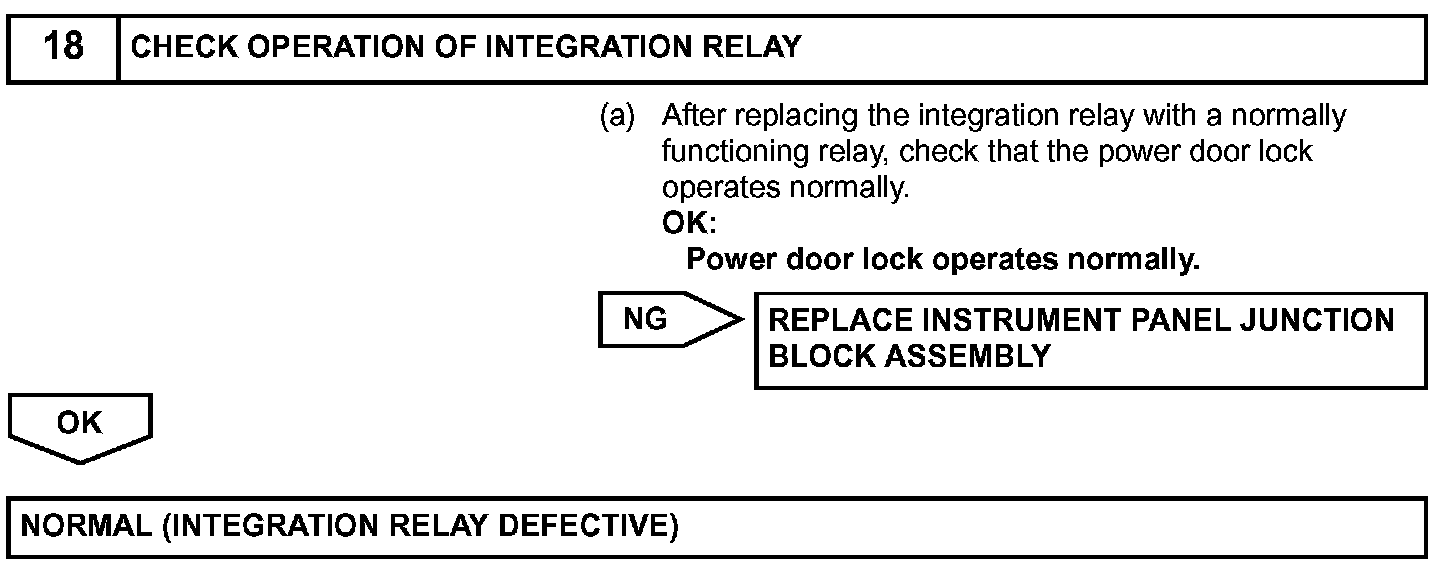

Step 18:

INSPECTION PROCEDURE
